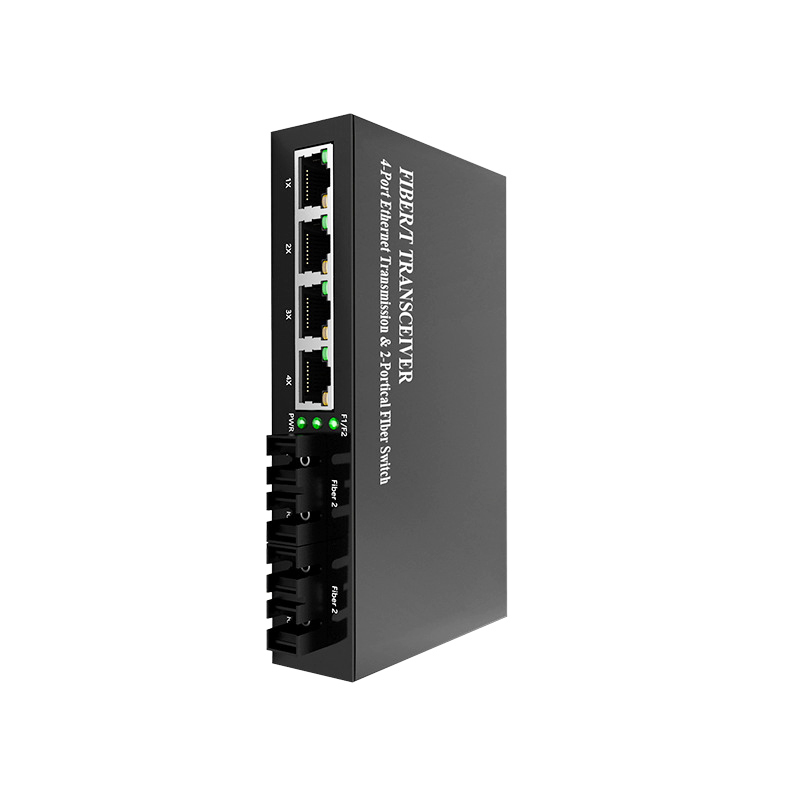

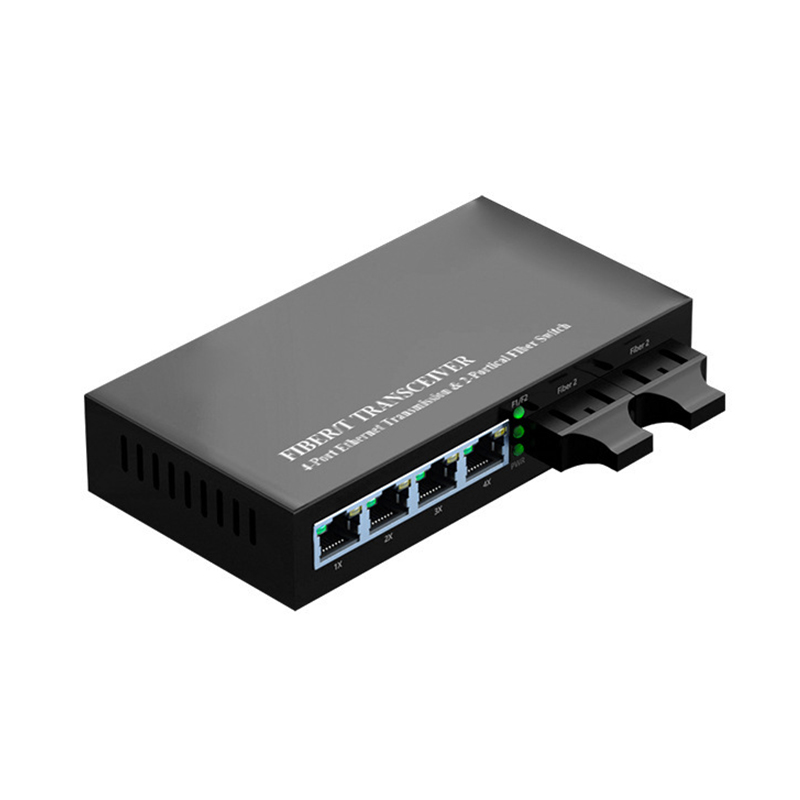

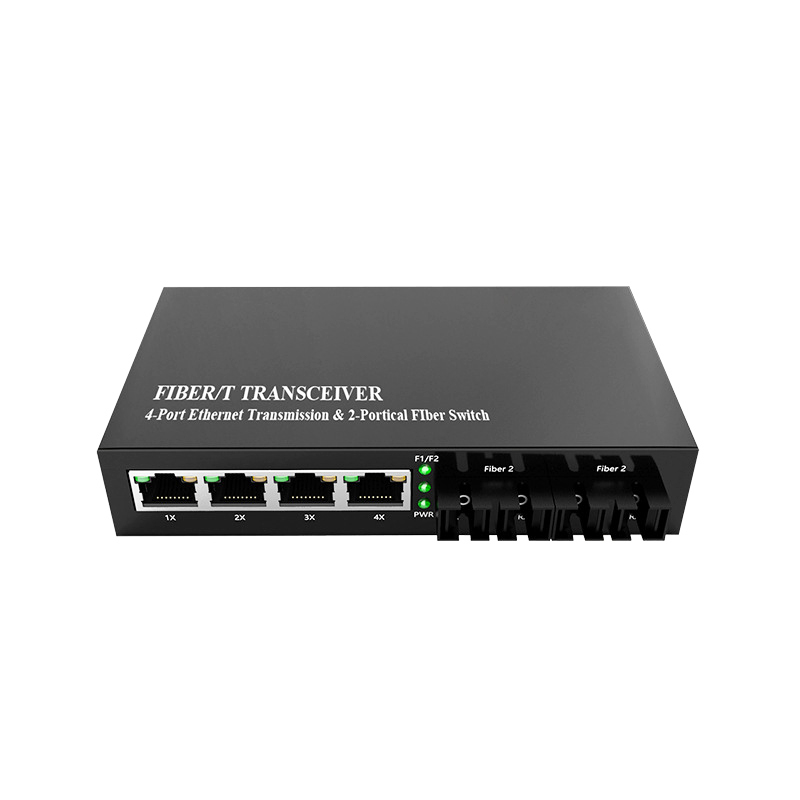

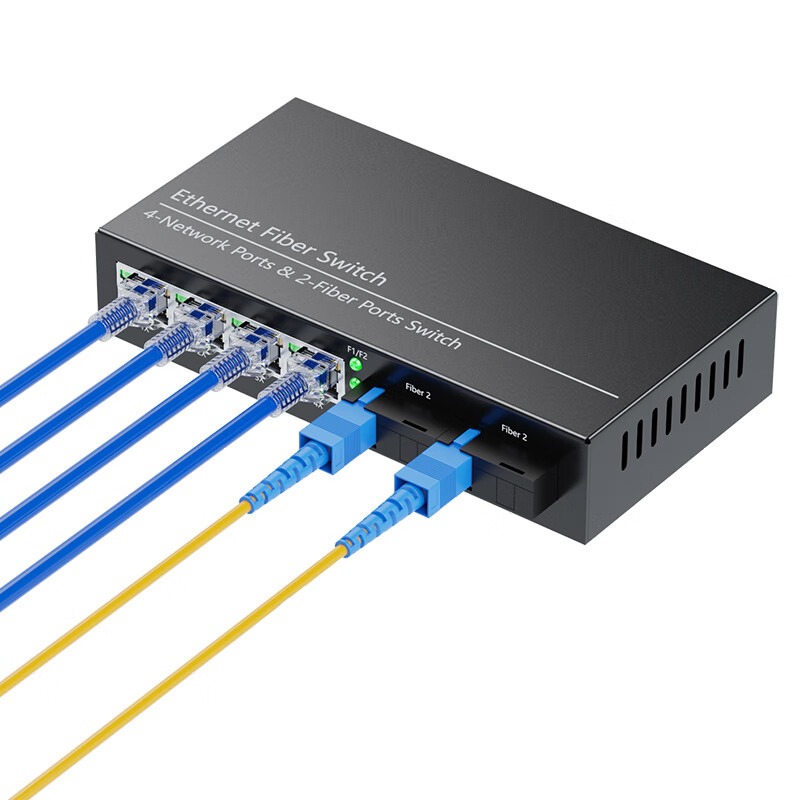

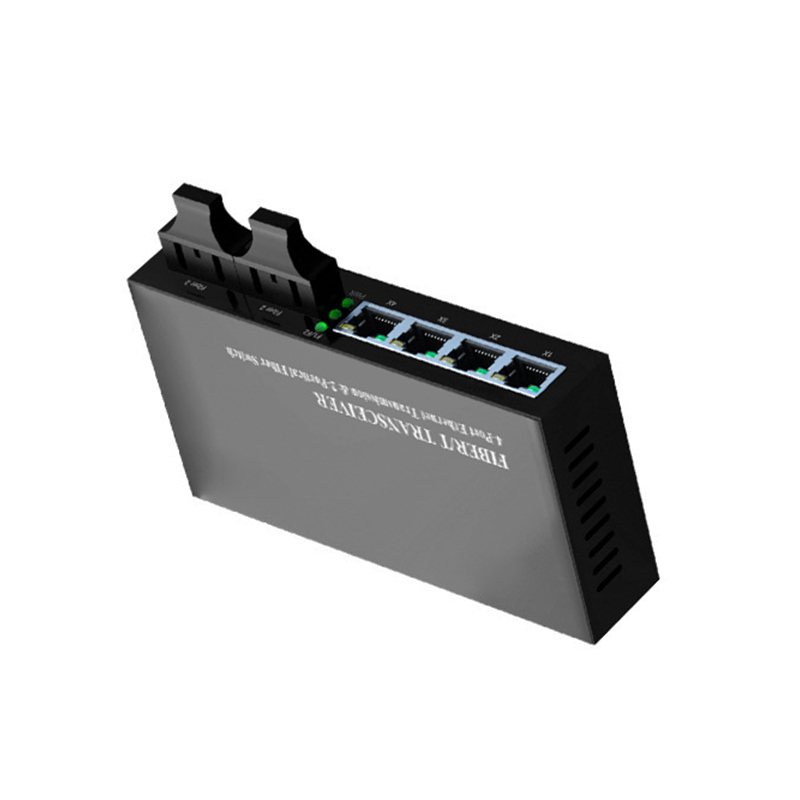

10/100/1000Mbps 4 RJ45 2 SC Single Mode Single Fiber Port Media Converter 0~120km FTTH CCTV

Product Description

Interface view
Device layout

2 Gigabit fiber port with 4*10/100/1000Mbps RJ45 port

Point-to-multipoint high-speed forwarding
Network architecture

Plug-and-play, no need for any configuration

Plug and play diagram

Product dimensions and interface definitions

Dimensions and Interface definition

Application

Application topology
Hardware Specifications
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface
  • 2*1.25Gbps SC optical fiber interface
  • 4*RJ45 10/100/1000Mbps
Distance
  • 100m @CTE5
  • 20km @SMF
Wavelength
  • A: Tx1310nm/Rx1550nm
  • B: Tx1550nm/Rx1310nm
Transmission media
  • Cable: CTE5 or higher UTP and STP
  • Optical Fiber: 9/125um single-mode optical fiber
Optical parameter
  • Average emission power: -9 to -3 dBm
  • Receiving sensitivity: -22 dBm
Power DC12V/2A
Size 128mm*78mm*26mm
Environment
  • Operating temperature: -5℃ to 60℃
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage temperature: -40℃ to 70℃
  • Storage humidity: 5% to 90% RH (non-condensing)
Order Info
RD-GE204 Fiber Switch 10/100/1000MB 2*SC+4*RJ45 AB
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.

FAQ

Q1: What is your MOQ request?
A1: Depends on products, different products have different MOQ.
Q2: Do you Support ODM/OEM service?
A2: Yes, we can offer the customization service to you.
Q3: Does your products support other brands?
A3: Yes, all of our products is without lock, support to another brands too.
Q4: Are you the manufacturer or trading company?
A4: We are the manufacturer, we support factory view tour.
Q5: Do you offer free samples?
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
Q6: Are you able to provide the local certificates?
A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
