| SFP-10G-BX-80U | |||
|---|---|---|---|
| Part No. | SFP-10G-BX-80U | ||
| Form Factor | SFP+ | Max. Data Rate | 10.3125Gbps |
| Wavelength | 1490nm-TX/1550nm-RX | Max. Cable Distance | 80km |
| Connector | Simplex LC | Optical Components | EML BiDi |
| Media | SMF | DOM Support | Yes |
| TX Power | 0~5dBm | Receiver Sensitivity | <-21dBm |
| Commercial Temp Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
| SFP-10G-BX-80D | |||
|---|---|---|---|

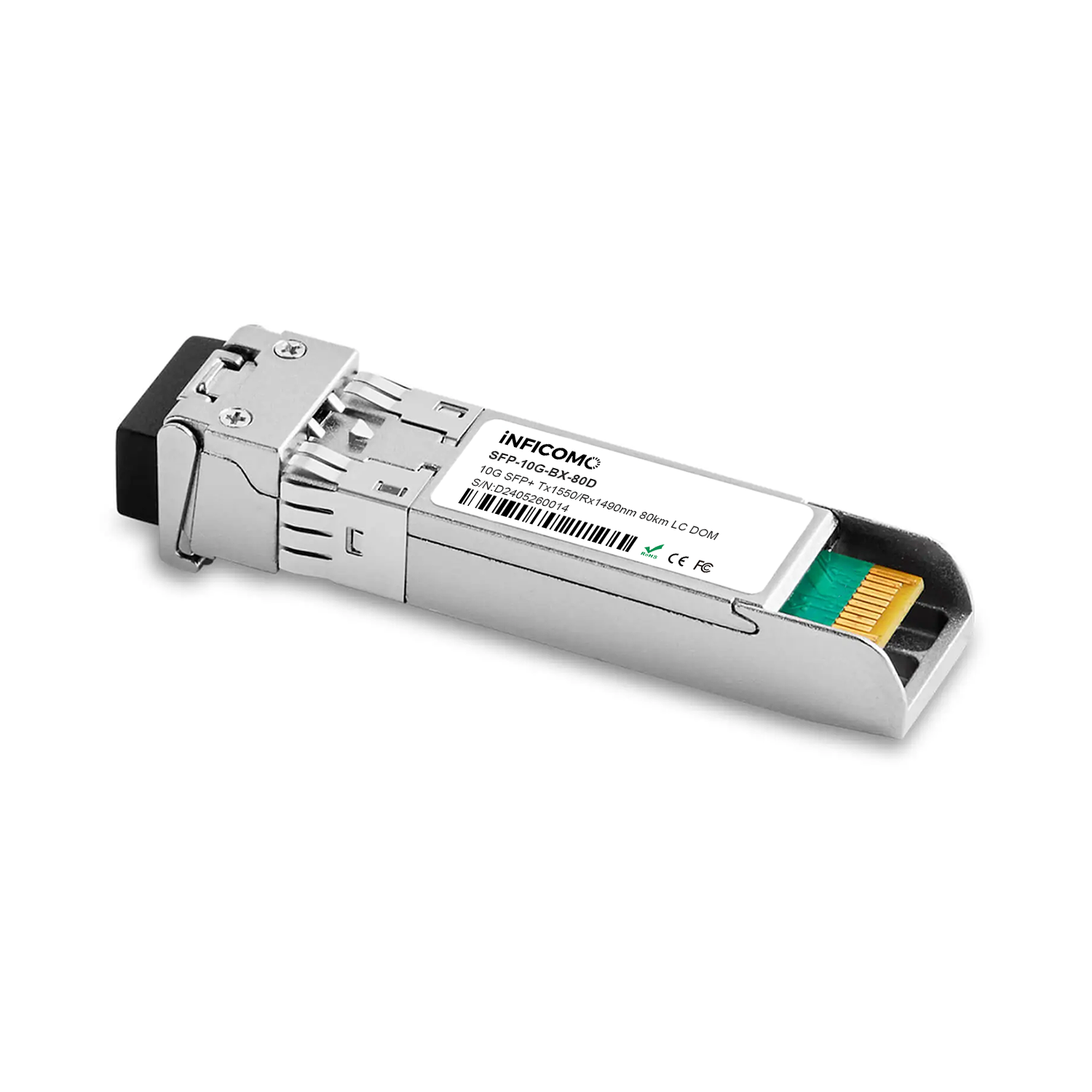

| Part No. | SFP-10G-BX-80D | ||
| Form Factor | SFP+ | Max. Data Rate | 10.3125Gbps |
| Wavelength | 1550nm-TX/1490nm-RX | Max. Cable Distance | 80km |
| Connector | Simplex LC | Optical Components | EML BiDi |
| Media | SMF | DOM Support | Yes |
| TX Power | 0~5dBm | Receiver Sensitivity | <-21dBm |
| Commercial Temp Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
| Model | Introduction |
|---|---|
| SFP-10G-BX-10U | 10G SFP+ BiDi Tx1270/Rx1330nm 10km LC DOM |
| SFP-10G-BX-10D | 10G SFP+ BiDi Tx1330/Rx1270nm 10km LC DOM |
| SFP-10G-BX-20U | 10G SFP+ BiDi Tx1270/Rx1330nm 20km LC DOM |
| SFP-10G-BX-20D | 10G SFP+ BiDi Tx1330/Rx1270nm 20km LC DOM |
| SFP-10G-BX-40U | 10G SFP+ BiDi Tx1270/Rx1330nm 40km LC DOM |
| SFP-10G-BX-40D | 10G SFP+ BiDi Tx1330/Rx1270nm 40km LC DOM |
| SFP-10G-BX-60U | 10G SFP+ BiDi Tx1270/Rx1330nm 60km LC DOM |
| SFP-10G-BX-60D | 10G SFP+ BiDi Tx1330/Rx1270nm 60km LC DOM |
| SFP-10G-BX-80U | 10G SFP+ BiDi Tx1490/Rx1550nm 80km LC DOM |
| SFP-10G-BX-80D | 10G SFP+ BiDi Tx1550/Rx1490nm 80km LC DOM |
| SFP-10G-BX-100U | 10G SFP+ BiDi Tx1490/Rx1550nm 100km LC DOM |
| SFP-10G-BX-100D | 10G SFP+ BiDi Tx1550/Rx1490nm 100km LC DOM |
