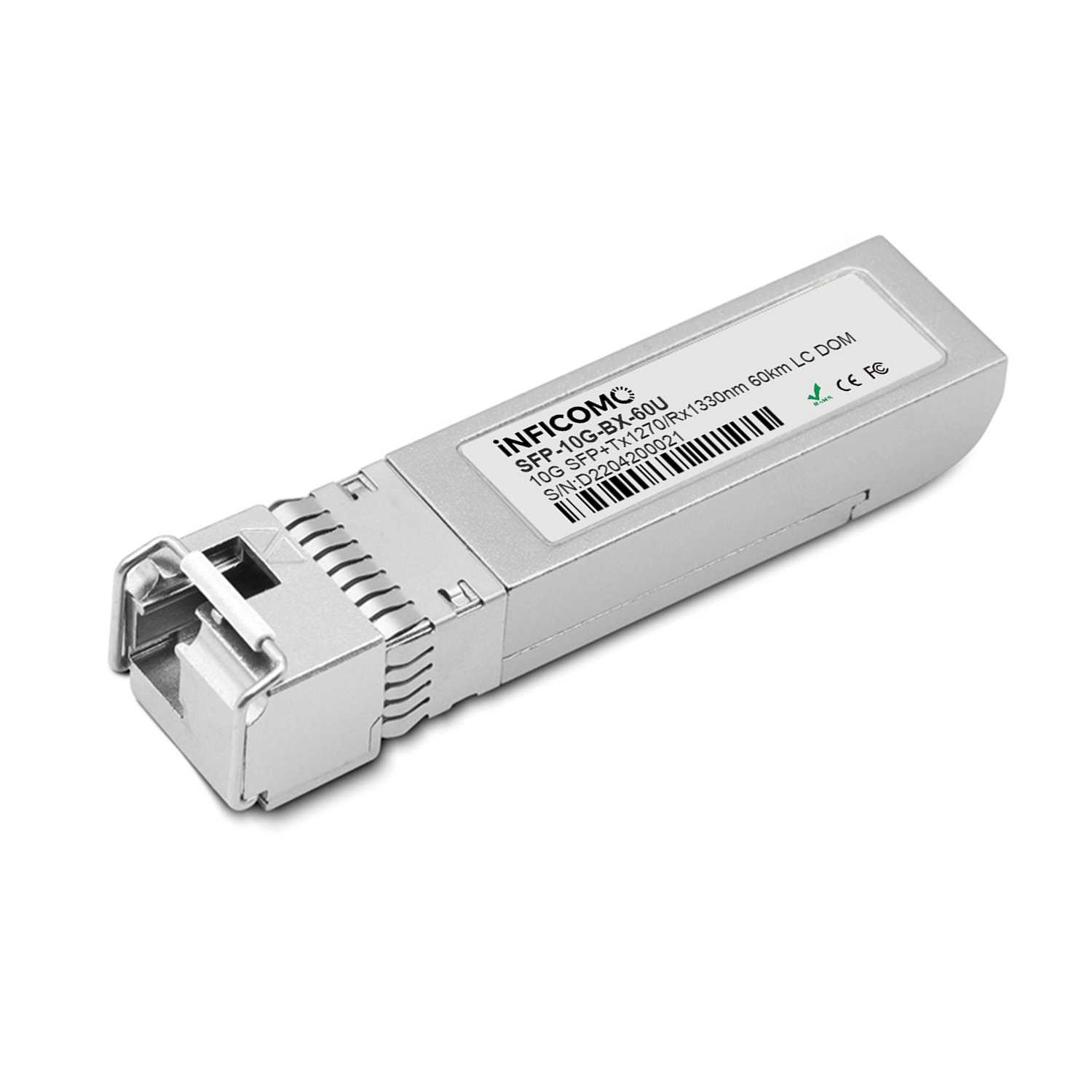

| Part No. | SFP-10G-BX-60U |
| Form Factor | SFP+ |
| Wavelength | 1270nm-TX/1330nm-RX |
| Connector | Simplex LC |
| Media | SMF |
| TX Power | 1~6dBm |
| Max. Data Rate | 10.3125Gbps |
| Max. Cable Distance | 60KM |
| Optical Components | DFB BiDi |
| DOM Support | Yes |
| Receiver Sensitivity | <-20dBm |
| Commercial Temp Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFP+ MSA, SFF-8431, SFF-8472, CPRI |

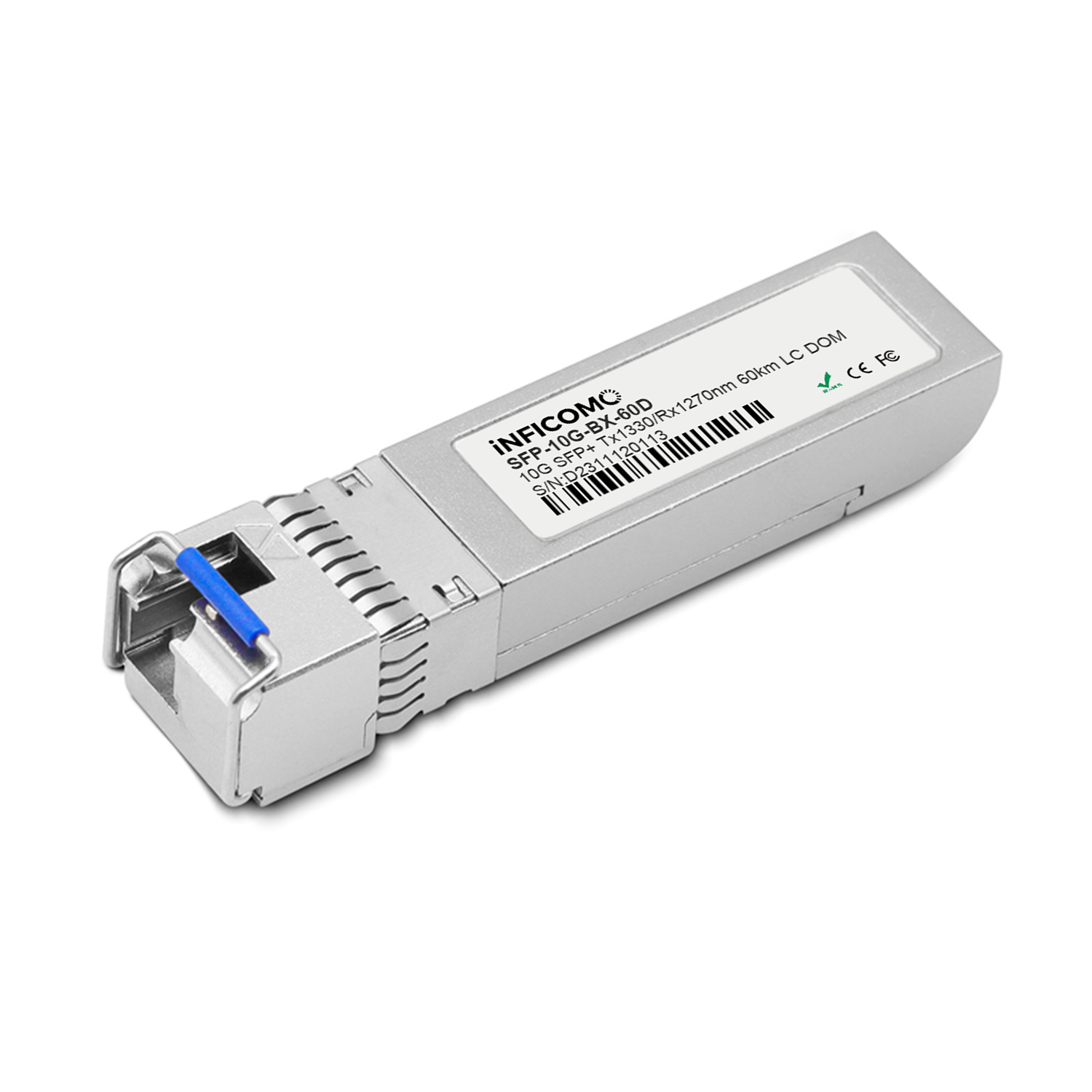

| Part No. | SFP-10G-BX-60D |
| Form Factor | SFP+ |
| Wavelength | 1330nm-TX/1270nm-RX |
| Connector | Simplex LC |
| Media | SMF |
| TX Power | 1~6dBm |
| Max. Data Rate | 10.3125Gbps |
| Max. Cable Distance | 60KM |
| Optical Components | DFB BiDi |
| DOM Support | Yes |
| Receiver Sensitivity | <-20dBm |
| Commercial Temp Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFP+ MSA, SFF-8431, SFF-8472, CPRI |
| Model | Introduction |
|---|---|
| SFP-10G-BX-10U | 10G SFP+ BiDi Tx1270/Rx1330nm 10km LC DOM |
| SFP-10G-BX-10D | 10G SFP+ BiDi Tx1330/Rx1270nm 10km LC DOM |
| SFP-10G-BX-20U | 10G SFP+ BiDi Tx1270/Rx1330nm 20km LC DOM |
| SFP-10G-BX-20D | 10G SFP+ BiDi Tx1330/Rx1270nm 20km LC DOM |
| SFP-10G-BX-40U | 10G SFP+ BiDi Tx1270/Rx1330nm 40km LC DOM |
| SFP-10G-BX-40D | 10G SFP+ BiDi Tx1330/Rx1270nm 40km LC DOM |
| SFP-10G-BX-60U | 10G SFP+ BiDi Tx1270/Rx1330nm 60km LC DOM |
| SFP-10G-BX-60D | 10G SFP+ BiDi Tx1330/Rx1270nm 60km LC DOM |
| SFP-10G-BX-80U | 10G SFP+ BiDi Tx1490/Rx1550nm 80km LC DOM |
| SFP-10G-BX-80D | 10G SFP+ BiDi Tx1550/Rx1490nm 80km LC DOM |
| SFP-10G-BX-100U | 10G SFP+ BiDi Tx1490/Rx1550nm 100km LC DOM |
| SFP-10G-BX-100D | 10G SFP+ BiDi Tx1550/Rx1490nm 100km LC DOM |
