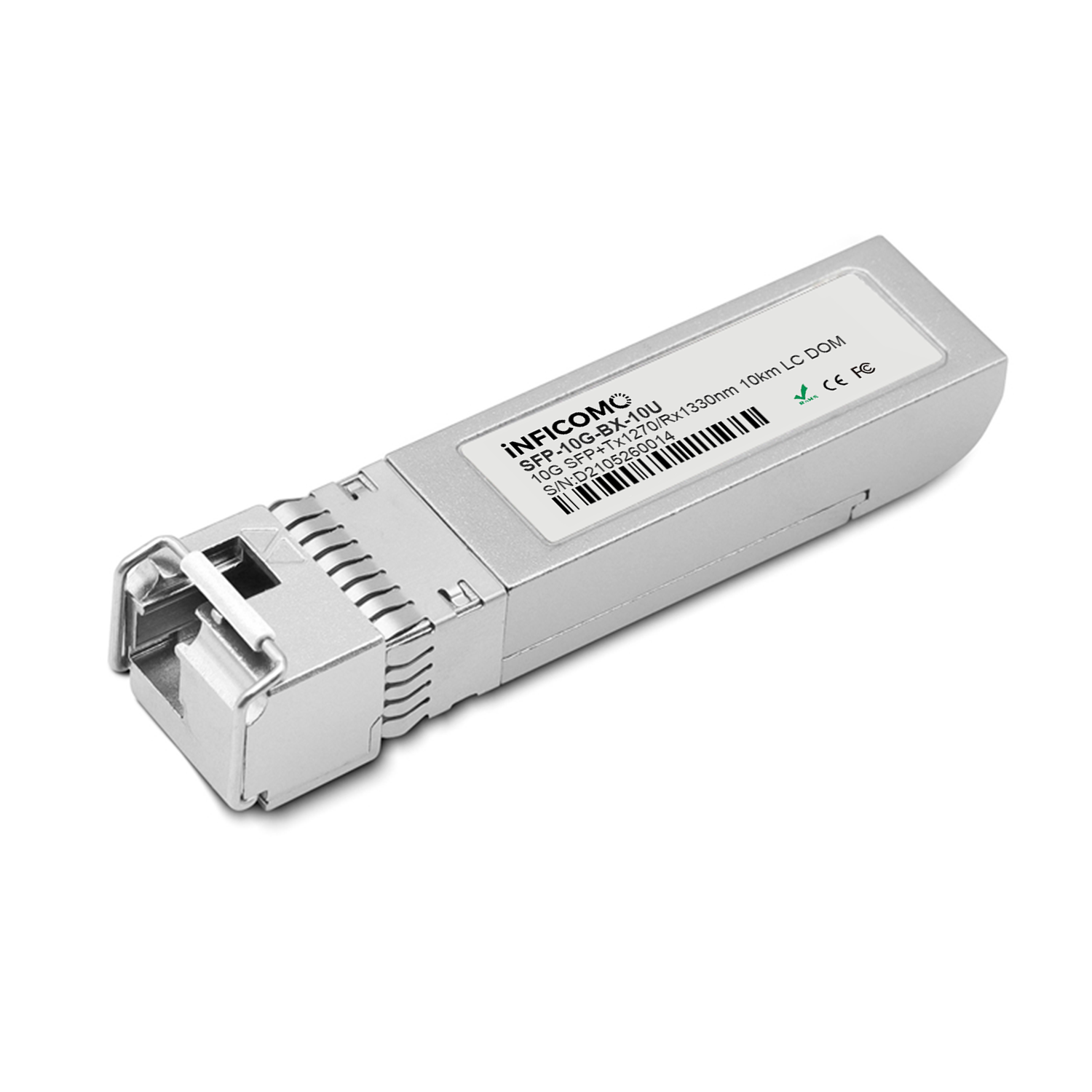

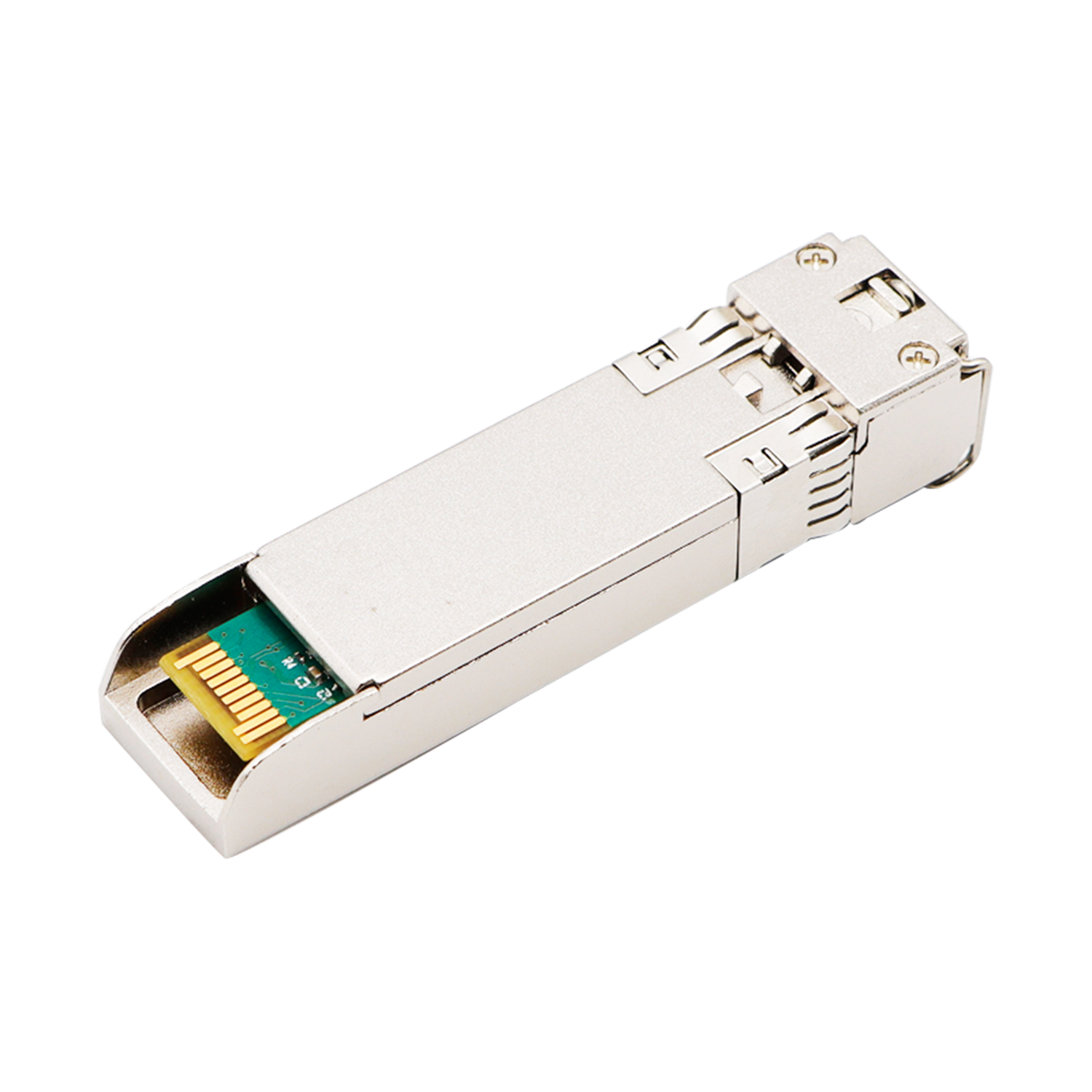

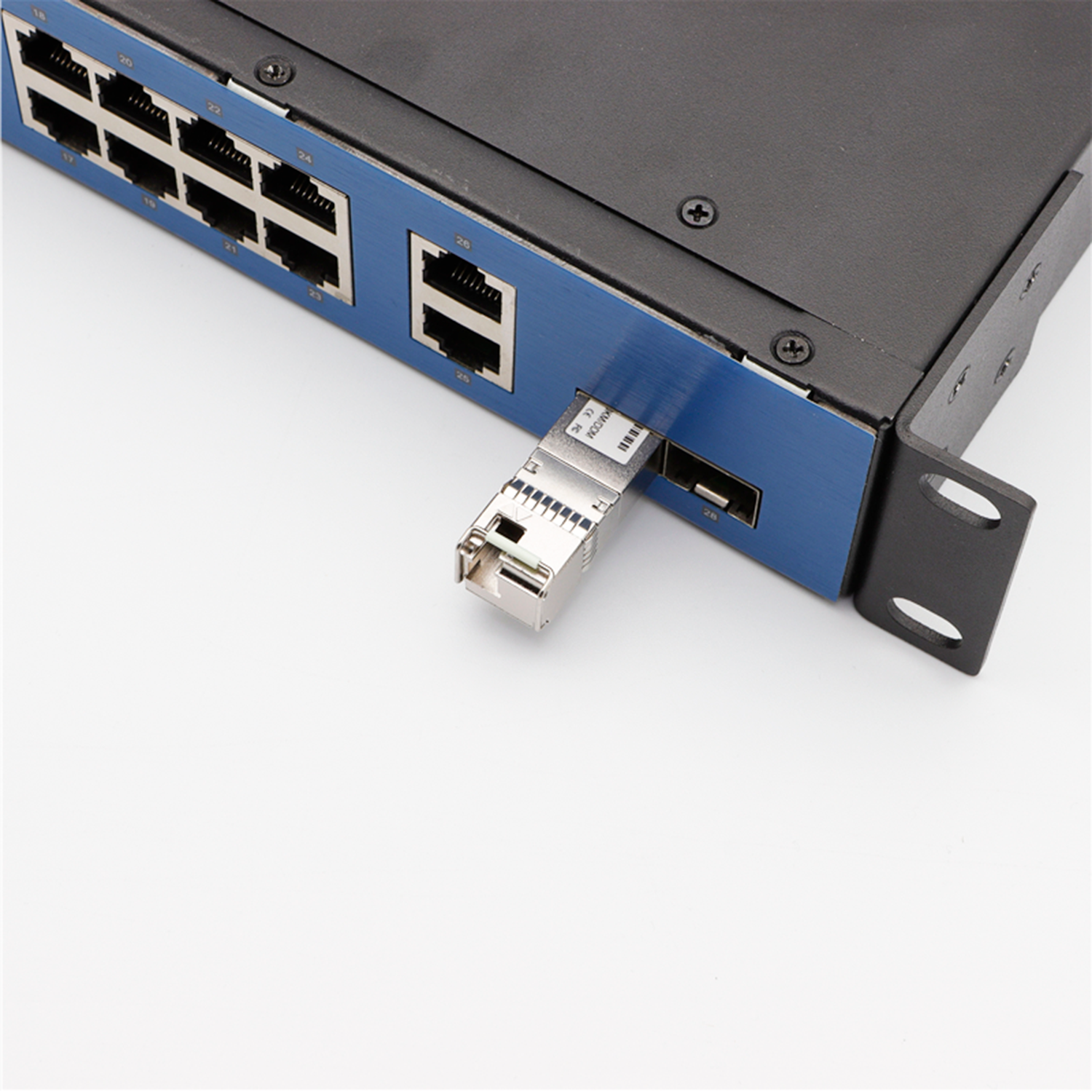

Small MOQ 10G SFP+ BIDI 1270/1330nm 10KM LC SMF Fiber Optic Transceiver

Specification

SFP-10G-BX-10U

Part No.	SFP-10G-BX-10U
Form Factor	SFP+
Max. Data Rate	10.3125Gbps
Wavelength	1270nm-TX/1330nm-RX
Max. Cable Distance	10KM
Connector	Simplex LC
Optical Components	DFB
Media	SMF
DOM Support	Yes
TX Power	-8.2~0.5dBm
Receiver Sensitivity	< -14.4dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	SFP+ MSA Compliant, CPRI, eCPRI

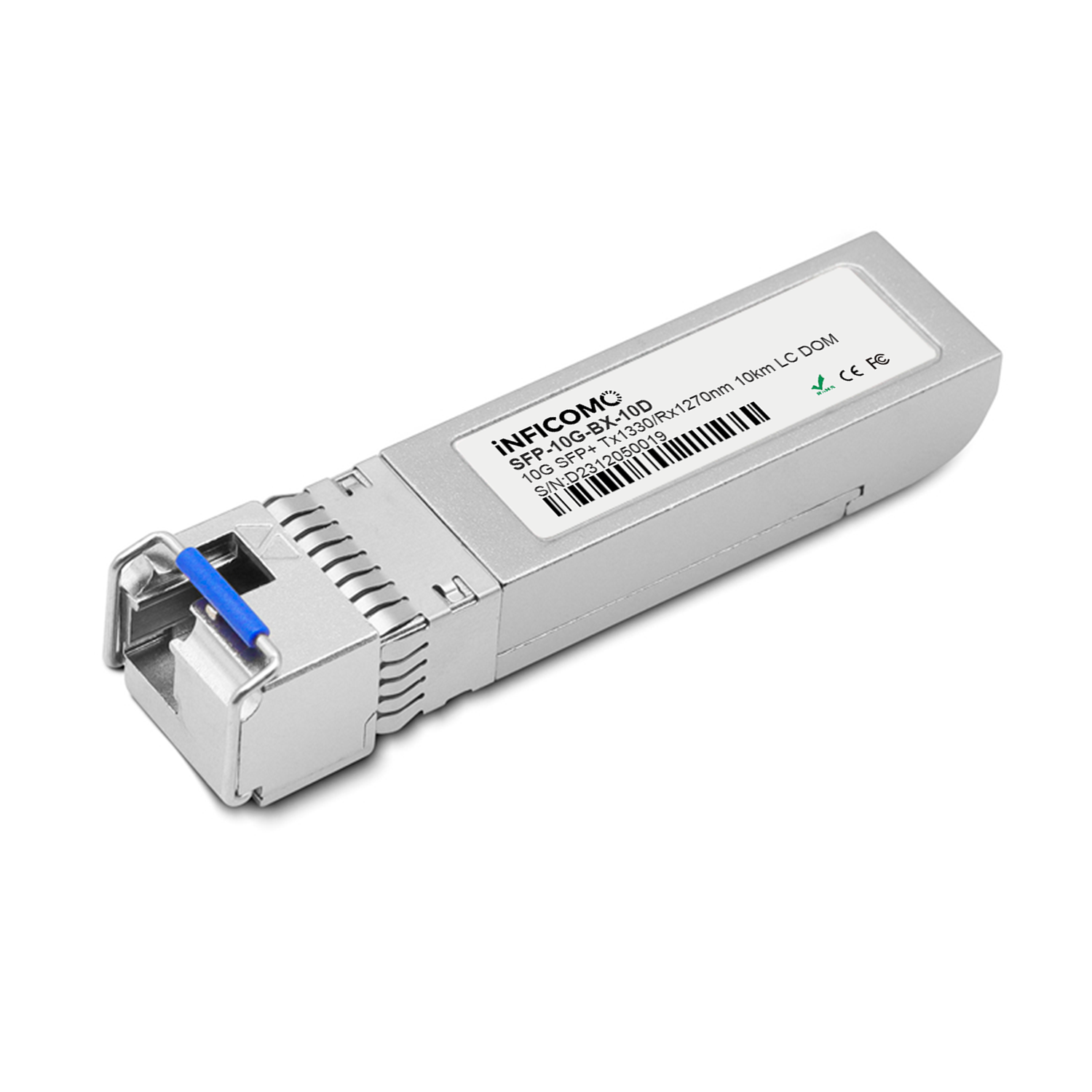

SFP-10G-BX-10D

Part No.	SFP-10G-BX-10D
Form Factor	SFP+
Max. Data Rate	10.3125Gbps
Wavelength	1330nm-TX/1270nm-RX
Max. Cable Distance	10KM
Connector	Simplex LC
Optical Components	DFB
Media	SMF
DOM Support	Yes
TX Power	-8.2~0.5dBm
Receiver Sensitivity	< -14.4dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Quality Assurance & Testing

Newly-Made, Quality Guaranteed

Tested in Host Devices for Proven Interoperability

Comprehensive Testing Increases Reliability

Order Info

Model	Introduction
SFP-10G-BX-10U	10G SFP+ BiDi Tx1270/Rx1330nm 10km LC DOM
SFP-10G-BX-10D	10G SFP+ BiDi Tx1330/Rx1270nm 10km LC DOM
SFP-10G-BX-20U	10G SFP+ BiDi Tx1270/Rx1330nm 20km LC DOM
SFP-10G-BX-20D	10G SFP+ BiDi Tx1330/Rx1270nm 20km LC DOM
SFP-10G-BX-40U	10G SFP+ BiDi Tx1270/Rx1330nm 40km LC DOM
SFP-10G-BX-40D	10G SFP+ BiDi Tx1330/Rx1270nm 40km LC DOM
SFP-10G-BX-60U	10G SFP+ BiDi Tx1270/Rx1330nm 60km LC DOM
SFP-10G-BX-60D	10G SFP+ BiDi Tx1330/Rx1270nm 60km LC DOM
SFP-10G-BX-80U	10G SFP+ BiDi Tx1490/Rx1550nm 80km LC DOM
SFP-10G-BX-80D	10G SFP+ BiDi Tx1550/Rx1490nm 80km LC DOM
SFP-10G-BX-100U	10G SFP+ BiDi Tx1490/Rx1550nm 100km LC DOM
SFP-10G-BX-100D	10G SFP+ BiDi Tx1550/Rx1490nm 100km LC DOM

FAQ

Can you do OEM?

Yes, we can do OEM products. It's no problem.

How is quality control managed?

Every single optic module is individually tested in our test center, and also tested for compatibility on a variety of different network equipments.

Can I get a sample first?

Yes, we can provide samples for you to check the quality.

How about the payment terms?

We accept T/T, western union, and order transactions through verified platforms.

What is the lead time?

For usual order, we keep stock, could ship about 3 days after receiving the payment. For big quantity & special products, please check lead time with our sales.

How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
