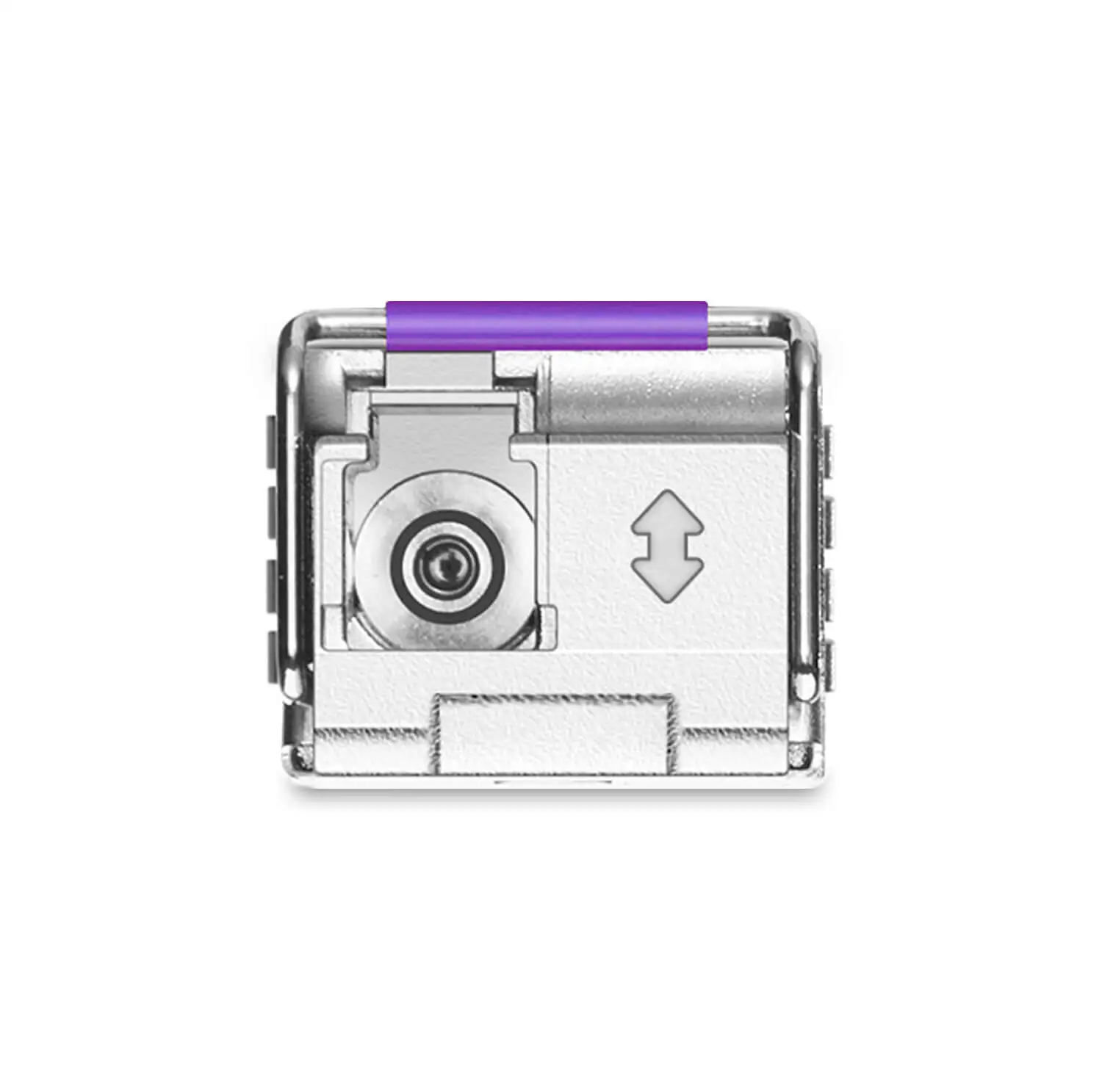

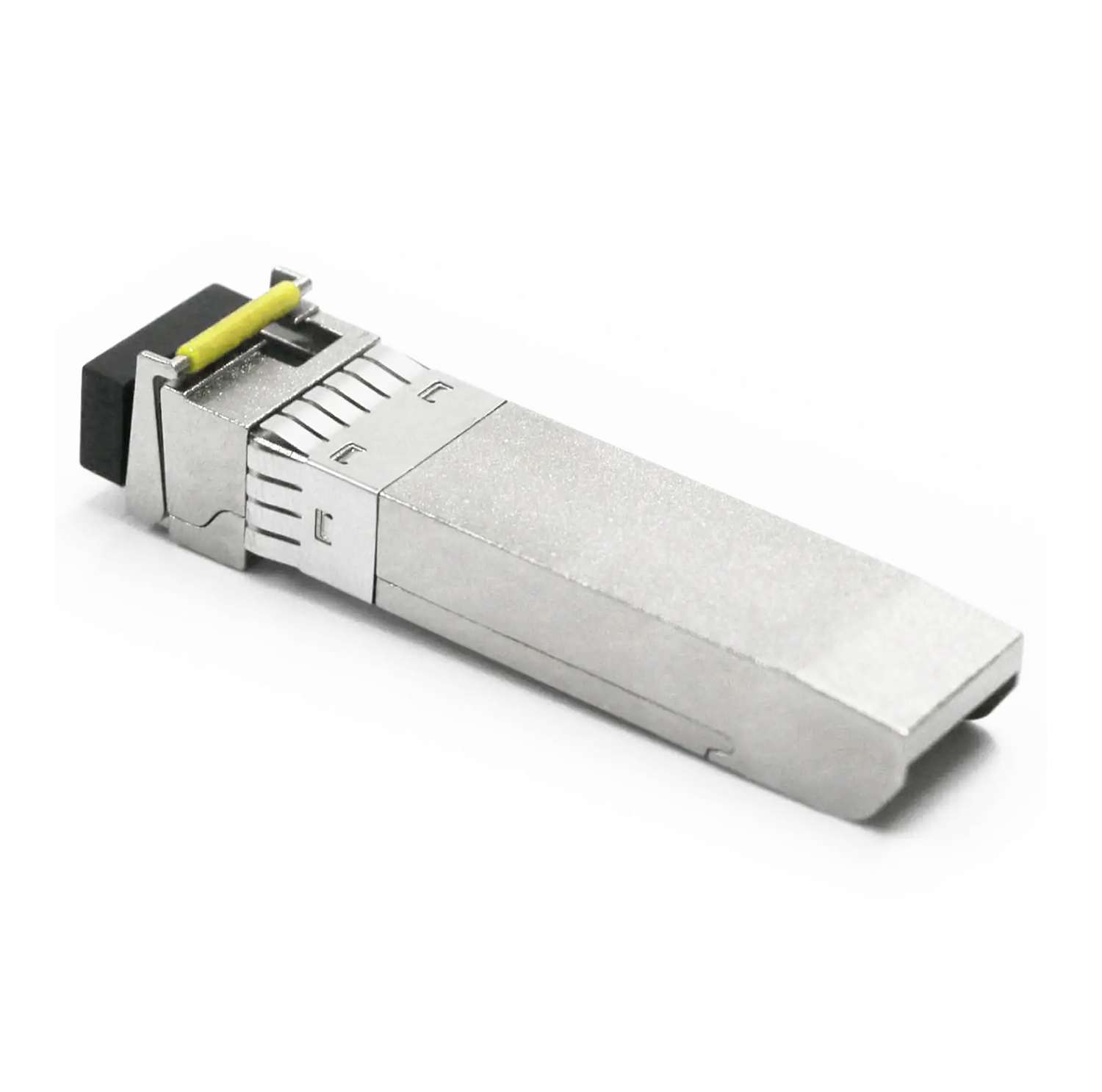

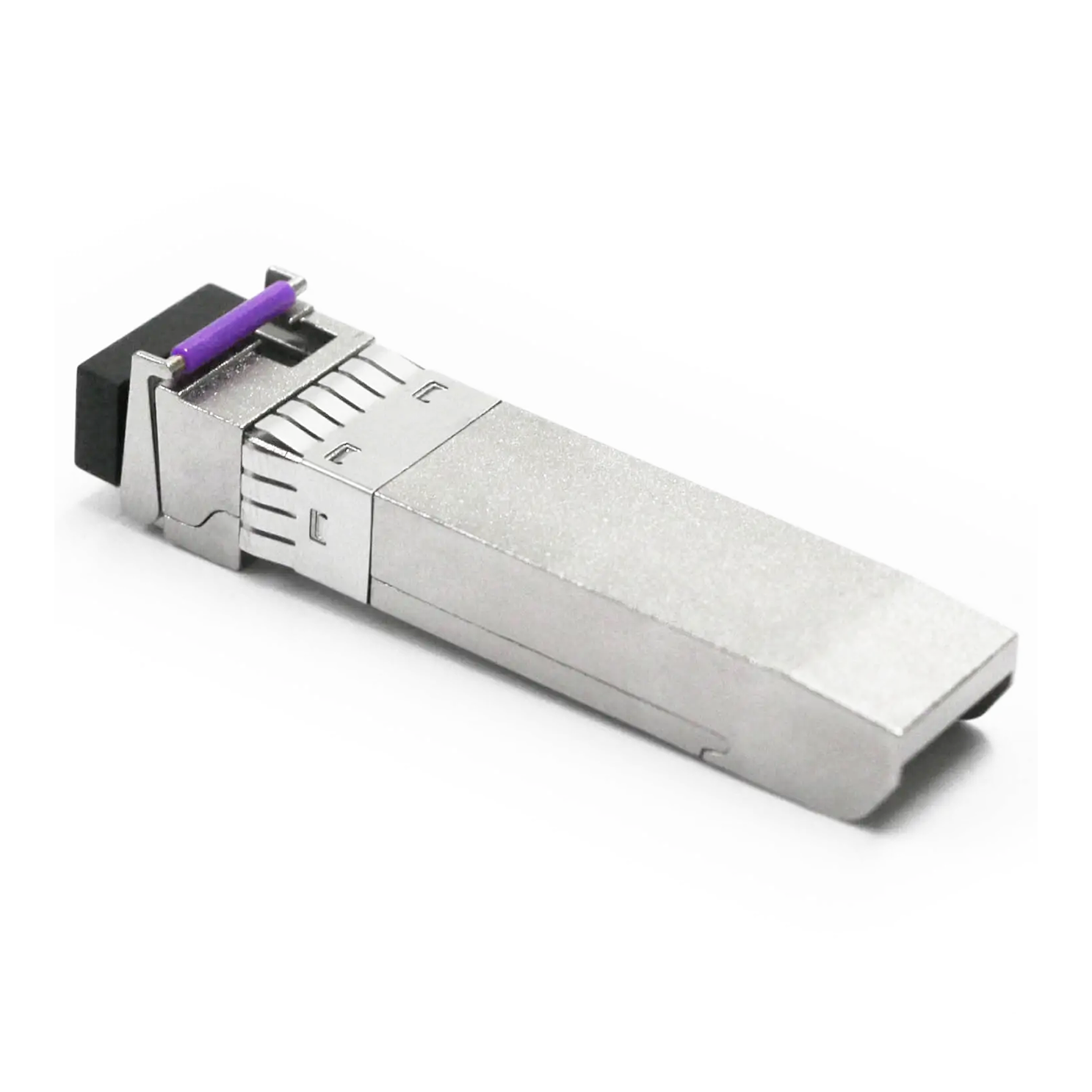

10GBASE-BX100-D BiDi SFP+ 1550nm-TX/1490nm-RX 100km DOM Simplex LC SMF Fiber Optic Transceiver Module

Product Description

Specification Banner
Specifications
Parameter SFP-10G-BX-100U SFP-10G-BX-100D
Form Factor SFP+ SFP+
Max. Data Rate 10.3125Gbps 10.3125Gbps
Wavelength 1490nm-TX/1550nm-RX 1550nm-TX/1490nm-RX
Max. Cable Distance 100km 100km
Connector Simplex LC Simplex LC
Optical Components EML BiDi EML BiDi
Media SMF SMF
DOM Support Yes Yes
TX Power 1 ~ 5dBm 1 ~ 5dBm
Receiver Sensitivity <-22dBm <-22dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) 0 to 70°C (32 to 158°F)
Protocols SFP+ MSA Compliant, CPRI, eCPRI SFP+ MSA Compliant, CPRI, eCPRI
New-Made, Quality Guaranteed
Quality Guaranteed
Tested in Host Devices for Proven Interoperability
Proven Interoperability
Comprehensive Testing Increases Reliability
Comprehensive Testing
Order Info
Model Introduction
SFP-10G-BX-10U 10G SFP+ BiDi Tx1270/Rx1330nm 10km LC DOM
SFP-10G-BX-10D 10G SFP+ BiDi Tx1330/Rx1270nm 10km LC DOM
SFP-10G-BX-20U 10G SFP+ BiDi Tx1270/Rx1330nm 20km LC DOM
SFP-10G-BX-20D 10G SFP+ BiDi Tx1330/Rx1270nm 20km LC DOM
SFP-10G-BX-40U 10G SFP+ BiDi Tx1270/Rx1330nm 40km LC DOM
SFP-10G-BX-40D 10G SFP+ BiDi Tx1330/Rx1270nm 40km LC DOM
SFP-10G-BX-60U 10G SFP+ BiDi Tx1270/Rx1330nm 60km LC DOM
SFP-10G-BX-60D 10G SFP+ BiDi Tx1330/Rx1270nm 60km LC DOM
SFP-10G-BX-80U 10G SFP+ BiDi Tx1490/Rx1550nm 80km LC DOM
SFP-10G-BX-80D 10G SFP+ BiDi Tx1550/Rx1490nm 80km LC DOM

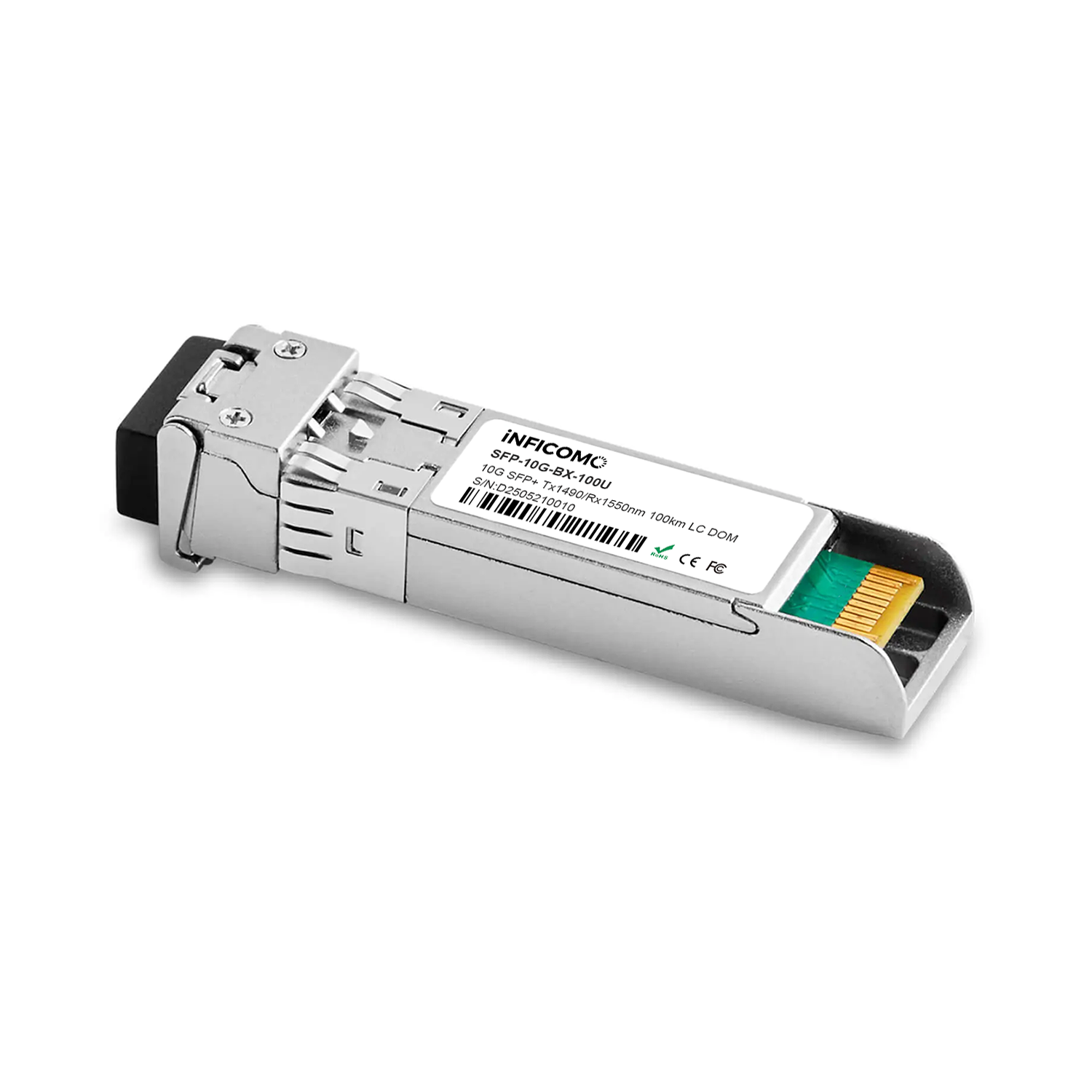

SFP-10G-BX-100U 10G SFP+ BiDi Tx1490/Rx1550nm 100km LC DOM
SFP-10G-BX-100D 10G SFP+ BiDi Tx1550/Rx1490nm 100km LC DOM
FAQ
Q Can you provide OEM services?
Yes, OEM services can be customized according to your requirements.
Q How is quality control managed?
Every single optical module is individually tested in the testing center, and verified for compatibility across a wide range of different network devices.
Q Can I obtain a sample first?
Yes, sample modules can be provided to verify the product quality.
Q What are the accepted payment terms?
Payments are accepted via T/T, Western Union, secure platform transactions, and other standard methods.
Q What is the typical lead time?
For standard catalog orders, stock units can generally be shipped within approximately 3 business days after payment confirmation. For high-volume or specialized products, please coordinate delivery schedules directly with sales.
Q How are goods shipped and how long does shipping take?
Shipments are normally dispatched via reliable courier carriers such as DHL, UPS, FedEx, or TNT. Transition time is typically 3 to 5 business days globally.
