| Items | Specifications |
|---|---|
| PON standard | EPON IEEE802.3ah, GPON ITU-T G.984.x |
| Optical interface | SC/PC connector, 1 GPON/EPON interface (EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0 ~ +4dBm Transmission distance: 20KM |
| Speed | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
| Wavelength | Tx1310, Rx 1490 |

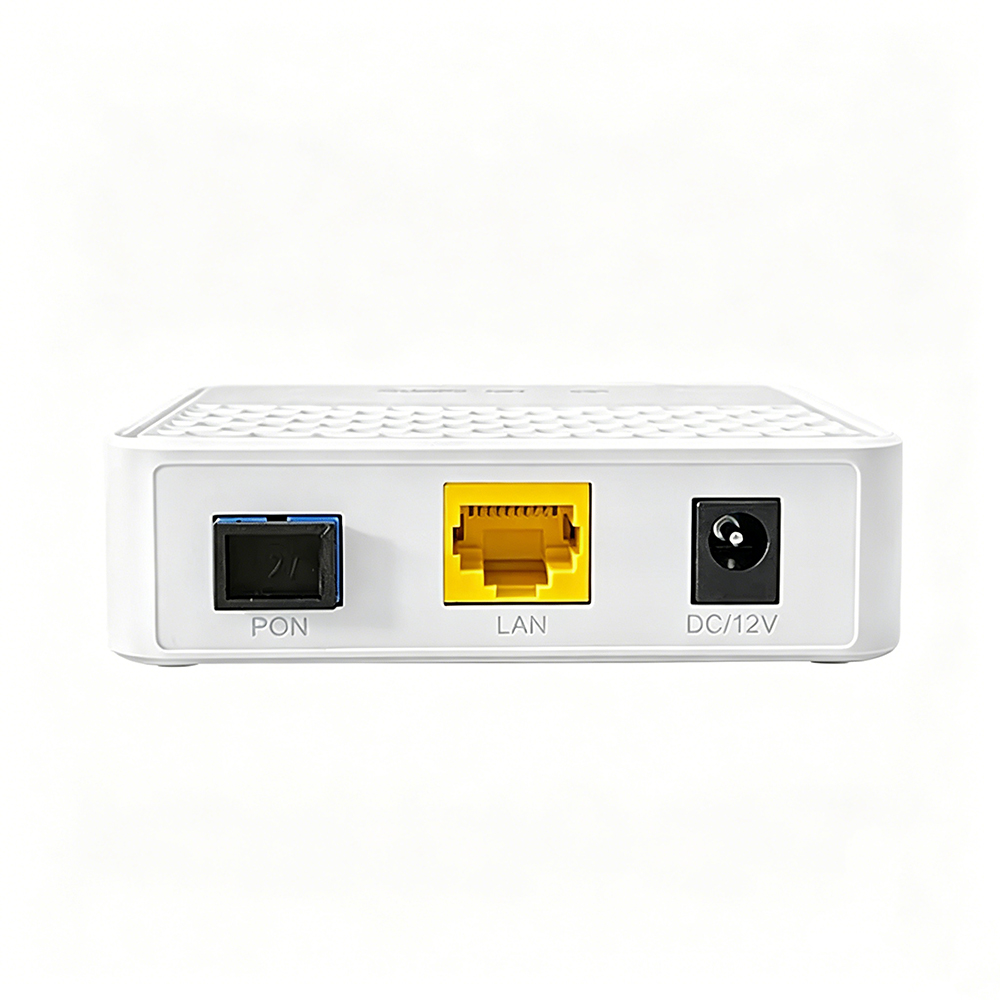

| Interface | 1* 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| Indicator | Sys, REG, LINK/ACT |
| Operating condition | Operating temp: -5 ~ +55 |
| Storing condition | Storing temp: -30 ~ +60 |
| Humidity | 10 ~ 90 (non-condensing) |

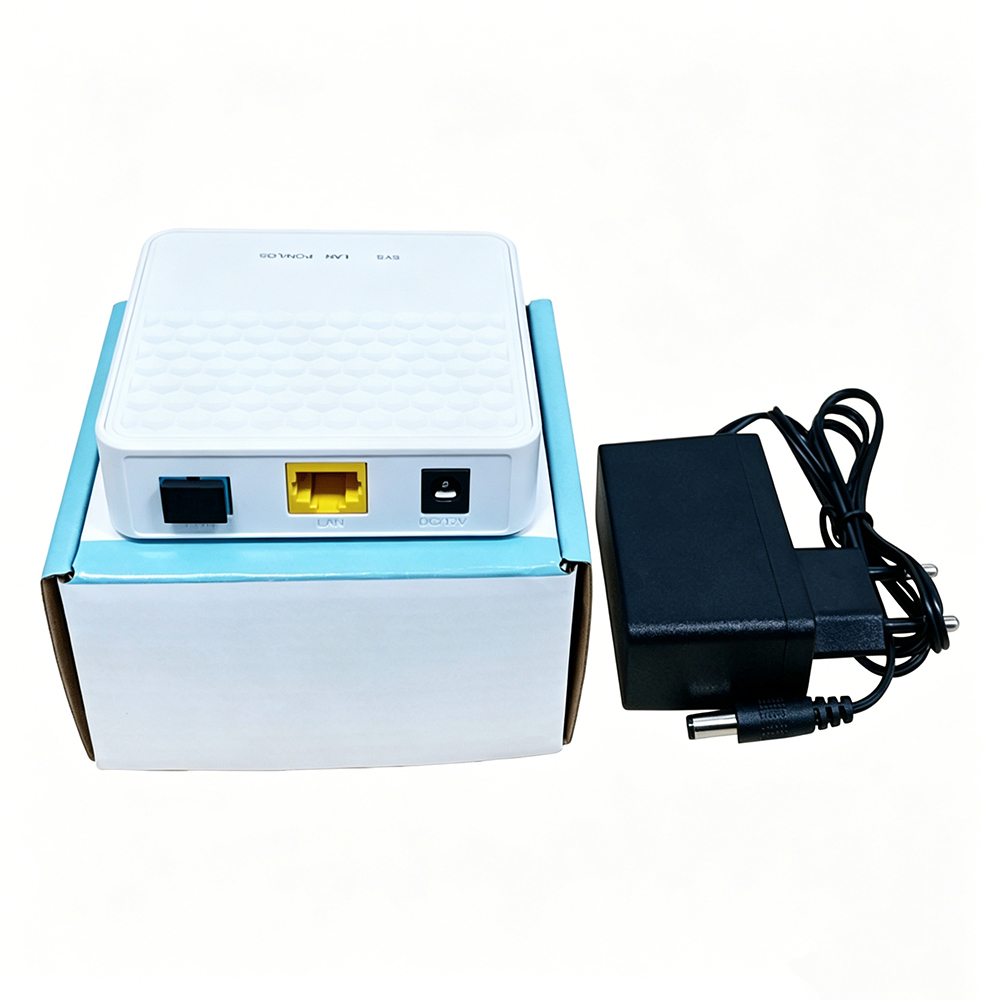

| Power supply | DC 12V, 1A adapter |
| Power consumption | ≤4W |
| Dimension | 86mm × 85mm × 25mm (L × W × H) |
| Net weight | 0.08kg |
