| Items | Specifications |
|---|---|
| PON Standard | EPON IEEE802.3ah, GPON ITU-T G.984.x |
| Optical Interface |
SC/PC connector, 1 GPON/EPON interface (EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤ -28dBm Transmitting optical power: 0 ~ +4dBm Transmission distance: 20KM |
| Speed | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
| Wavelength | Tx1310, Rx 1490 |

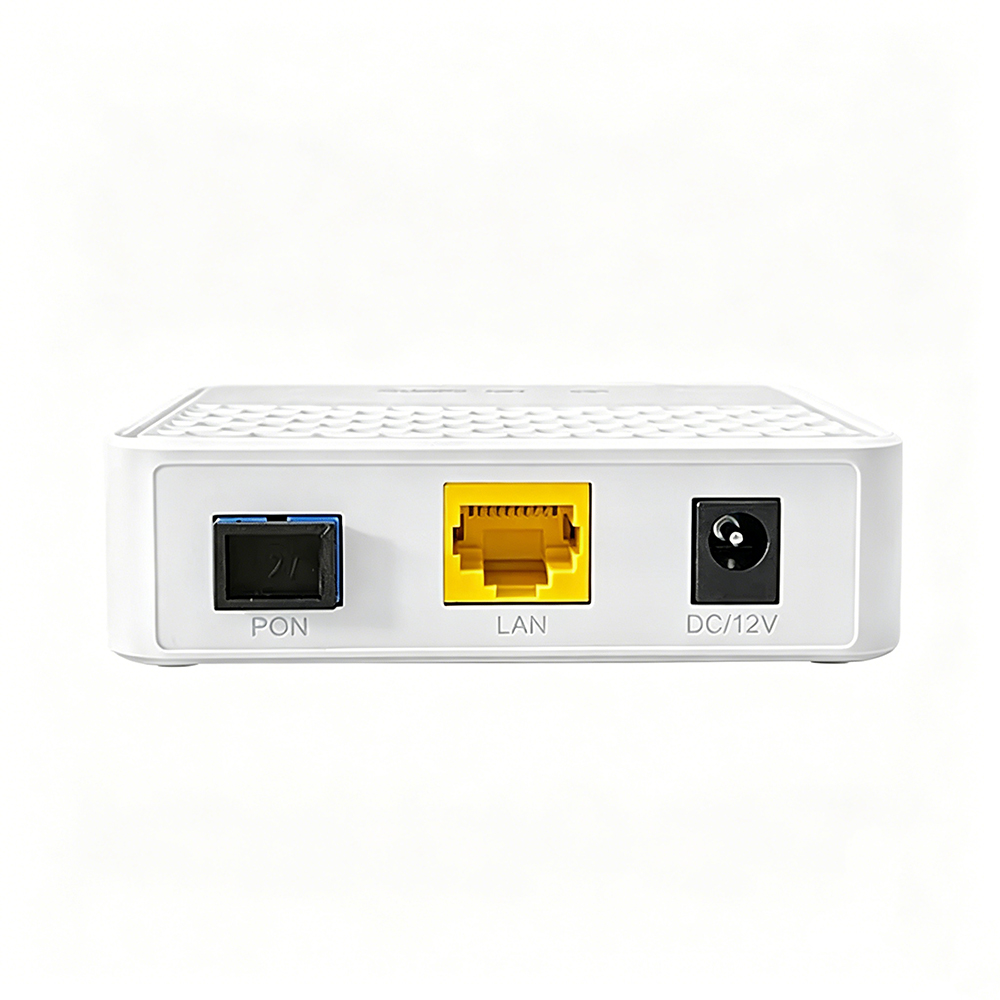

| Interface | 1* 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |

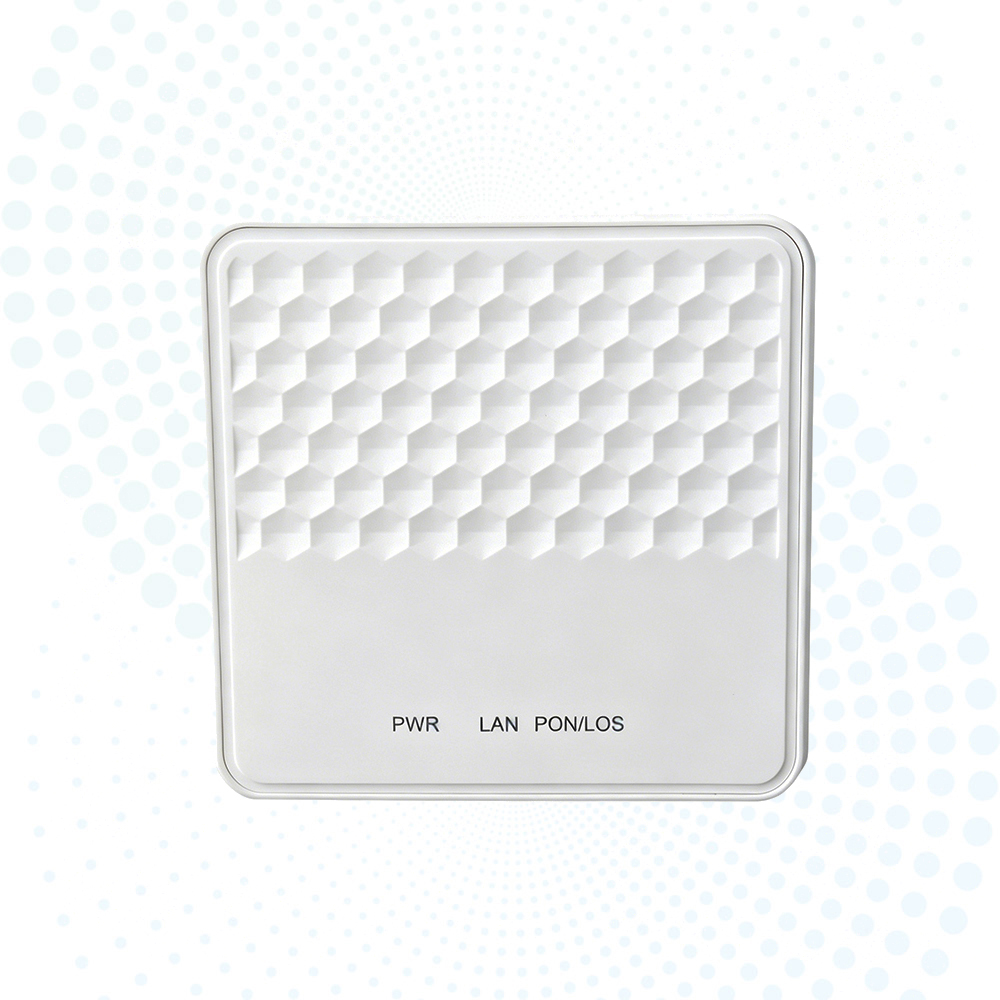

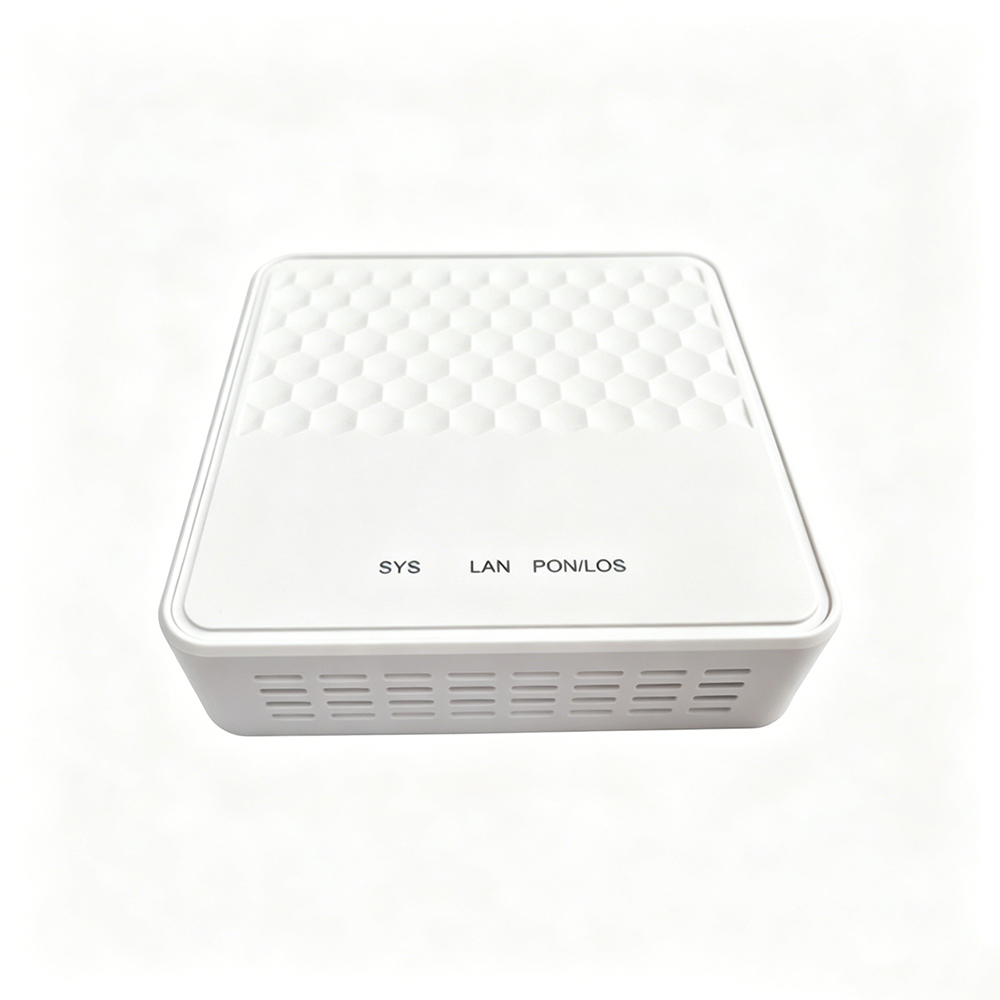

| Indicator | Sys, REG, LINK/ACT |
| Operating Condition | Operating temp: -5°C ~ +55°C |
| Storing Condition | Storing temp: -30°C ~ +60°C |
| Humidity | 10% ~ 90% (non-condensing) |

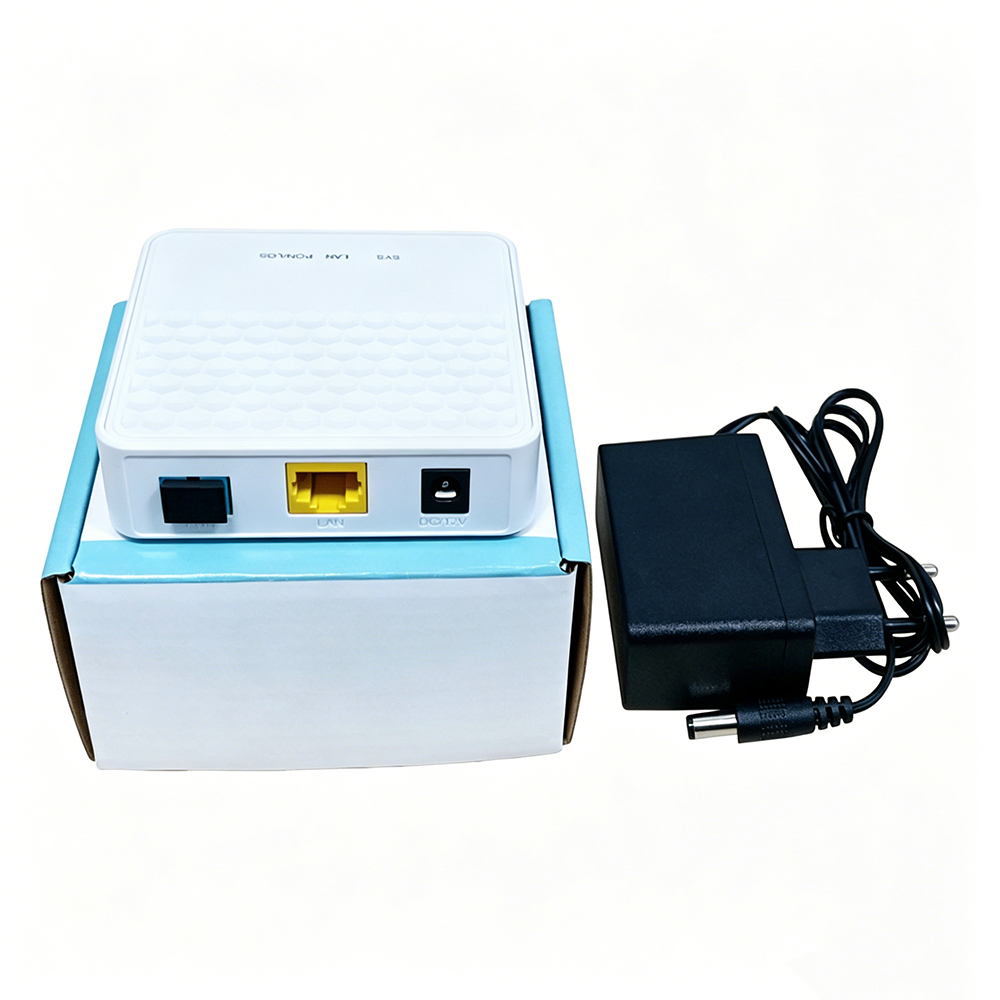

| Power Supply | DC 12V, 1A adapter |
| Power Consumption | ≤ 4W |
| Dimension | 86mm × 85mm × 25mm (L × W × H) |
| Net Weight | 0.08 kg |
