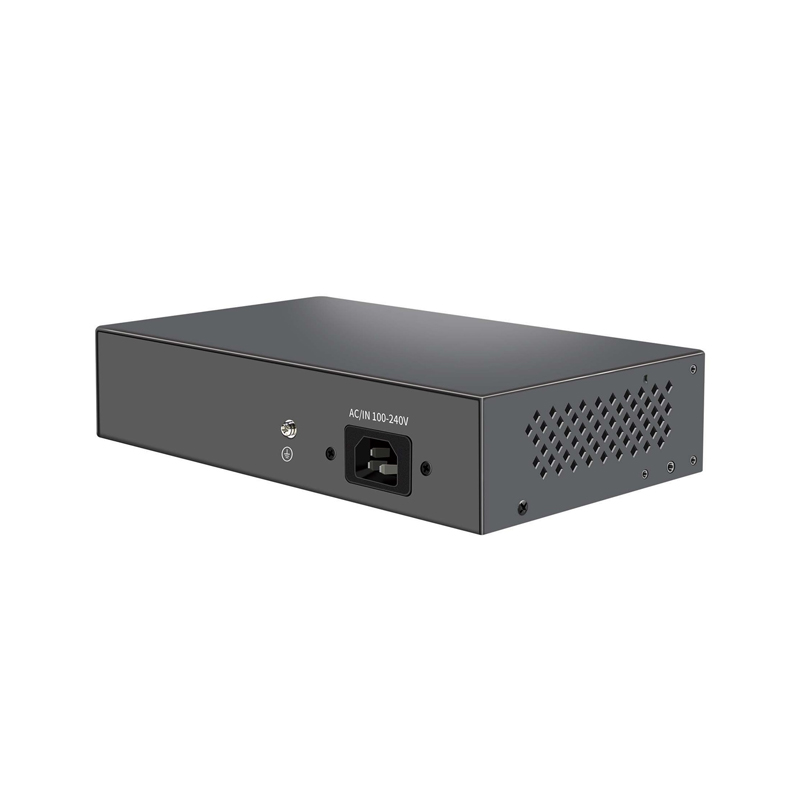

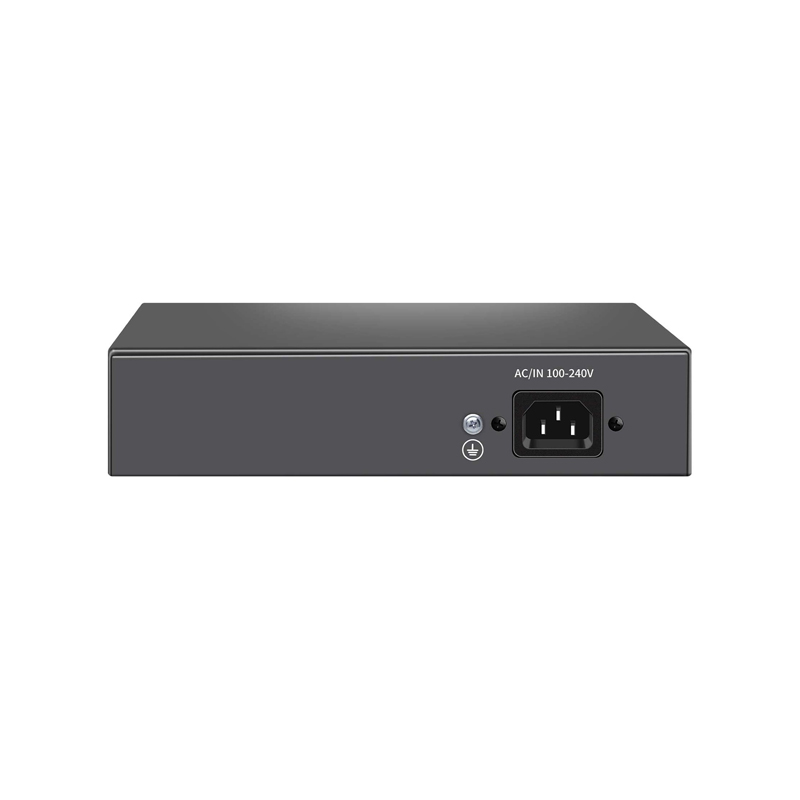

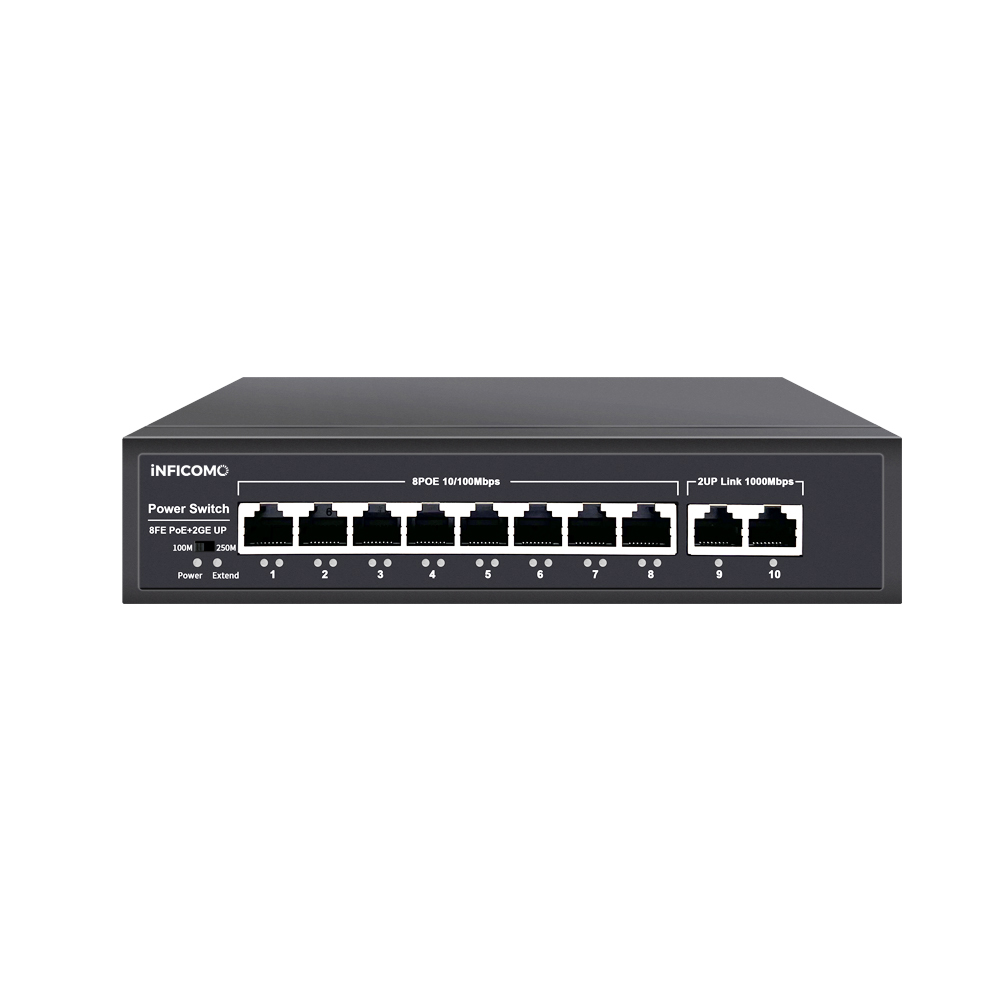

Factory Supply 8 Port POE Network Switch 10/100/1000Mbps Fast Smart VLAN RJ45 LAN Switch

Send Inquiry

Product Description

Specification
Model	RD-H08P2U120
Standards/Protocols	IEEE 802.1q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3af/at
Chip Solutions	RTL8367S+RTL8309N+2*DH2184
PoE port	8 * 10/100Mbps Auto Negotiation/Auto MDI/MDIX
Uplink port	2 * 10/100/1000Mbps Auto Negotiation/Auto MDI/MDIX
MAC Address Capacity	2K
Switching Capacity	7.6Gbps
Packet Forwarding Rate	5.22Mpps
Packet Cache	1.5Mbits
Jumbo frames	2048byte/9K Byte
Extended mode	Extended mode, 1-8 ports can transmit up to 250m, while 1-8 ports are isolated from each other and can communicate with 9-10 ports
Power Supply	AC100~240V, 50Hz
Consumption	Standby power consumption: ≤3W; Power consumption: ≤120W
Power Supply Pins	1/2 (+), 3/6 (-) (POE ports only)

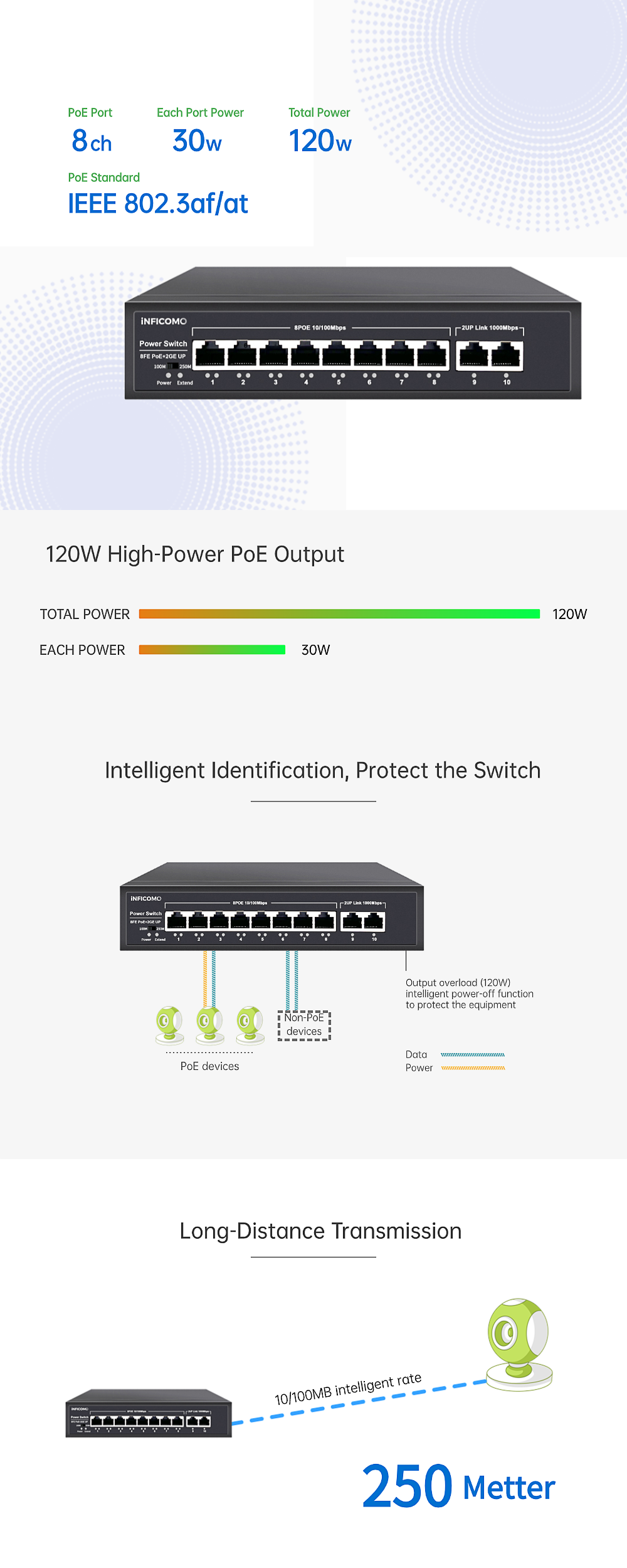

POE Port Output Power	Single port output max. 30W
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-40°C ~ 85°C
Storage Humidity	5% ~ 95% No condensation
Dimensions	201 × 132 × 44mm (L × W × H)
Weight	N.G 0.7kg, W.G 0.9kg

Company Profile

FAQ

Q1 What is your MOQ request?

Depends on products, different products have different MOQ, pls contact our sales for more details.

Q2 Do you Support ODM/OEM service?

Yes, we can offer the customization service to you.

Q3 Does your products support other brands?

Yes, all of our products is without lock, support to another brands too.

Q4 Are you the manufacturer or trading company?

We are the manufacturer, we support factory view tour.

Q5 Do you offer free samples?

Yes, for some models we are able to provide the free samples for your testing purpose.

Q6 Are you able to provide the local certificates?

Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
