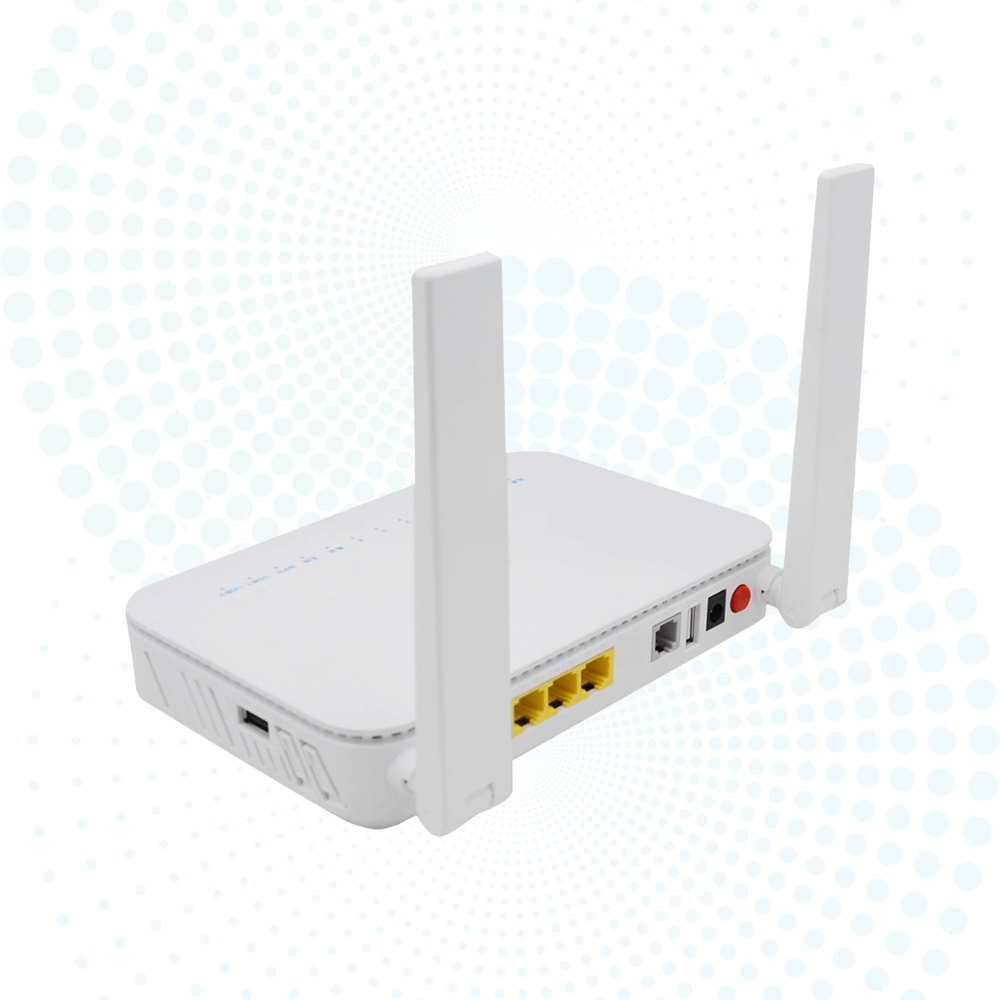

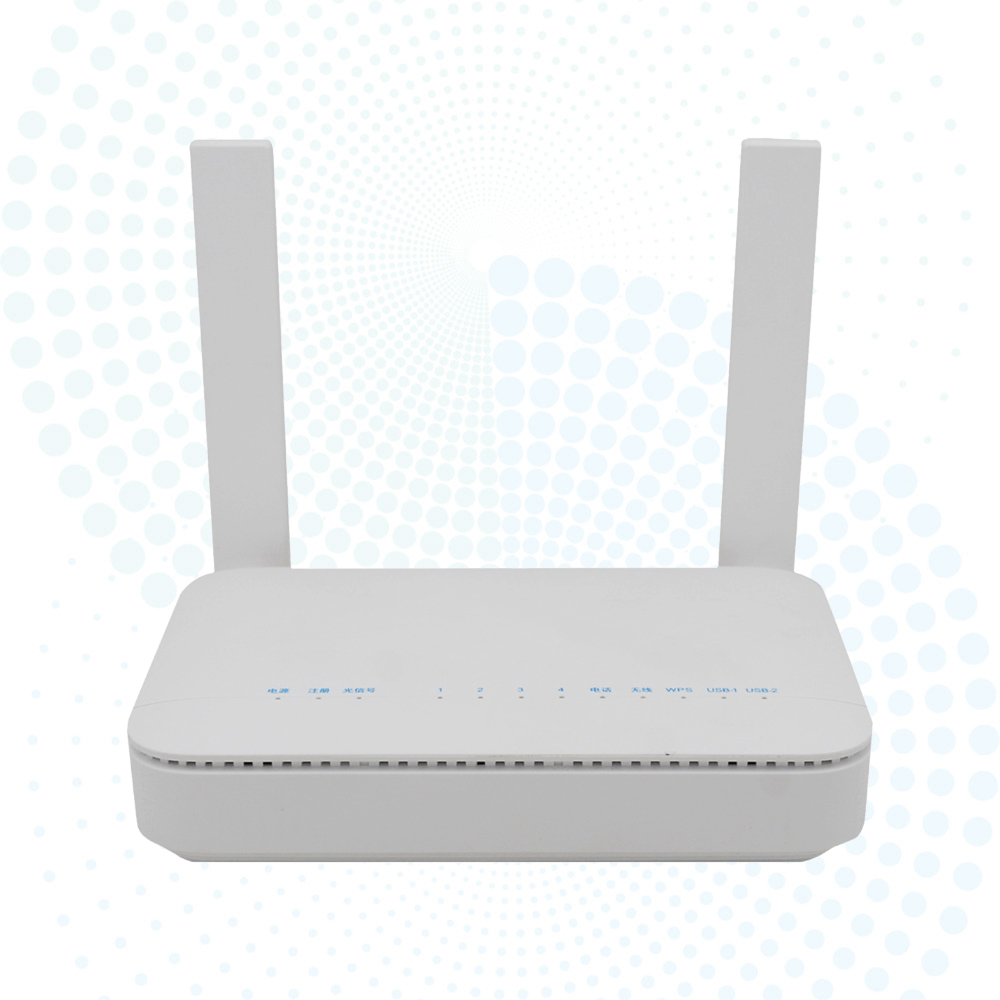

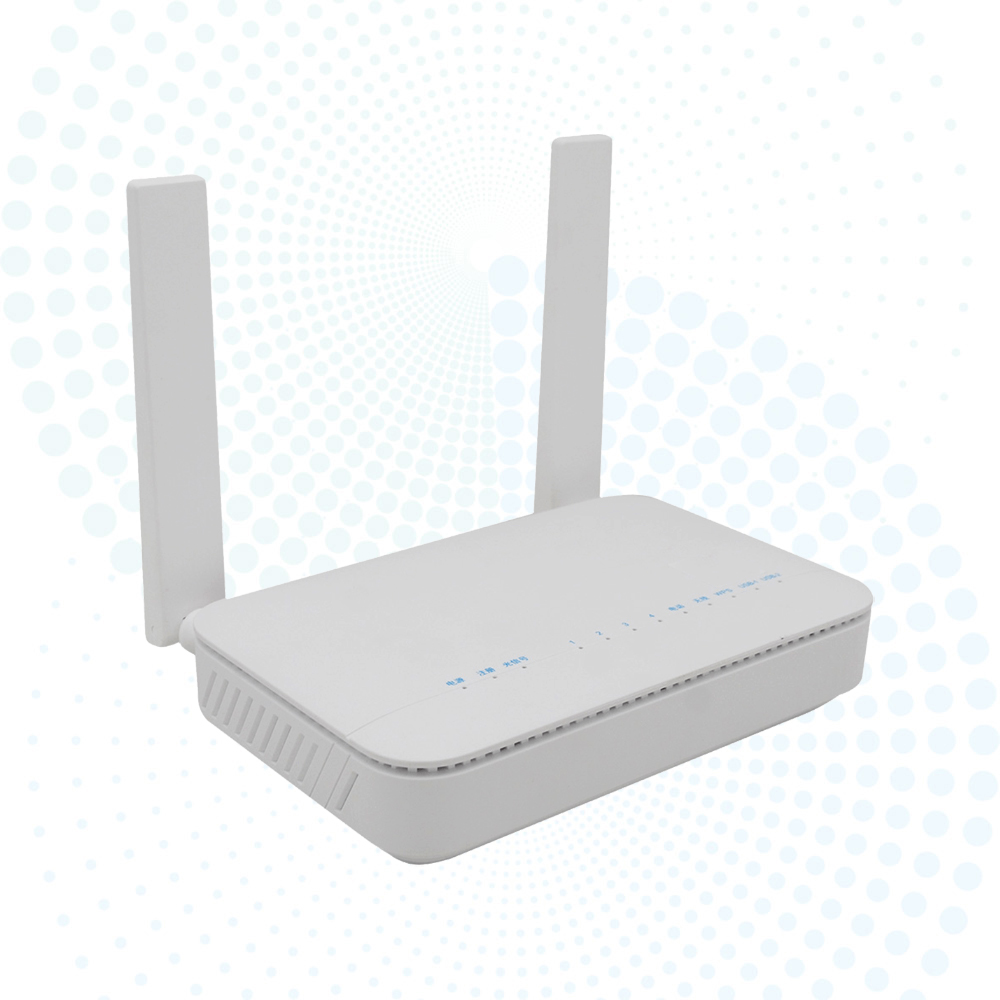

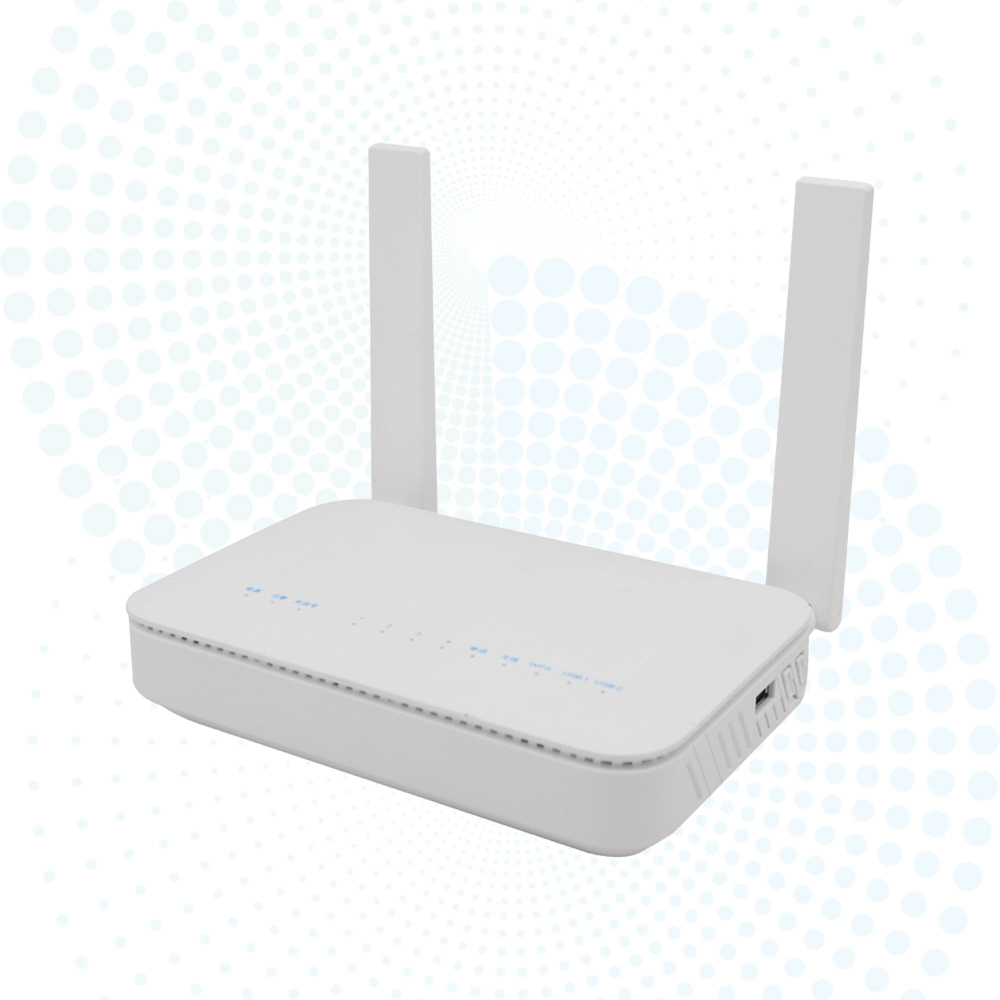

AX3000 Dual Band WiFi6 ONU F6610M XPON ONU 4GE+1TEL+2USB GPON Fiber Terminal

Product Design

Specification

Parameter Details
Basic Parameters

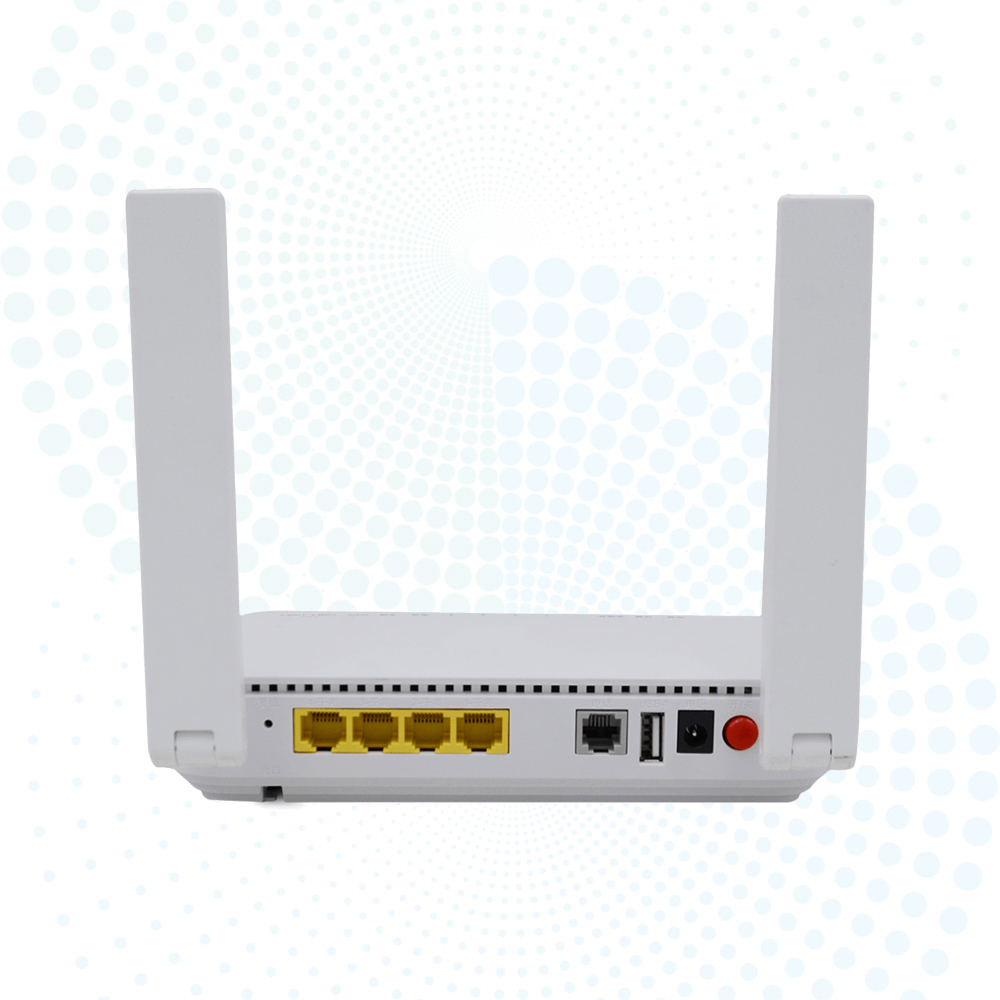

Ports	1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 1 x USB, SC/UPC XPON
Working environment	Operating temperature: 0ºC to 40ºC Environment humidity: 5% to 95% (noncondensing)
Static power consumption	5.3 W
Max. power consumption	18 W
Power specifications	Power adapter input: 100 to 240 V AC, 50–60 Hz System power supply: 11–14 V DC, 1.5 A
WLAN	2.4GHZ: 802.11n / 5GHZ: 802.11ax
Indicators	POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
Hardware Details & Advanced Functionality
GPON Port	Class B+ Receiver sensitivity: –27 dBm to –29 dB Overload optical power: –8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength Blocking Filter (WBF) of G.984.5 Flexible mapping between the GEM port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA Type B (single-homing and dual-homing)
WLAN Features	IEEE 802.11 b/g/n/ax (2.4G) IEEE 802.11 a/n/ac/ax (5G) 2 x 2 MIMO (2.4G) & 2 x 2 MIMO (5G) Antenna gain: 5 dBi WMM/Multiple SSIDs/WPS 2.4G and 5G concurrency Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G) Beamforming & Band steering DL OFDMA & DL MU-MIMO 1024 QAM 160 MHz frequency bandwidth WPA3
Dimensions	195 mm x 125 mm x 35 mm (length x width x height)
Weight	About 400g

Order Info

Description	Accessories Pack
GPON ONU, 1GPON + 4GE RJ45 + 1RJ11 POTS + 1USB+ 2.4GHz&5GHz Wi-Fi6(2*External 5dBi antennas);	Power Adapter
