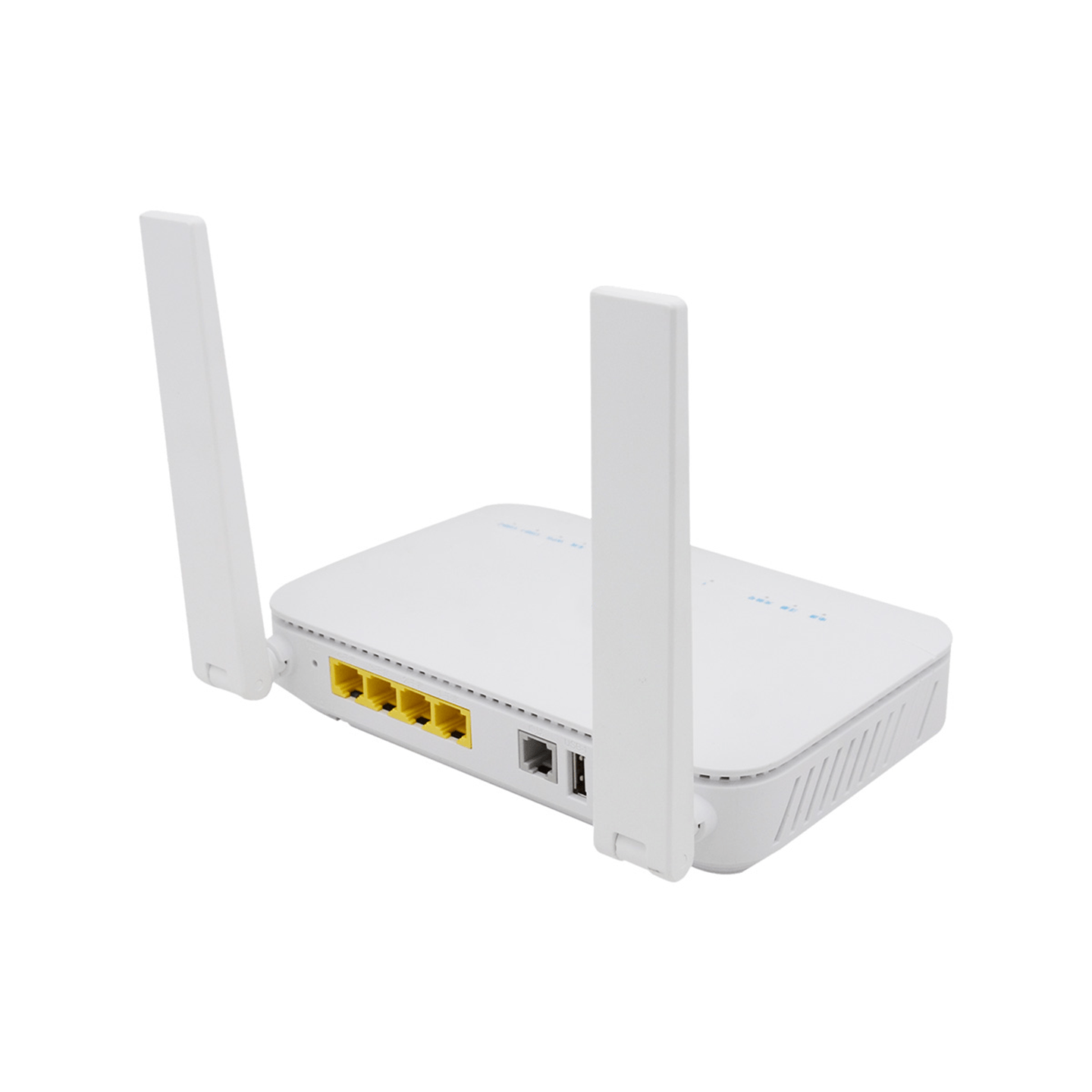

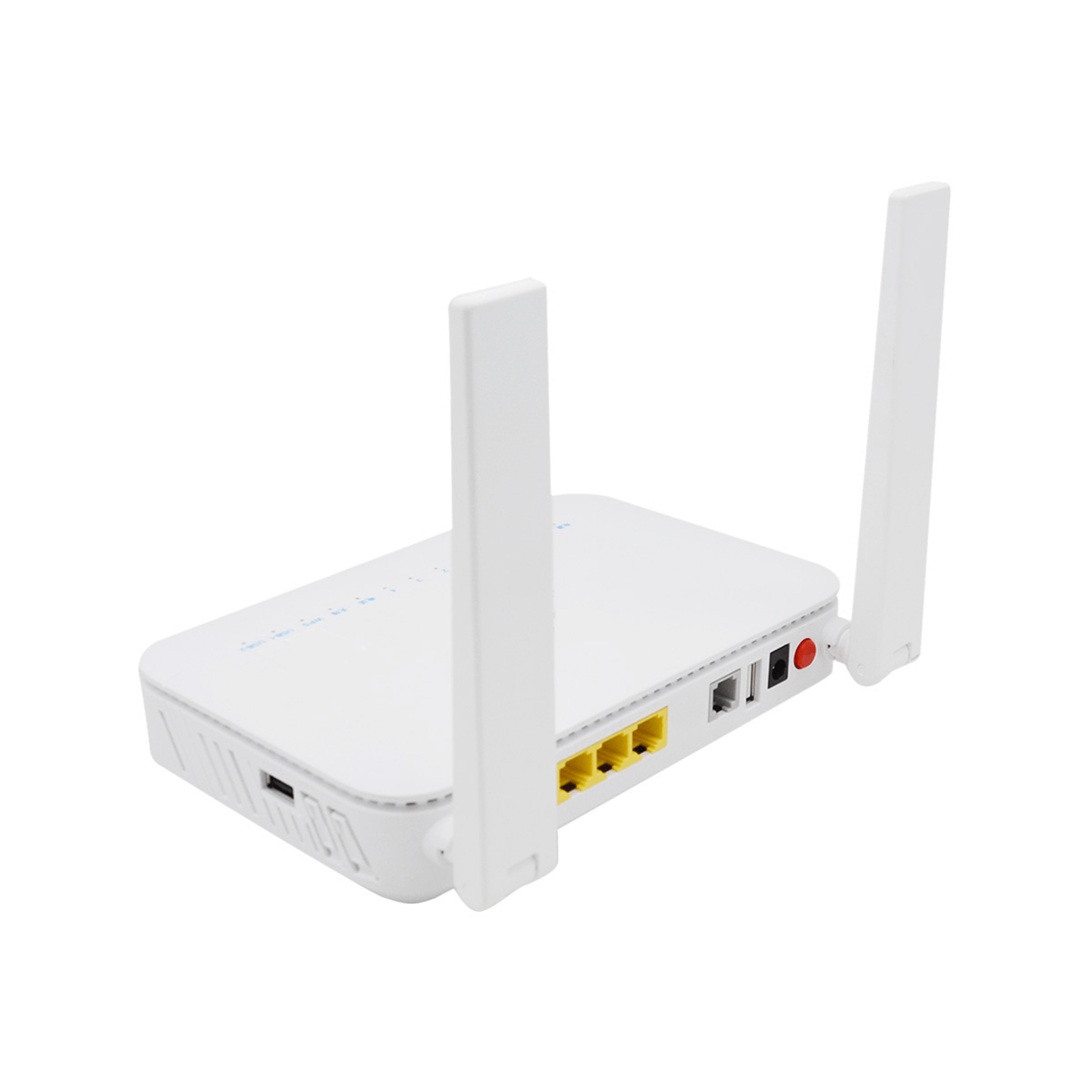

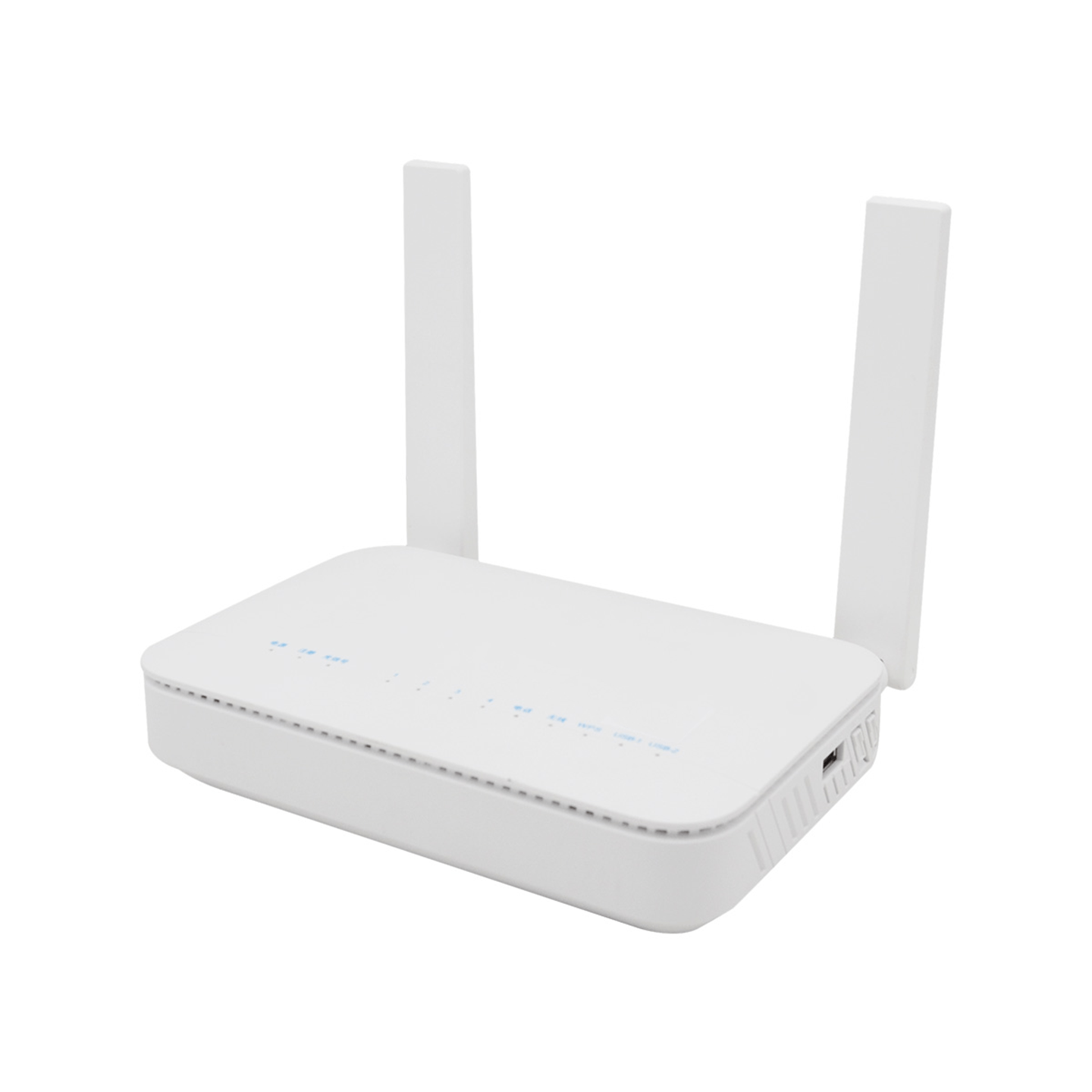

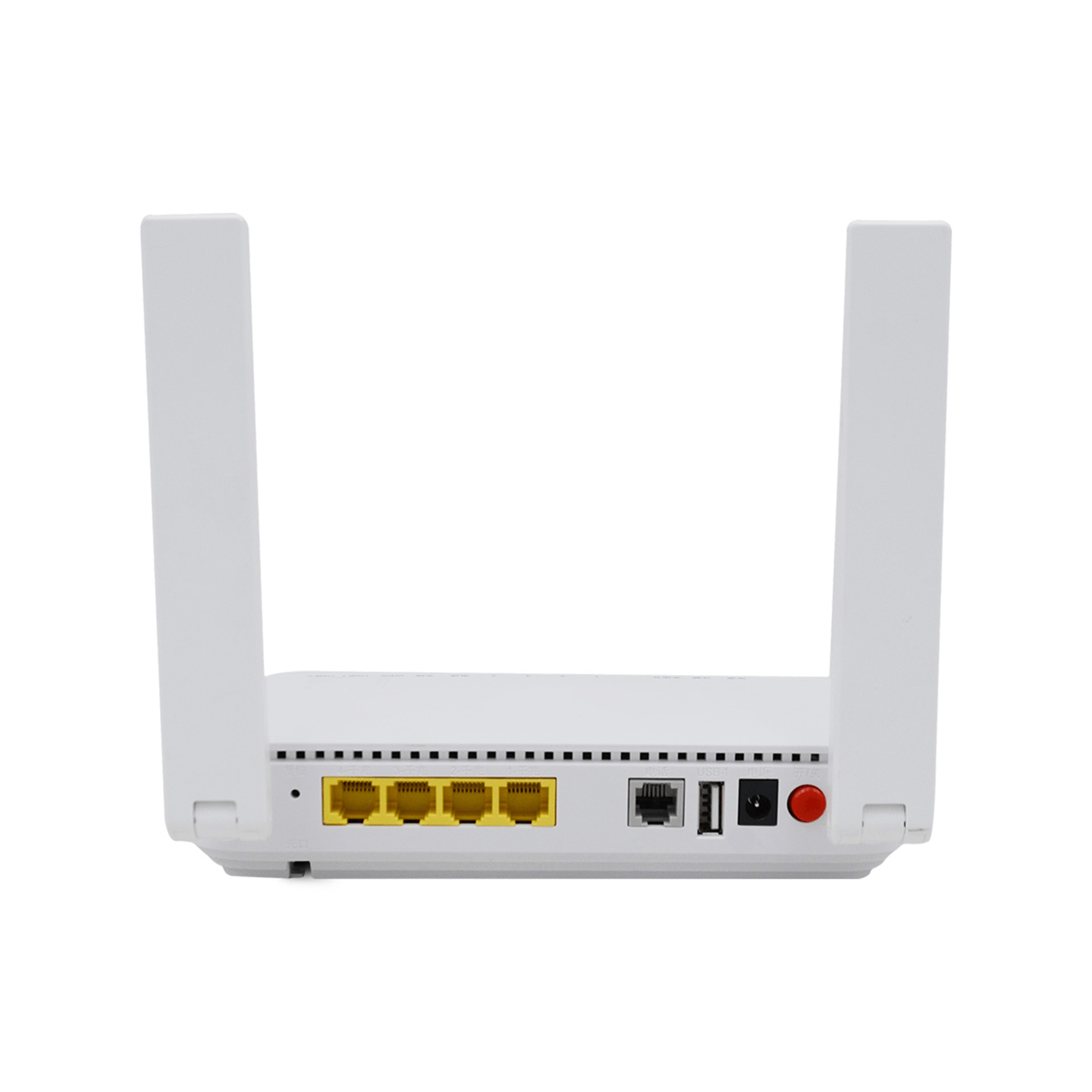

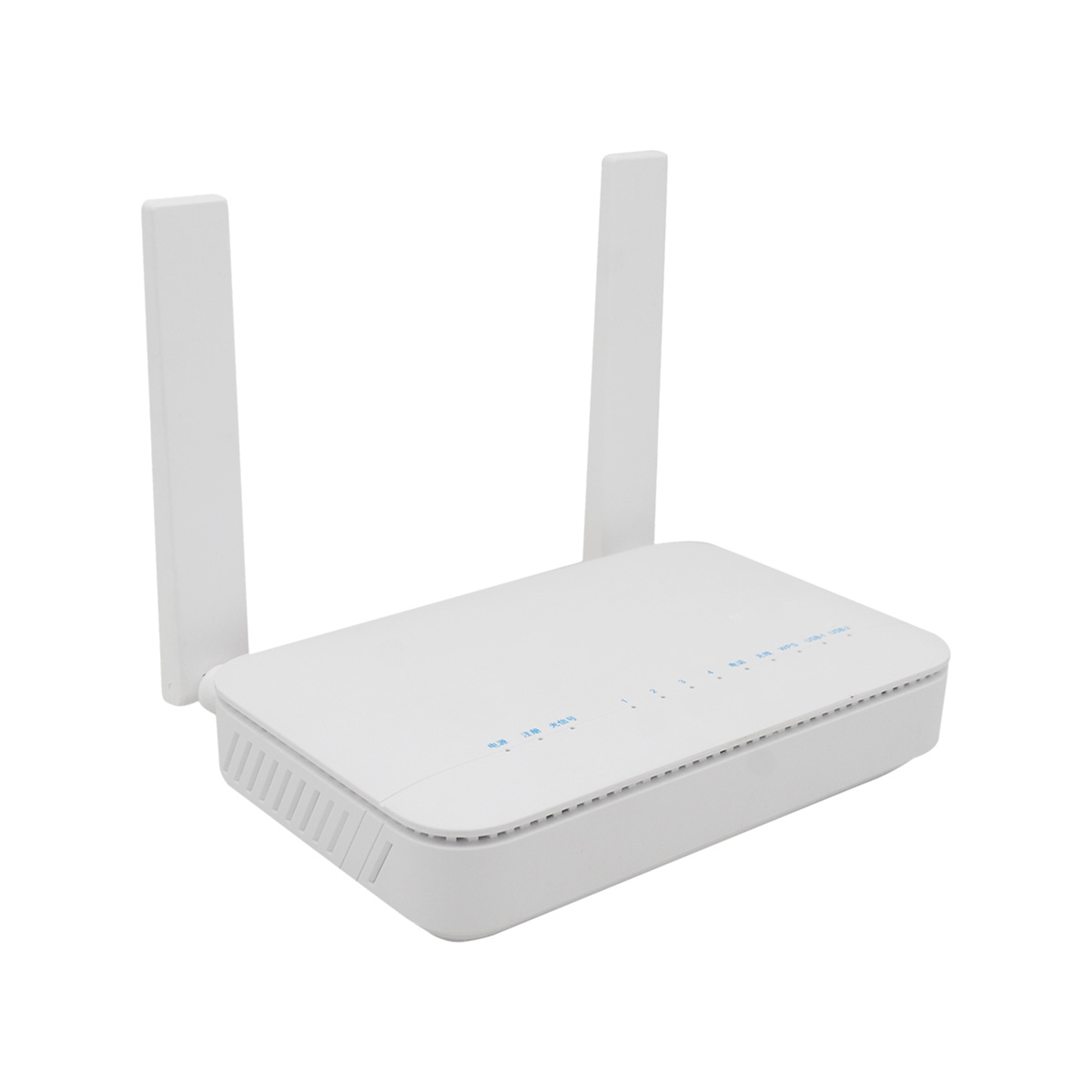

Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
1 / 5
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT
Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT

Dual Band 2.4g 5g WIFI6 AX3000 4GE ZXHN F6610M XPON GPON EPON ONU ONT

Send Inquiry

Product Description

Product Presentation
Product Design
Product Design Aspect 1
Product Design Aspect 2
Product Design Aspect 3
Specification
Basic Parameters
Ports 1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 1 x USB
SC/UPC XPON
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Static power consumption 5.3 W
Max. power consumption 18 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 V DC, 1.5 A
WLAN 2.4GHZ: 802.11n
5GHZ: 802.11ax
Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
GPON Port
  • Class B+
  • Receiver sensitivity: –27 dBm to –29 dB
  • Overload optical power: –8 dBm
  • Wavelengths: US 1310 nm, DS 1490 nm
  • Wavelength Blocking Filter (WBF) of G.984.5
  • Flexible mapping between the GEM port and TCONT
  • GPON: consistent with the SN or password authentication defined in G.984.3
  • Bi-directional FEC
  • SR-DBA and NSR-DBA
  • Type B (single-homing and dual-homing)
WLAN Details
  • IEEE 802.11 b/g/n/ax (2.4G)
  • IEEE 802.11 a/n/ac/ax (5G)
  • 2 x 2 MIMO (2.4G)
  • 2 x 2 MIMO (5G)
  • Antenna gain: 5 dBi
  • WMM/Multiple SSIDs/WPS
  • 2.4G and 5G concurrency
  • Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G)
  • Beamforming
  • Band steering
  • DL OFDMA
  • DL MU-MIMO
  • 1024 QAM
  • 160 MHz frequency bandwidth
  • WPA3
Dimensions 195 mm x 125 mm x 35 mm (length x width x height)
Weight About 400g
