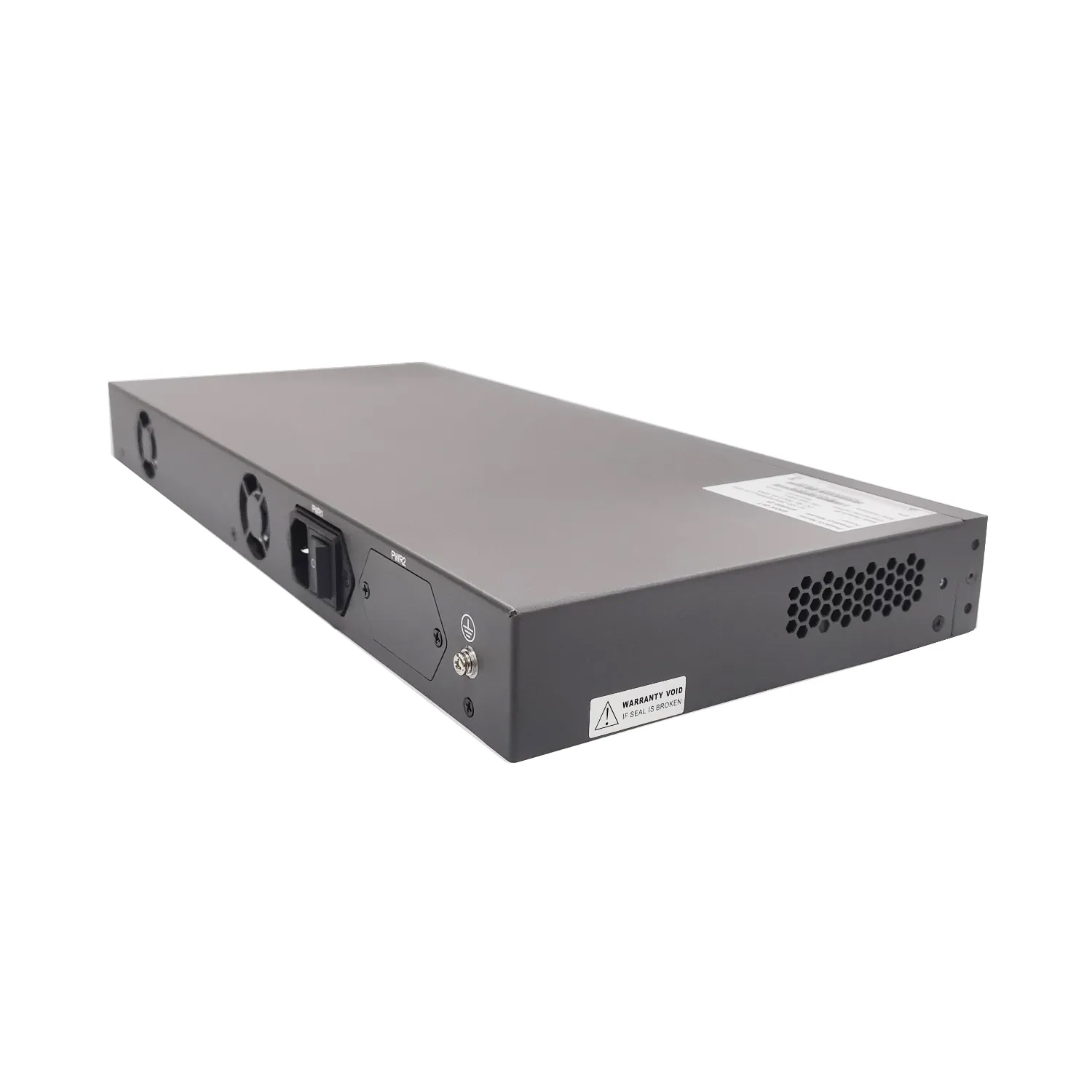

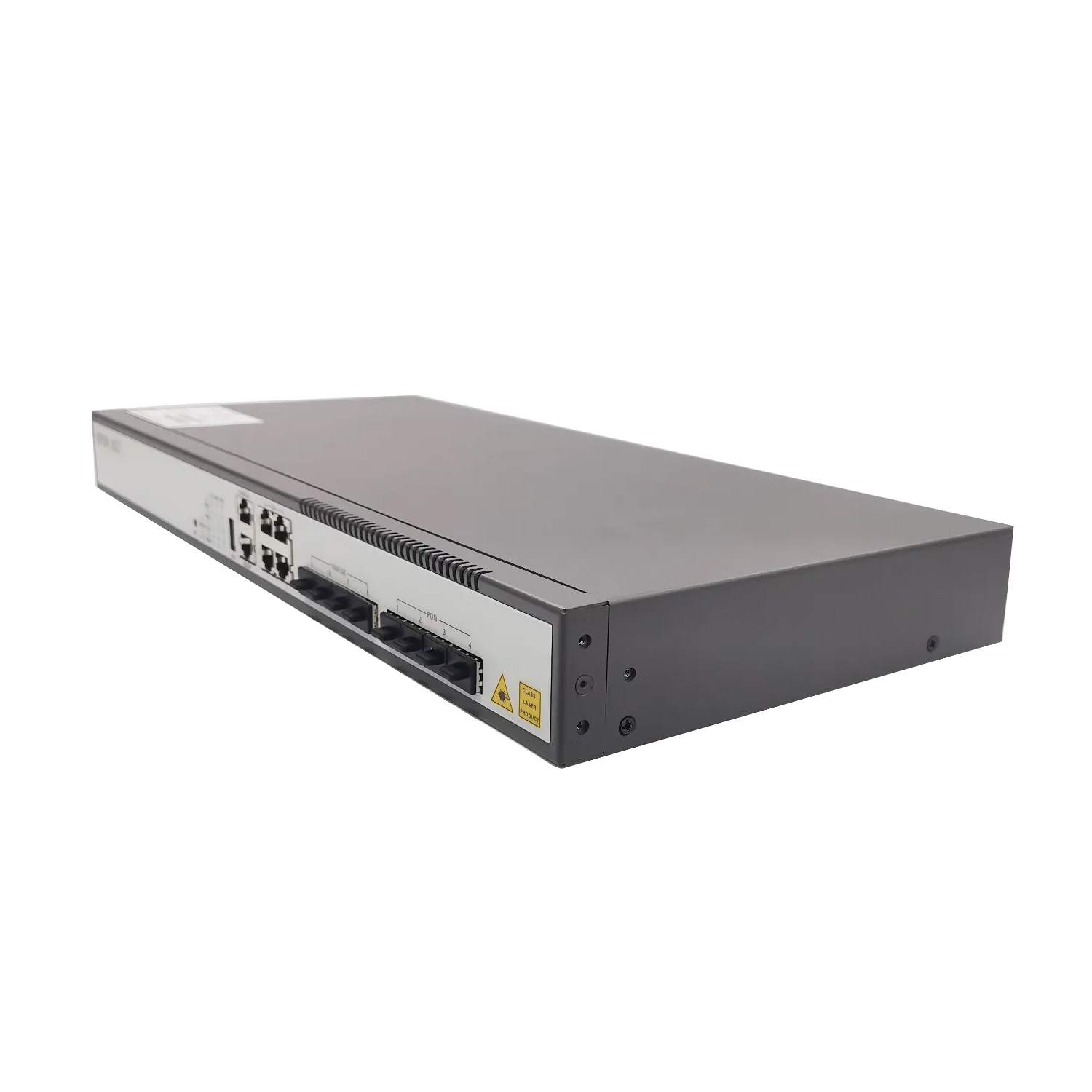

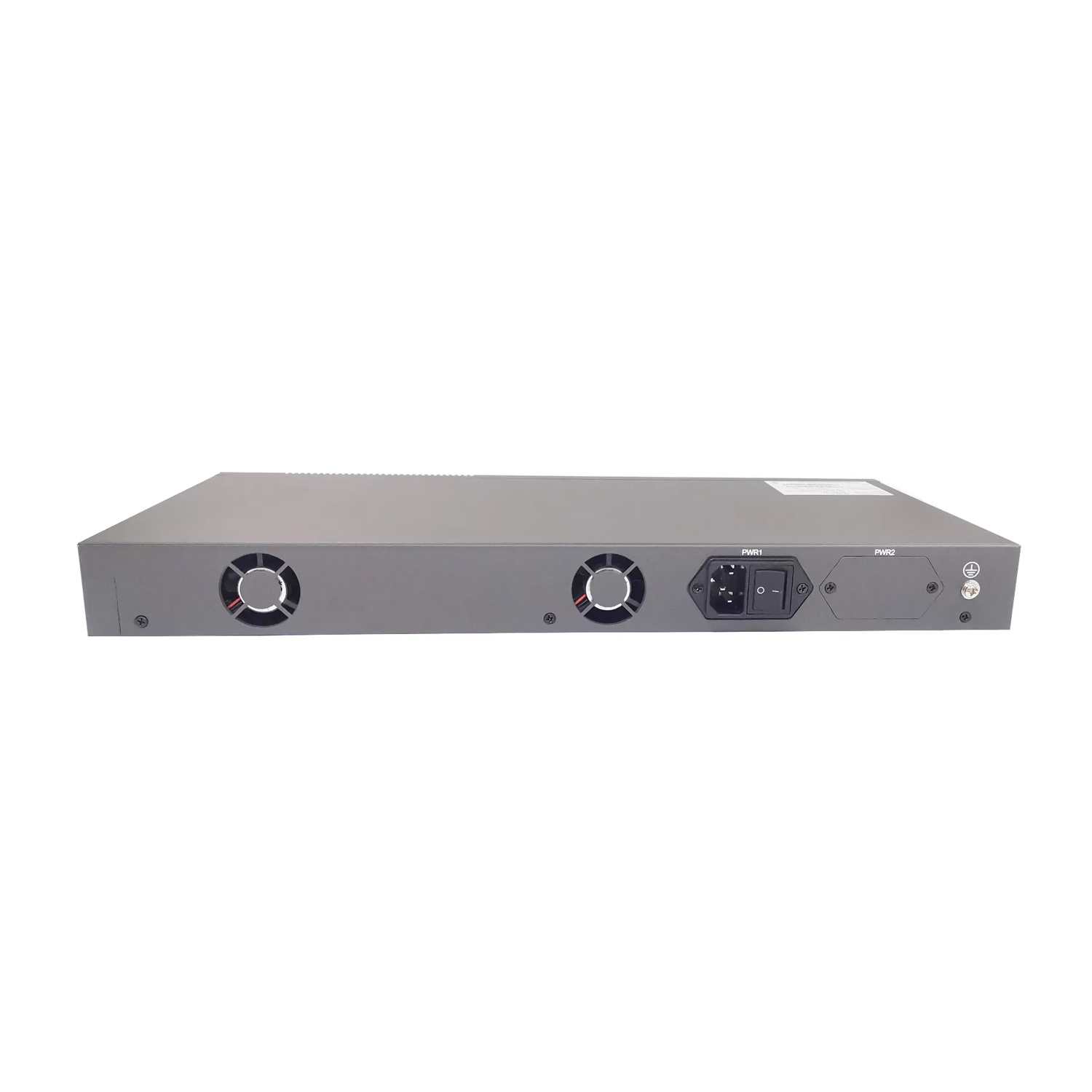

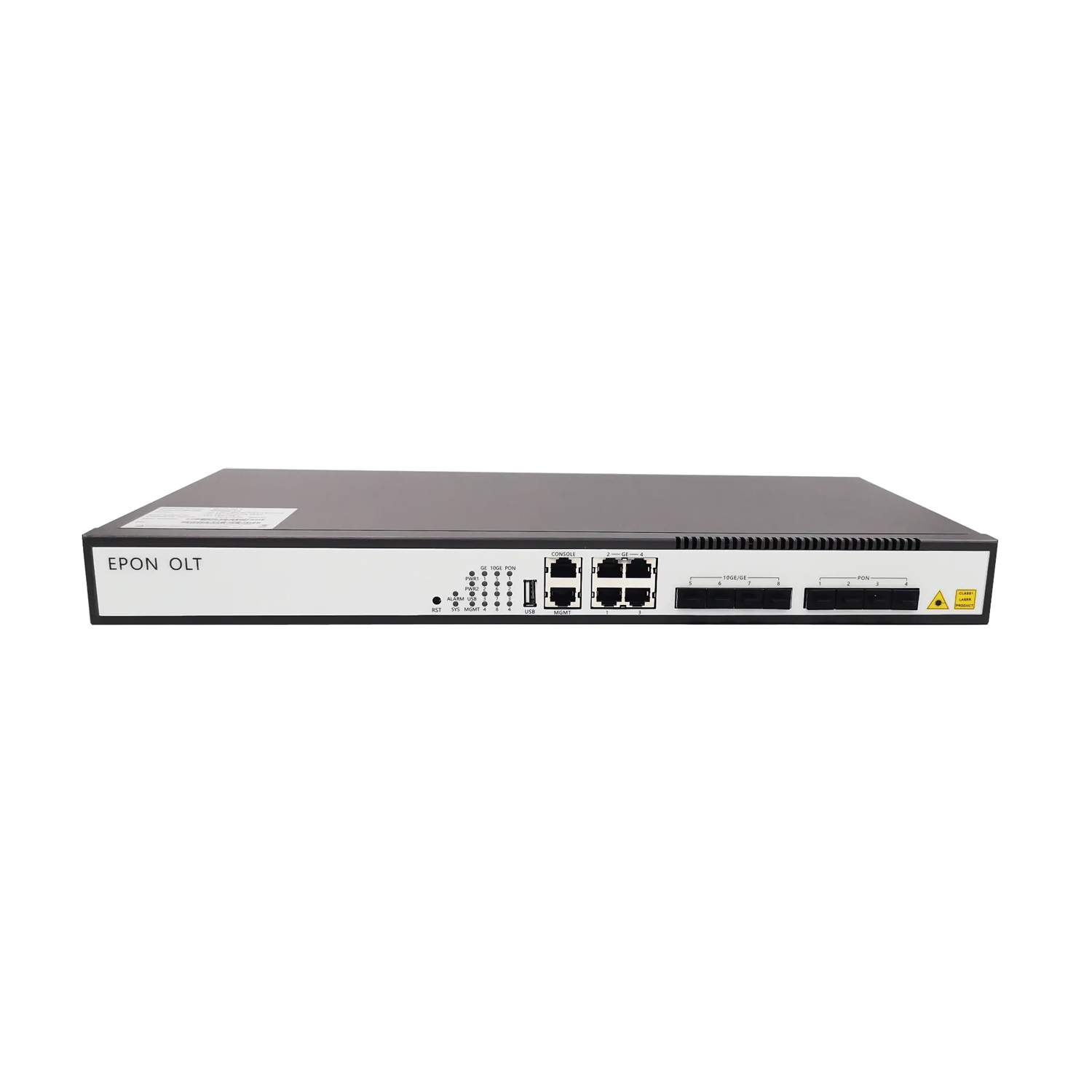

The E5500V4 is a highly integrated, medium-capacity box-type EPON OLT. It can be widely used in operator FTTH access, private network access, government and enterprise park access, campus network access, and other access network construction.
| Attributes | Description |
|---|---|
| Interface | 4*EPON Port, 4*10/100/1000M Base-T, 4*1000M Base-X SFP/4*10GE SFP+ |
| Exchange Capacity | 96Gbps |
| Forwarding Rate | 71.424Mpps |
| Memory and Storage | Memory: 512MB; Storage: 32MB |
| Management Port | Console, MGMT |
| PON | Comply with IEEE 802.3ah EPON standard, 20KM transmission distance, 1:64 Max splitting ratio |
| Fan | Fixed fans (two fans) |
| Power | AC: 100~240V 47/63Hz; DC: -36V~-75V |
| Power Consumption | ≤40W |
| Weight | ≤3kg |
| Dimensions (W *H *D) | 440mm*44mm*200mm (not including mounting ears) |
| Environment Temperature | Working Temperature: -10°C~55°C; Storage Temperature: -40°C~70°C |
| Environment Humidity | Relative Humidity: 5%~95% (non-condensing) |
| Model Number | Description |
|---|---|
| E5500V4 | 4*EPON port + 4GE RJ45 + 4*GE/10GE SFP uplink port |
| E5500V4 | EPON PON Transceiver (SFP-Transmit 1490nm/Receive 1310nm, 9dBm, SC interface-PX20+++) |
| E5500V4 | AC/DC optional dual power supply |
| E5500V4 | EU & US power plug optional |
