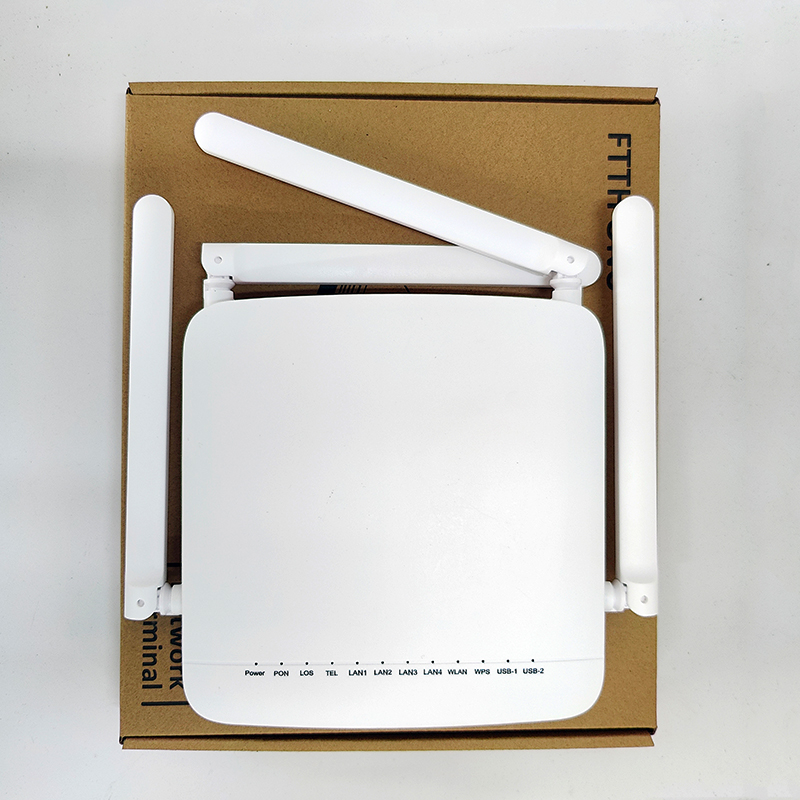

F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
1 / 5
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network
F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network

F680 Dual Band XPON ONT 4GE+Voice+USB WiFi Fiber Router for ISP Broadband Network

Send Inquiry

Product Description

Product Design

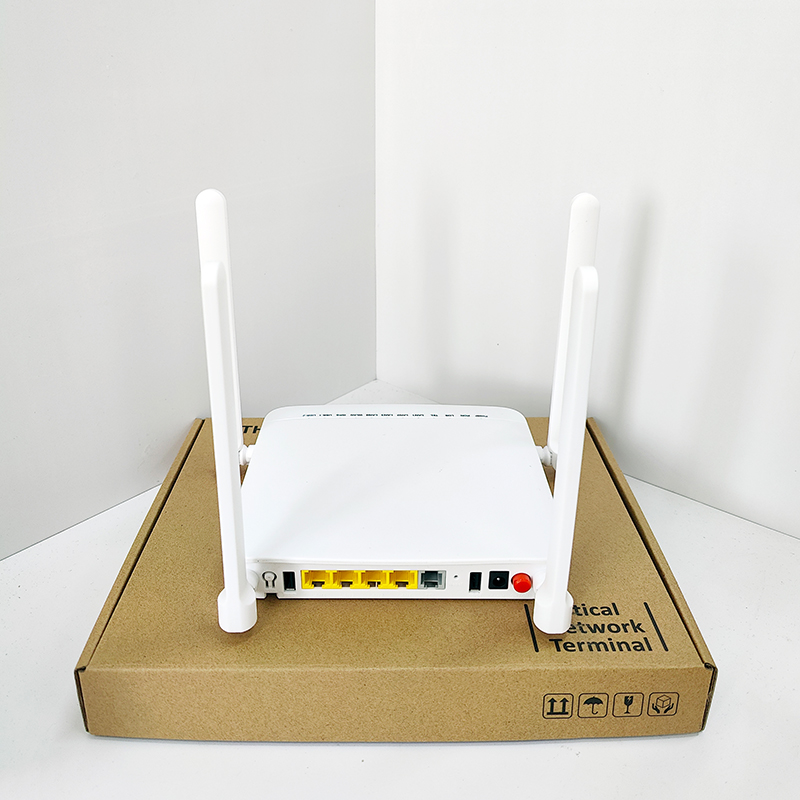

Product Design 1

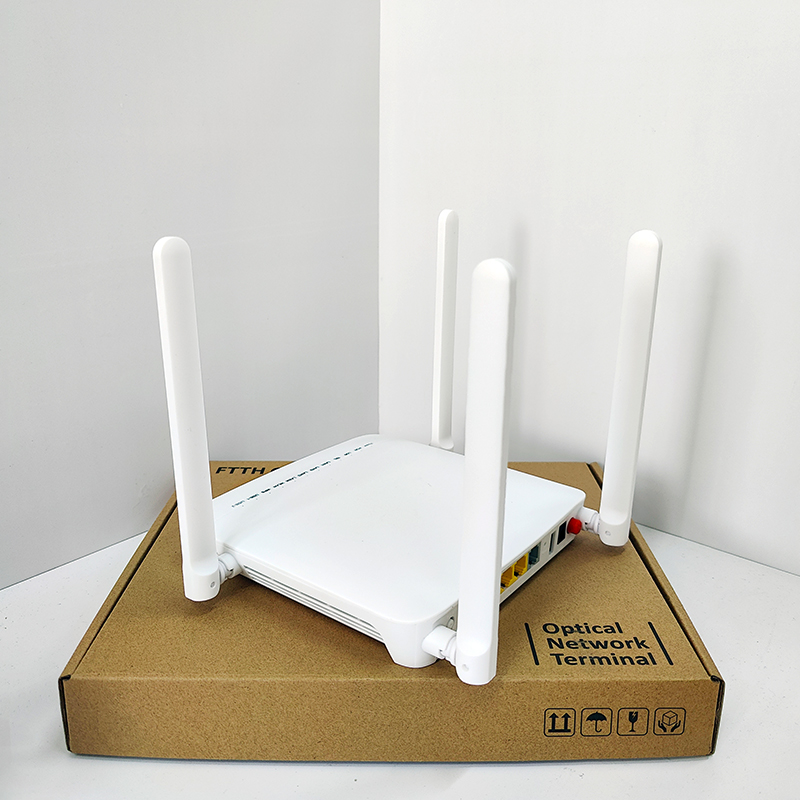

Product Design 2
Product Design 3

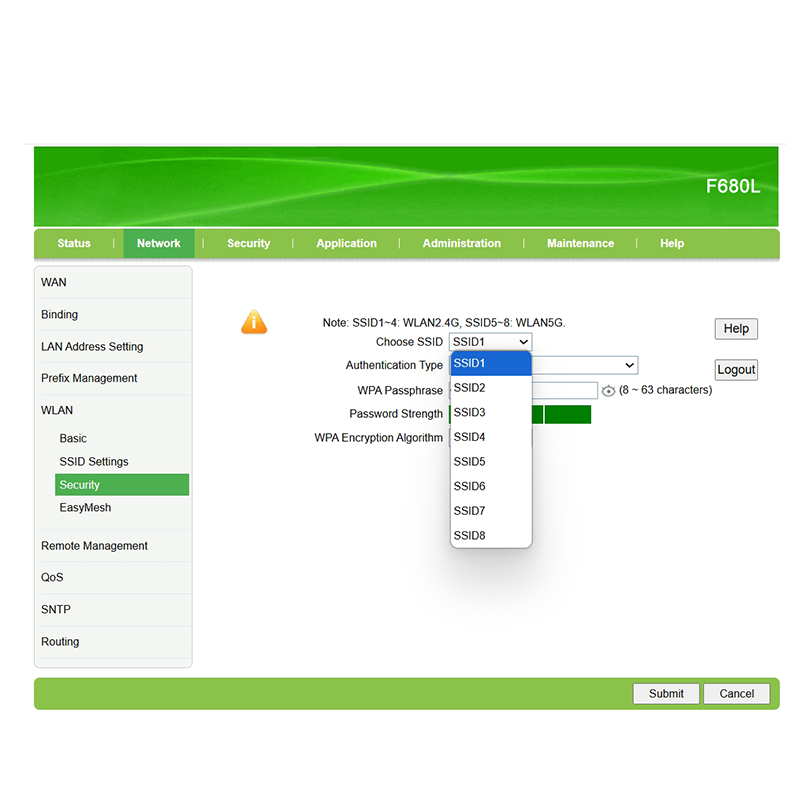

Product Design 4
Specification
Technical items Descriptions
Model F680L
Out Port contains 4GE+1TEL+2USB+WiFi
WIFI signal 2.4G & 5G WiFi
Wireless gain 5db
USB USB2.0
LAN 4*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
TEL H248/Sip Voice protocol
PPPOE support
Firmware English
Dimension/weight 220mm*160mm*40mm/333g
Fiber port 1 GPON interface, single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/FC-UPC/APC Dual mode/Single mode
RX sensitivity >-28dBm (1490nm)
DC power 12V 1.5A, external AC-DC power adapter
Button Reset, power, WPS, Wireless
Operation Working temperature: -5 ~ +55°C working humidity: 10-90% (non-condensation)
Storage Storage temperature: -30 ~ +60°C storage humidity: 10-90% (non-condensation)
Overview & Services
Profile Image
Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a 11-50 person team dedicated to serving global clients.
Quality Guarantee
♦ Pre-production samples before mass production
♦ 100% final inspection before shipment
Product Range
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
Why Choose Us?
We are a top-tier optical communication supplier with over 50 employees. Our core focus: PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.
Services We Provide
Delivery Terms:
FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
Payment Currencies:
USD, EUR, CNY, and more
Payment Methods:
T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
Languages Supported:
English, Chinese, Spanish, French, Russian, and more
Frequently Asked Questions
Who are we and where are our target markets?
We are an optical communication manufacturer founded in 2017. Our key markets span globally, including Asia, North America, Europe, the Middle East, and South America, served by our dedicated team of 11-50 professionals.
How is the product quality guaranteed?
Quality is guaranteed through strict pre-production samples before mass production, followed by a mandatory 100% final inspection prior to shipping.
What types of fiber optic products do you offer?
We offer a wide range of optical communication products, including FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other professional fiber optic equipment.
What are the primary advantages of choosing your services?
We are a premier supplier focused on PON and switching solutions. Backed by a strong engineering team and over 50 employees, we supply reliable products and offer value-added services to our global business partners.
What payment options and delivery methods are available?
We provide highly flexible options including FOB, CFR, CIF, EXW, DDP, and Express Delivery terms. Payments can be processed in USD, EUR, or CNY via T/T, L/C, PayPal, Western Union, Credit Card, Escrow, and other methods.
What are the core technical features of the F680L ONU model?
The F680L ONU comes equipped with 4GE ports, 1TEL port, 2USB ports, and features dual-band 2.4G & 5G Wi-Fi with a 5db wireless gain. It supports SC/FC-UPC/APC optical interfaces and English firmware.
