Product Description

Product Design
Product Design 1
Product Design 2
1 Gigabit fiber port with 1*10/100/1000Mbps RJ45 port
Point-to-point high-speed forwarding
Gigabit Port Details
Plug-and-play, no need for any configuration
Plug and Play Demonstration
Product dimensions and interface definitions
Product Dimensions
Application
Application Diagram
Specification
Product Name Single Port Single Fiber Gigabit Media Converter
Model RD-GS5601
Description Gigabit single electrical port, single mode single fiber Ethernet media converter
Interface 1x copper cable RJ45 port +1x fiber LC port
Transmission 20km. can be customized 40km, 60km or 100km
Optic Fiber Single fiber, single mode
Broadband 1.25G
Rate 1000MHz
Network Media 100BASE-TX/1000BASE-TX: Cat5 and more UTP
Protocol IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI
Architecture Store and forward
EMI Safety FCC Class A, CE
Power Supply External power supply
Total Power 5W
Warranty 1 year warranty, life-long maintenance

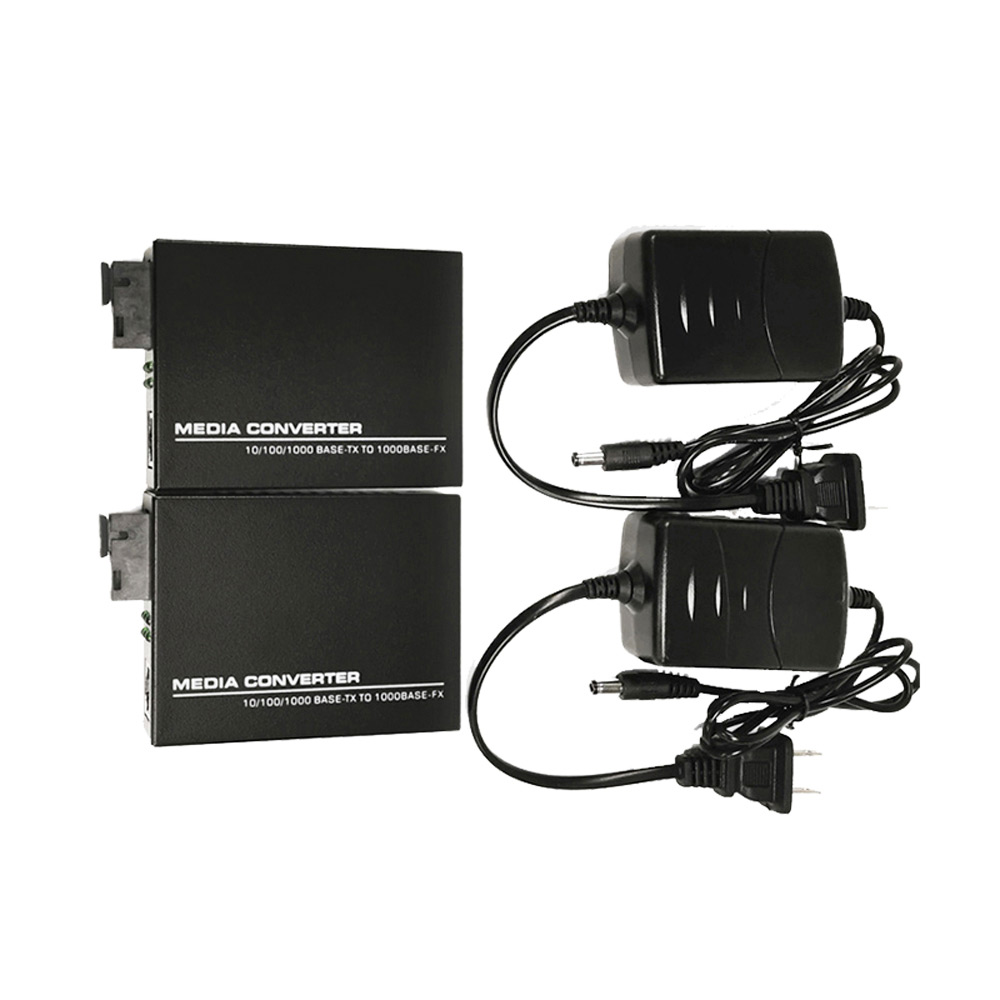

Packing List Gigabit Fiber Media Converter, User Guide, Power Adapter
Order Information
Model Introduction Function
RD-GS5601-M20A
RD-GS5601-M20B		 Mini Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
RD-GS5601-20A
RD-GS5601-20B		 Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
RD-GS5601-S20 Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm
RD-GS5601-SFP 10/100/1000MB to SFP Media Converter 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply.
RD-GS5601-SFP MINI MINI 10/100/1000MB to SFP Media Converter 10/100/1000M media converter, 1*RJ45+1*SFP port, media converter only

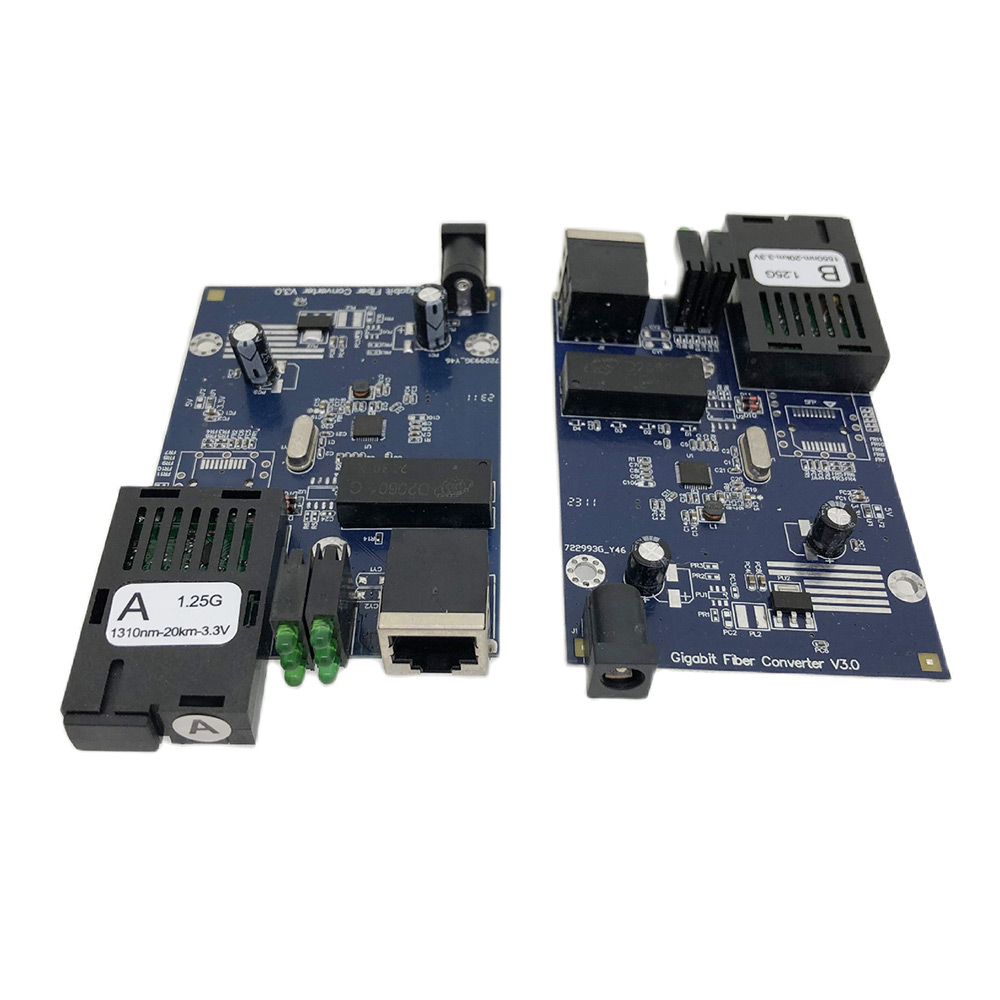

RD-GS5601-SFP PCBA MINI 10/100/1000MB to SFP Media Converter PCBA 10/100/1000M media converter, 1*RJ45+1*SFP port, Board only.
Frequently Asked Questions
1. Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team of 11-50 professionals serving global clients.
2. How Do We Guarantee Quality?
  • Pre-production samples before starting mass production.
  • 100% final inspection and testing before shipment.
3. What Can You Buy From Us?
You can acquire FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
4. Why Choose Us?
We are a top-tier optical communication supplier. Our core focus is delivering robust PON and switching solutions, supported by a strong and experienced engineering team. We guarantee reliable products and value-added service for partners globally.
5. What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more.
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages: English, Chinese, Spanish, French, Russian, and more.
6. Can the Transmission Distance Be Customized?
Yes, our default transmission distance is 20km, but we can customize configurations for 40km, 60km, or 100km based on your specific requirements.
