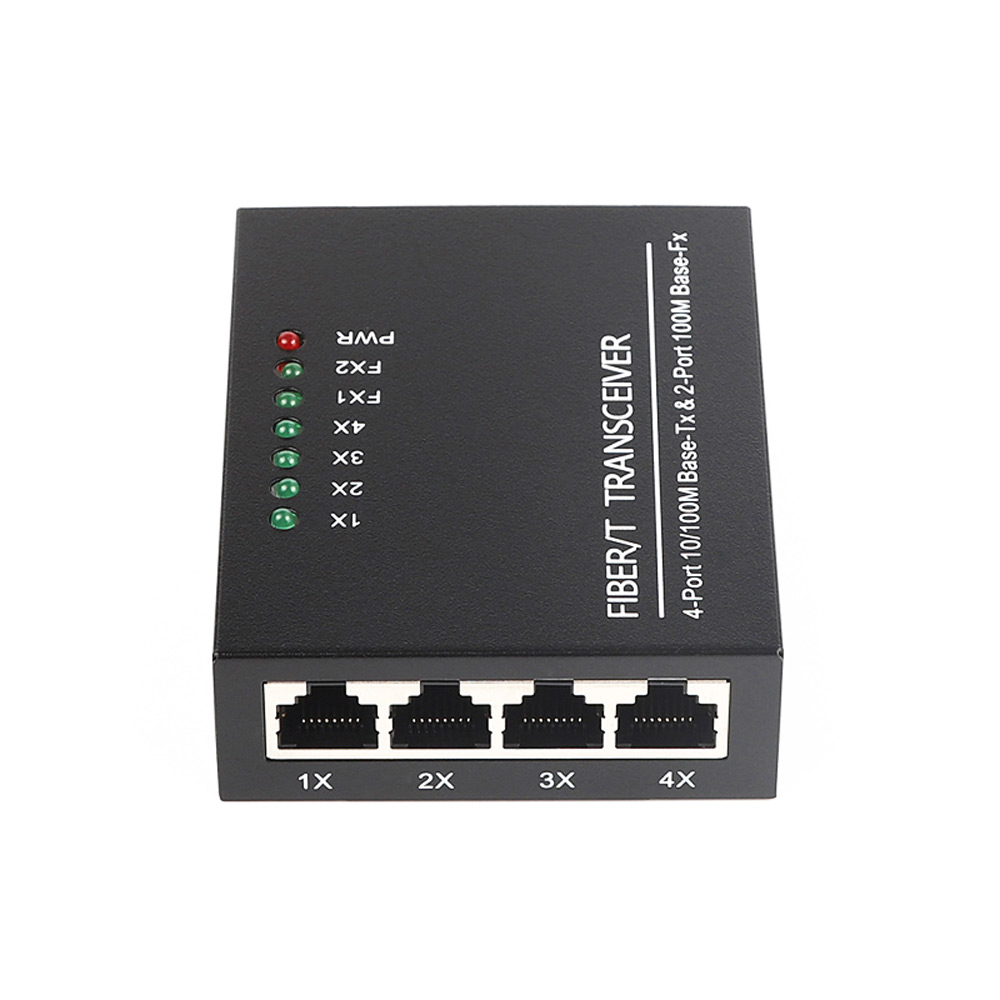

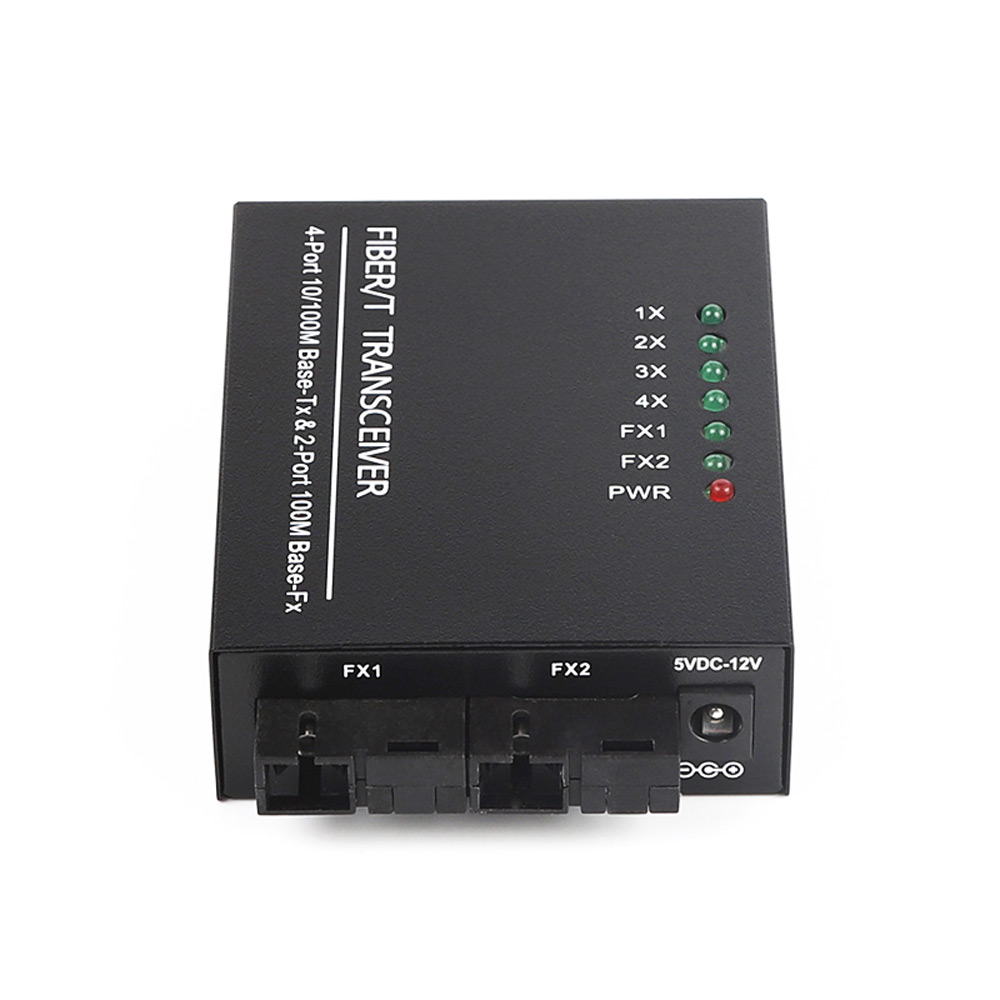

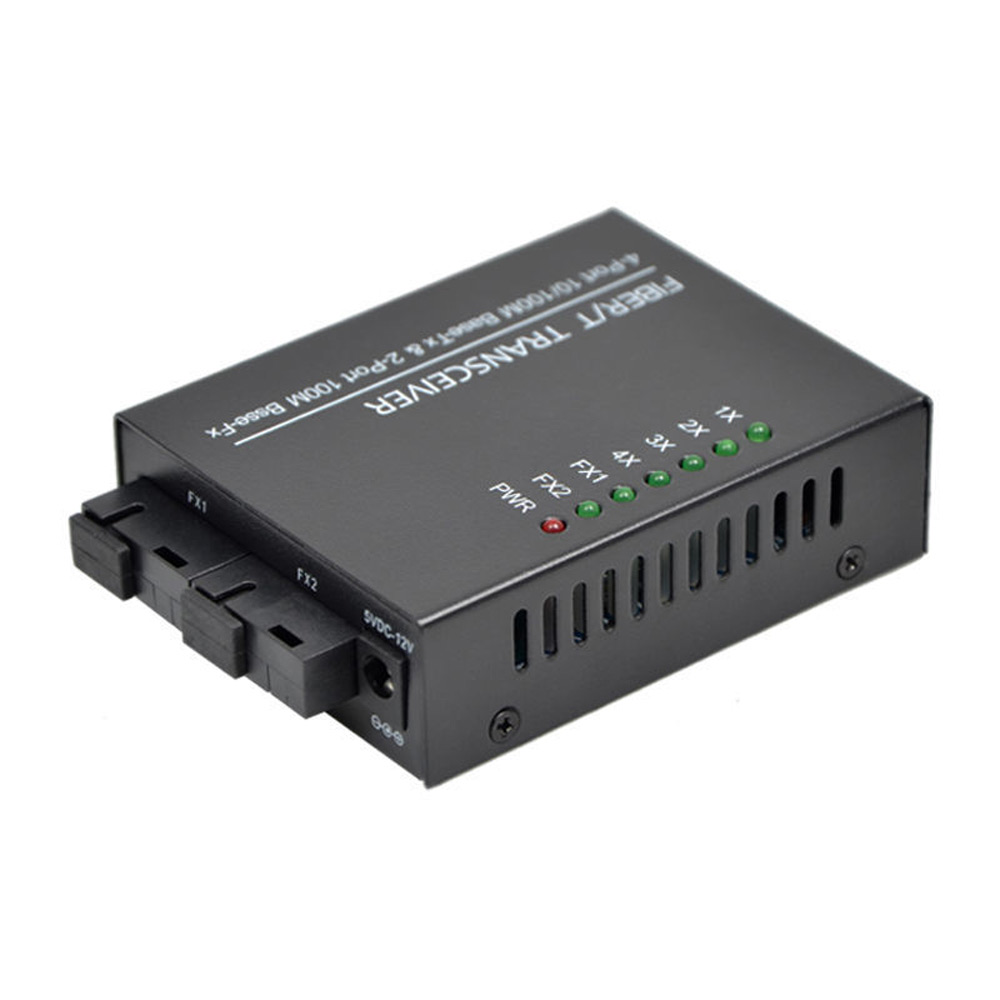

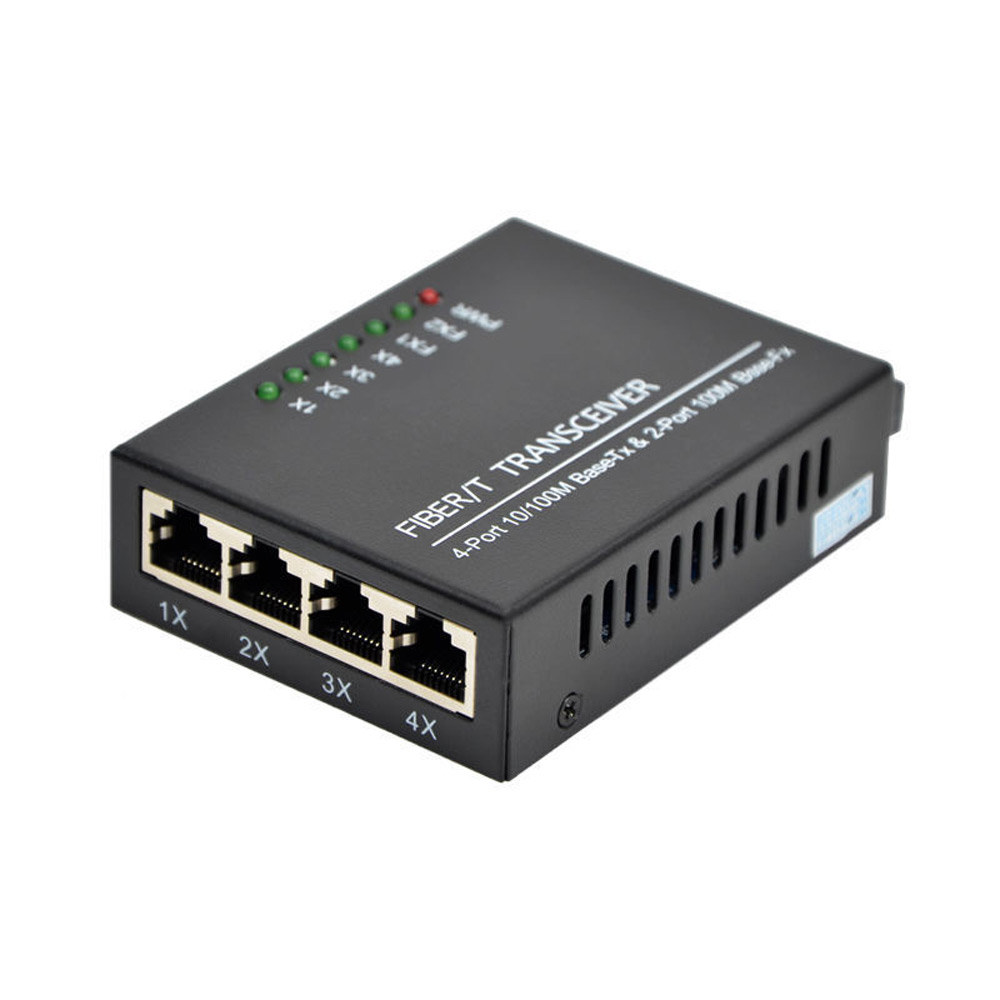

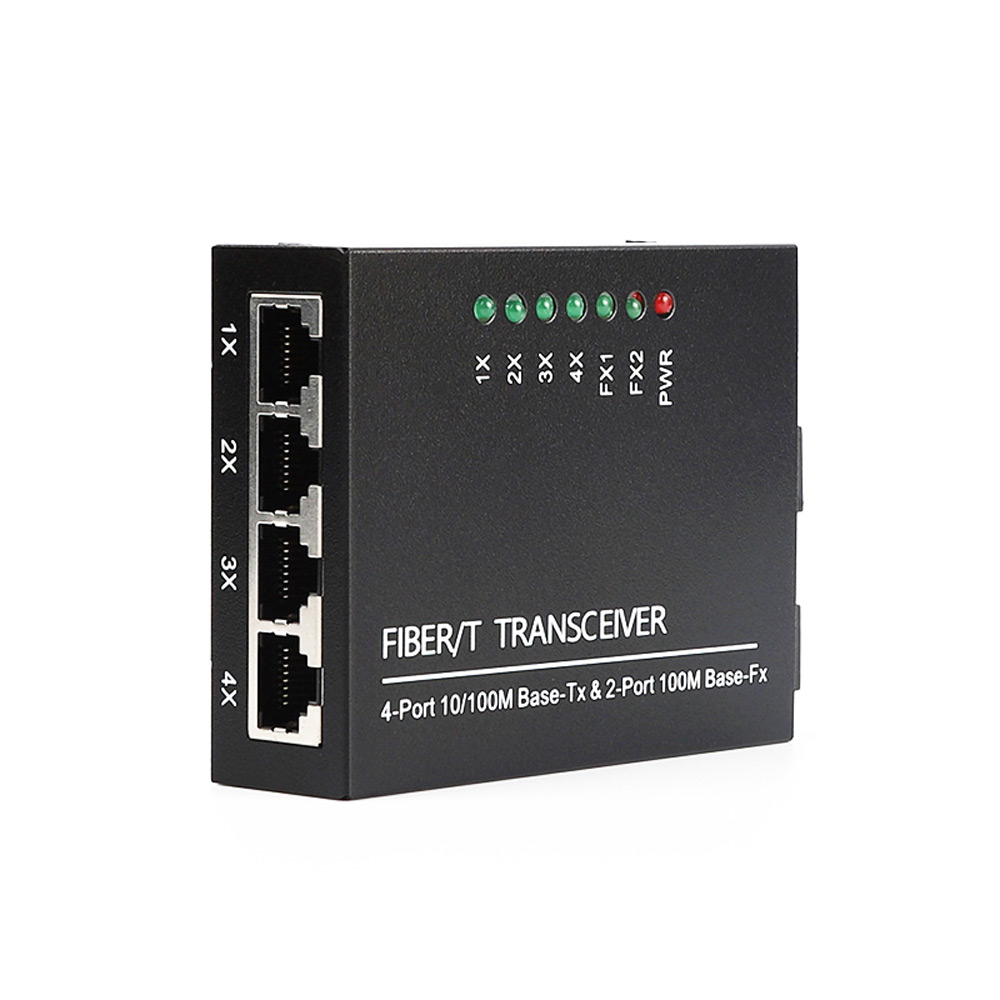

100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
1 / 5
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver
100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver

100M 2 Fiber 4 RJ45 Single Mode Single Fiber Optical Switch Media Converter for CCTV Fiber Optic Transceiver

Send Inquiry

Product Description

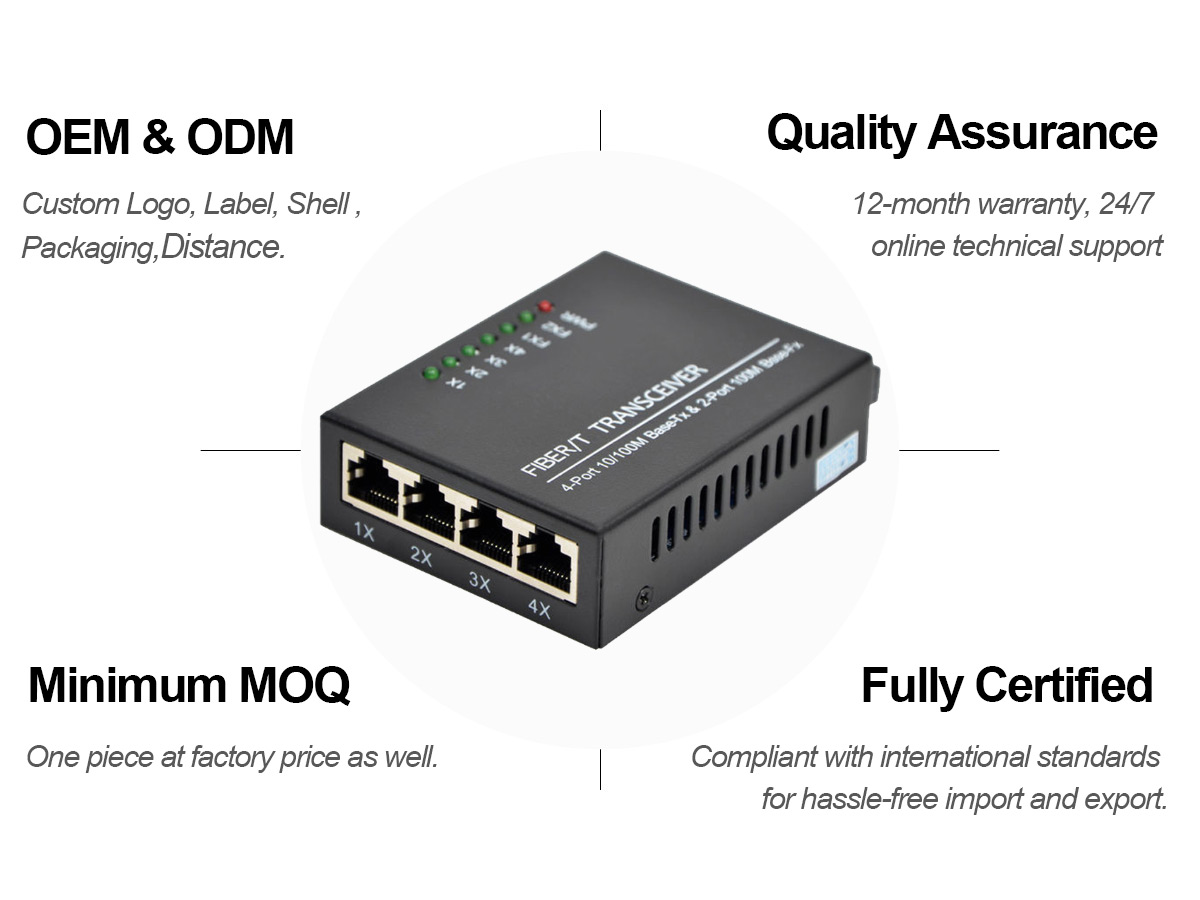

Product Overview

Product Design

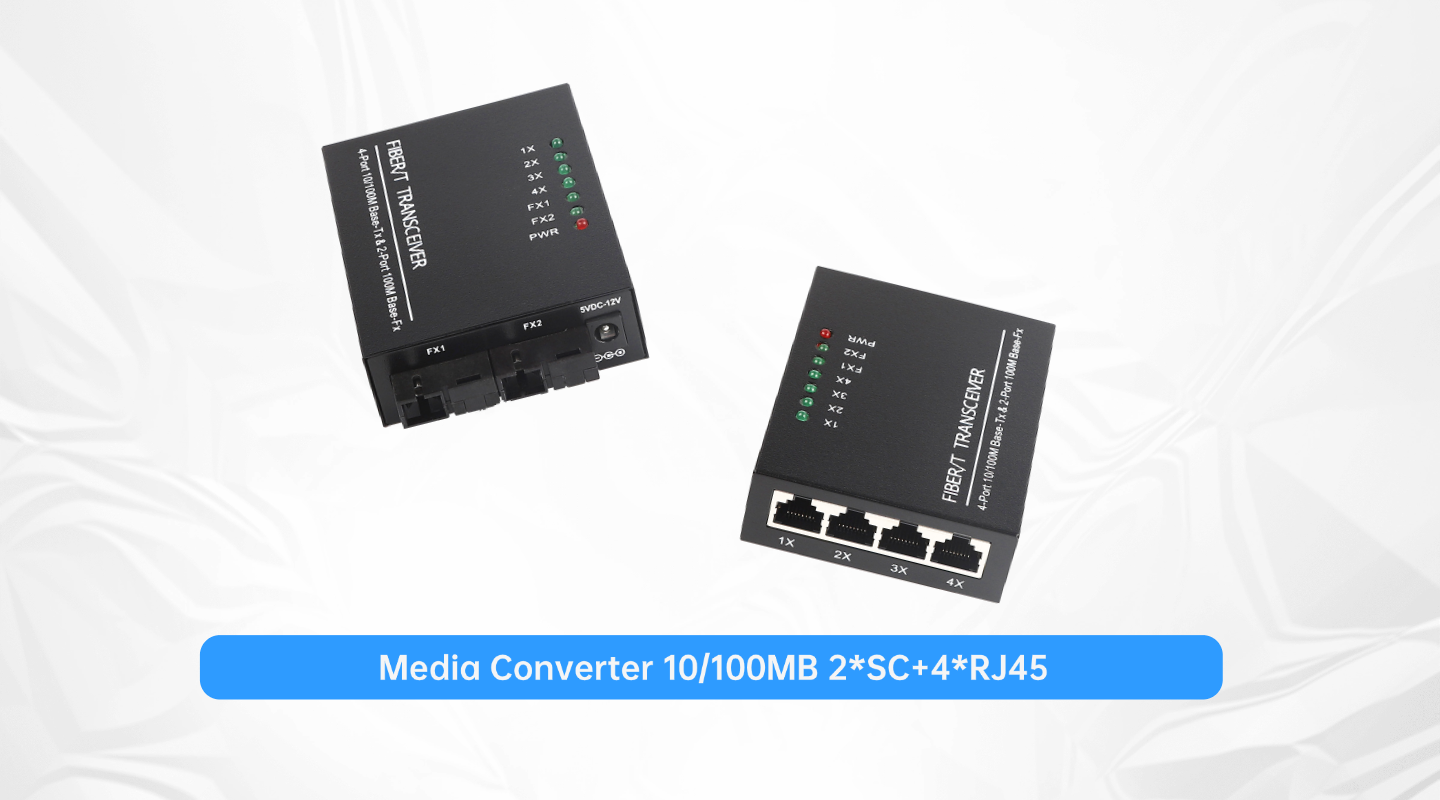

Product Design Layout Left Product Design Layout Right
2 fiber port with 4*10/100Mbps RJ45 port

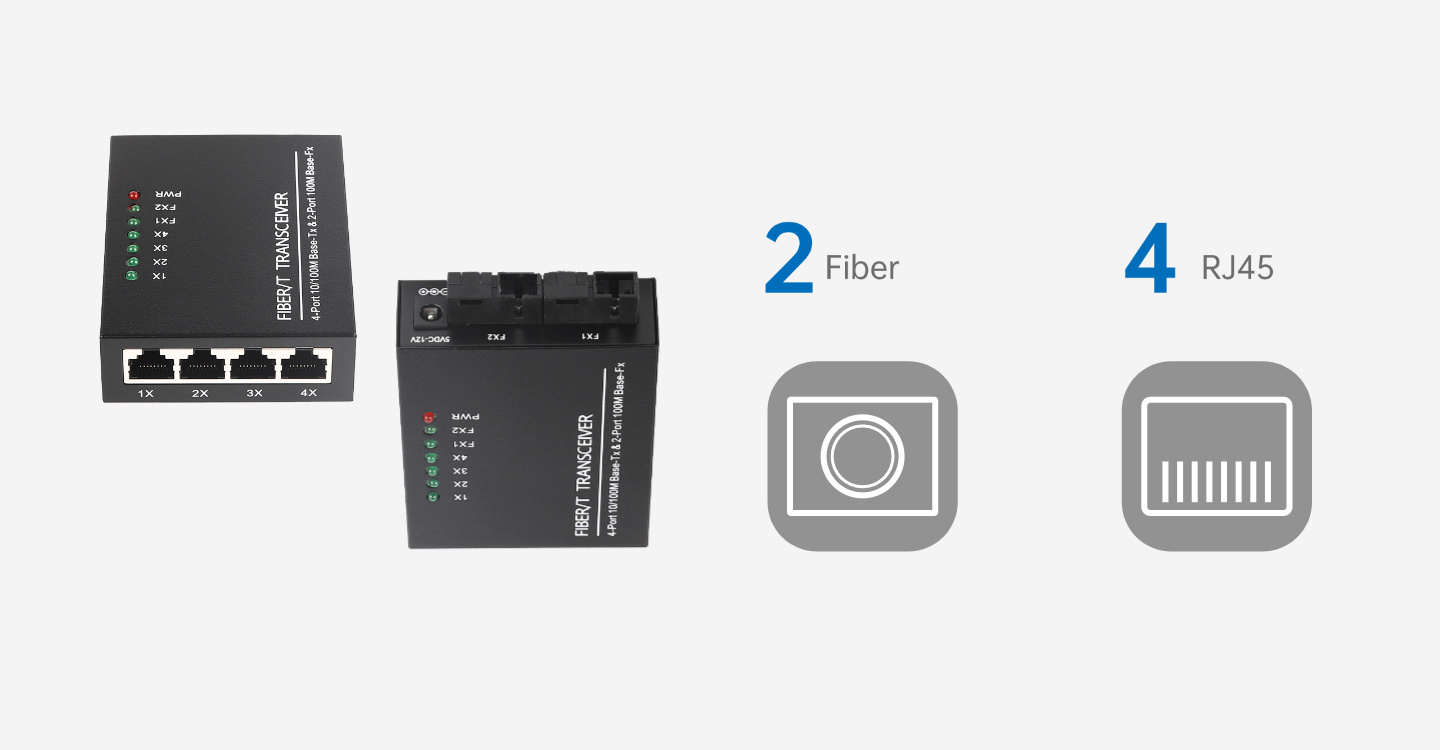

Product Setup Guide
Plug-and-play, no need for any configuration

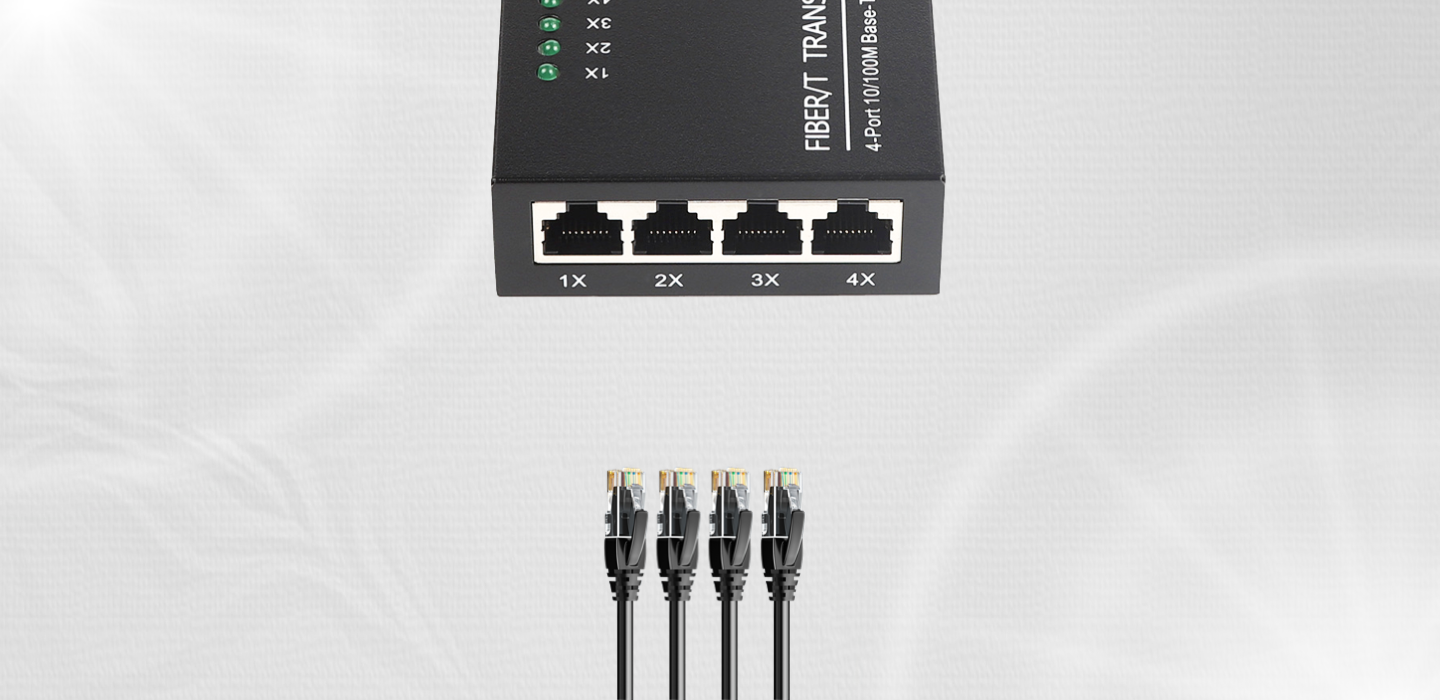

Product Dimensions View

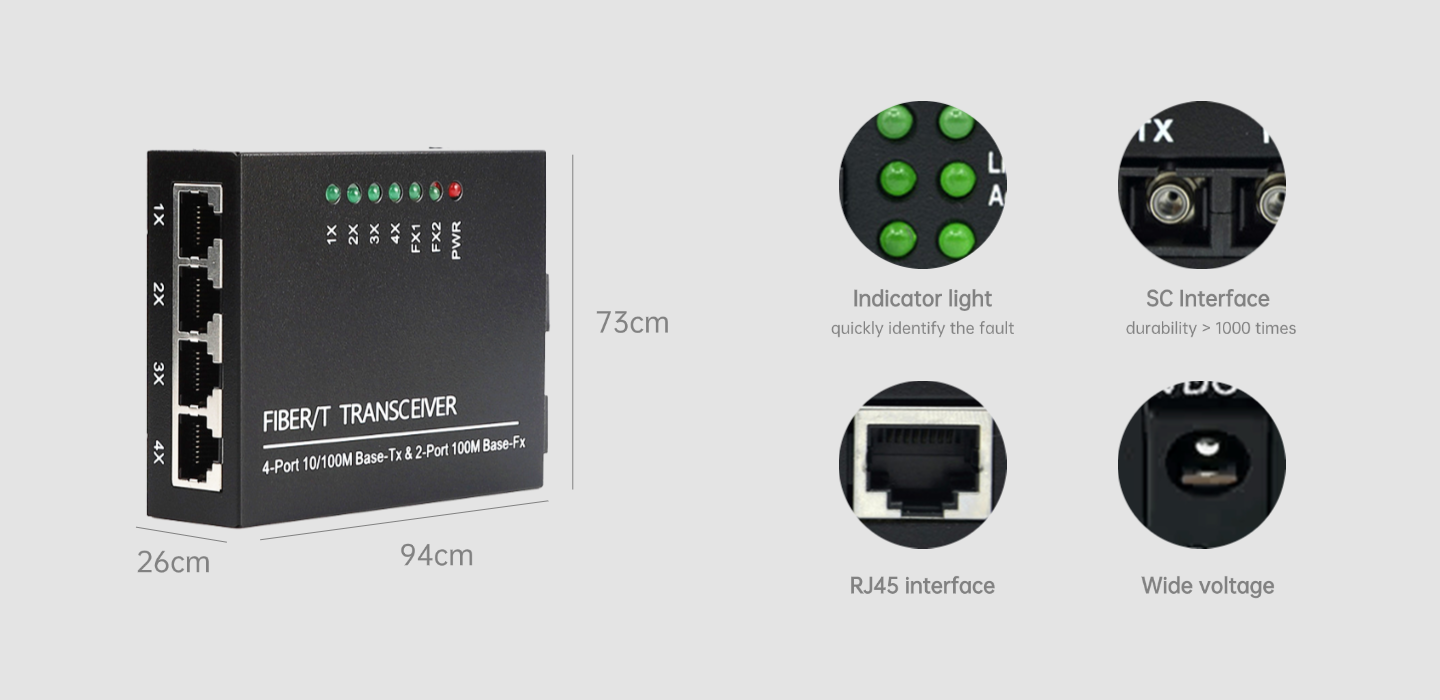

Product dimensions and interface definitions
Interface Configuration Chart

Specification

Hardware Specifications
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface • 2*155Mbps SC optical fiber interface
• 4*RJ45 10/100Mbps
Distance • 100m @CTE5
• 20km @SMF
Wavelength • A: Tx1310nm / Rx1550nm
• B: Tx1550nm / Rx1310nm
Transmission Media • Cable: CTE5 or higher UTP and STP
• Optical Fiber: 9/125um single-mode optical fiber
Optical Parameter • Average emission power: -9 to -3 dBm
• Receiving sensitivity: -22 dBm
Power DC 5V / 2A
Size 94mm * 73mm * 26mm
Environment • Operating temperature: -5℃ to 60℃
• Operating humidity: 10% to 90% RH (non-condensing)
• Storage temperature: -40℃ to 70℃
• Storage humidity: 5% to 90% RH (non-condensing)
Order Info
RD-FE204 Fiber Switch 10/100MB 2*SC + 4*RJ45 AB
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.

Company Profile

Manufacturing Center Overview

Frequently Asked Questions

1Who Are We?
We are a professional optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients.
2How Do We Guarantee Quality?
We guarantee high quality through pre-production samples before mass production and a rigorous 100% final inspection before shipment.
3What Can You Buy From Us?
You can buy high-quality FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
4Why Choose Us?
We are a top-tier optical communication supplier focusing on PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.
5What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more.
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages: English, Chinese, Spanish, French, Russian, and more.
6What is the default transmission distance of the fiber switch?
The default transmission distance is 20 kilometers. However, we can also customize the device configuration to meet different distance requirements for your specific project.
