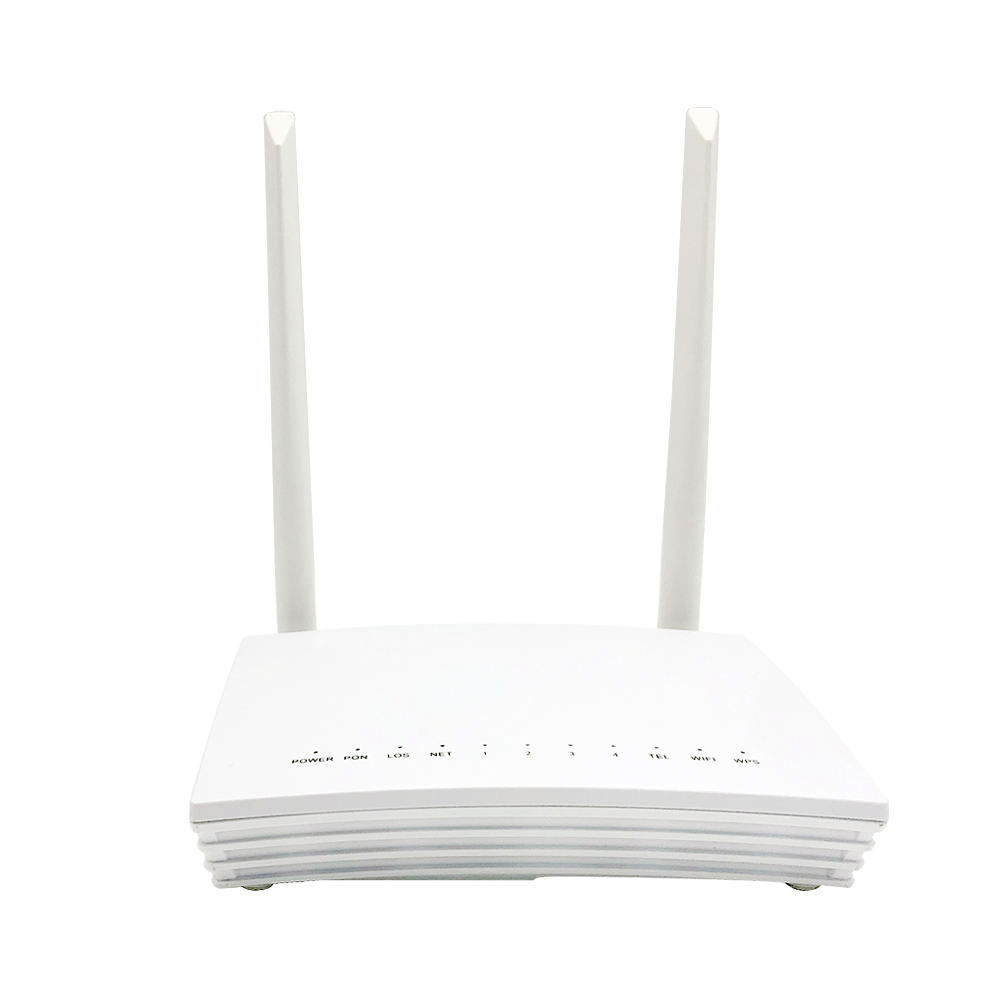

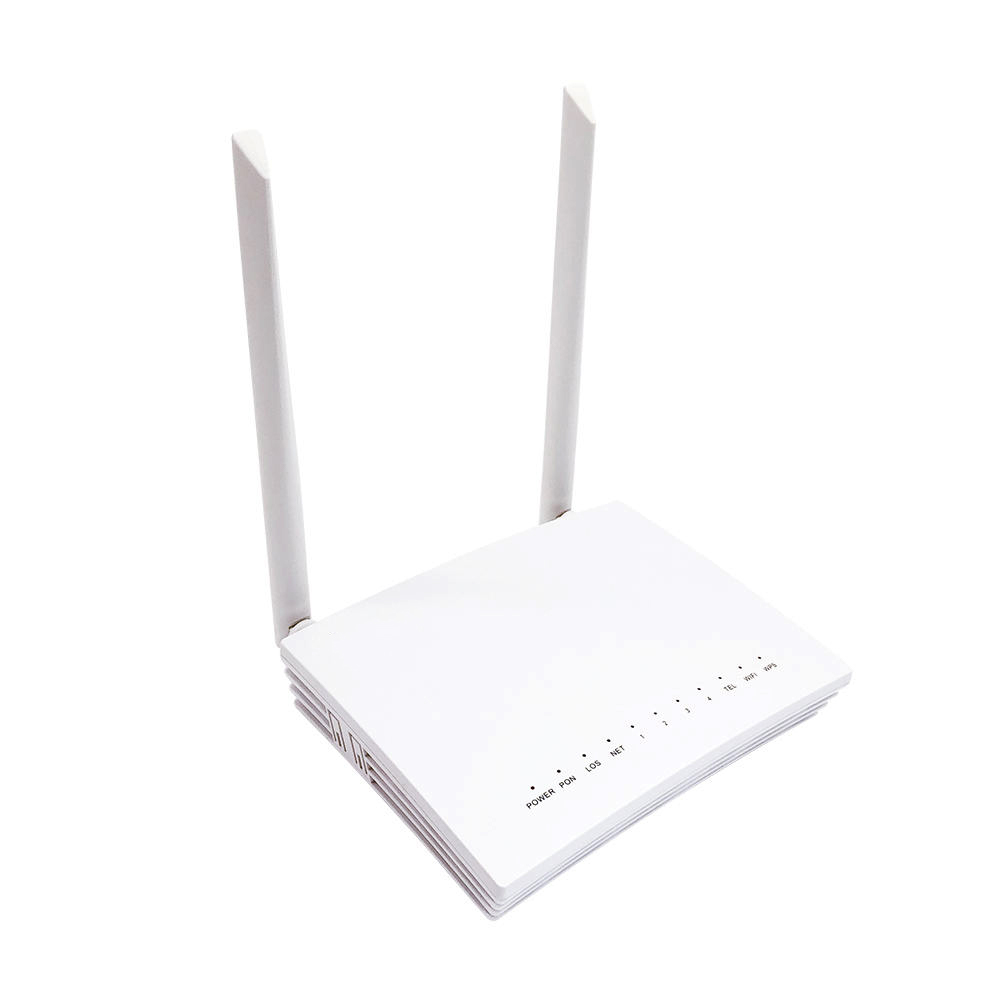

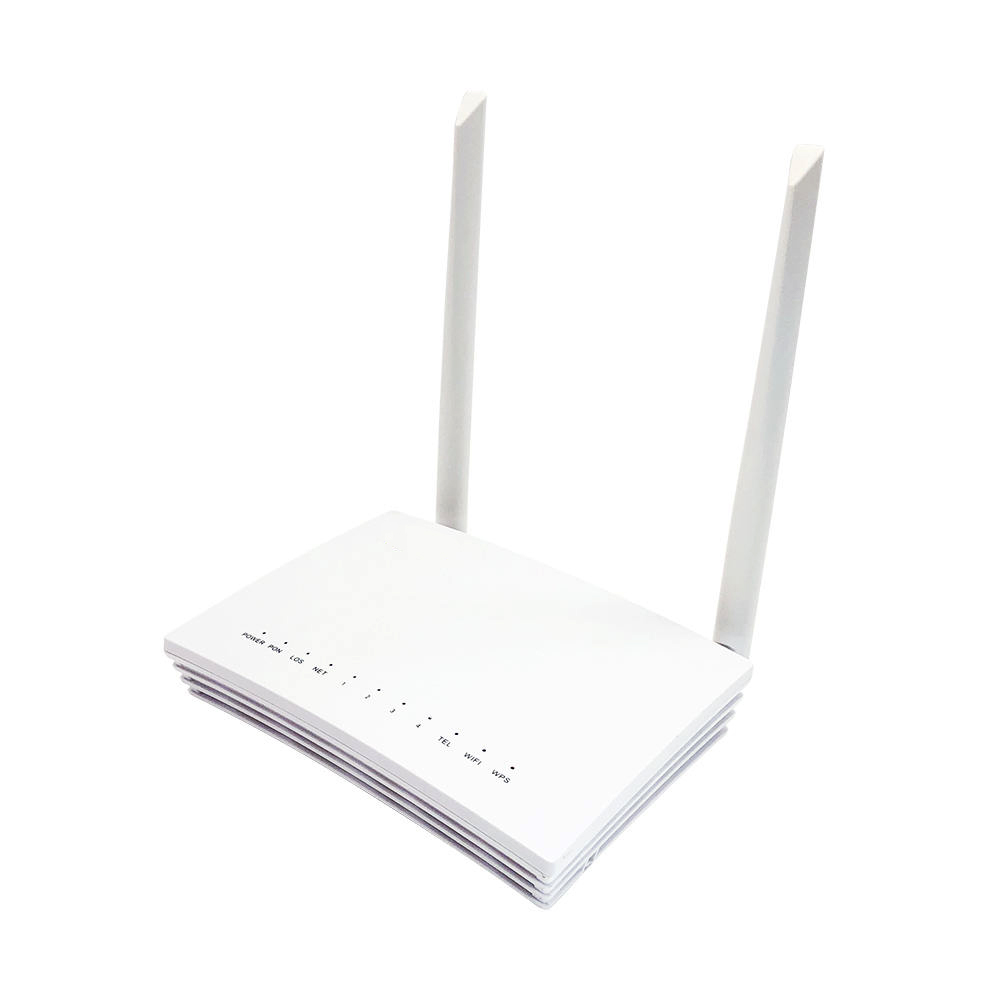

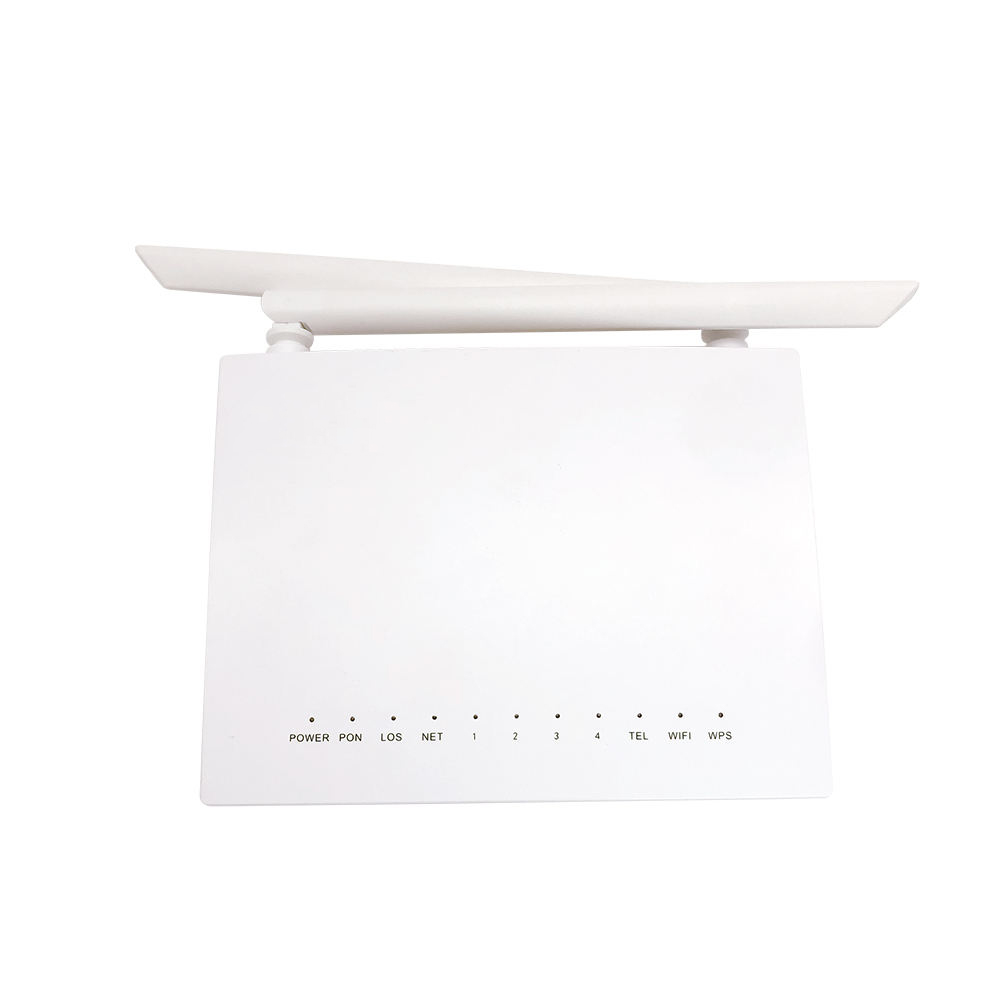

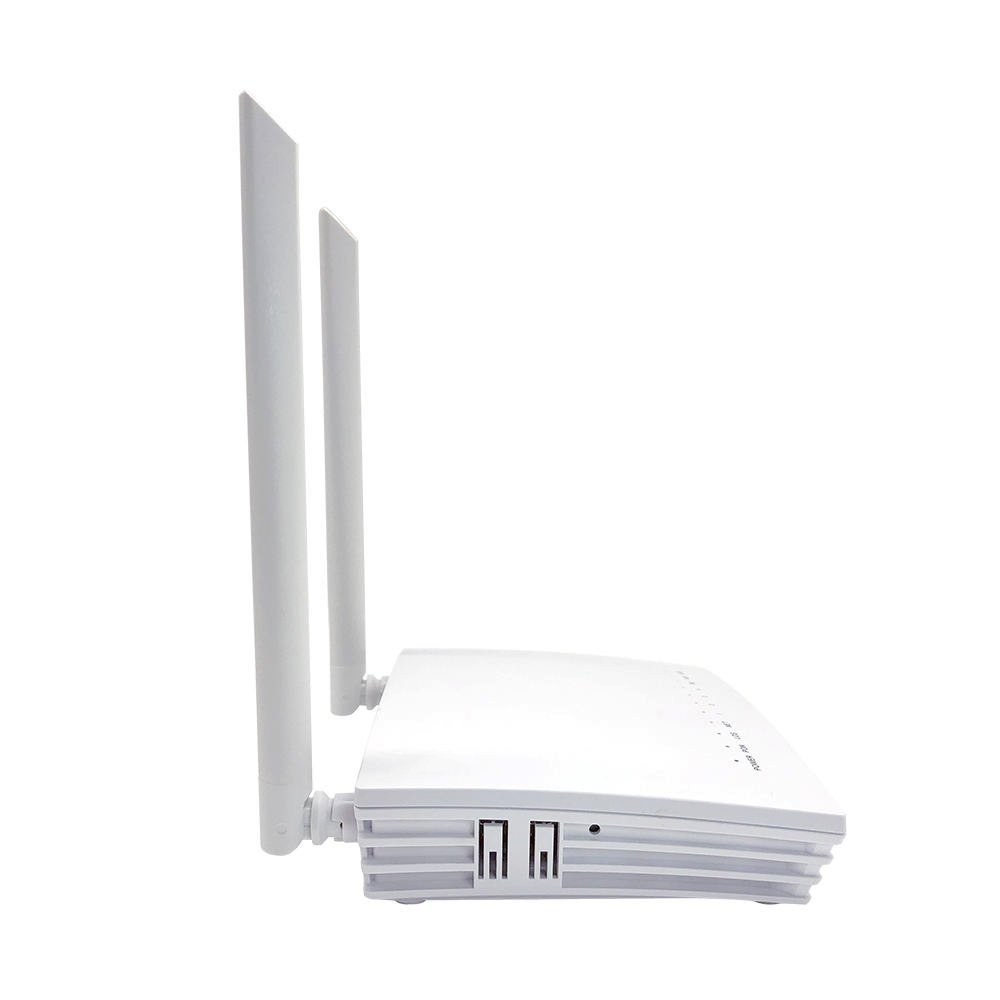

| Model | GM220-S |

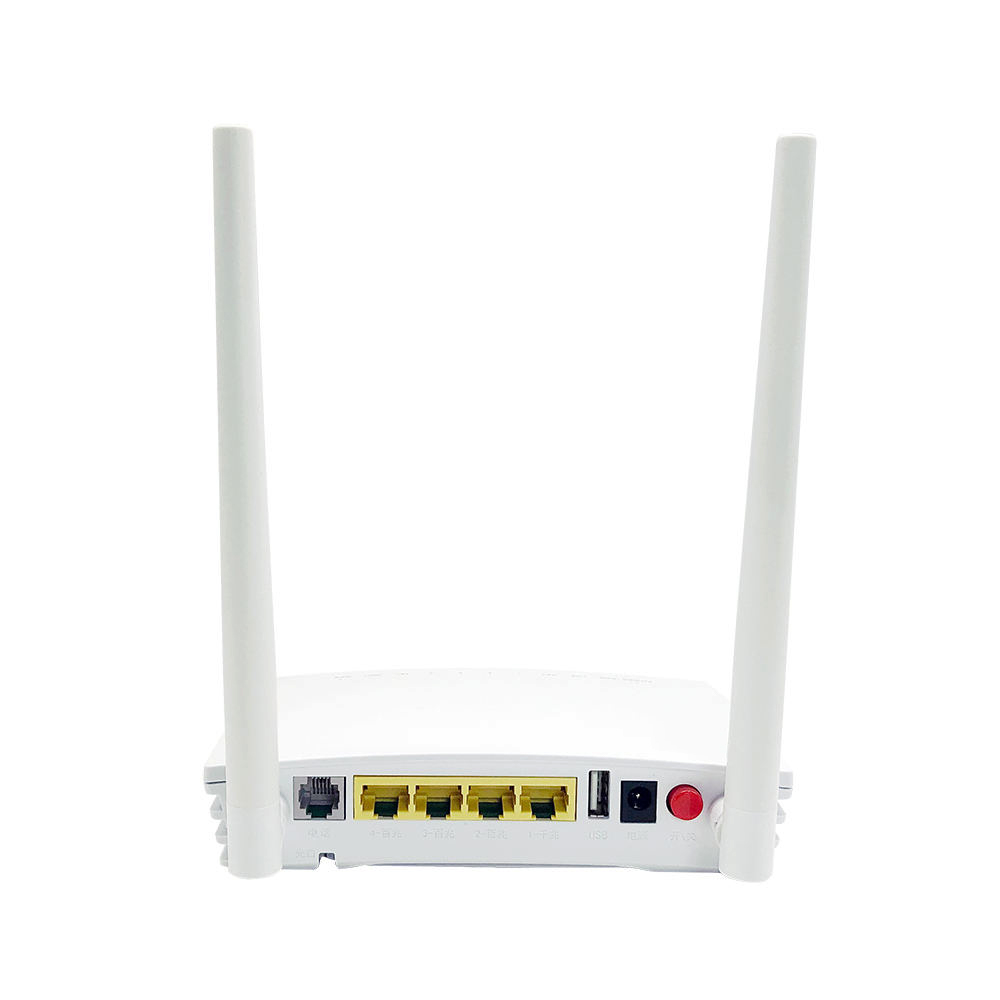

| User interface | 3*10/100M RJ45, 1*10/100/1000M RJ45, 1*USB, 1*VOIP, 1*WiFi |
| PON |
Transmission speed: upstream 1.25Gbps / downstream 2.5Gbps Network coverage radius: 20km Optical receive sensitivity: ≤-28dBm Luminous power: <0dBm Security: ONU authentication mechanism |
| WiFi | IEEE 802.11b/g/n WIFI (300Mbps) |
| Protocol |
Compliant with IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1b/g/n IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet-II, Ethernet-SNAP |
| VLAN | Port-based VLAN, GVRP, IEEE 802.1Q VLAN |
| QoS |
Backpressure flow control (half-duplex) IEEE 802.3x flow control (full-duplex) Prevent head of line WR, SP queue scheduling algorithm Port rate limit |
| Security |
IEEE 802.1x, access control based on port; support local and remote RADIUS CHAP, EAP certification Storm control, port protection |
| Management |
Support various management modes such as Web, TELNET Support debug function |
| Environment |
Operating temperature: 0°C~60°C; Operating humidity: 10%~85% (no-condensation) Storage temperature: -40°C~80°C; Storage humidity: 5%~95% (no-condensation) |
| Power supply | Input AC 110~240V, Output DC 12V/1A |
| Power Consumption | 12W |
| Part Number | Description | Accessories Pack |
|---|---|---|
| GM220-S | 1*GPON+1*GE+1*FE+1*USB+1*VOIP+1*WIFI | AC-DC Power Adapter DC12V/1A |
