Better Signal, Wi-Fi 6 Next-Gen Speed
Higher bandwidth
EPON/GPON Dual-mode Access Reduce the Investment of Operators
Compatible with Various OLT, Flexible Networking
2.4G+5G Dual-band WiFi, High-Speed Connection
It ensures lag-free gaming, seamless online collaboration, and effective remote video meetings.

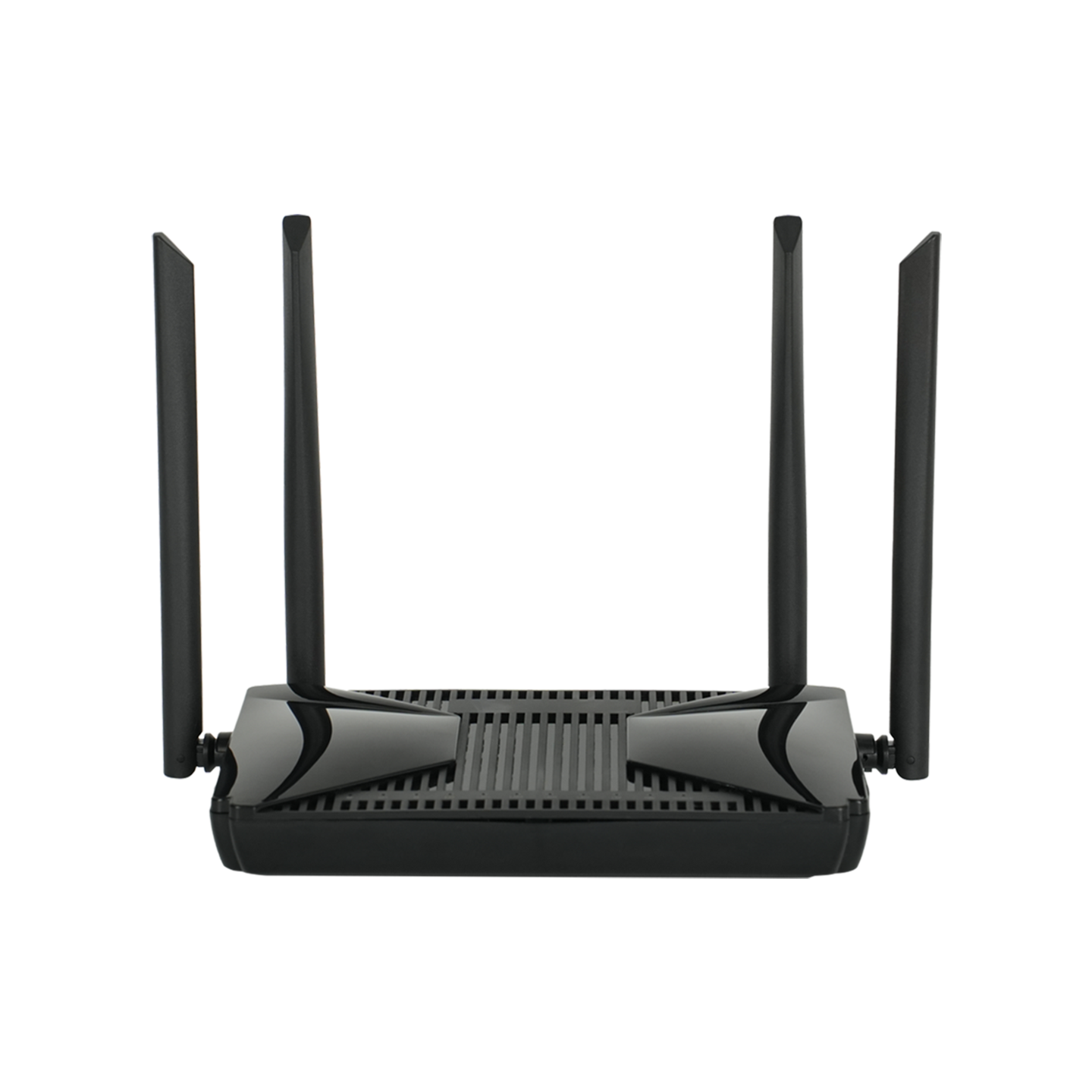

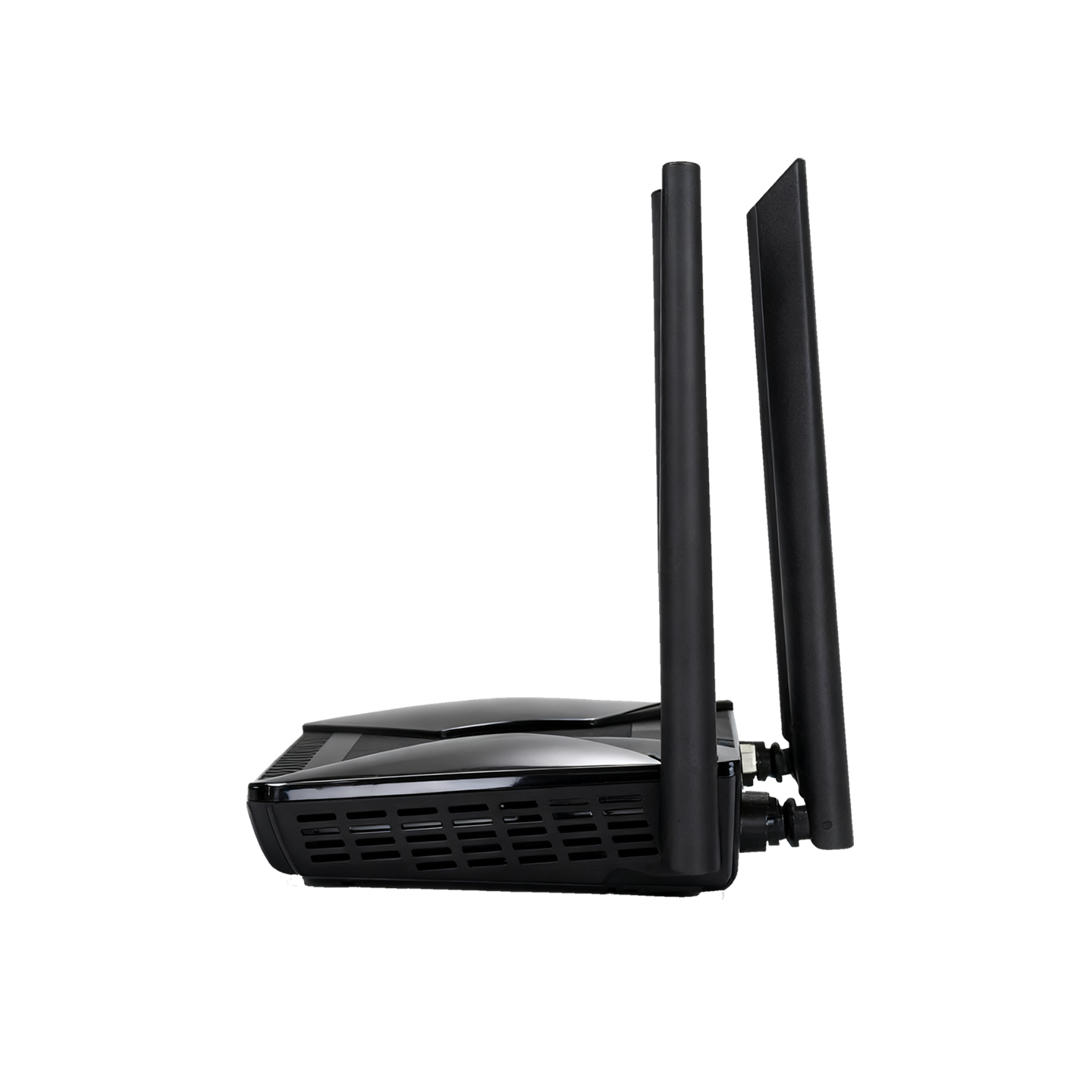

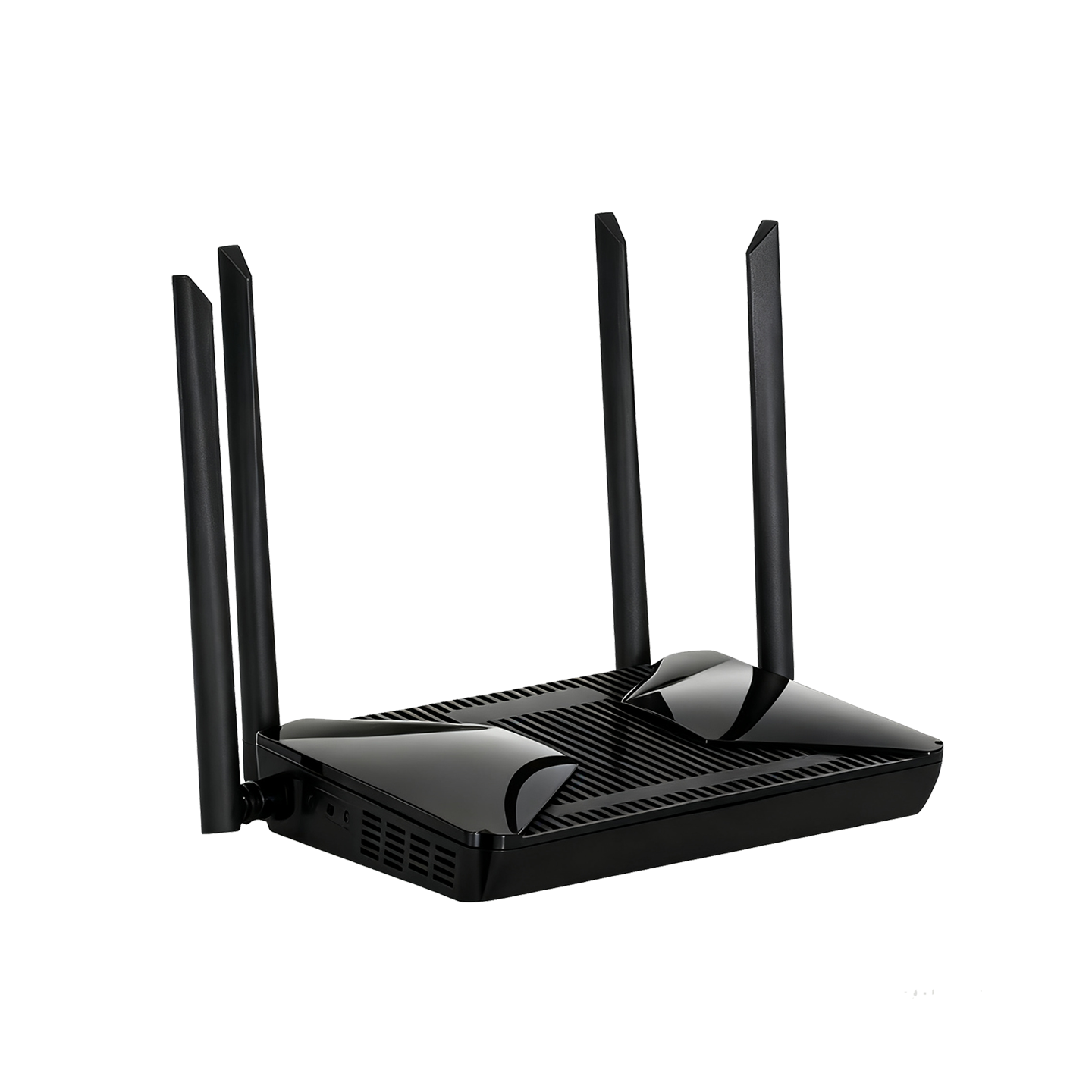

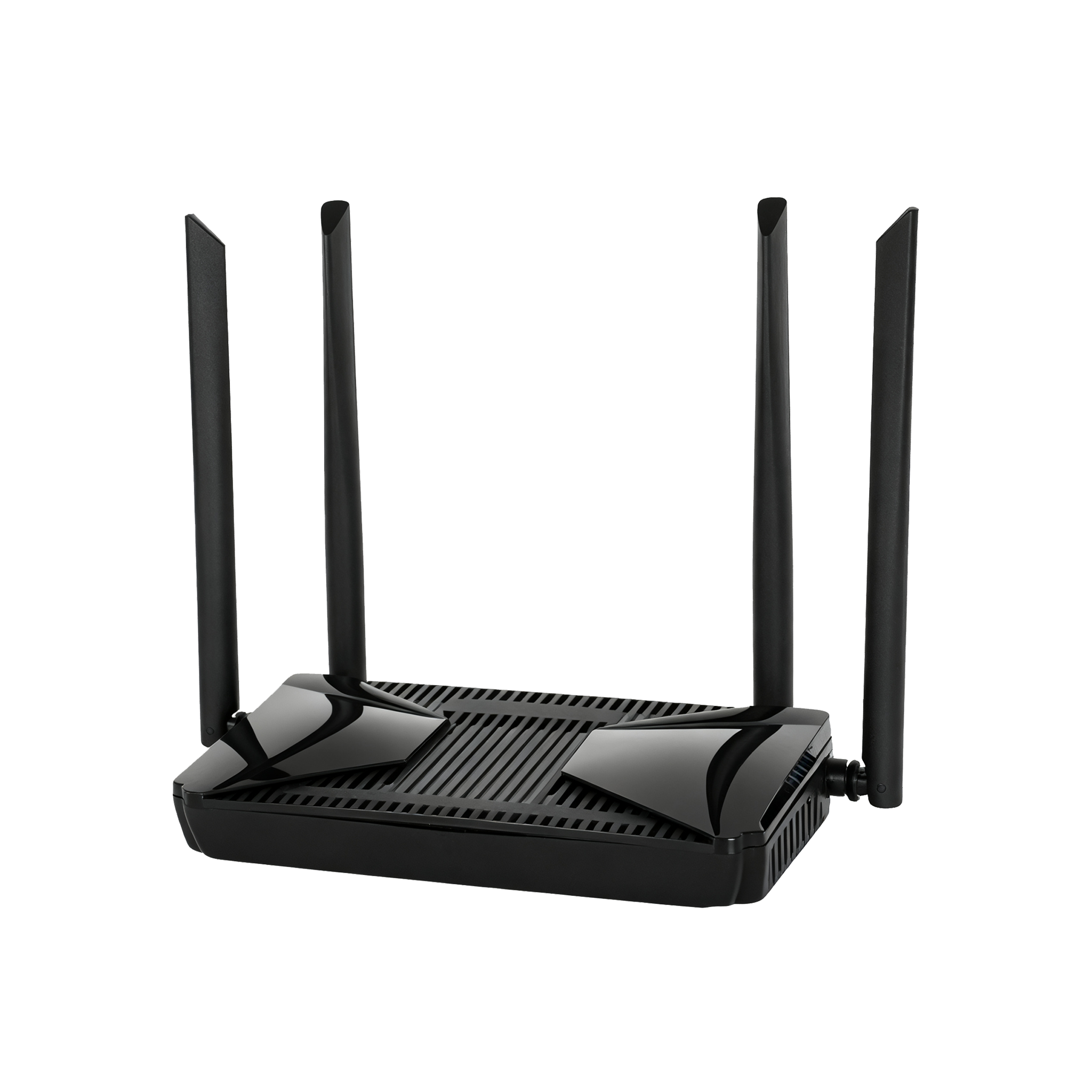

Compact & Elegant Design
Multiple Application Scenarios

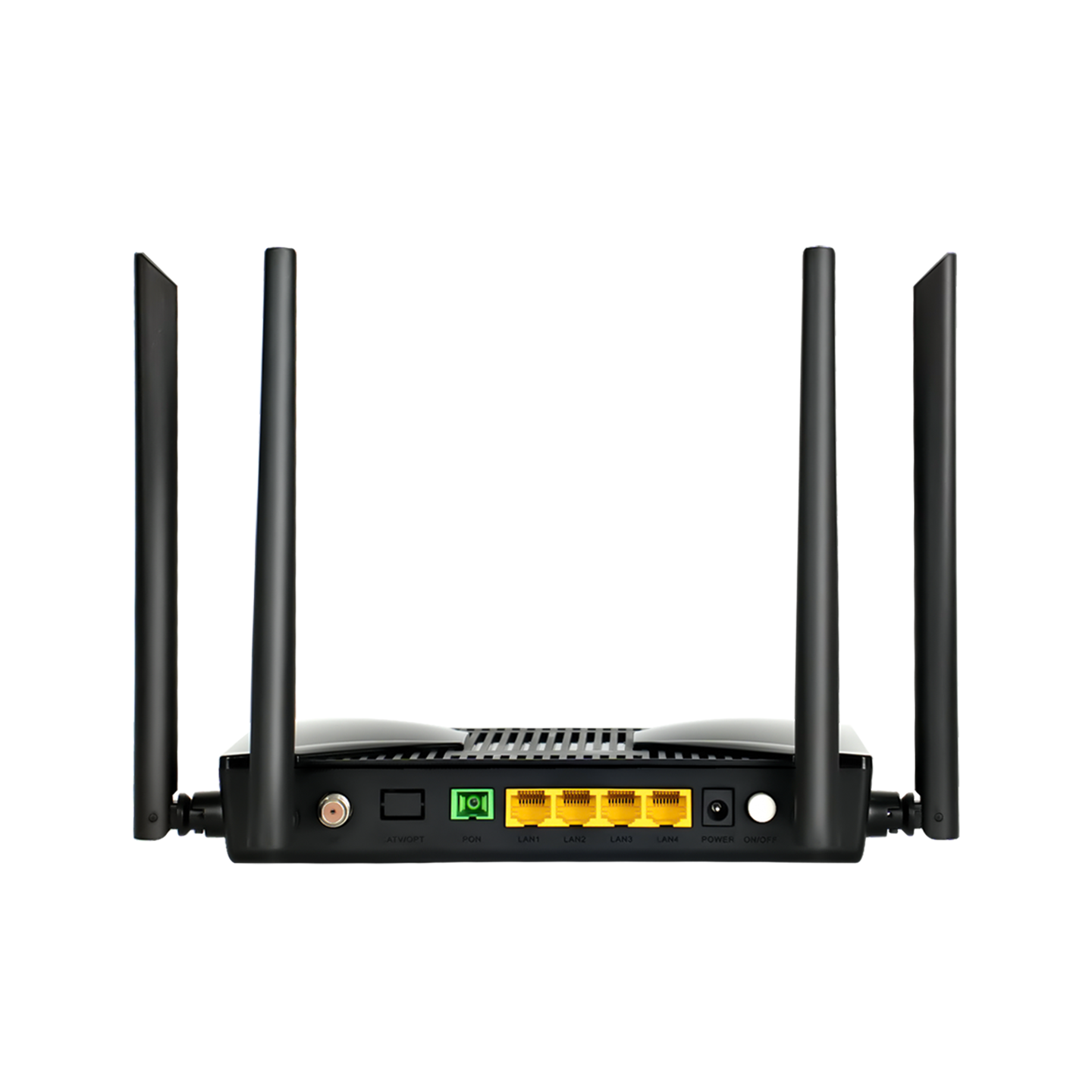

| Interface | 4GE+CATV+WIFI6+G/EPON |
| LED | RF/OPT/5G/2.4G/LAN4/LAN3/LAN2/LAN1/LOS/PON/POWER |
| Power Supply | 12V/1.5A |
| Power Consumption | ≤15W |
| Environment Standard |
Operating Temperature: -5°C~45°C Storage Temperature: -20°C~70°C Relative Humidity: 5%~95% (non-condensing) |
| Weight | 0.45KG |
| Size W*D*H | 196mm*125mm*32mm |
| Module Type | Class B+, SC/APC |
| Wavelength | UP 1310nm, Down 1490nm |
| TX Optical Power | 0.5~5dbm |
| RX Optical Sensitivity | -28dBm |
| Transmission Distance | 0~20km |
| Transmission Rate |
EPON: Upstream 1.25Gbps/Downstream 1.25Gbps GPON: Upstream 1.25Gbps/Downstream 2.5Gbps |
| LAN Interface Type | RJ45 (10/100/1000Mbps) |
| CATV | British F-head |
| WIFI | Dual-band WIFI6 AX3000 (2 × 2 MIMO (2.4G & 5G)) |
| Description | |
|---|---|
| XPON, 4*1000M Base-T, 1*WIFI-6(2.4G & 5.8G 3000M), 1*CATV, 12V/1.5A |
QCan you do OEM?
Yes, we can do OEM products. It is not a problem.
QHow is quality control managed?
Every single optic module is individually tested in the test center, and also tested for compatibility on a variety of different network equipments.
QCan I get a sample first?
Yes, we can provide samples for you to check the quality.
QHow about the payment terms?
We accept T/T, Western Union, and Alibaba orders.
QWhat is the lead time?
For standard orders with items in stock, shipment takes about 3 days after receiving the payment. For large quantities and specialized products, please coordinate the delivery timeline with the sales team.
QHow do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive.
