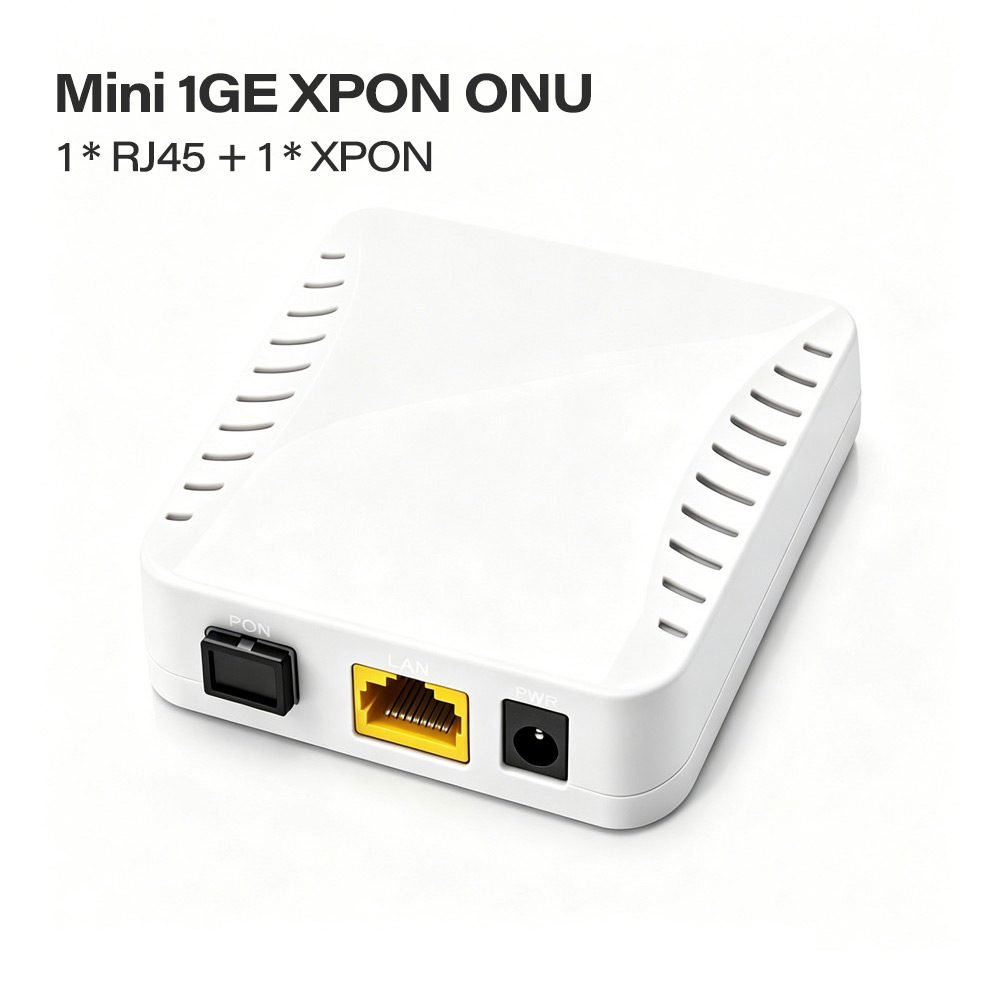

HG1001 Stable 1GE XPON ONU Modem De Fibra Optica for LatAm ISP Compatible with Huawei ZTE OLT

Send Inquiry

Product Description

EPON/GPON Dual-mode Access Reduce the Investment of Operators

Wide-Working-Temperature Designed

Compatible with Various OLT, Flexible Networking

ONU plug-and-play, Quick Connect

Boasting an exquisitely crafted design, it effortlessly becomes the center of attention in any setting.

Hardware Specifications

Hardware
Dimension	78mm x 78mm x 21mm(L×W×H)
Net weight	0.06Kg (without package)
Operating condition	Operating Temp: -10 ~ +55°C Operating Humidity: 5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Power supply	≤4W
Interface	1GE
Indicators	POWER / PON / LOS / LAN1

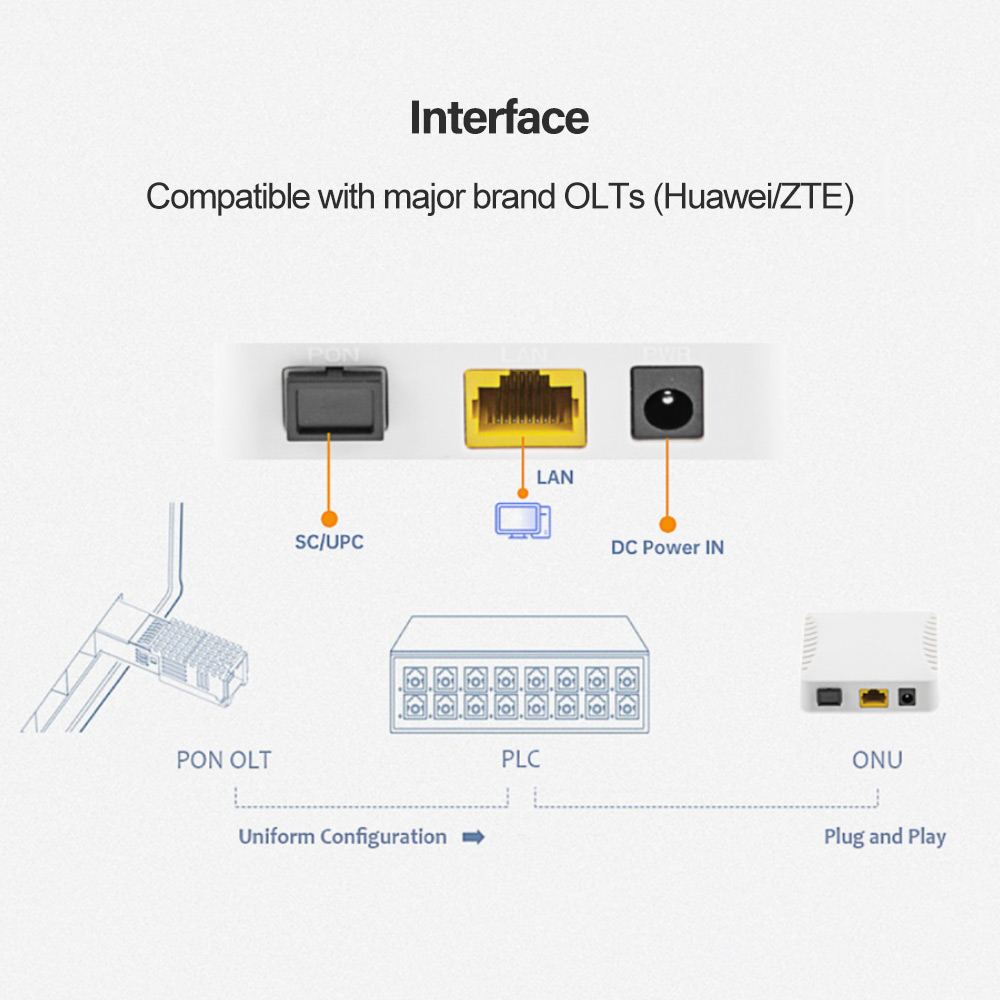

Interface Specifications

Interface
PON interface	Interface Type: SC/UPC, CLASS B+ Transmission distance: 0 - 20km Working wavelength: Up 1310nm; Down 1490nm; RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps; Down 2.488Gbps EPON: Up 1.244Gbps; Down 1.244Gbps
LAN interface	1*GE, Auto-negotiation RJ45 connectors

Software Specifications

Software
Networking	Flexible packet classification Up to eight queues SP/WRR/SP+WRR Ingress rate limit Egress shaping
Security	Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p DoS attack defending Multiple VPN (IPSec, PPTP) passthrough MAC address filtering Broadcast/ Unicast/ Multicast attack protection Broadcast packet rate limit Dual image for firmware auto rollback
Management	OMCI management WEB GUI management Local built-in diagnostic function Logs and statistics Remote upgrade by HTTP

PON Solution

Order Information

Order info
Part Number	Description	Accessories Pack

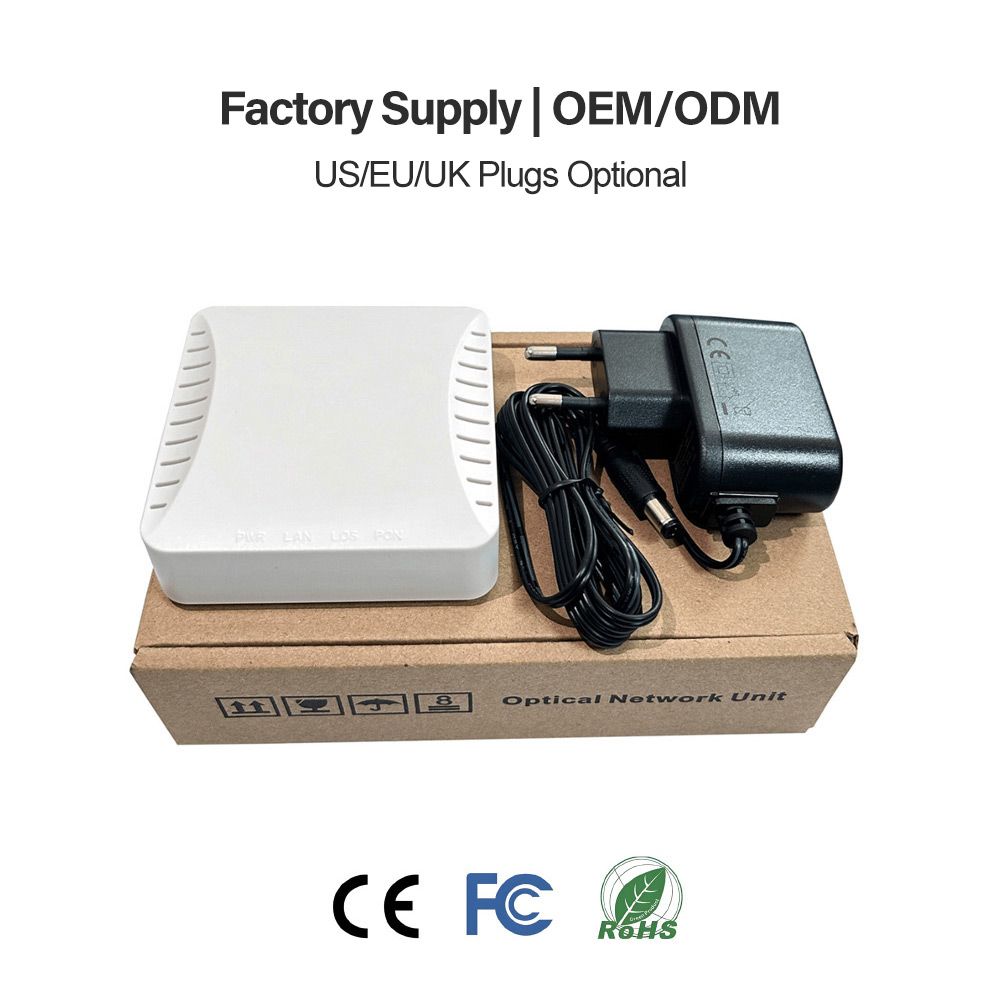

HG1001	1XPON+1GE	AC-DC Power Adapter DC12V/0.5A

Frequently Asked Questions

Q1 What is your MOQ request?

Depends on products, different products have different MOQ, please feel free to inquire for details.

Q2 Do you Support ODM/OEM service?

Yes, we can offer the customization service to you.

Q3 Does your products support other brands?

Yes, all of our products is without lock, support to another brands too.

Q4 Are you the manufacturer or trading company?

We are the manufacturer, we support factory view tour.

Q5 Do you offer free samples?

Yes, for some models we are able to provide the free samples for your testing purpose.

Q6 Are you able to provide the local certificates?

Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
