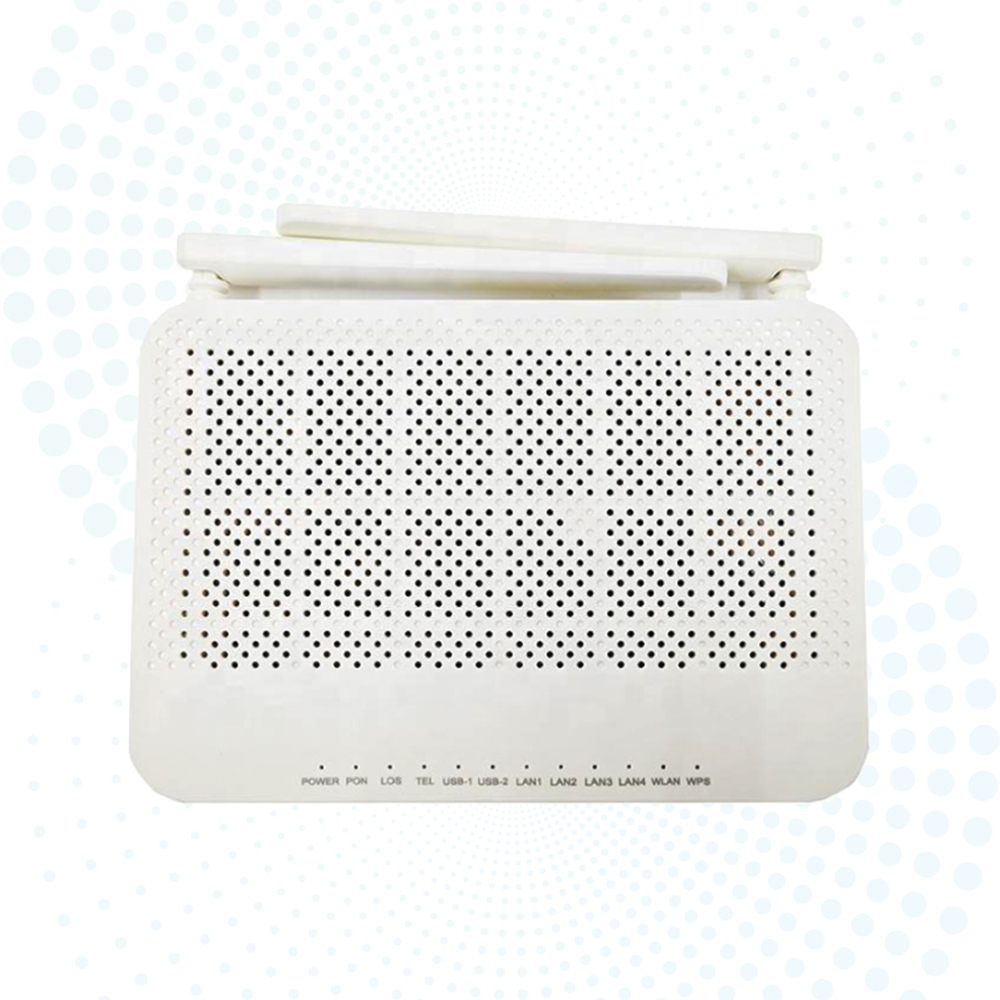

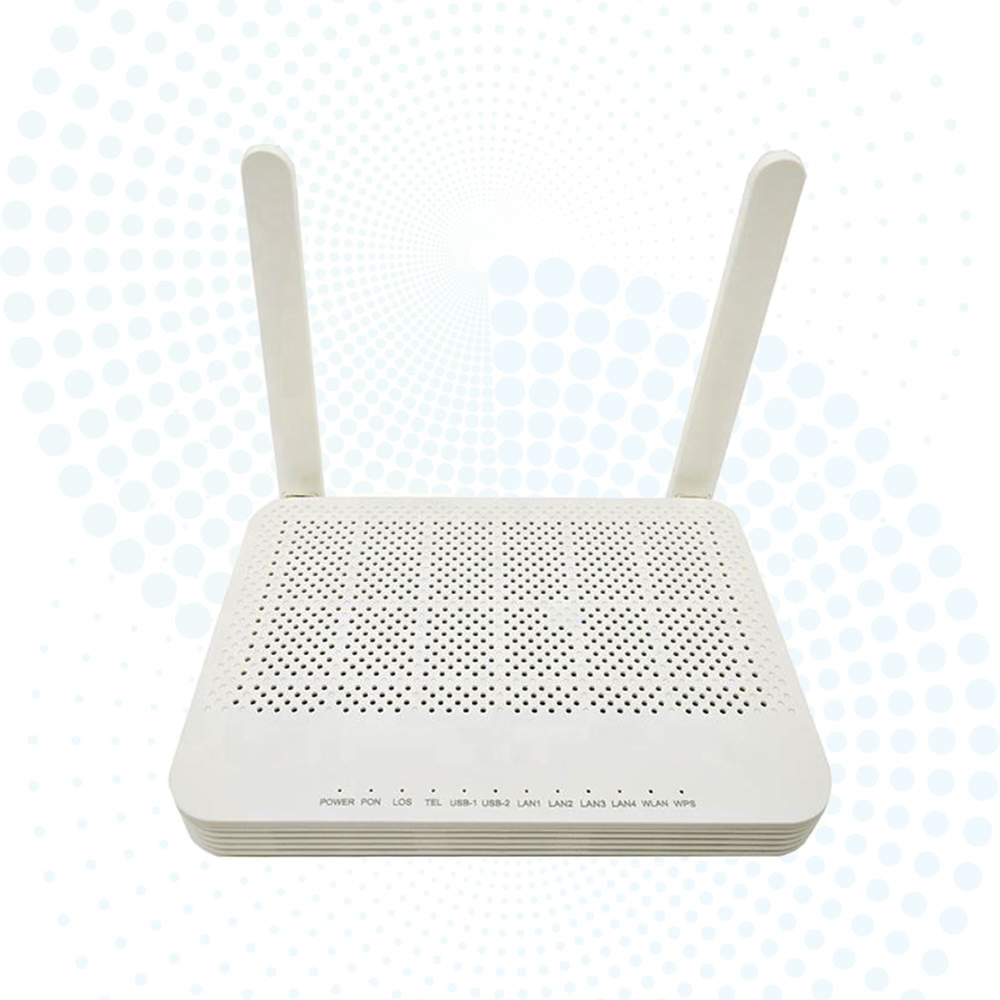

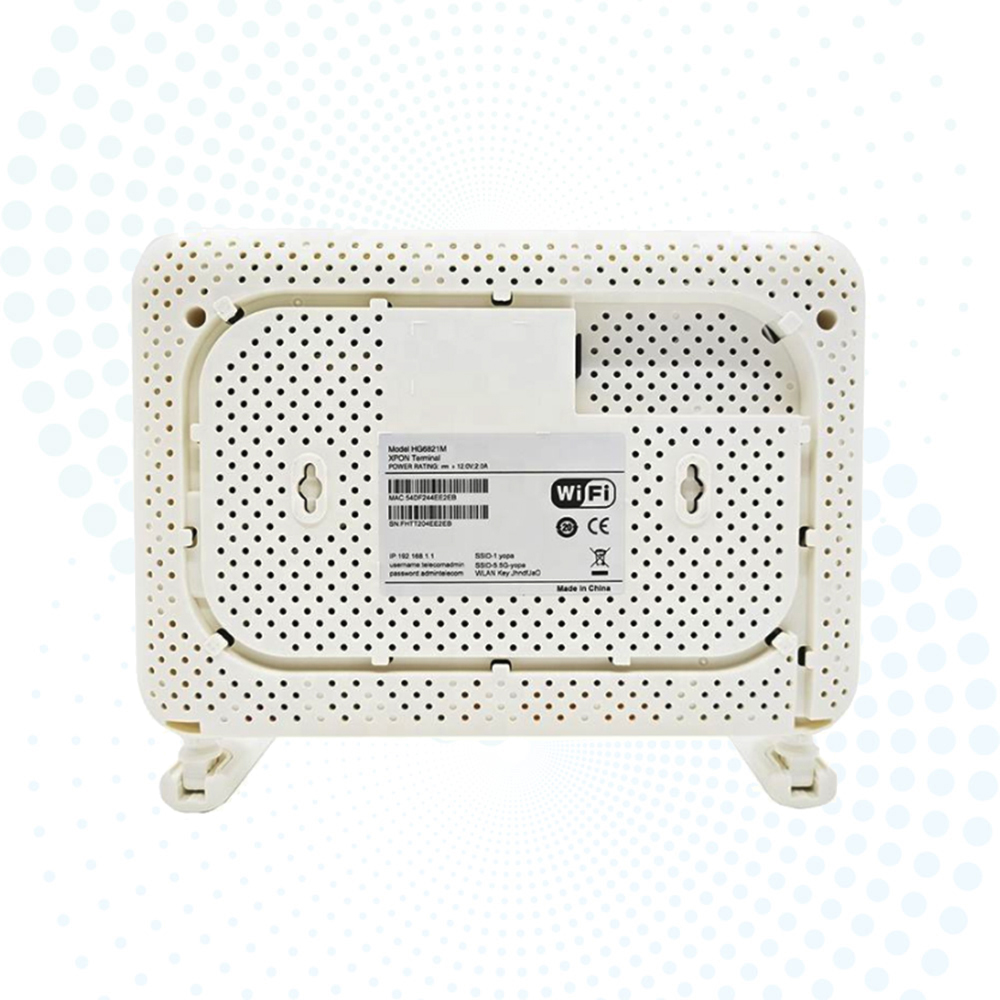

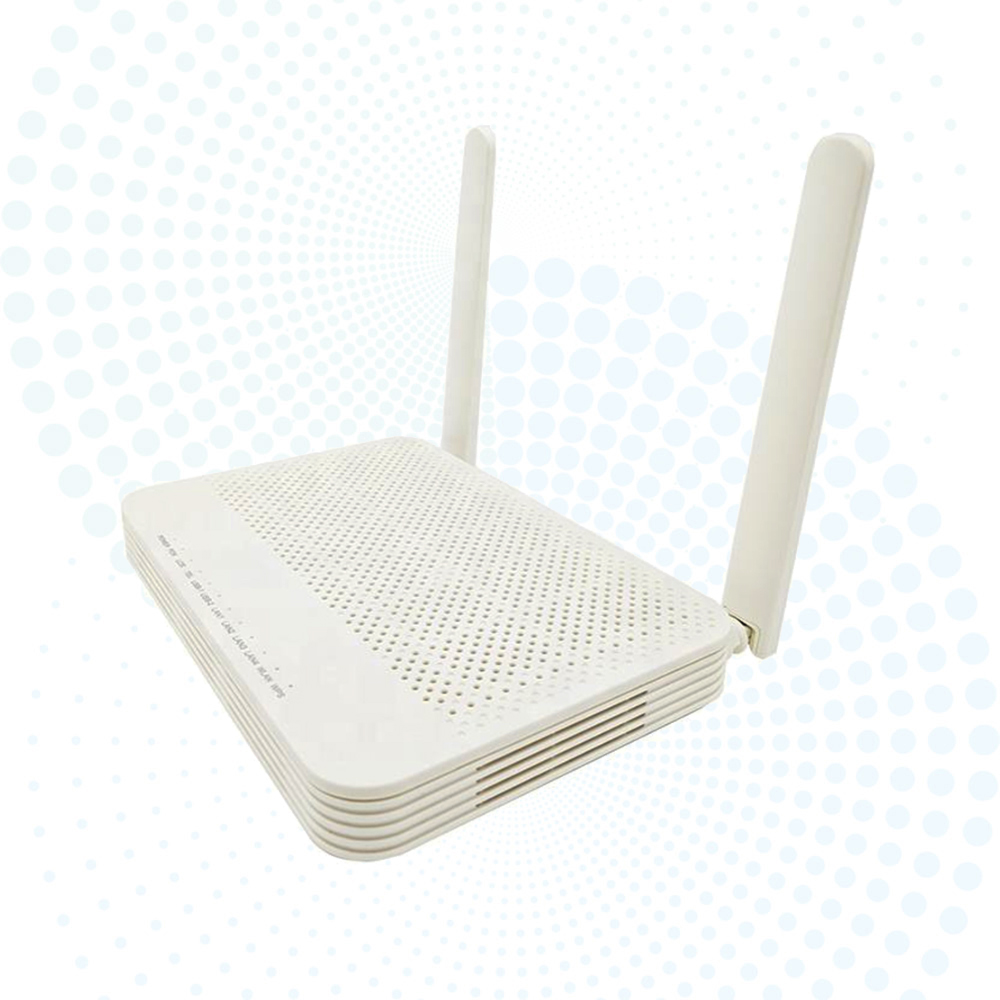

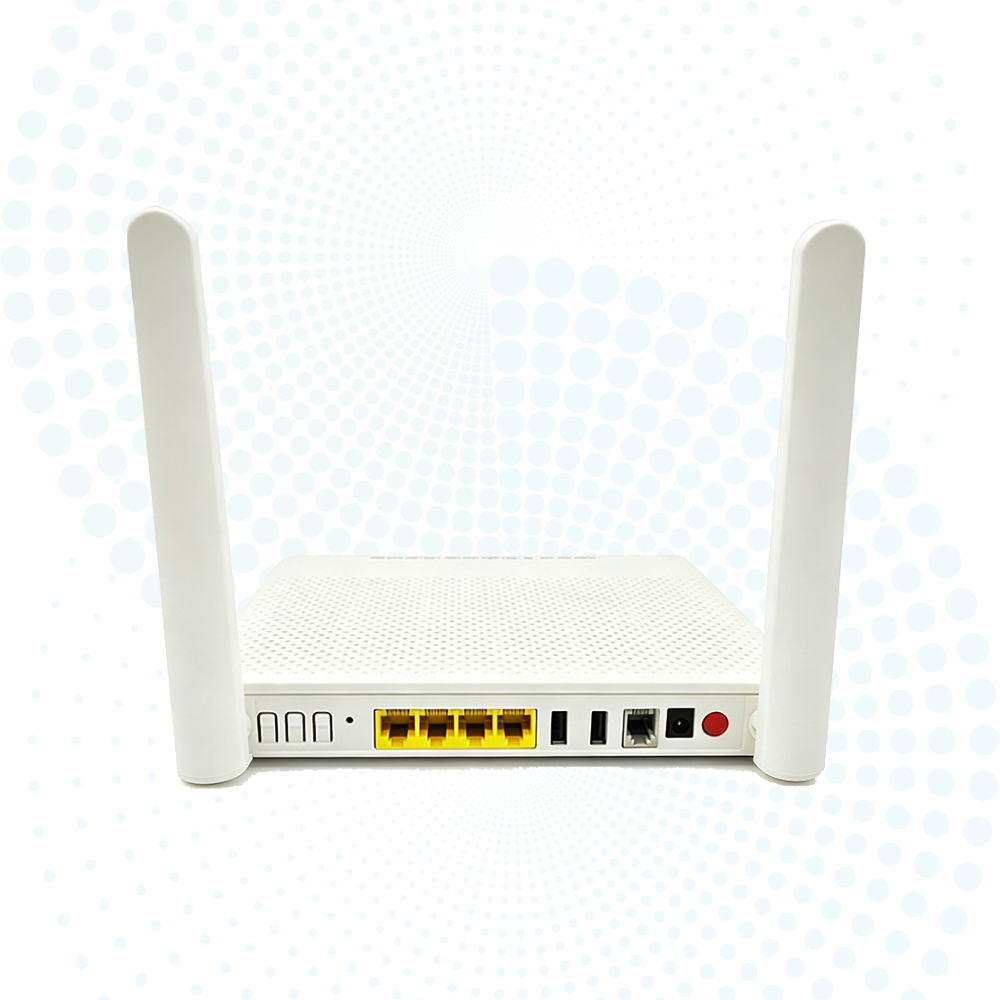

HG6821M Dual Band WiFi XPON ONT 4GE Fiber Optic Router with POTS and USB Ports

Product Design

Model	HG6821M
Out Port contains	4GE+1TEL+2USB+Dual Band WiFi
WIFI signal	2.4G & 5G WiFi
Wireless gain	5dBi
USB	USB2.0
LAN	4*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
TEL	H248/Sip Voice protocol
PPPOE/DHCP/Staic/Bridge	support
Firmware	English
Dimension/weight	280mm173mm42mm/419g
Fiber port	1 GPON interface, single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Fiber interface	SC/FC-UPC/APC Dual mode/Single mode
RX sensitivity	>-28dBm (1490nm)
DC power	12V 2.0A, external AC-DC power adapter
Button	Reset, power, WPS, Wireless
Operation	Working temperature: -5 to +55°C working humidity:10-90% (non-condensation)
Storage	Storage temperature: -30 to +60°C storage humidity: 10-90% (non-condensation)

Description	Accessories Pack
XPON ONU, 1xPON + 4GE RJ45 + 1RJ11 POTS + 2USB + 2.4GHz & 5GHz Dual-Band Wi-Fi5 (2*External 5dBi antennas);	Power Adapter

Q1: What is your MOQ request?

A1: Depends on products, different products have different MOQ, pls contact our sales for more details.

Q2: Do you Support ODM/OEM service?

A2: Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

A3: Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

A4: We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

A5: Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
