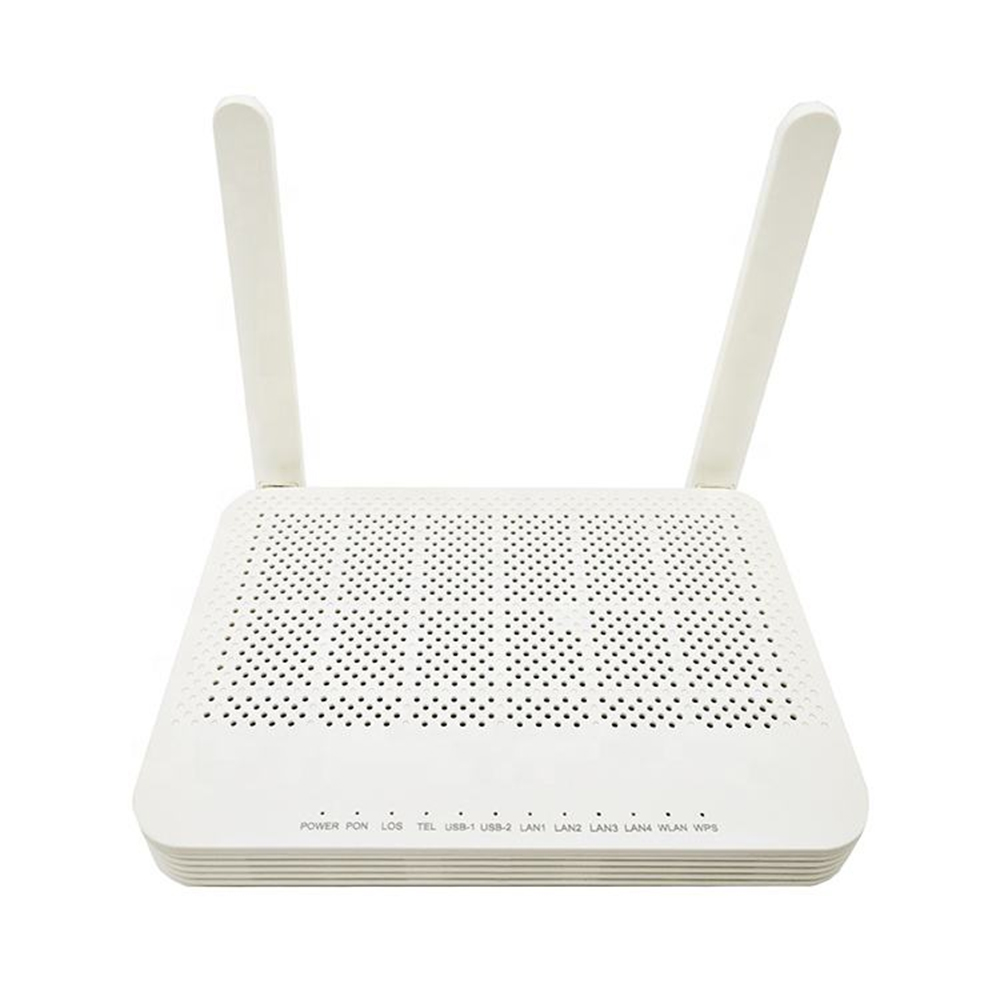

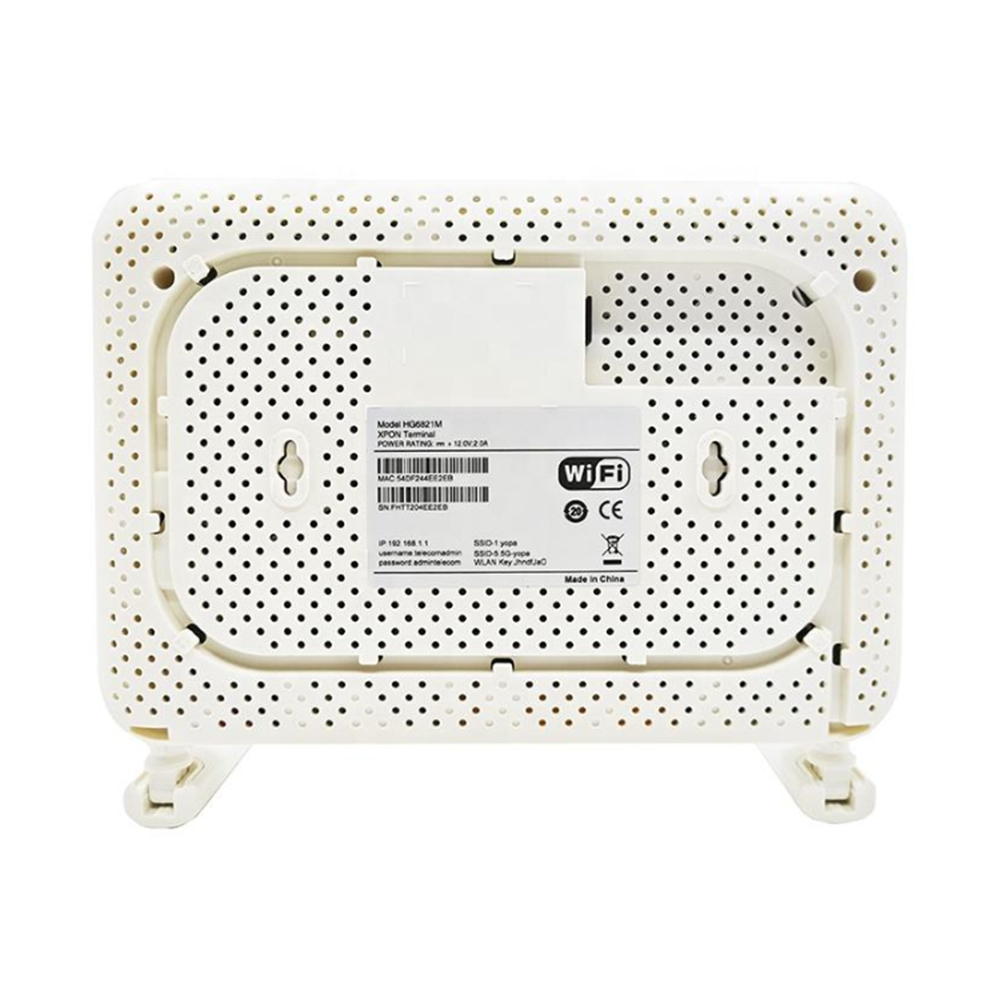

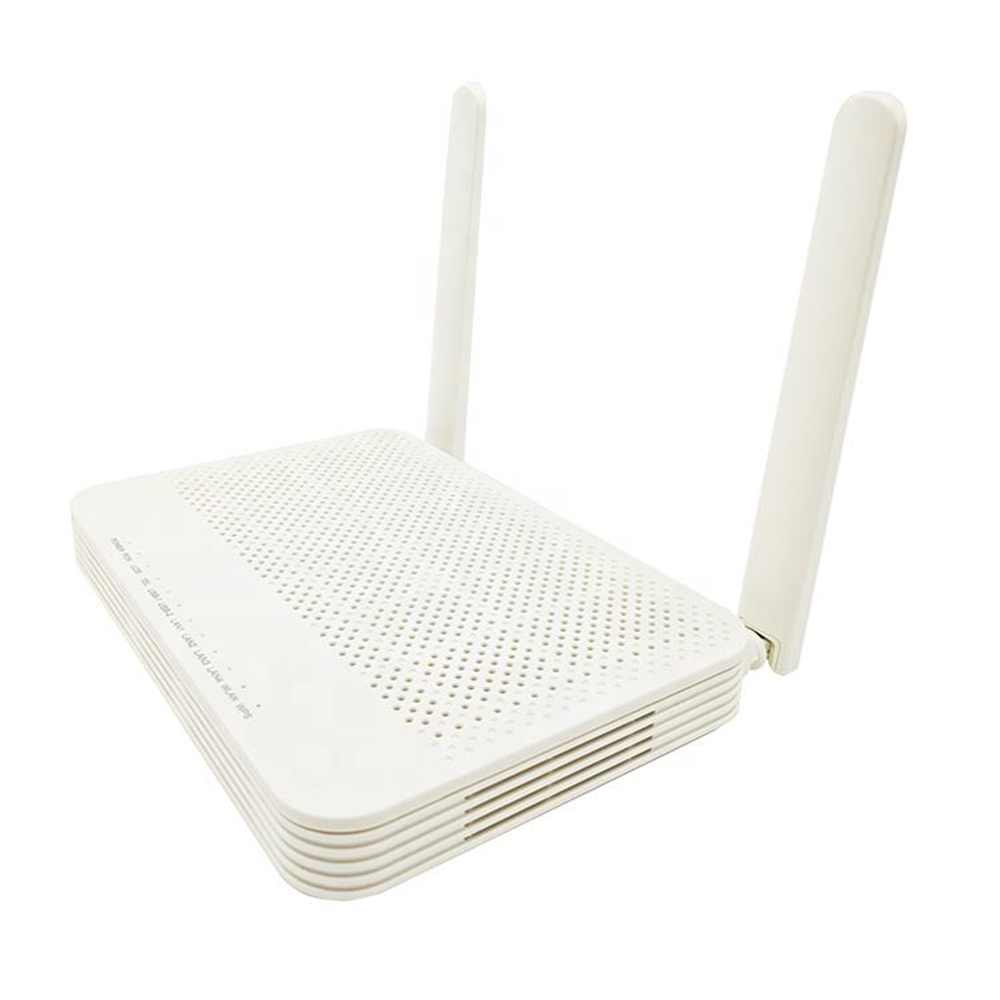

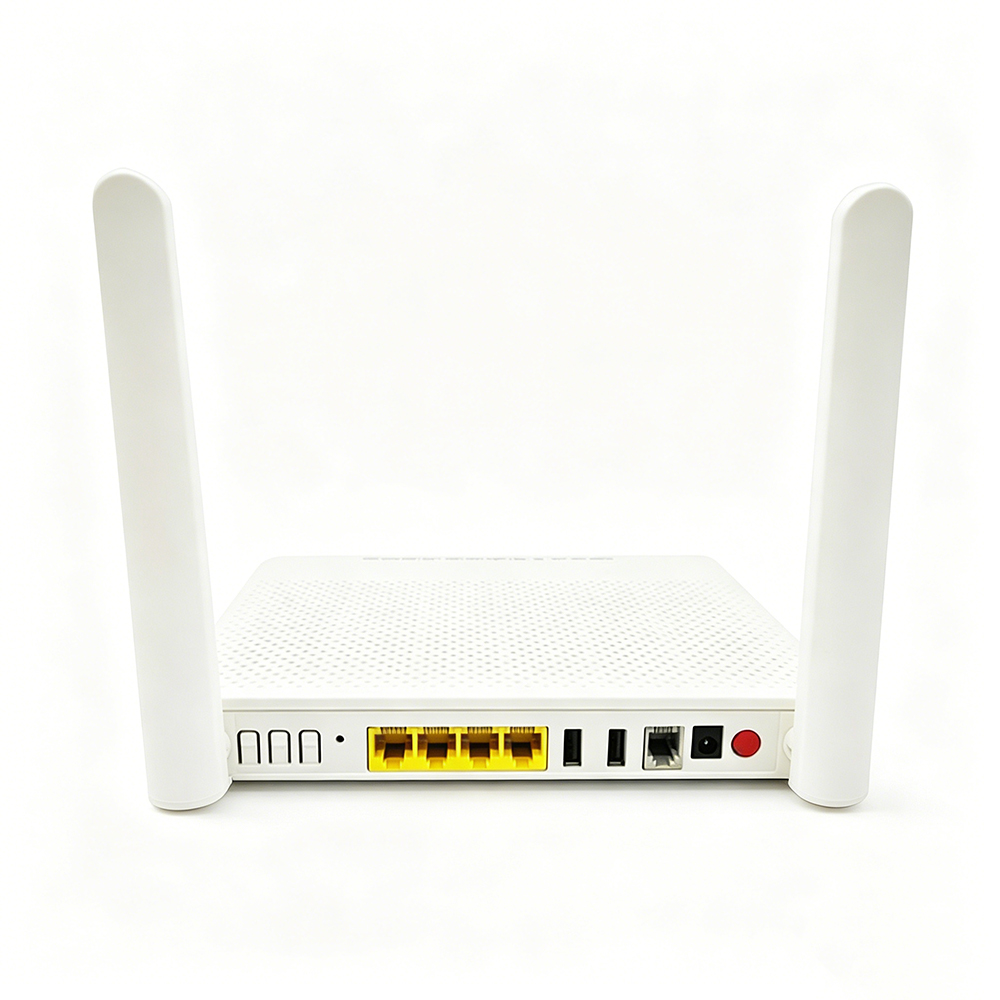

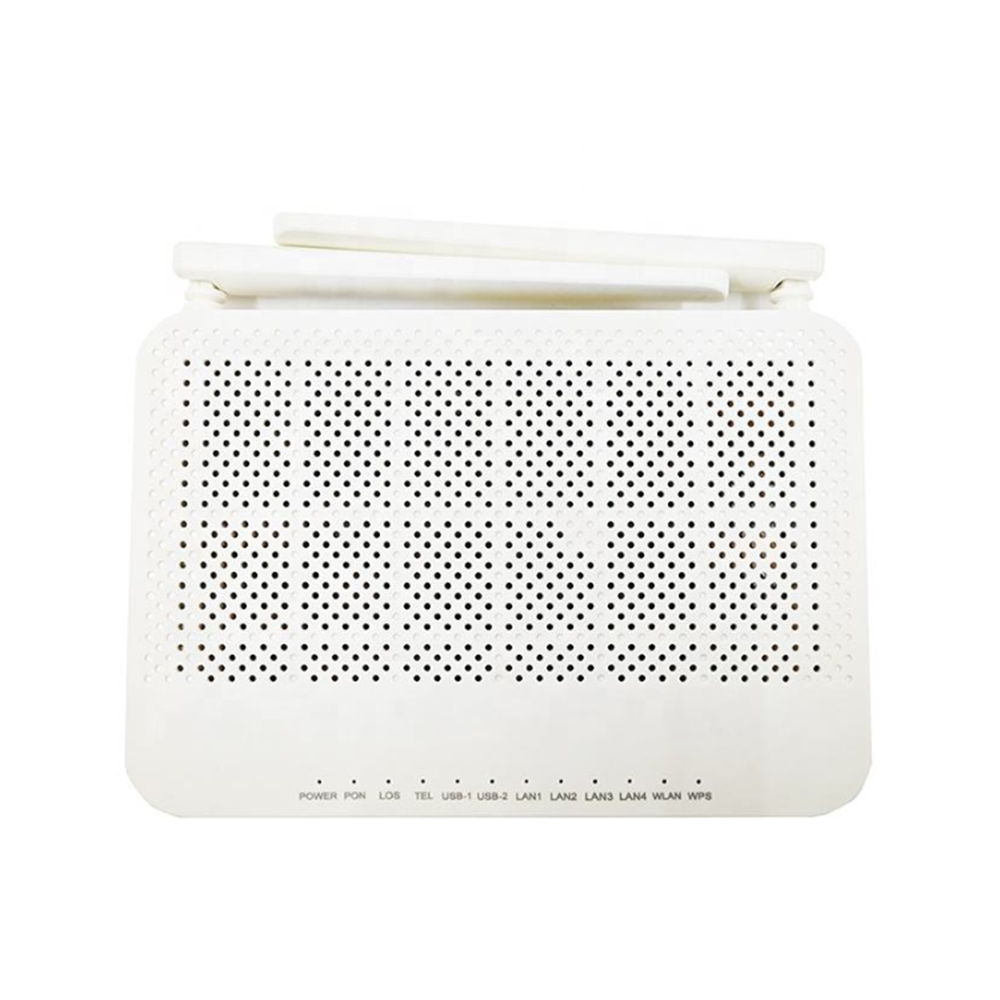

HG6821M XPON ONT 5DBI 2.4G&5G Dual Band 4GE+1POTS+2USB+WiFi XPON ONT ONU HG6821M

Product Design

Specification

Model	HG6821M
Out Port contains	4GE+1TEL+2USB+Dual Band WiFi
WIFI signal	2.4G & 5G WiFi
Wireless gain	5dBi
USB	USB2.0
LAN	4*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
TEL	H248/Sip Voice protocol
PPPOE/DHCP/Static/Bridge	support
Firmware	English
Dimension/weight	280mm173mm42mm/419g
Fiber port	1 GPON interface, single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Fiber interface	SC/FC-UPC/APC Dual mode/Single mode
RX sensitivity	>-28dBm (1490nm)
DC power	12V 2.0A, external AC-DC power adapter
Button	Reset, power, WPS, Wireless
Operation	Working temperature: -5 to +55°C, working humidity: 10-90% (non-condensation)
Storage	Storage temperature: -30°C to +60°C, storage humidity: 10-90% (non-condensation)

Order Info

Description	Accessories Pack
XPON ONU, 1xPON + 4GE RJ45 + 1RJ11 POTS + 2USB + 2.4GHz&5GHz Dual-Band Wi-Fi5 (2*External 5dBi antennas)	Power Adapter

FAQ

Q1 What is your MOQ request?

Depends on products, different products have different MOQ, please contact our sales for more details.

Q2 Do you Support ODM/OEM service?

Yes, we can offer the customization service to you.

Q3 Does your products support other brands?

Yes, all of our products are without lock, support for other brands as well.

Q4 Are you the manufacturer or trading company?

We are the manufacturer, we support factory view tour.

Q5 Do you offer free samples?

Yes, for some models we are able to provide free samples for your testing purpose.

Q6 Are you able to provide the local certificates?

Yes, according to the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
