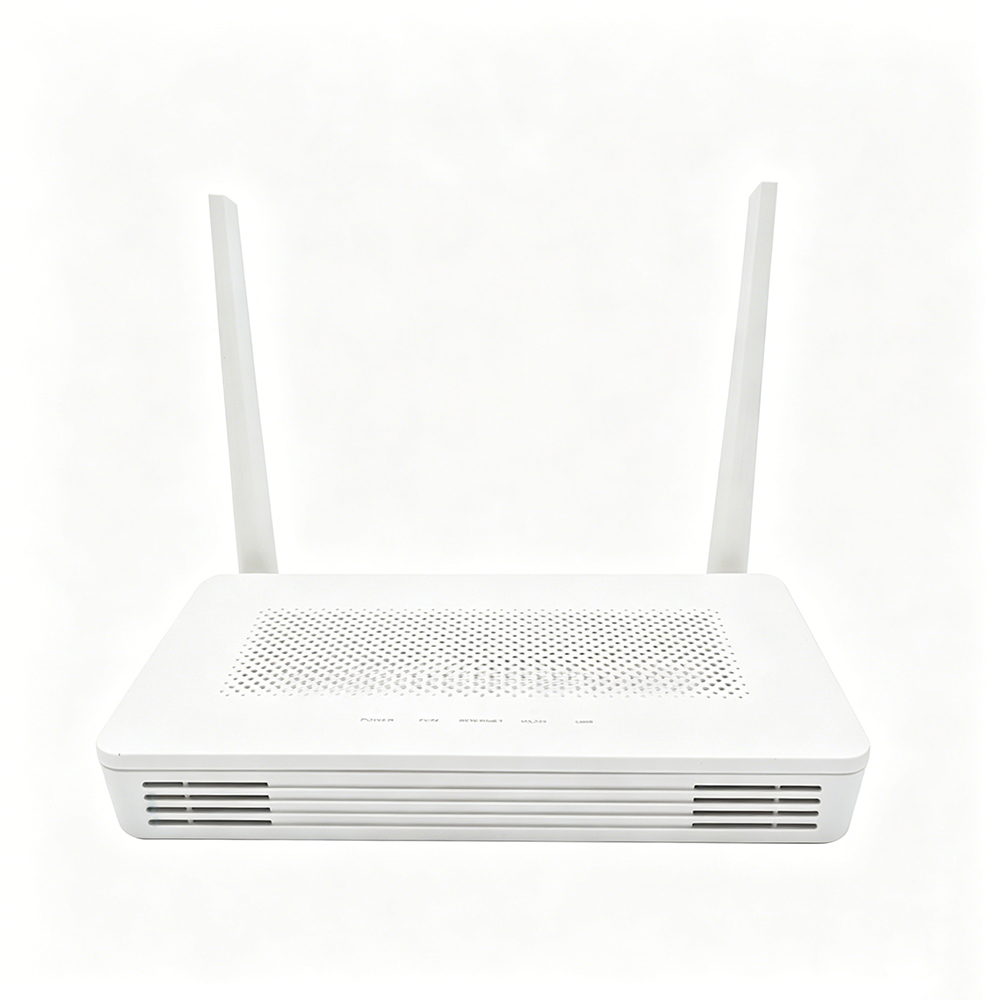

HG8145V5 EchoLife EG8145V5 GPON 4GE+1VOIP+2.4G 5G WIFI GPON Terminal ONU with Adapter and Box

Send Inquiry

Product Description

Product Design

Specification

GPON ONU EG8145V5 XPON ONT 4GE+1VOIP+WIFI+2.4G+5G SC/UPC SC/APC FTTH
Dimensions (H x W x D)	30 mm x 173 mm x 120 mm (without external antenna and pads)
Weight	About 250 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	11 V to 14 V DC, 1.5 A
Static Power Consumption	5.3 W
Maximum Power Consumption	18 W

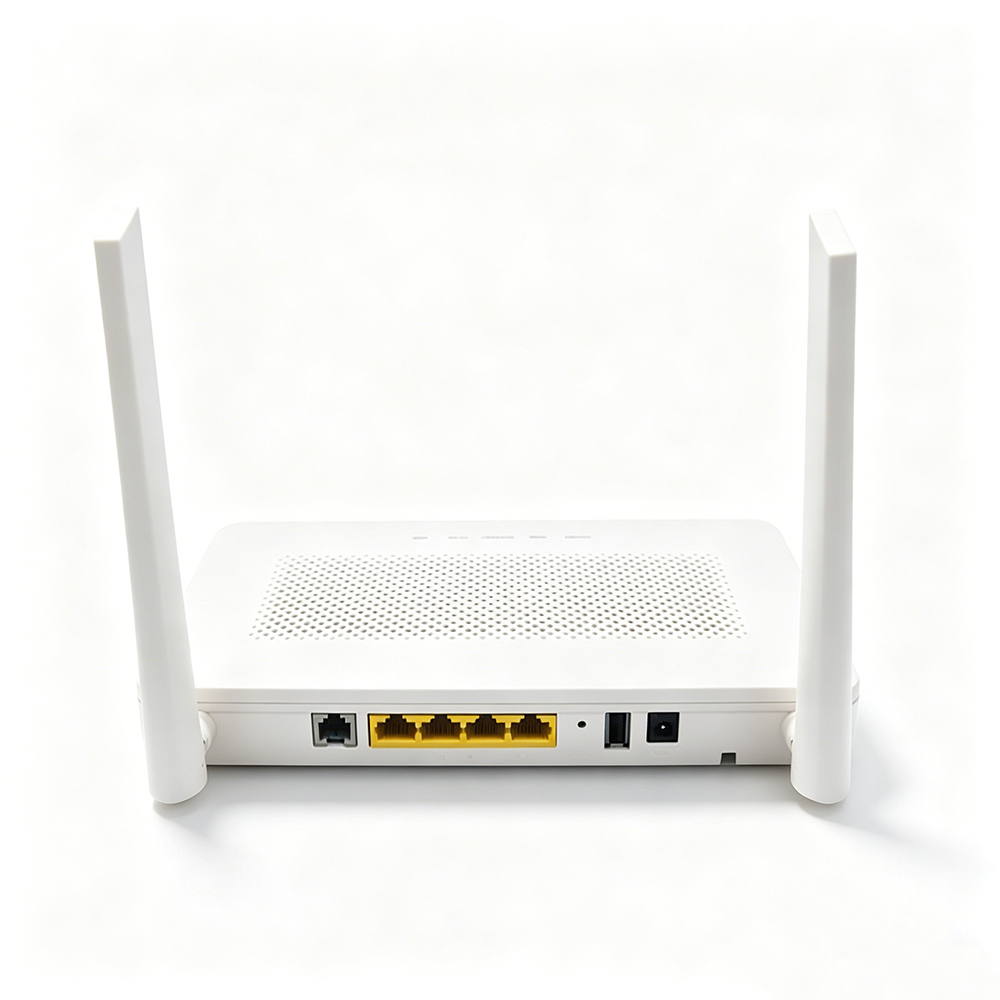

Ports	1POTS+4GE+2.4G/5G Wi-Fi+1USB
Optical Connector	SC/APC SC/PC

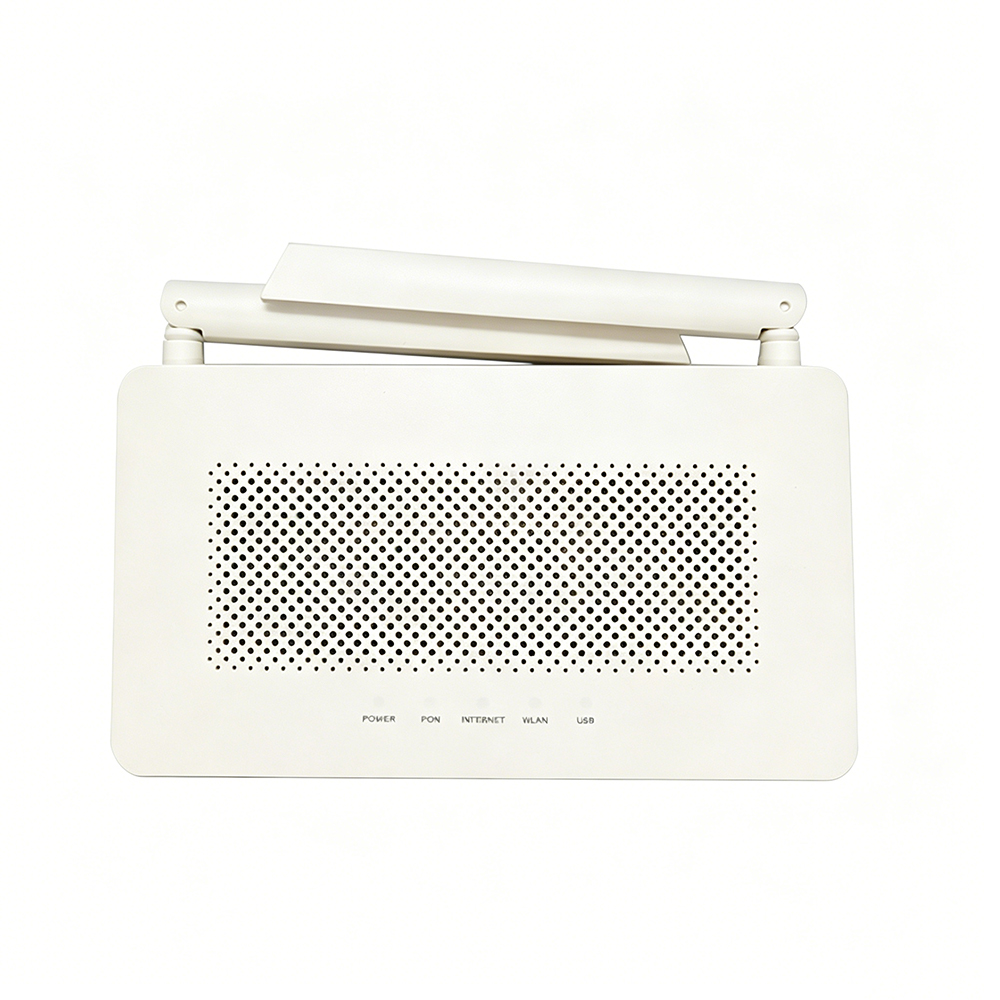

Indicators	Power/PON/LOS/LAN/TEL/WLAN/WPS
Power Consumption	12W

Order Info

Part Number	Description
HG8145V5	XPON ONU, 1xPON + 4GE RJ45 + 1RJ11 POTS + 1USB + 2.4GHz&5GHz Dual-Band Wi-Fi5 (2*External 5dBi antennas); External DC 12V/1.5A power adapter.

FAQ

Q1: What is your MOQ request?

A1: Depends on products, different products have different MOQ.

Q2: Do you Support ODM/OEM service?

A2: Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

A3: Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

A4: We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

A5: Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
