HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
1 / 5
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption
HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption

HG8310M HG8010 FTTH GPON ONU 1GE Port Compact ONT Low Power Consumption

Send Inquiry

Product Description

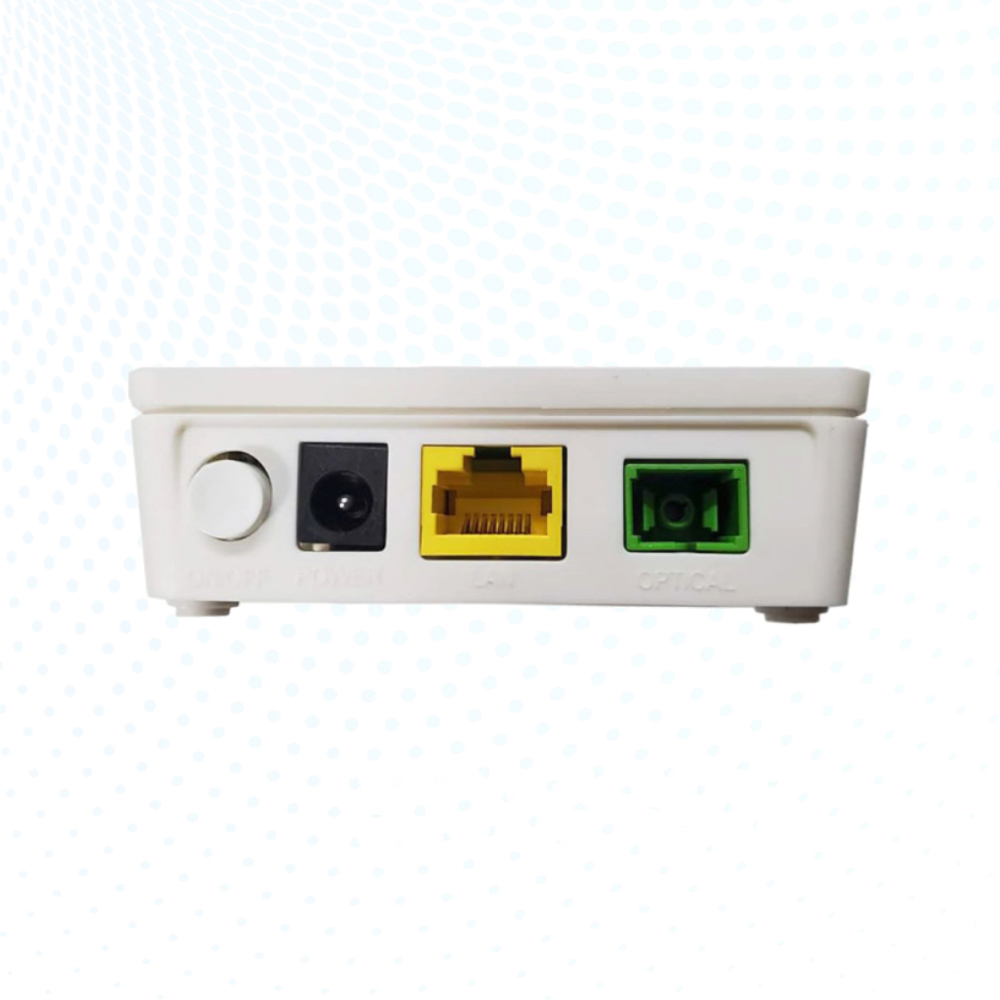

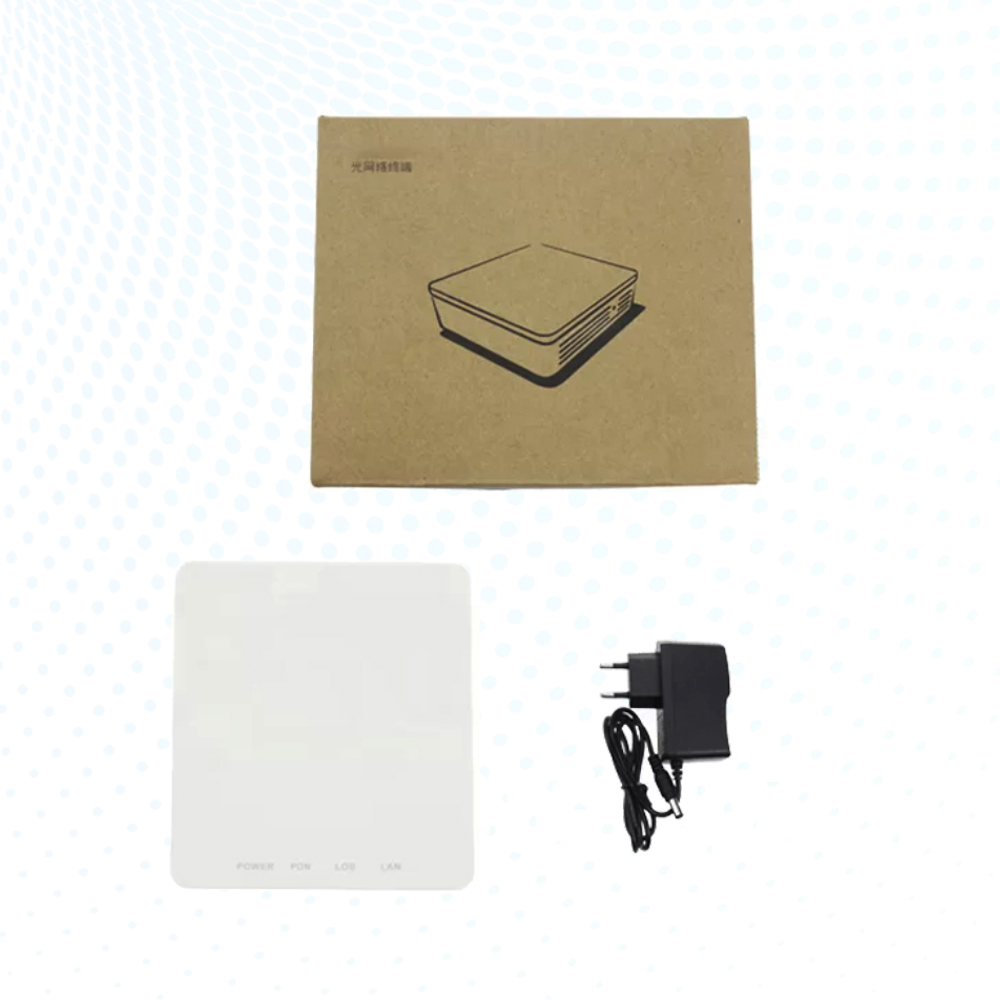

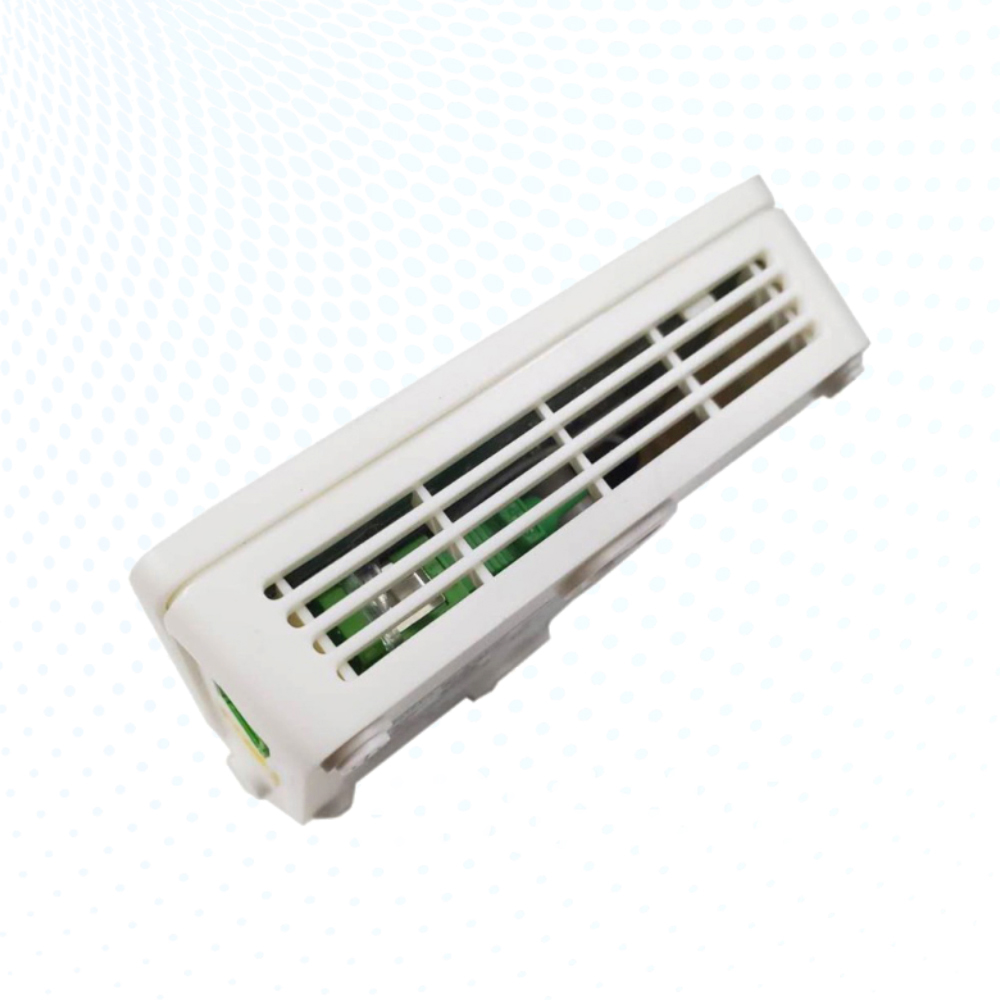

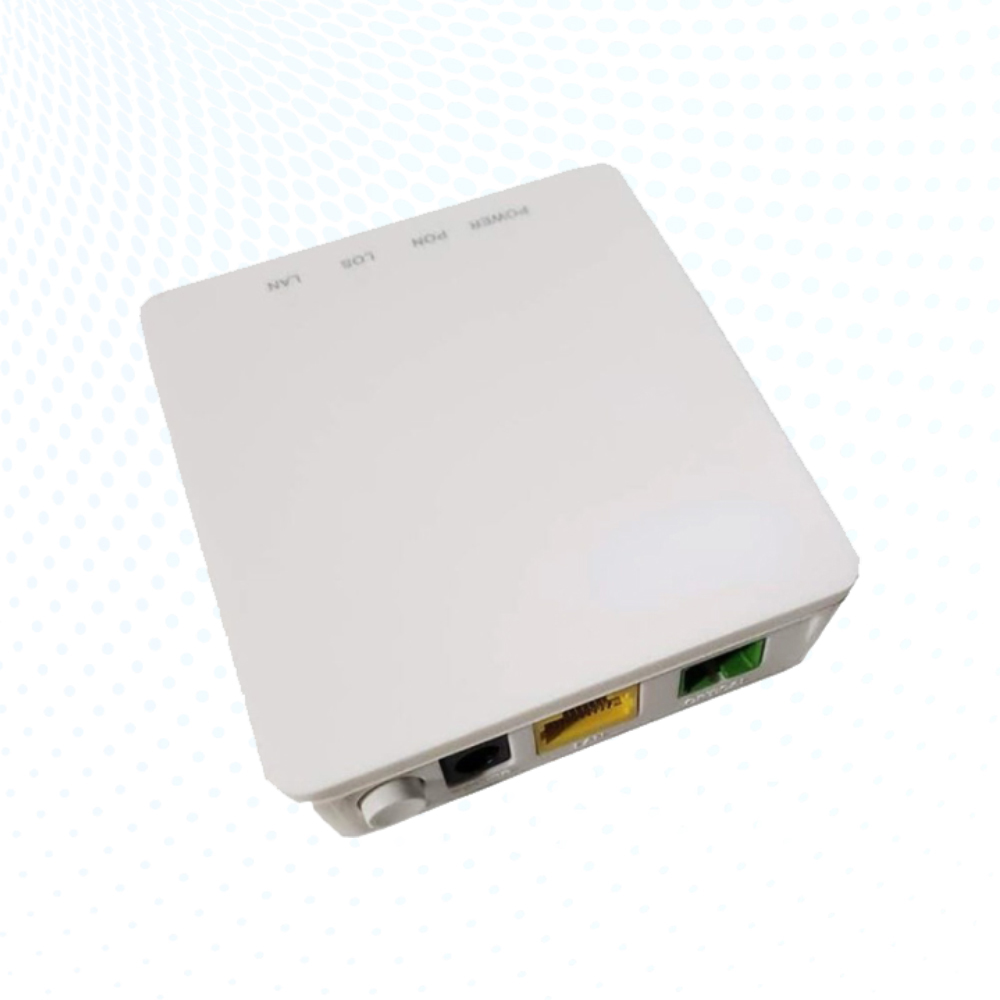

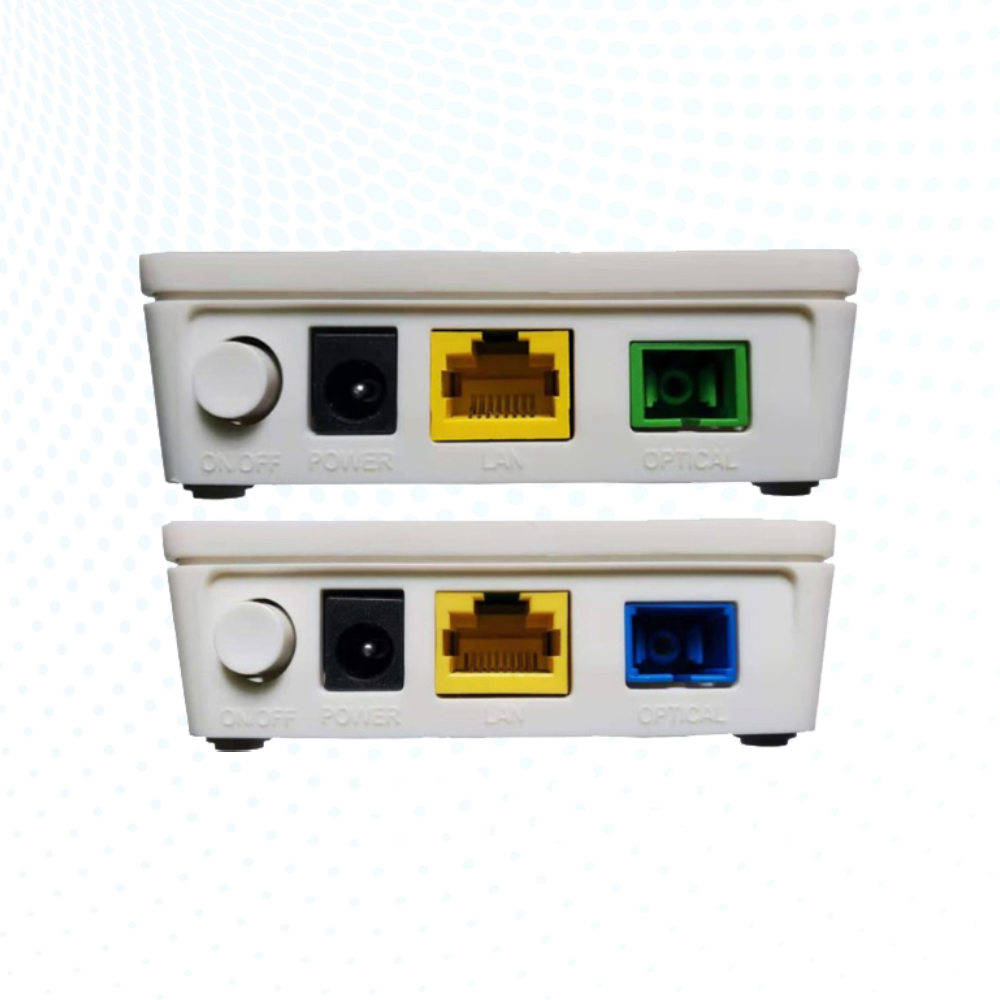

Product Image
🎨 Product Design
Design View 1
Design View 2
Design View 3
Design View 4
📊 Technical Specification
Technical Items Descriptions
Fiber port 1 GPON interface, 1GE, SC single-mode, Downstream rate 2.488Gbps, Upstream rate 1.244Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/UPC
RX sensitivity <-27dBm (1490nm)
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput Downstream 950Mbps, Upstream 930Mbps
ONT Detection Isolation of Active/Passive Hooligans supported (YES)
DC power Adapter input: 100-240 V AC, 50 - 60 Hz; Adapter output: 11 – 14 V DC, 1 A
Button Reset, power
Power Consumption ≤8W
Operation Working temperature: -0 to +40℃; Working humidity: 5-95% (non-condensation)
Dimension 180*140*30mm (L*W*H)
Net weight ≤0.5Kg
🛒 Order Information
Model Describe
HG8310M XPON ONU, 1×GE port, SC/UPC connector, external DC 12V/0.5A power supply.
🏢 Professional Capability
Production Facility

We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients with core focus on PON and switching solutions.

❓ Frequently Asked Questions
1. What are the key features of the HG8310M ONU?
The HG8310M is an XPON ONU featuring 1 Gigabit Ethernet (GE) port with an SC/UPC connector. it supports both high-speed downstream and upstream rates for efficient fiber-to-the-home deployments.
2. What fiber speeds can this device achieve?
The device supports a downstream rate of 2.488Gbps and an upstream rate of 1.244Gbps. In actual testing, it delivers a throughput of approximately 950Mbps downstream and 930Mbps upstream.
3. How is the quality of the products guaranteed?
We ensure quality through a rigorous process including pre-production samples before mass production and a 100% final inspection of all units before shipment.
4. What other fiber optic equipment do you provide?
In addition to ONUs, we supply FTTH OLTs, SFP Modules, Fiber Media Converters, PoE Switches, and various other essential fiber optic networking equipment.
5. What payment and delivery terms are available?
We offer flexible delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery. Supported payment methods include T/T, L/C, PayPal, Western Union, and Credit Cards across multiple currencies like USD and EUR.
6. Can this ONU detect rogue network interference?
Yes, the device is equipped with ONT detection and isolation capabilities for both active and passive "hooligans" or rogue ONTs to maintain network stability.
