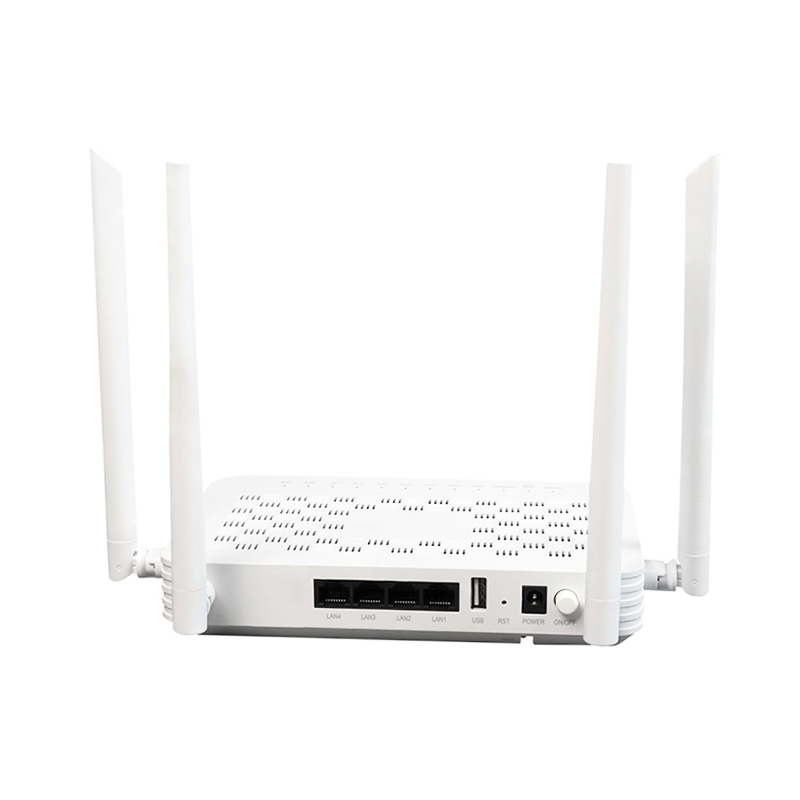

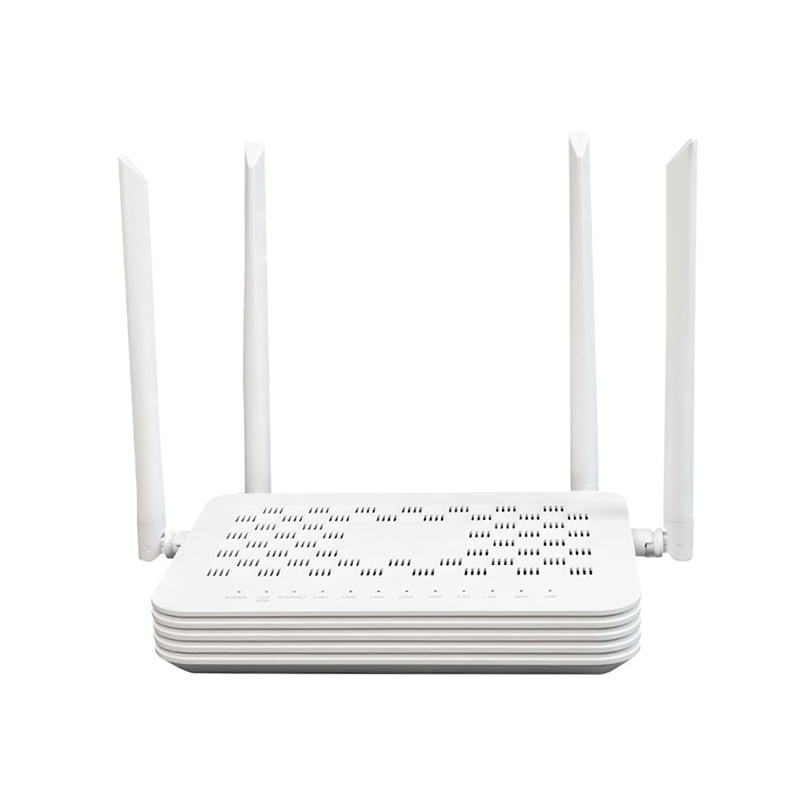

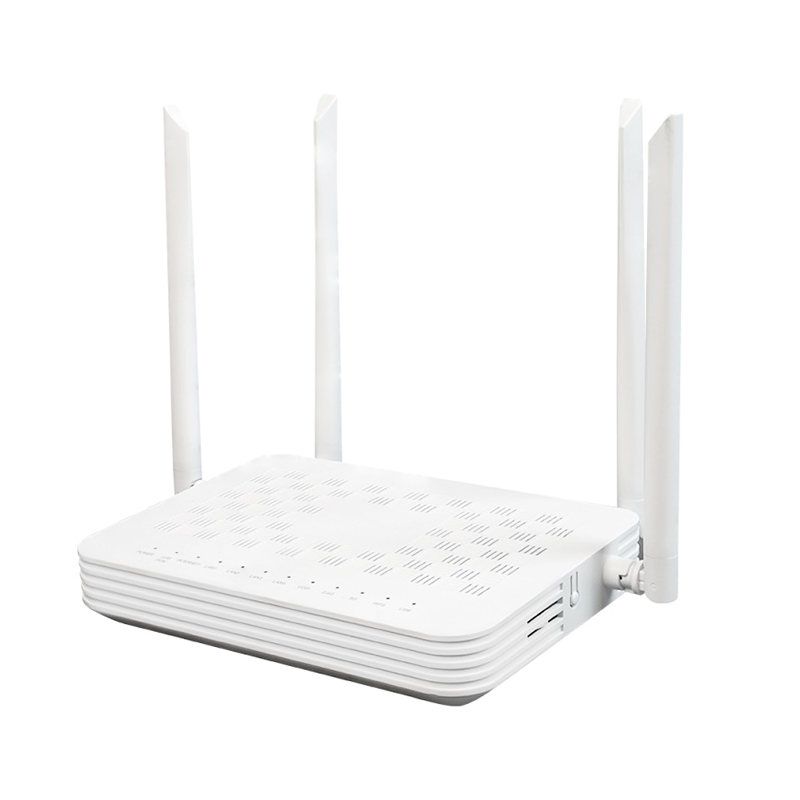

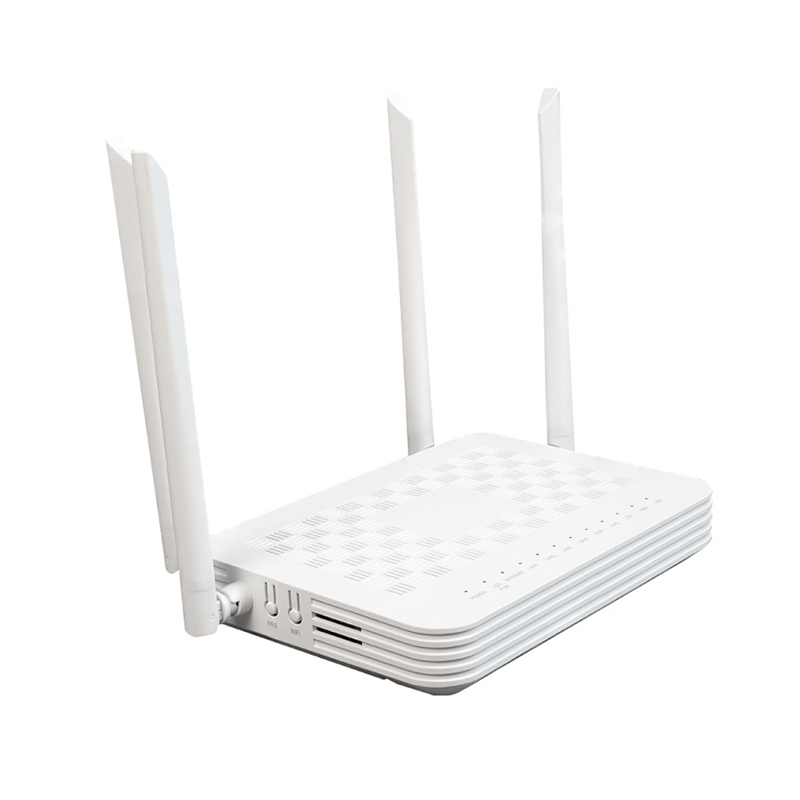

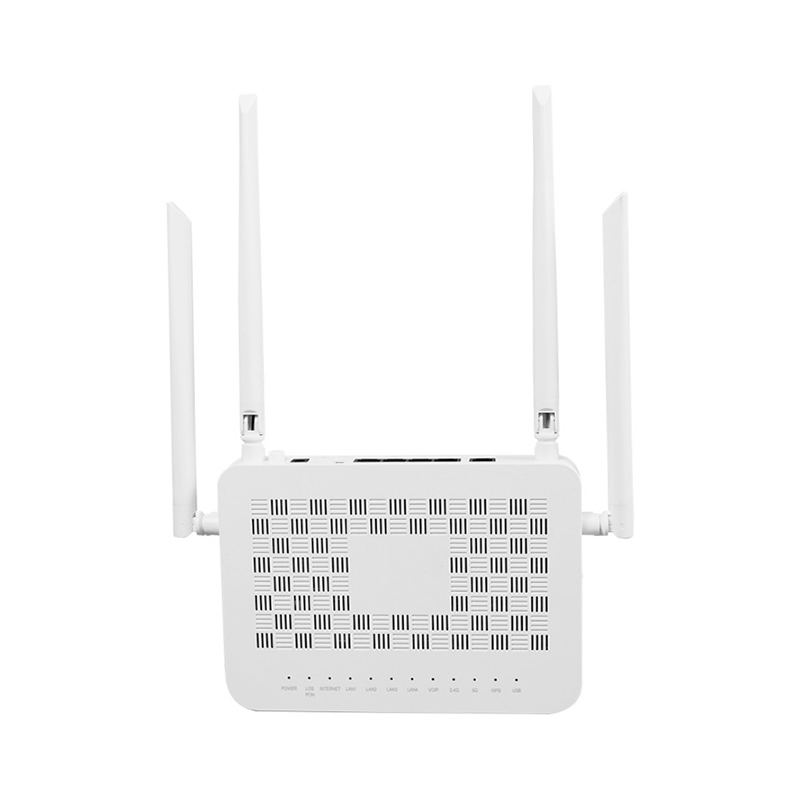

High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
1 / 5
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON
High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON

High-Efficiency and Stable Model AC1200 FTTH GPON EPON Dual-Band WiFi 5 ONU 4GE XPON

Send Inquiry

Product Description

EPON/GPON Dual-mode Access Reduce the Investment of Operators

EPON/GPON Dual-mode Access

Compatible with Various OLT, Flexible Networking

Compatible with Various OLT

2.4G+5G Dual-band WiFi, High-Speed Connection

Dual-band WiFi

Not Afraid of Harsh Environments, with Wide Temperature Range, High Efficiency and Stability

Harsh Environments Stability

Multiple Application Scenarios

Application Scenario 1
Application Scenario 2
Specification
Interface 4GE+1USB+WIFI5+G/EPON
Button POWER + RST +WIFI+WPS
Flash & Memory Flash: 256MB; Memory: 512MB
Power Supply 12V/1A
Power Consumption ≤12W
Environment Standard Operating Temperature: -10℃~55℃
Storage Temperature: -20℃~70℃
Relative Humidity: 5%~95% (non-condensing)
Weight 0.35KG
Size 190mm*135mm*33mm (L*W*H)
Module Type Class B+, SC/UPC
Wavelength UP1310nm, Down1490nm
TX Optical Power 0.5~4dbm
RX Optical Sensitivity -28dBm
Transmission Distance 0~20km
Transmission Rate EPON: Upstream 1.25Gbps / Downstream 1.25Gbps
GPON: Upstream 1.25Gbps / Downstream 2.5Gbps
LAN Interface Type RJ45 (10/100/1000Mbps)
USB USB2.0
WIFI Dual-band WIFI5 AC1200 (2 × 2 MIMO (2.4G & 5G))
Order Info
Description
XPON, 4*1000M Base-T, 1*WIFI-5 (2.4G & 5G 1200M), 1*USB, 12V/1A.
FAQ
Q. Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
Q. How is the quality control managed?
A: Every single optic module is individually tested in the test center, and also tested for compatibility on a variety of different network equipments.
Q. Can I get a sample first?
A: Yes, we can provide samples for you to check the quality.
Q. How about the payment terms?
A: We accept T/T, Western Union, Alibaba order...
Q. What is the lead time?
A: For standard orders, items are kept in stock and can be shipped within 3 days after receiving the payment. For bulk quantities & special products, please verify the lead time with the sales team.
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
