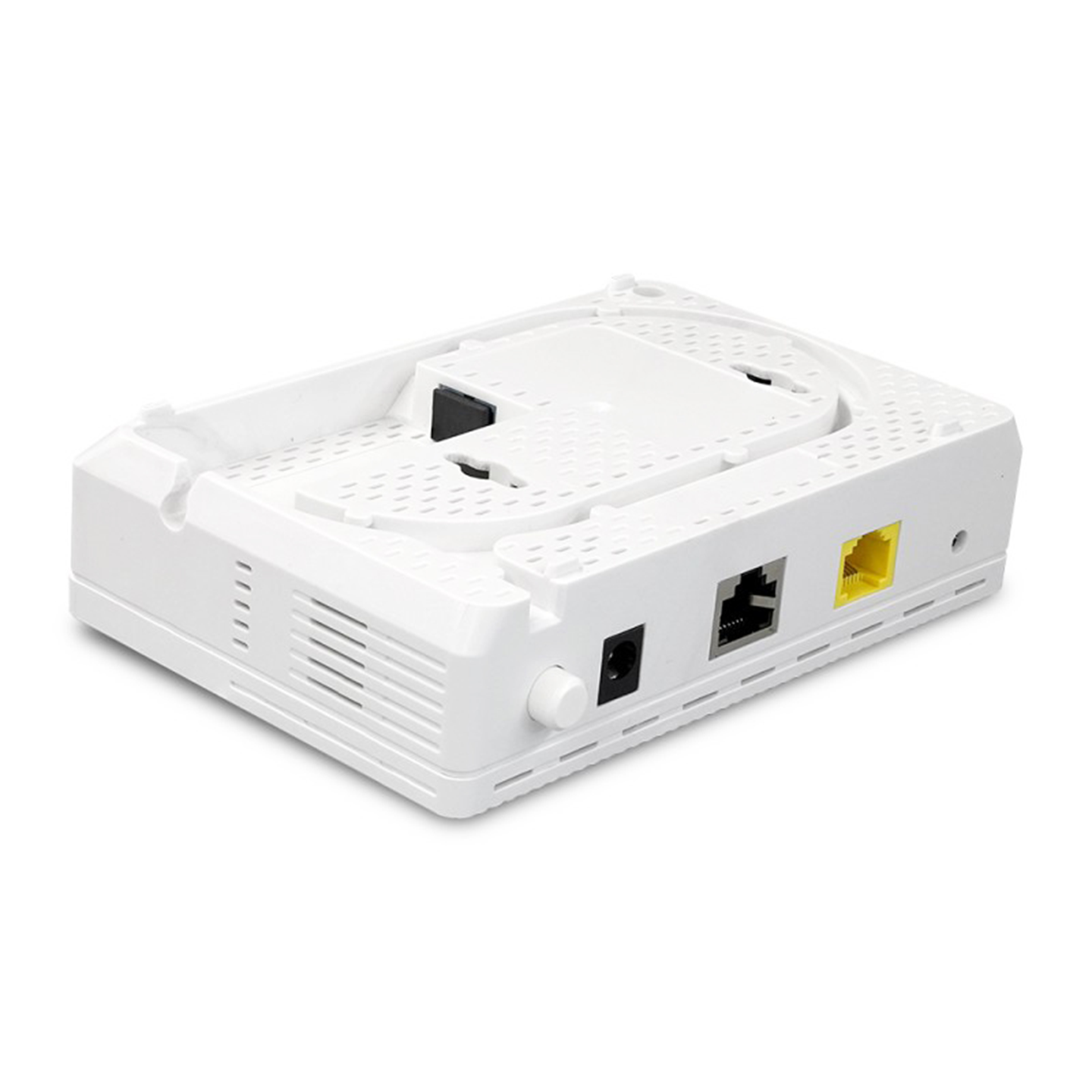

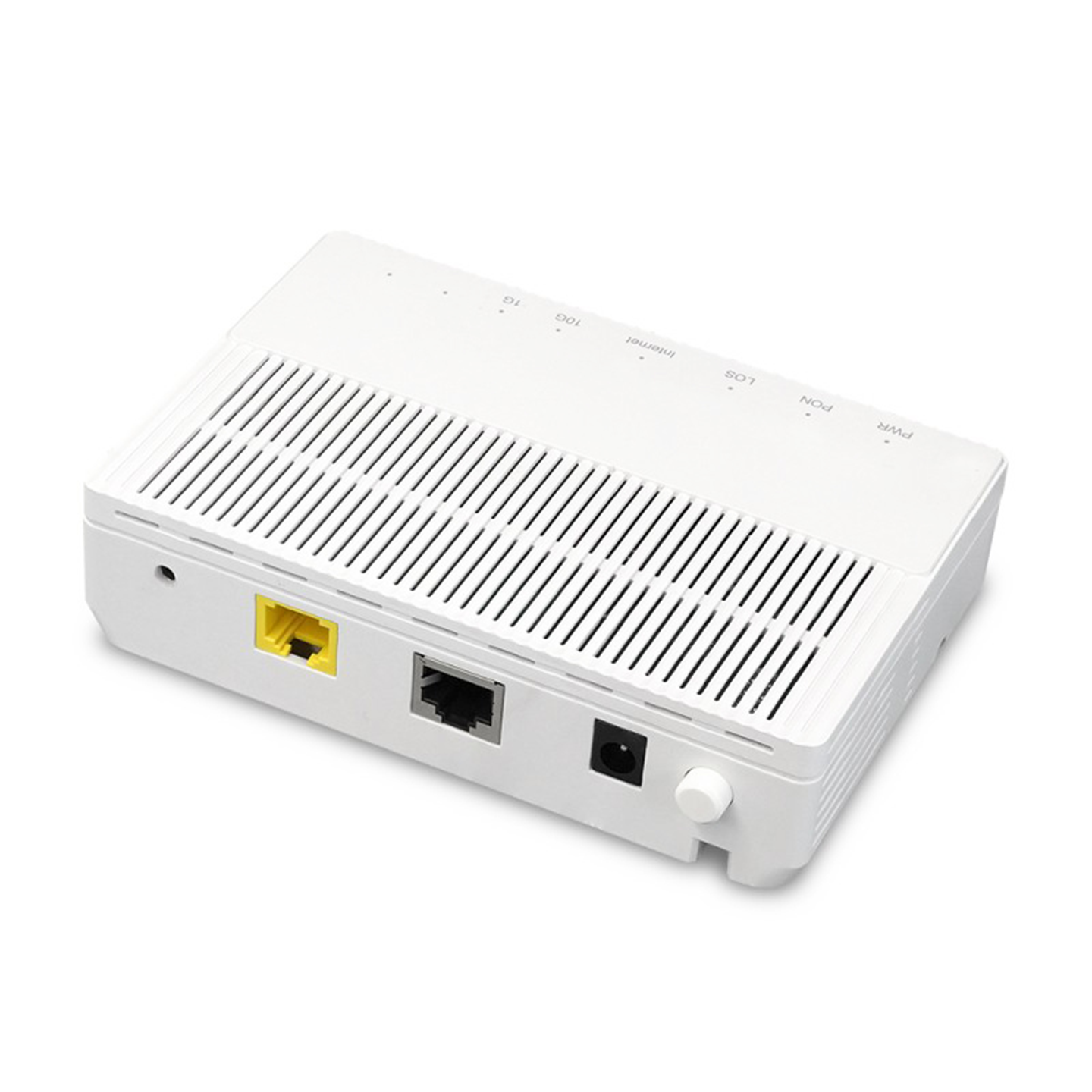

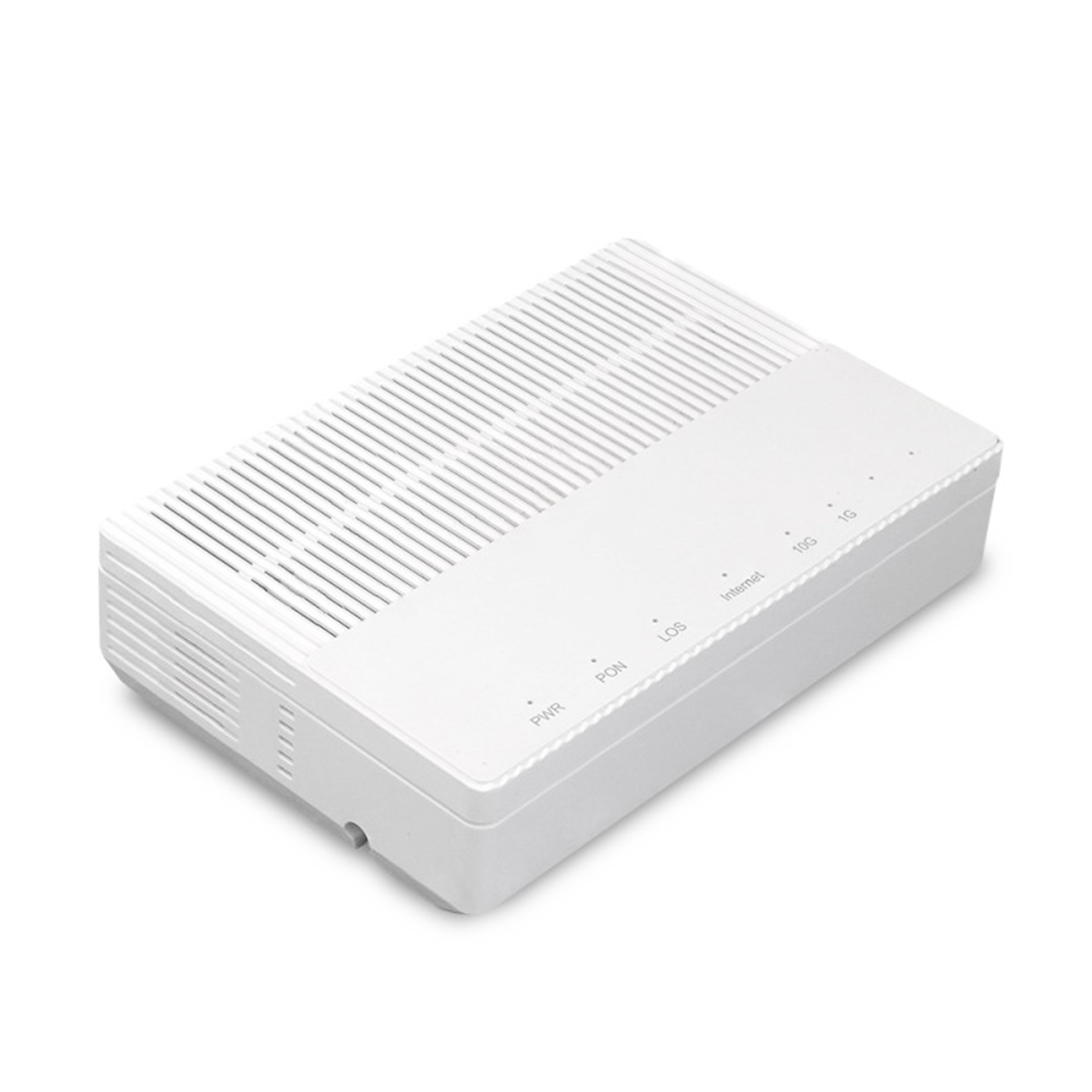

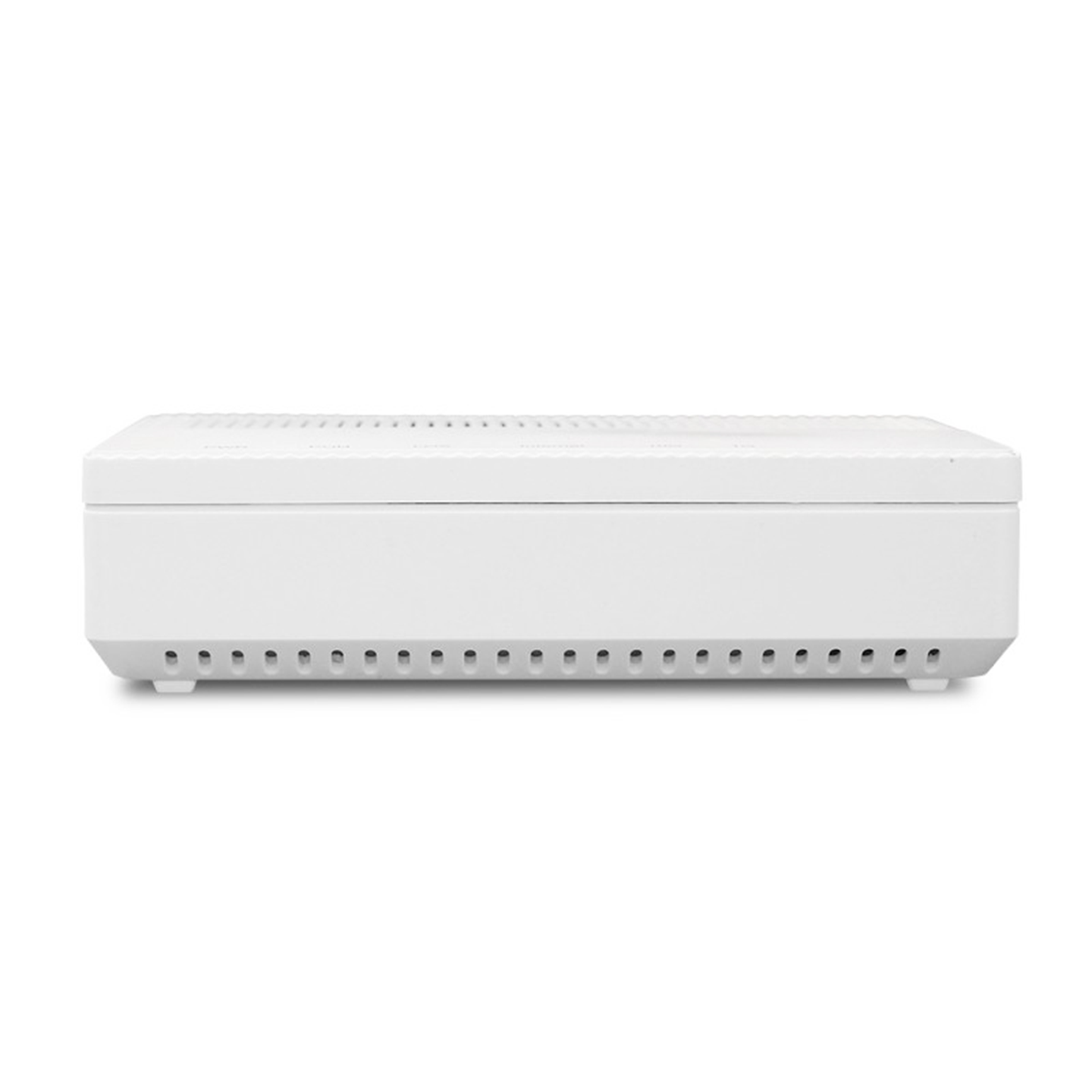

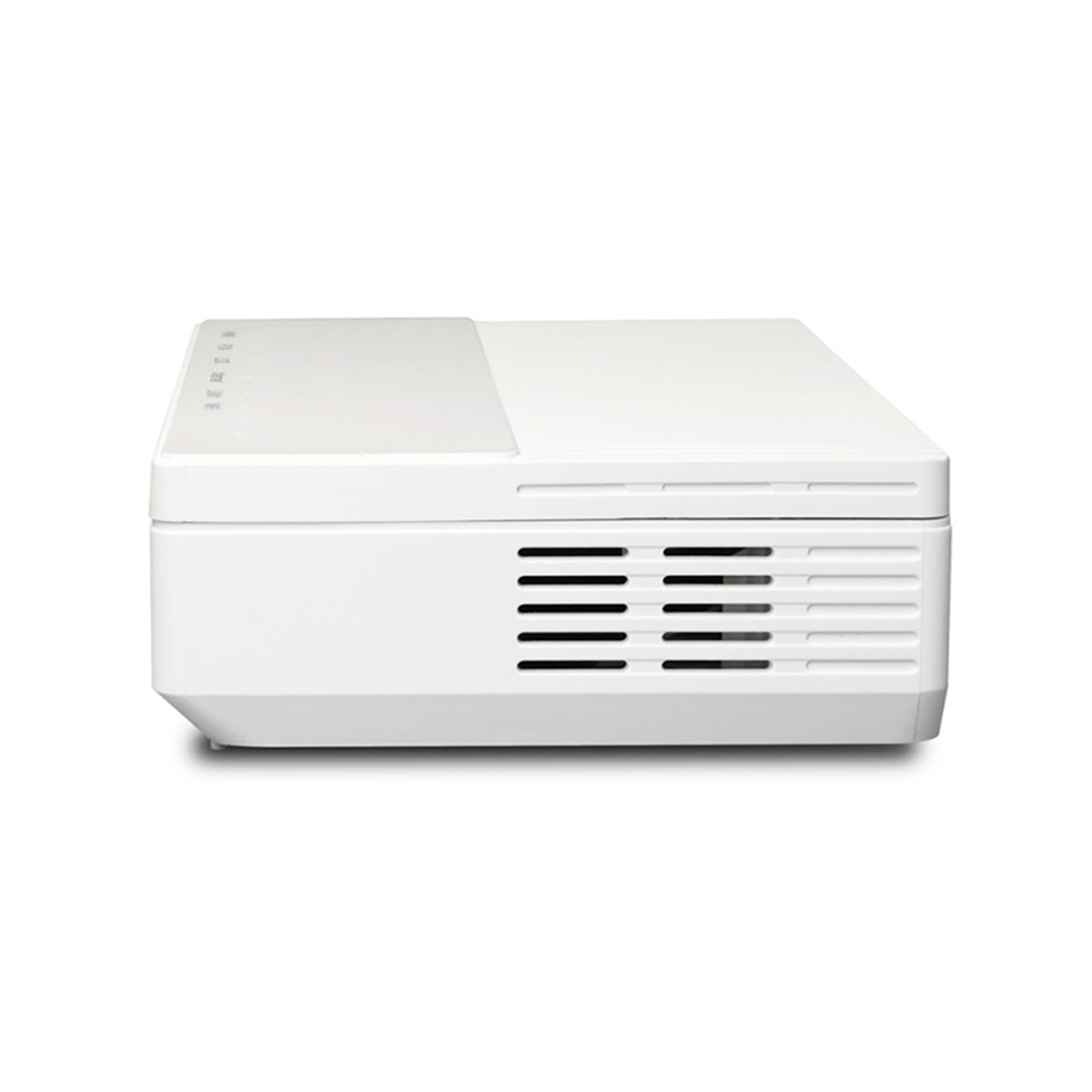

High Quality HGU Home Gateway Router 1G10G 2 Ports RJ45 XGSPon ONU ONT

Send Inquiry

Product Description

Elevating Network Capacity with High Bandwidth

Efficient Solution for Home/Enterprise Network Construction

The exquisite and compact design is in line with your corporate image.

Specifications

Hardware Specification
ONT Type	SFU/HGU
Interface	1RJ45 (GE)+1RJ45 (10GE) + XGSPON
LED	POWER+PON/LOS+INTERNET+1G+10G
CPU Frequency	1 GHz Dual-Core
Flash & Memory	Flash: 128MB NAND; Memory: 512 DDR3
Power Supply	12V/1A
Power Consumption	≤12W
Environment Standard	Operating Temperature: -5℃~50℃ Storage Temperature: -20℃~70℃ Relative Humidity: 5%~95% (non-condensing)
Weight	0.15KG
Size	135mm90mm36mm (LWH)
Module Type	Class B+, SC/UPC
Wavelength	UP 1270nm, Down 1577nm
TX Optical Power	5-9dBm
RX Optical Sensitivity	-28dBm
Transmission Distance	0~20km
Transmission Rate	XGSPON: Upstream 10Gbps, Downstream: 10Gbps
LAN Interface Type	1G: RJ45 (10/100/1000Mbps) 10G: RJ45 (1/2.5/5/10 Gbps)

Software Specification
Feature	ITU-T G.987 ITU-T G.988/TR255/TR156 15 TCONTs /256GEM ports 8 Egress queues per TCONT at least VLAN/ priority/VEIP gem mapping mode SN/LOID/SN +Password authentication Performance monitoring: eth/Gem port Dying gasp
Ethernet Port	Ethernet port-based VLAN tags and tag removal MAC address learning 10/100/1000/10000Mbps Auto negotiation
L2 Feature	MAC learning (SVL)/aging Support max frame length to 1518 bytes VLAN tagging for untagged packets Support VLAN 1-4094
L3 Feature	PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP, DDNS IPv4/IPv6 dual stack, DS-Lite Static, and Default Routes Multiple services on one WAN port
QoS	Support 8 Queues with Strict Priority Ethernet port rate limitation 802.1 priority SP/WRP Service flow classification
Multicast	IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) IGMP snooping and IGMP Proxy MLD v1
Management	OMCI/WEB UI/TR069 Telnet/SSH Management with CLI commands Dual-system software backup and rollback

Order Info

Description	Accessories Pack
1GE+110GE+XGSPON	Power Adapter, RJ45 cable

FAQ

Q1 What is your MOQ request?

It depends on the specific product. Different products have different MOQ requirements. Please contact us for further details.

Q2 Do you Support ODM/OEM service?

Yes, we support comprehensive OEM and ODM customization services tailored to your specifications.

Q3 Do your products support other brands?

Yes, all of our products are unlocked and fully compatible with other major brands.

Q4 Are you a manufacturer or a trading company?

We are a manufacturer and welcome on-site factory inspection visits.

Q5 Do you offer free samples?

Yes, for certain models, we are able to provide free samples for your testing and evaluation.

Q6 Are you able to provide local certificates?

Yes, based on our contract agreement, we can apply for local certificates such as CE, RoHS, Anatel, Postel, etc.
