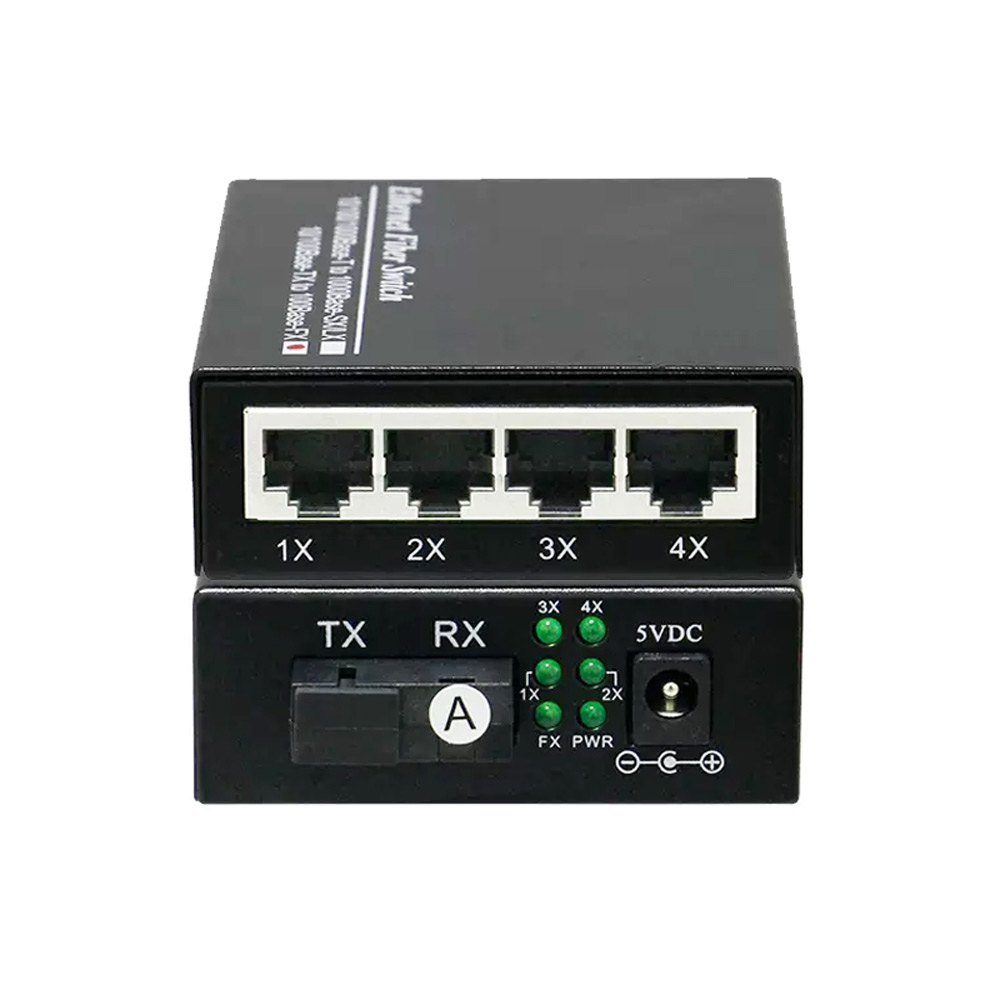

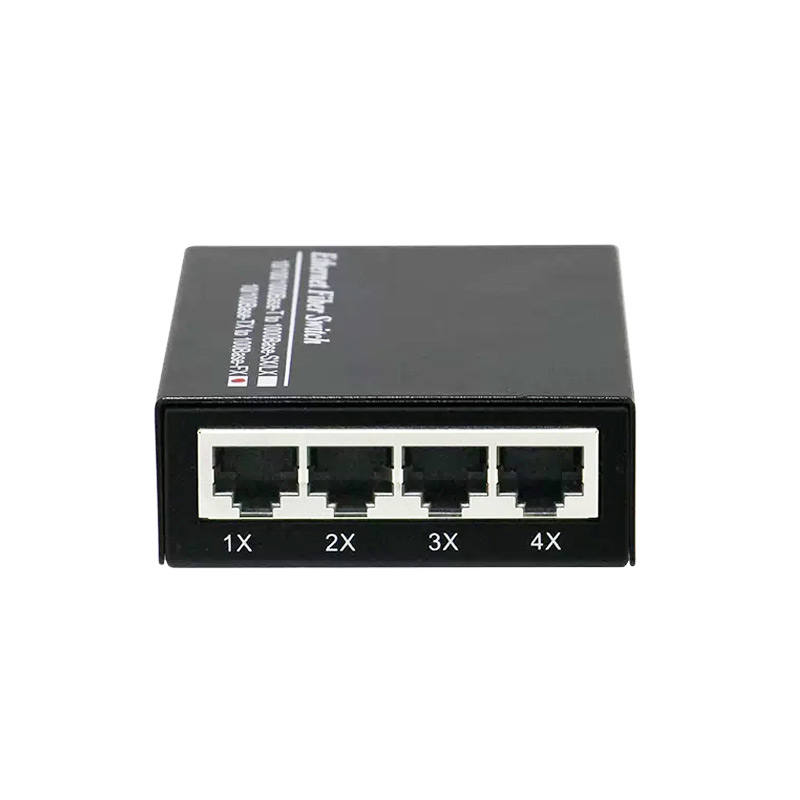

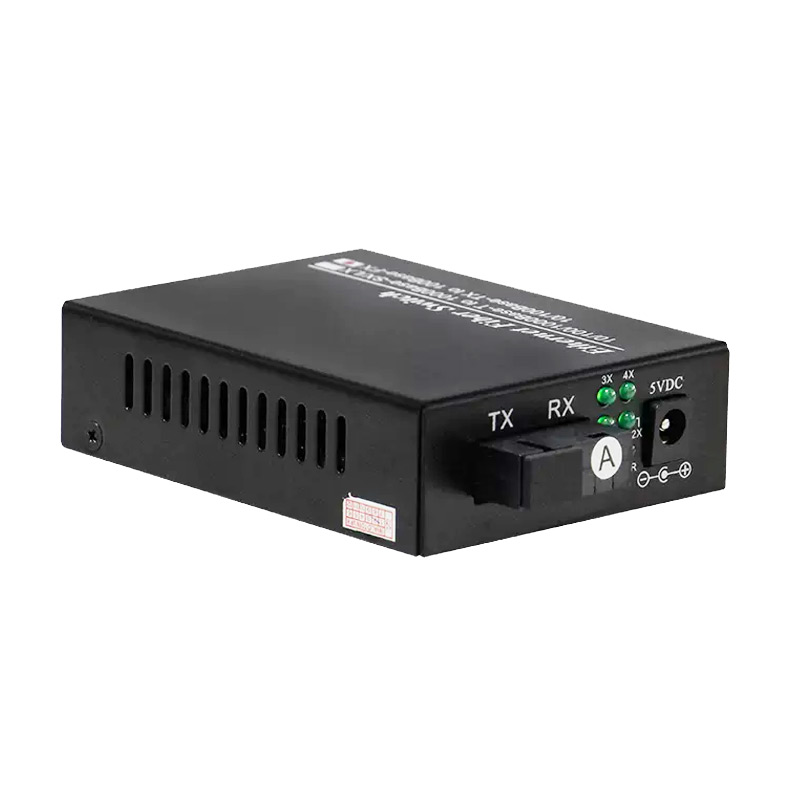

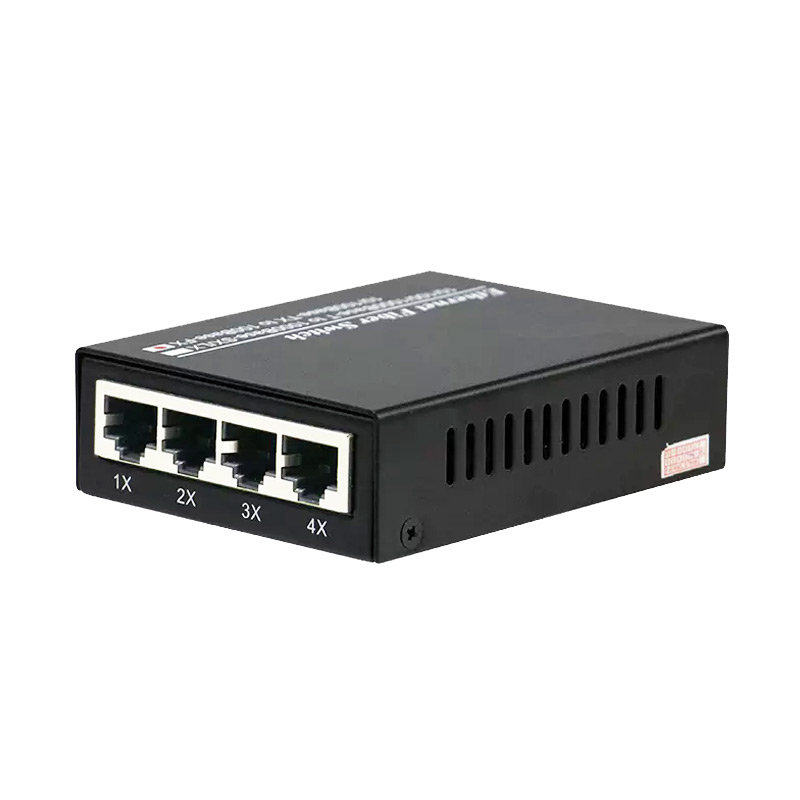

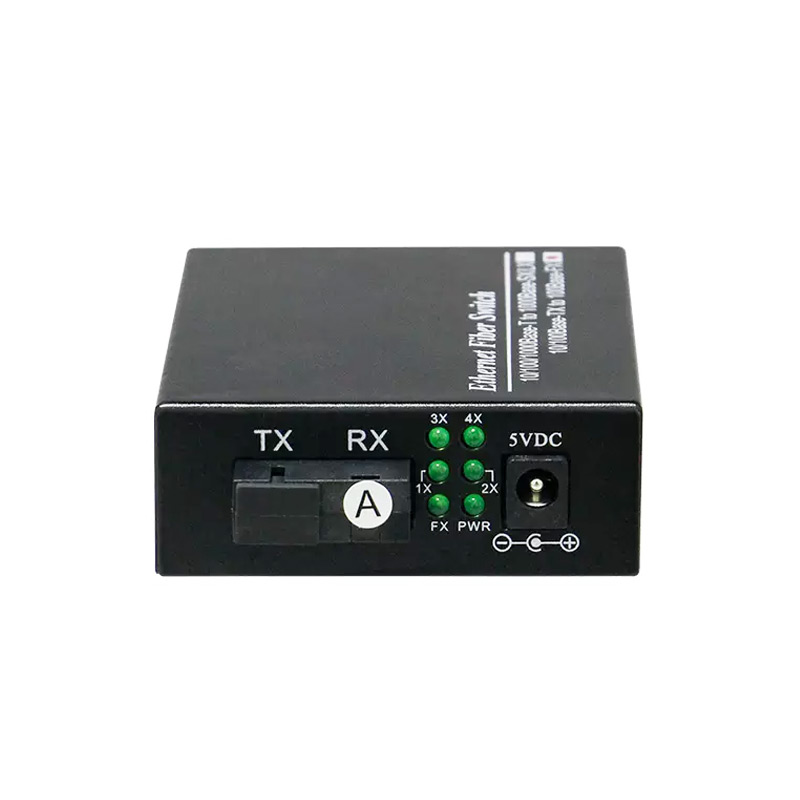

High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
1 / 5
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM
High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM

High Speed Fiber to Ethernet for CCTV Gigabit SC Single Mode Fiber Optic Transceiver 1 Fiber + 4 RJ45 Port 20KM

Send Inquiry

Product Description

Product Image 1
Product Image 2

1 Gigabit fiber port with 4*10/100/1000Mbps RJ45 port

Point-to-multipoint high-speed forwarding

1 Gigabit fiber port detail

Plug-and-play, no need for any configuration

Plug-and-play concept

Product dimensions and interface definitions

Product dimensions layout

Application

Application diagram
Hardware Specifications
Standard
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface
  • 1*1.25Gbps SC optical fiber interface
  • 4*RJ45 10/100/1000Mbps
Distance
  • 100m @CTE5
  • 20km @SMF
Wavelength
  • A: Tx1310nm / Rx1550nm
  • B: Tx1550nm / Rx1310nm
Transmission media
  • Cable: CTE5 or higher UTP and STP
  • Optical Fiber: 9/125um single-mode optical fiber
Optical parameter
  • Average emission power: -9 to -3 dBm
  • Receiving sensitivity: -22 dBm
Power
  • DC5V/2A
Size
  • 94mm*73mm*27mm
Environment
  • Operating temperature: -5℃ to 60℃
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage temperature: -40℃ to 70℃
  • Storage humidity: 5% to 90% RH (non-condensing)
Order Info
RD-GE104-T Fiber Media Converter 10/100/1000MB 1*SC+4*RJ45 1310-TX
RD-GE104-R Fiber Media Converter 10/100/1000MB 1*SC+4*RJ45 1550-TX
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.

FAQ

Q1: What is your MOQ request?
Depends on products, different products have different MOQ.
Q2: Do you Support ODM/OEM service?
Yes, we can offer the customization service to you.
Q3: Does your products support other brands?
Yes, all of our products is without lock, support to another brands too.
Q4: Are you the manufacturer or trading company?
We are the manufacturer.
Q5: Do you offer free samples?
Yes, for some models we are able to provide the free samples for your testing purpose.
Q6: Are you able to provide the local certificates?
Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
