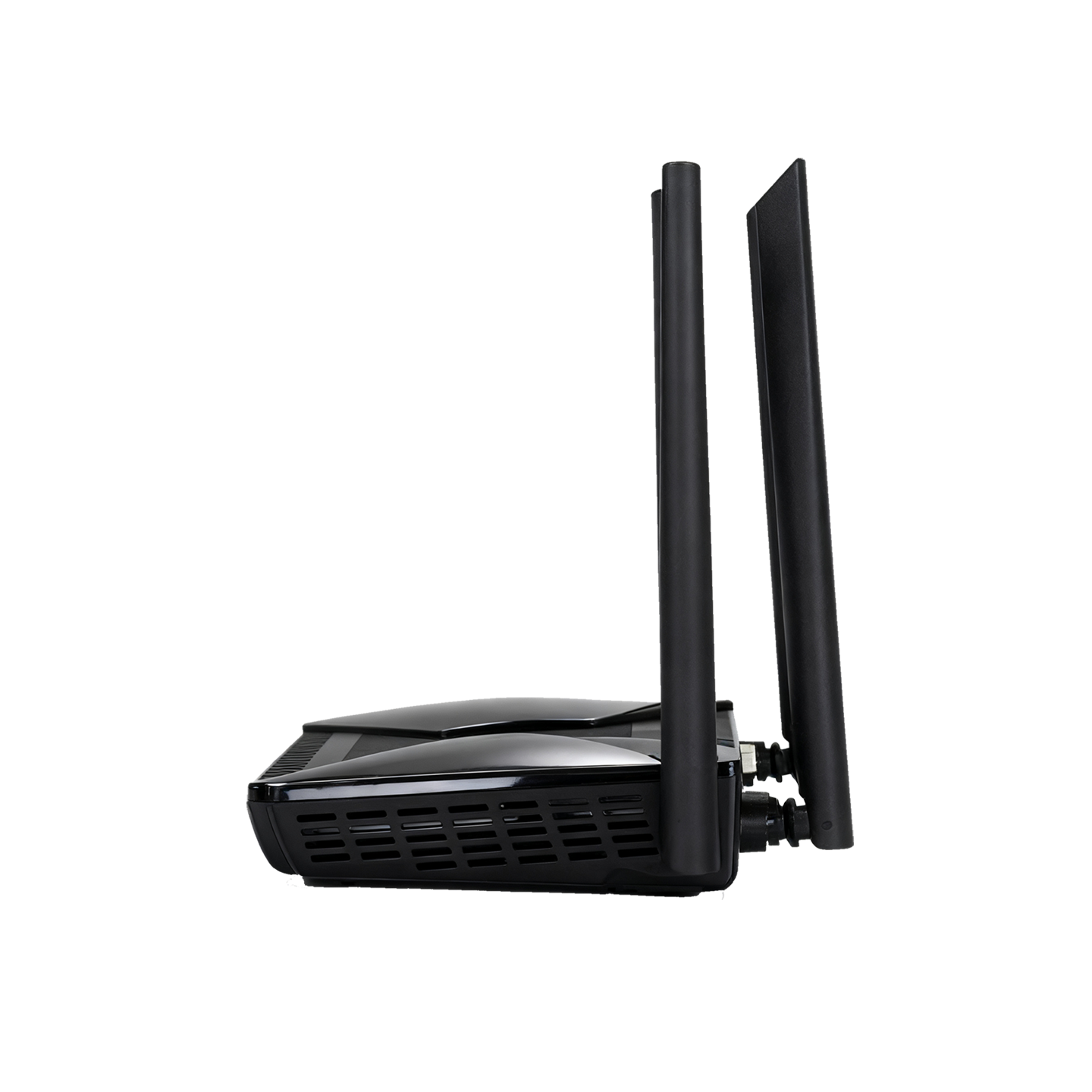

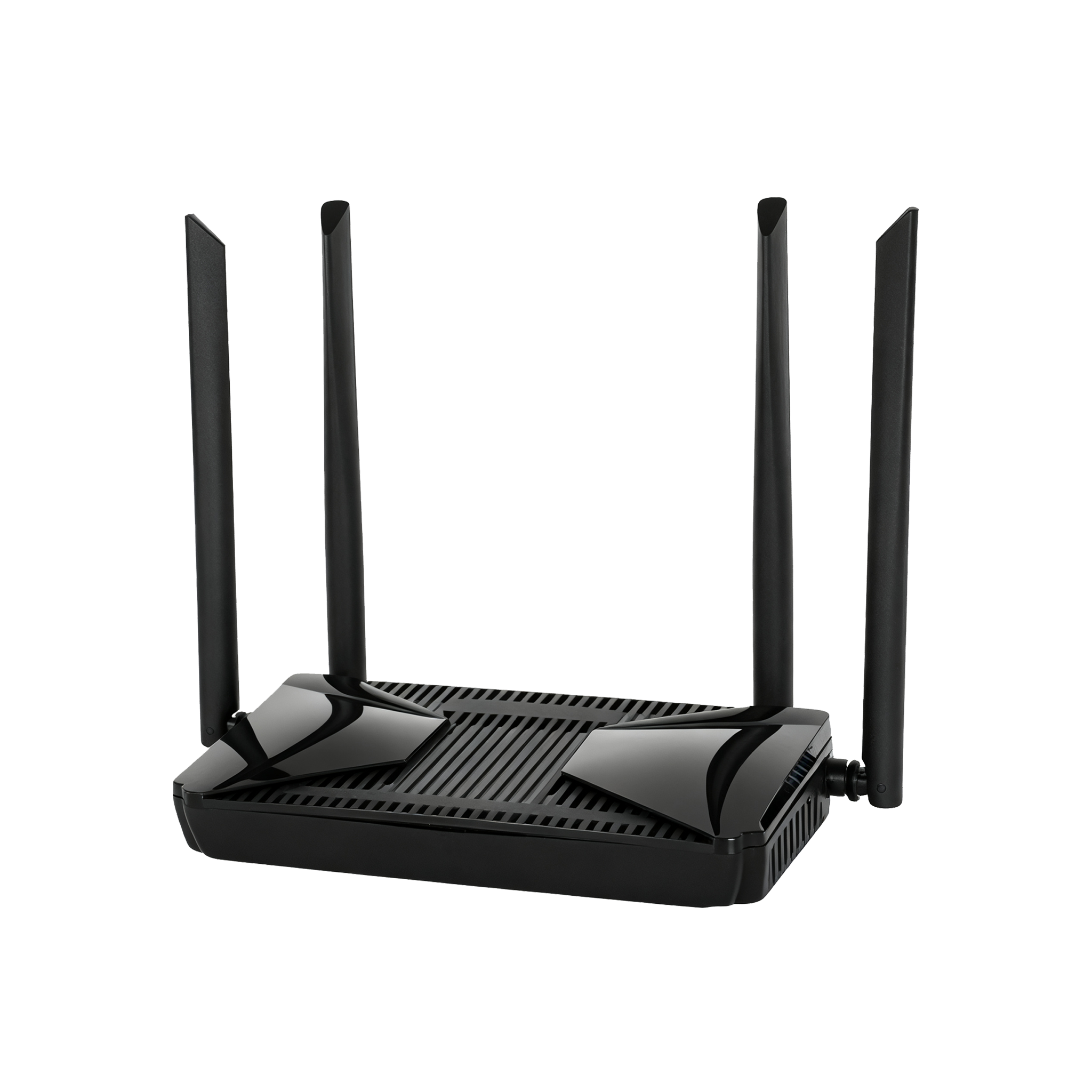

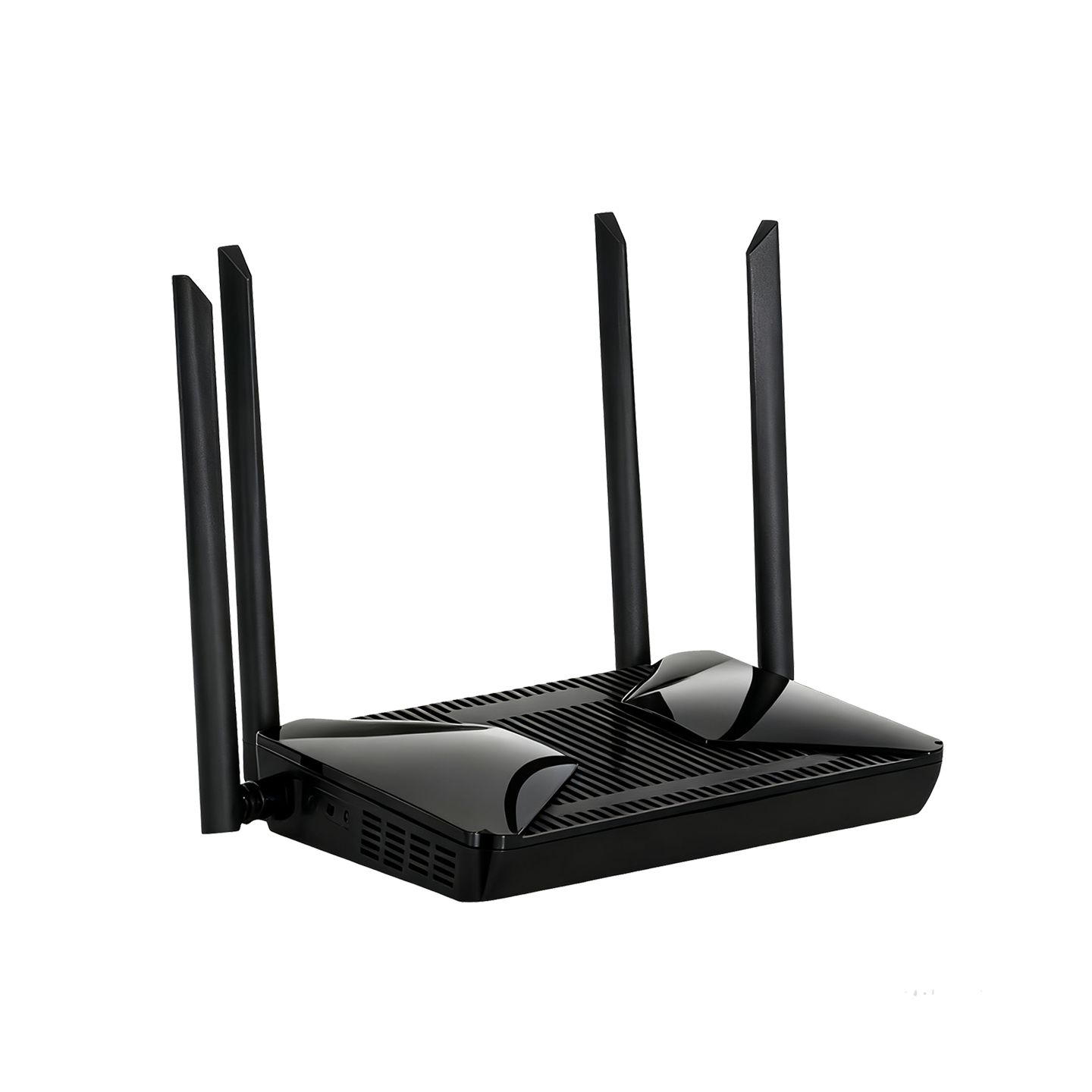

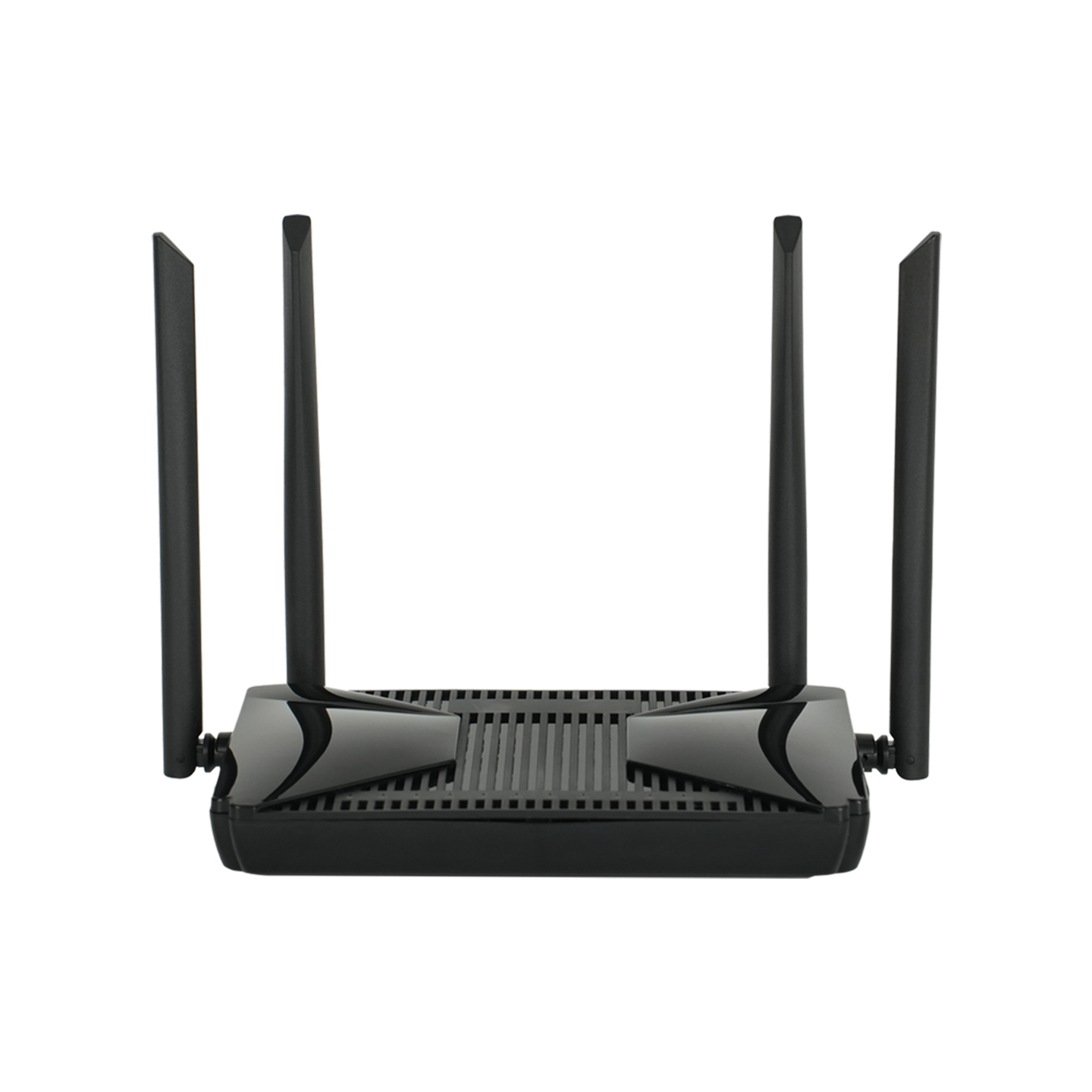

Hot Selling XPON GPON ONU 4GE RJ45 WIFI-5 Dual-Band CATV FTTH Fiber Optic Equipment Wifi CATV ONU

EPON/GPON Dual-mode Access Reduce the Investment of Operators

Compatible with Various OLT, Flexible Networking

Multiple Application Scenarios

Compact & Elegant Design

⚙

Specification

Model Number	HG7024XZ

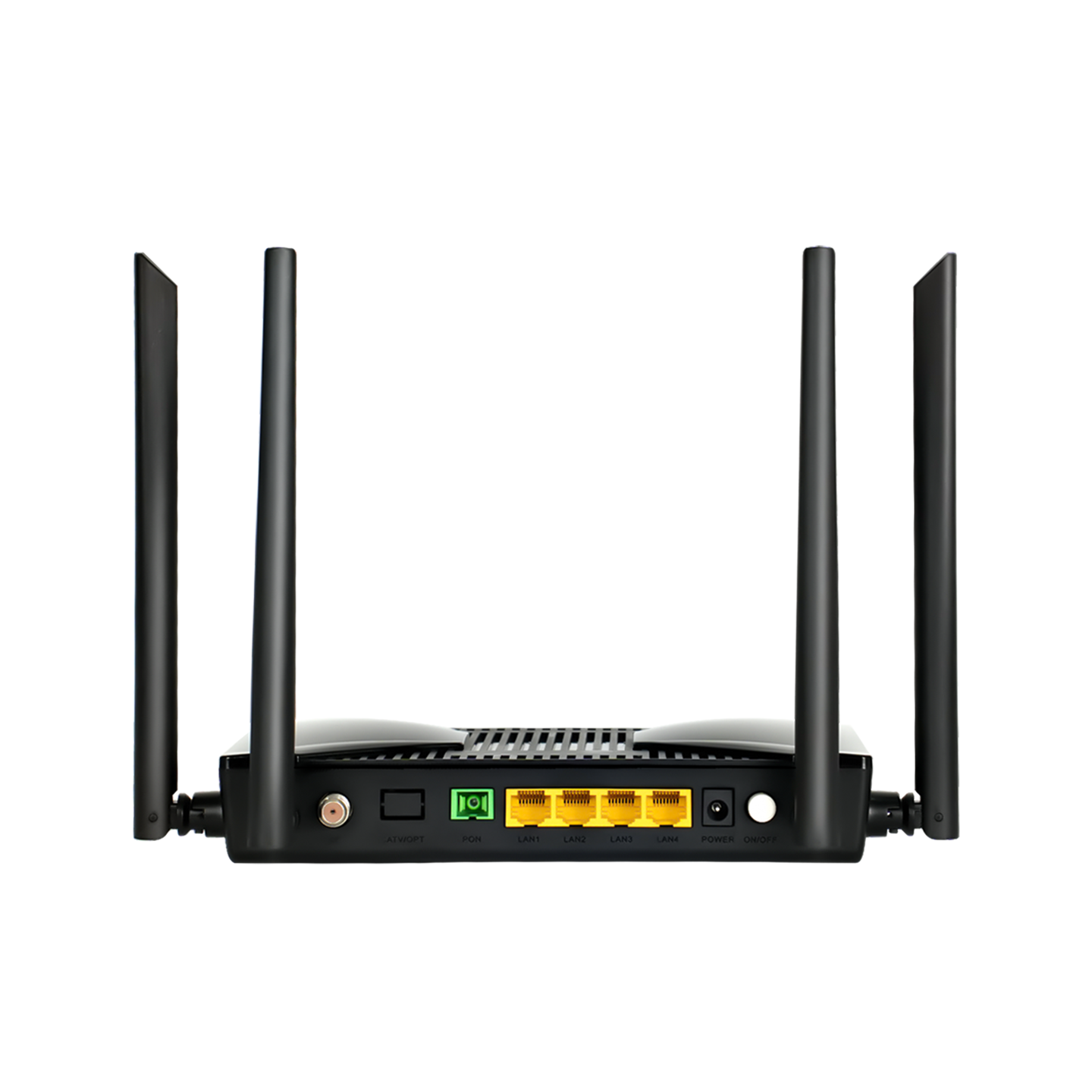

Interface	1* G/EPON + 4GE + 2.4G/5.8GWLAN + 1RF
Ethernet Interface	4* RJ45 10/100/1000BASE-T
CATV Interface	Interface type: 1*RF Optical receiving wavelength: 1550nm RF output level: 80±1.5dBuV Input optical power: +2~-15dBm AGC range: 0~-12dBm Optical reflection loss: >14 MER: >31@-15dBm
PON Interface	Interface Type: SC/UPC, CLASS B+ Transmission distance: 0~20km Working wavelength: Up 1310nm, Down 1490nm RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps, Down 2.488Gbps EPON: Up 1.244Gbps, Down 1.244Gbps
Wireless	Interface type: External 4*2T2R External antenna Antenna gain: 5dBi Interface maximum rate: 2.4G WLAN: 300Mbps 5.8G WLAN: 866Mbps Interface working mode: 2.4G WLAN: 802.11 b/g/n 5.8G WLAN: 802.11 a/n/ac
Indicator light	RF/OPT/5G/2.4G/LAN4/LAN3/LAN2/LAN1/LOS/PON/POWER
Power Supply	DC 12V/1.5A
Power Adapter Input	100V-240V AC, 50Hz-60Hz
Power Consumption	12W
Working Temperature	-20°C ~ +50°C
Environment Humidity	5% ~ 95% (non-condensing)
Dimensions (L×W×H)	196mm x 125mm x 32mm
Transmission Rate	EPON: Upstream 1.25Gbps / Downstream 1.25Gbps GPON: Upstream 1.25Gbps / Downstream 2.5Gbps
LAN Interface Type	RJ45 (10/100/1000Mbps)
USB	USB3.0
WIFI	Dual-band WIFI6 AX3000 (2 × 2 MIMO (2.4G & 5G))

📋

Order Info

Description: XPON, 4*1000M Base-T, 1*WIFI-5 (2.4G & 5G 1200M), 1*CATV, 12V/1.5A.

❓

FAQ

Q Can you do OEM?

Yes, we can do OEM products. It's no problem.

Q How does the quality control process work?

Every single optic module is individually tested in the test center, and also tested for compatibility on a variety of different network equipment.

Q Can I get a sample first?

Yes, we can provide samples for you to check the quality.

Q How about the payment terms?

We accept T/T, Western Union, and Alibaba orders.

Q What is the lead time?

For standard orders, stocks are kept and can be shipped around 3 days after receiving the payment. For large quantities and customized products, please coordinate delivery times beforehand.

Q How do you ship the goods and how long does it take to arrive?

Shipments are typically processed via DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive.
