Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
1 / 5
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter
Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter

Plug-and-play Inficomo RD-GE108 8 RJ45 1 SC 10/100/1000M 10-80km Distance Fiber Optic Single Mode Media Converter

Send Inquiry

Product Description

Fiber Switch Interface Side

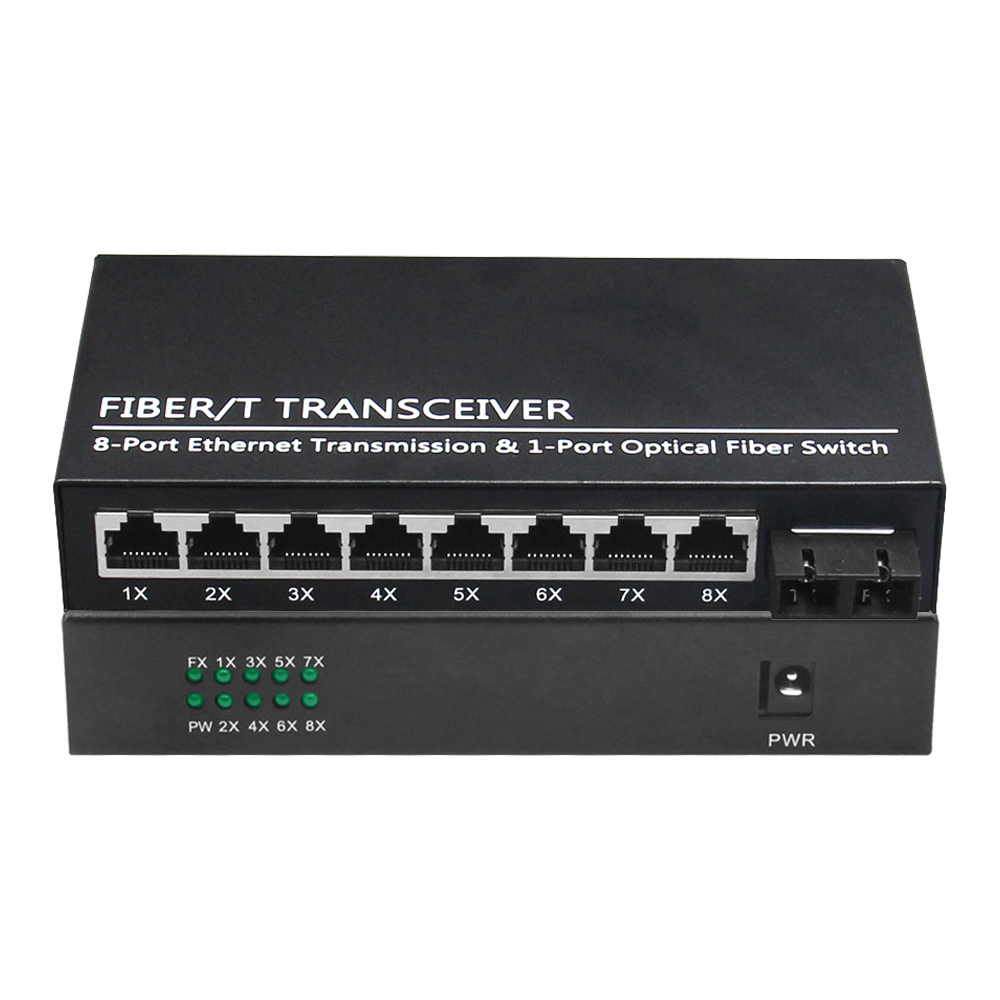

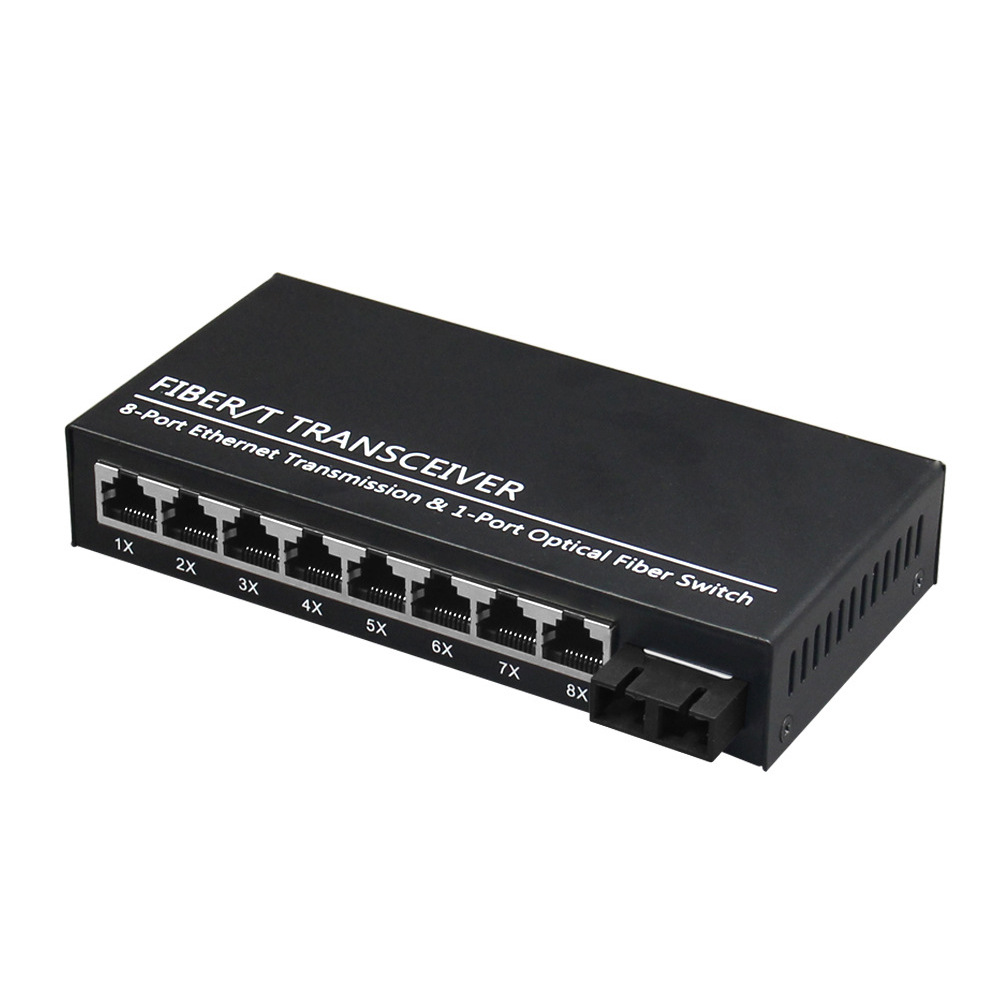

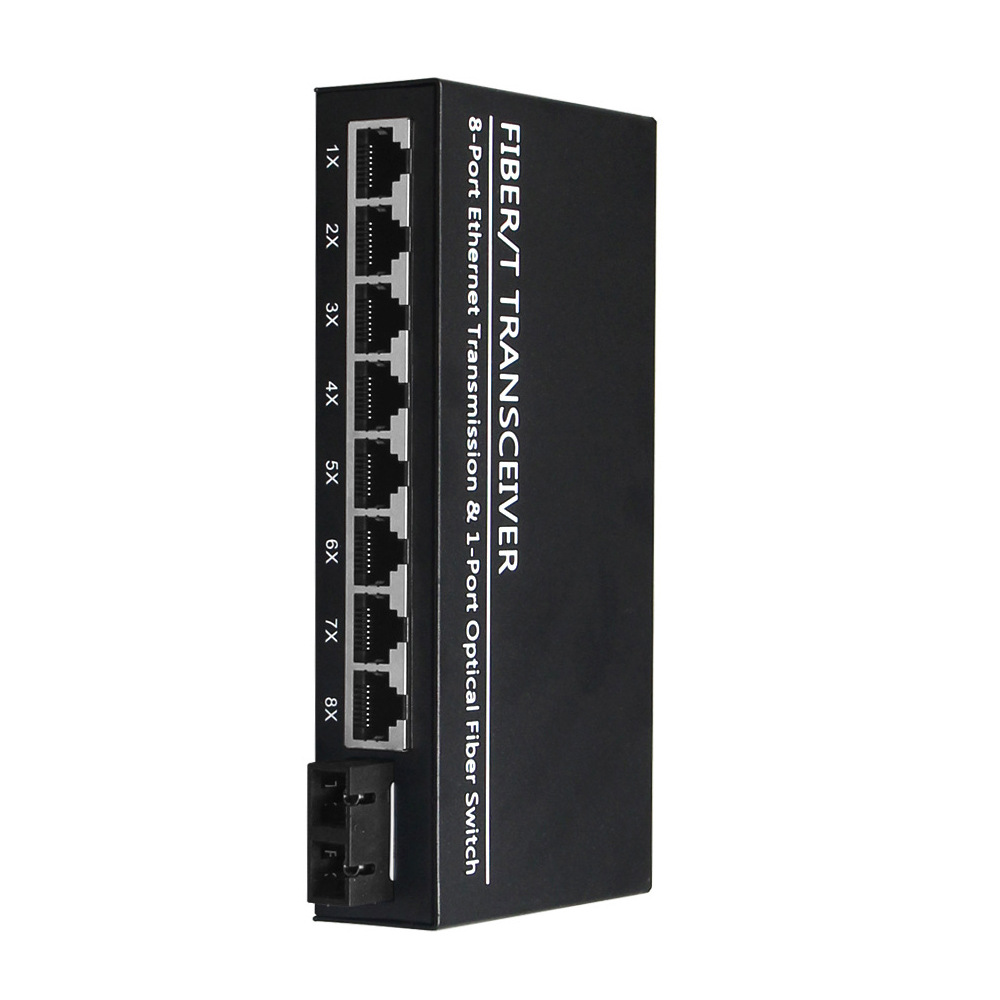

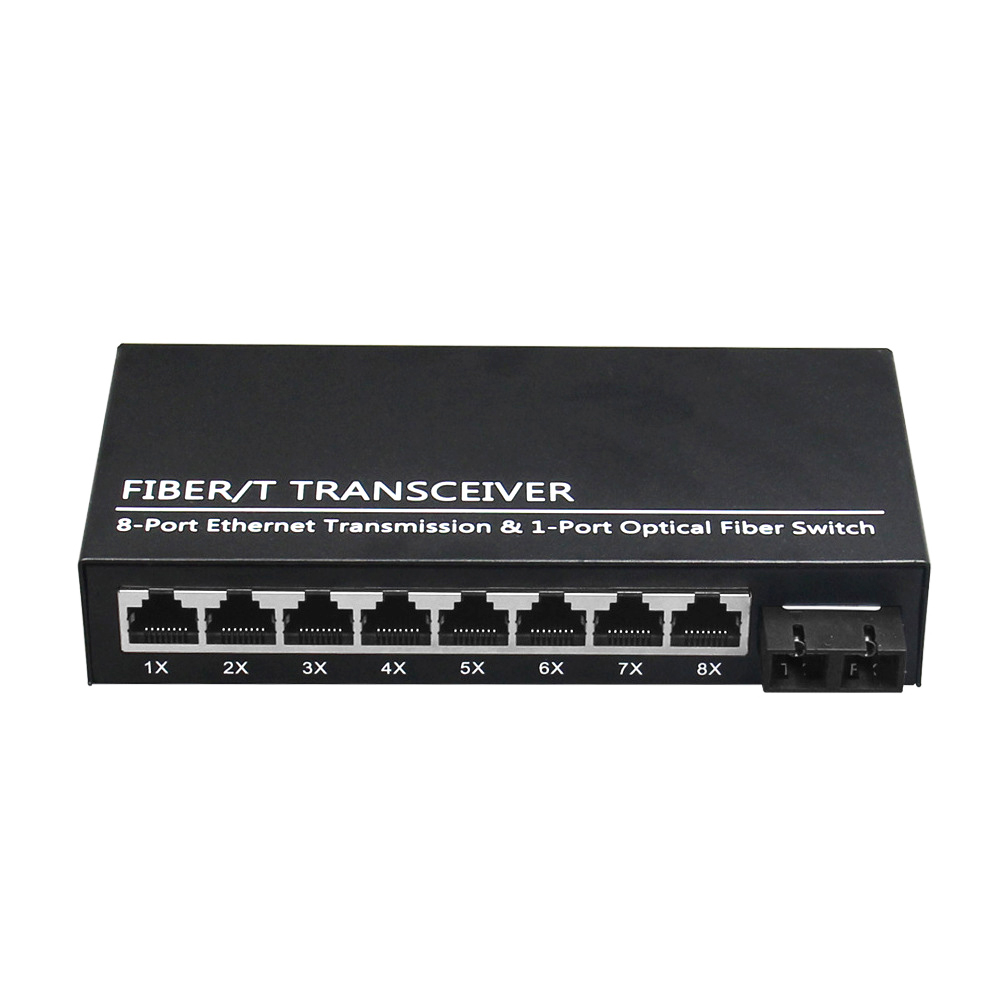

Fiber Switch Main View

1 Gigabit fiber port with 8*10/100/1000Mbps RJ45 port

Point-to-multipoint high-speed forwarding

Gigabit Switch Ports Breakdown

Plug-and-play, no need for any configuration

Plug and Play Setup Diagram

Product dimensions and interface definitions

Dimensions and Port Diagram

Application

Switch Application Topology Diagram

Hardware Specifications

Parameter Specifications Details
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface
  • 1 * 1.25Gbps SC optical fiber interface
  • 8 * RJ45 10/100/1000Mbps
Distance
  • 100m @CTE5
  • 20km @SMF
Wavelength
  • A: Tx1310nm / Rx1550nm
  • B: Tx1550nm / Rx1310nm
Transmission media
  • Cable: CTE5 or higher UTP and STP
  • Optical Fiber: 9/125um single-mode optical fiber
Optical parameter
  • Average emission power: -9 to -3 dBm
  • Receiving sensitivity: -22 dBm
Power DC 5V / 2A
Size 195mm * 92mm * 28mm
Environment
  • Operating temperature: -5°C to 60°C
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage temperature: -40°C to 70°C
  • Storage humidity: 5% to 90% RH (non-condensing)

Order Info

Model Product Description
RD-GE108-T Fiber Media Converter 10/100/1000MB 1*SC + 8*RJ45 1310-TX
RD-GE108-R Fiber Media Converter 10/100/1000MB 1*SC + 8*RJ45 1550-TX
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.

Frequently Asked Questions

Q1: What is your MOQ request?
A1: Depends on products, different products have different MOQ, please contact us for more details.
Q2: Do you Support ODM/OEM service?
A2: Yes, we can offer the customization service to you.
Q3: Does your products support other brands?
A3: Yes, all of our products is without lock, support to another brands too.
Q4: Are you the manufacturer or trading company?
A4: We are the manufacturer, we support factory view tour.
Q5: Do you offer free samples?
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
Q6: Are you able to provide the local certificates?
A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
