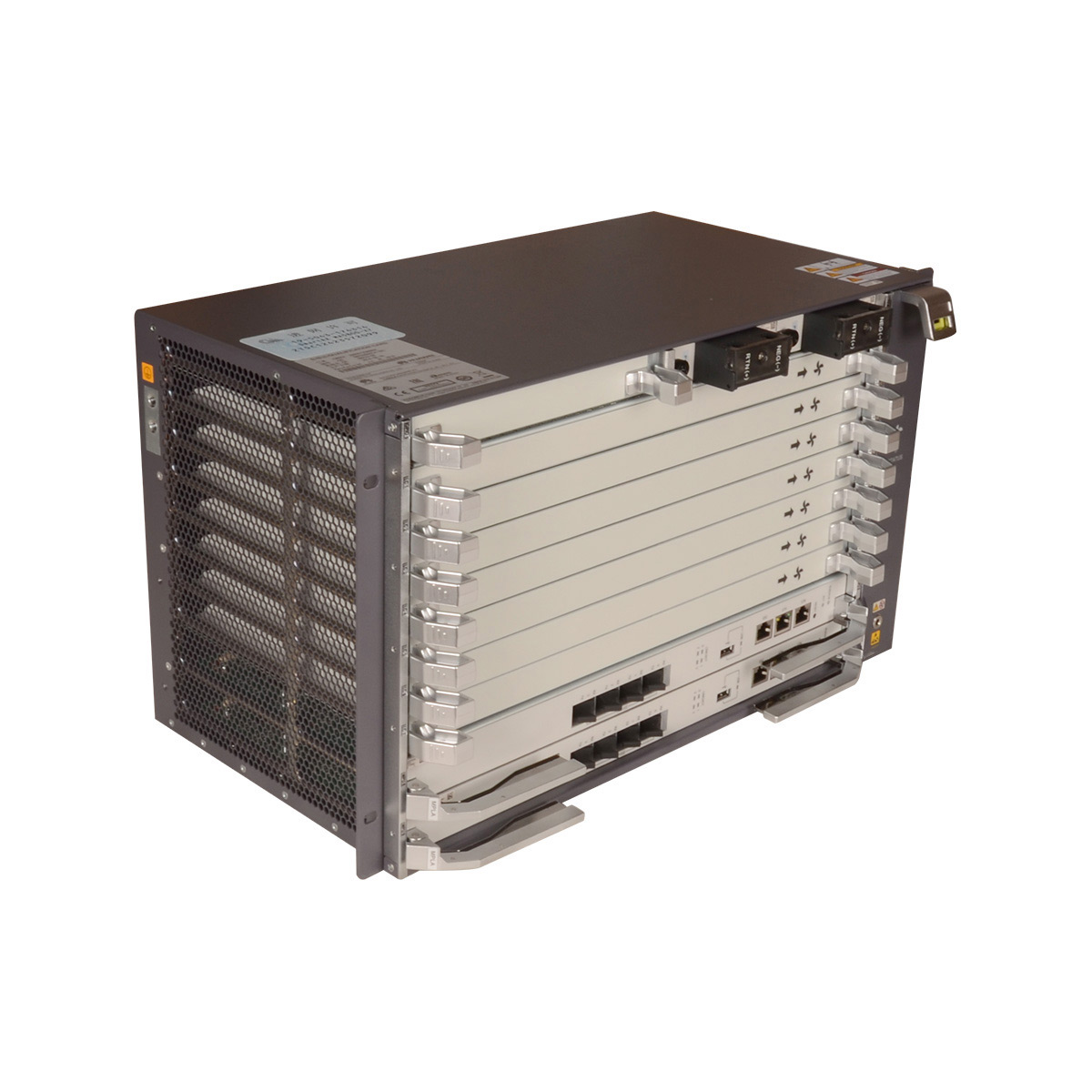

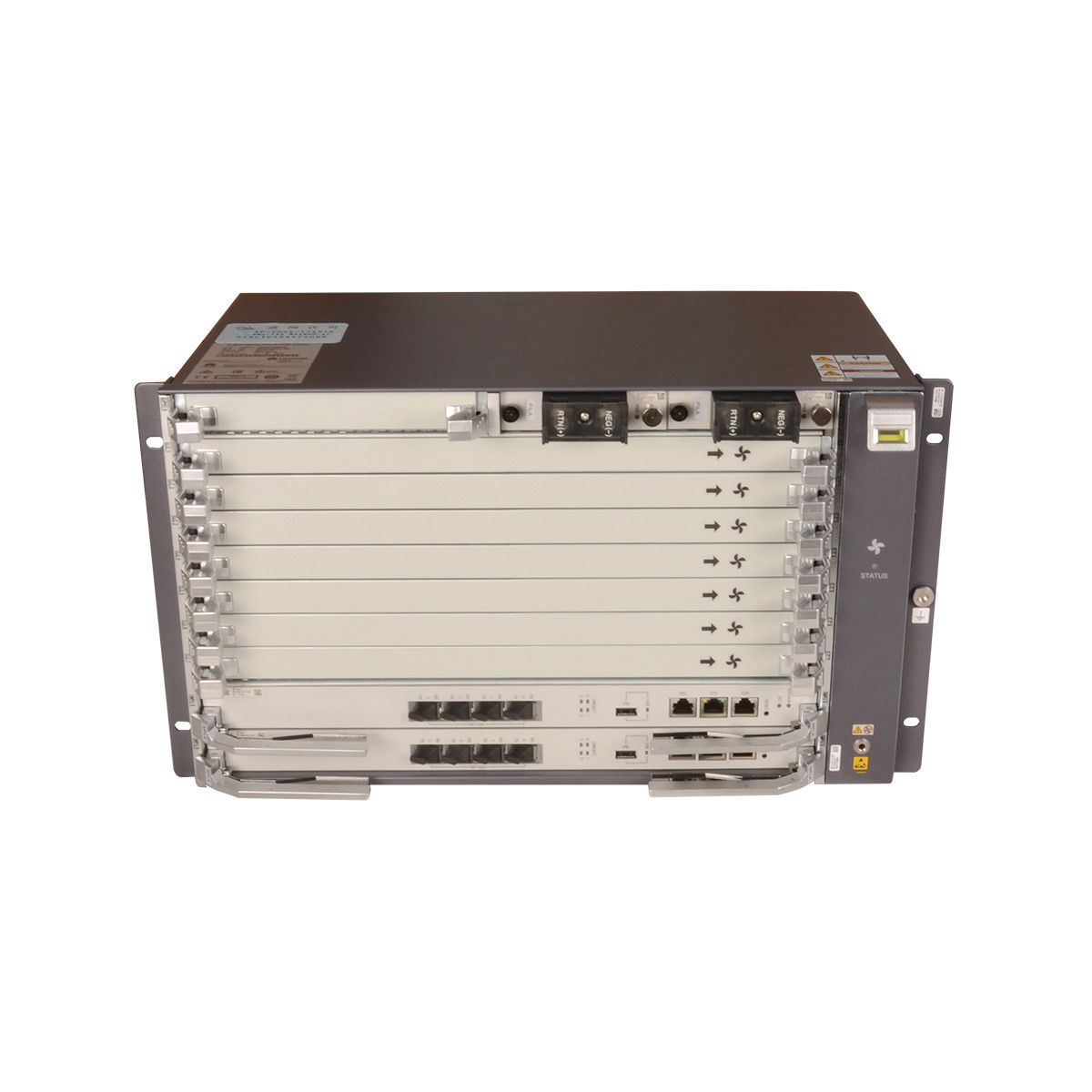

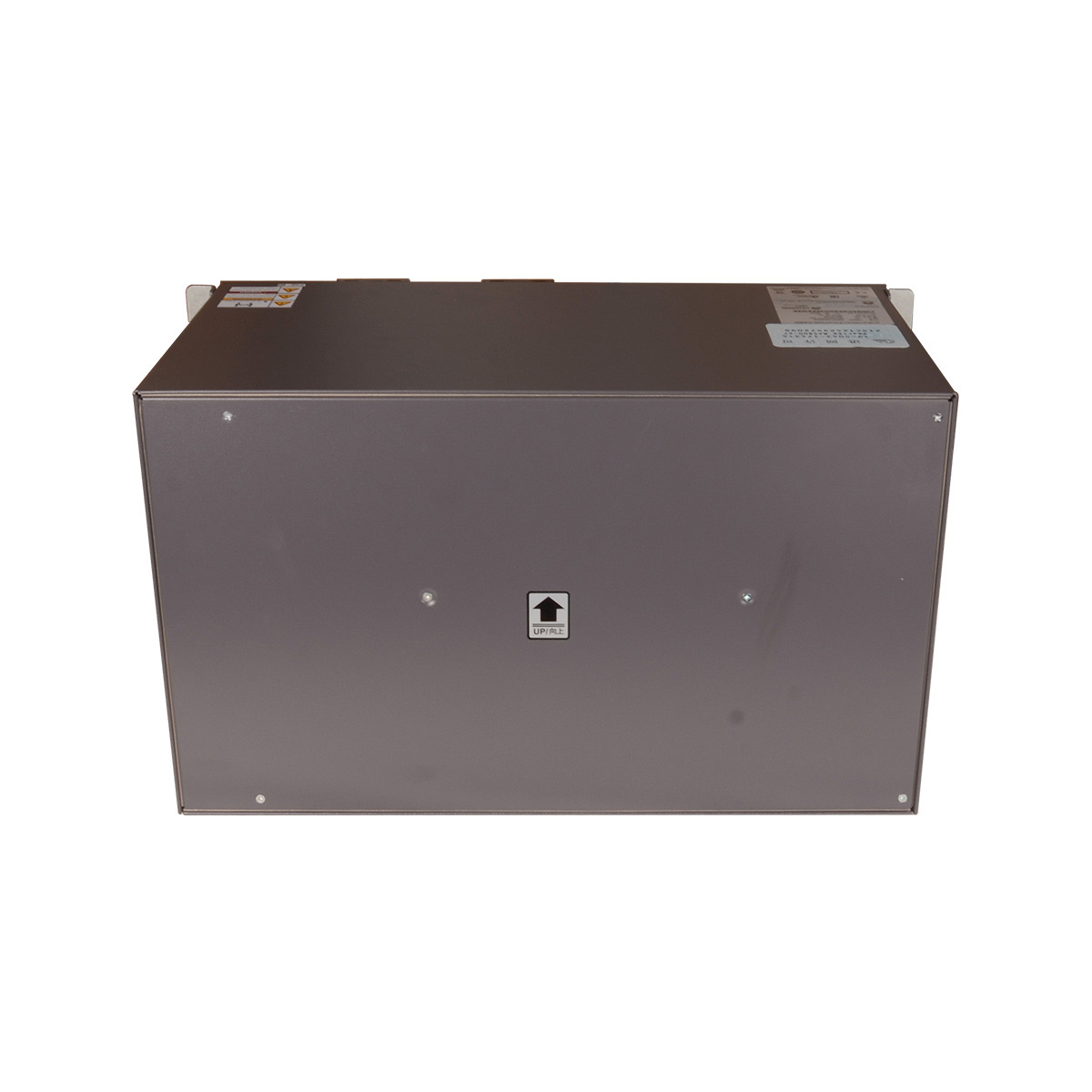

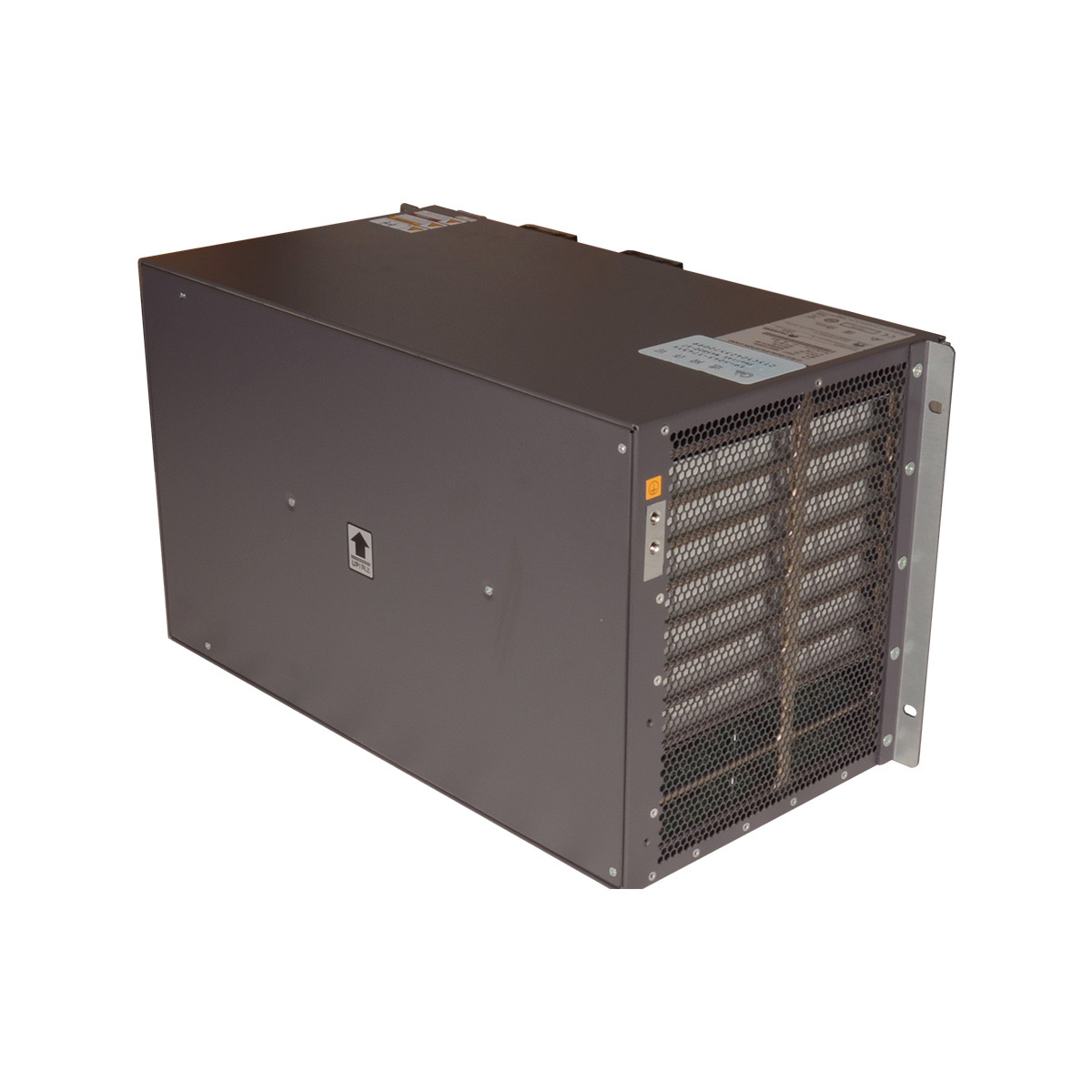

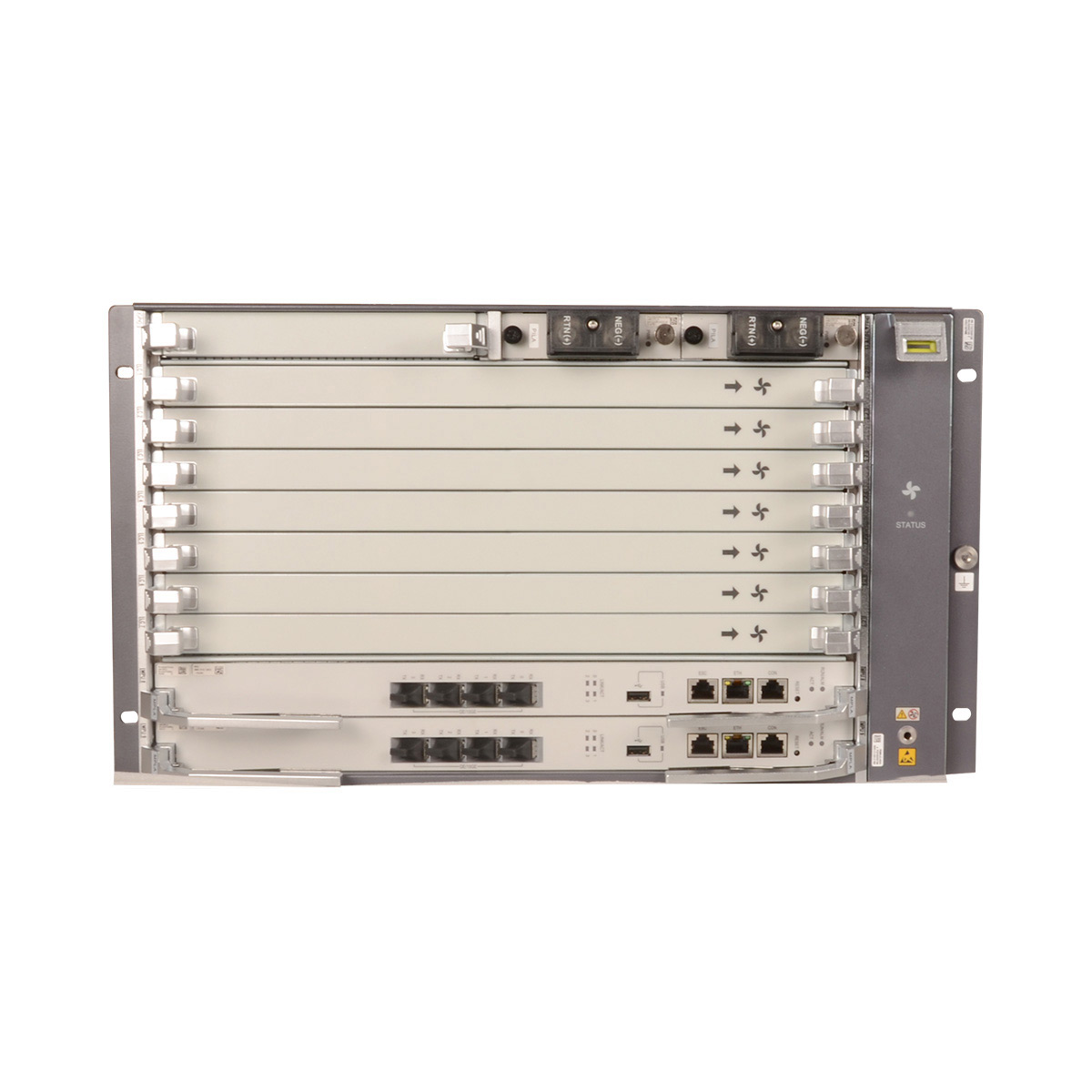

| Model | MA5800-X17(ETSI) | MA5800-X15(IEC) | MA5800-X7 | MA5800-X2 |
|---|---|---|---|---|
| Dimension(W x D x H) | 493*287*486mm 11U,21" | 442*287*486mm 15U,19" | 442*268.7*263.9mm 6U, 19" | 442*268.7*88.1mm 2U 19" |
| Service Slots | 17 service slots | 15 service slots | 7 service slots | 2 service slots |
| Power Supply | -48V DC input Supports dual power protection Working Voltage range -38.4V~-72V |
-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V |
-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V |
-48V DC input Supports dual power protection Working Voltage range -38.4V~-72V Support 220V / 110V AC input |
| Backplane Exchange capacity | 7 Tbit/s | 7 Tbit/s | 7 Tbit/s | 480 Gbit/s |
| Access Capacity | 272 XG-PON272 GPON/EPON 136 XGS-PON 136 10G EPON 408 GE/FE 408 10GE |
240 XG-PON240 GPON/EPON 720 XGS-PON 720 10G EPON 720 GE/FE 360 10GE |
112 XG-PON112 GPON/EPON 56 XGS-PON 56 10G EPON 336 GE/FE 336 10GE |
32 XG-PON32 GPON/EPON 16 XGS-PON 16 10G EPON 96 GE/FE16 10GE |
| Service Boards | 16 ports 1G GPON board:GPHF/GPLF/GPSF/GPUF(B+,C+,C++) 16 ports 1G EPON board:EPHF 8 ports 10G GPON board:XGHD/XGLD 16 ports 10G GPON board:XGSF/XGLF 8 ports 10G EPON board:XEHD/XELD 8 ports XG-PON&GPON board:CGHD/CGID 16 ports XG-PON&GPON board:CGHF/CGUF |
|||
| Access Type | Upstream interface: 10GE optical, 10GE optical/electricity Business interface: XG-PON/GPON/EPON optical port, 10G EPON optical port, P2P GE/FE optical port, P2P 10GE optical port. Ethernet optical interface |
|||
| System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control | |||
| Type | Model | Description |
|---|---|---|
| Bridge type | HG8310M | 1*GE |
| HG8010H | 1*GE | |
| EG8120L | 1*GE+1*FE+1*POTS | |
| HG8321R | 1GE+1FE+1POTS | |
| F601 | 1*GE | |
| F612 | 1GE+1FE+1POTS | |
| AN5506-01-A | 1*GE | |
| I-010G | 1*GE | |
| 2.4G WIFI | HG8546M | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi |
| HG8545M5 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| EG8141A5 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| F660 V8.0 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| F660 V7.1 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| F660 V9.0 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| G-140W-MD | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| G-140W-MH | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| HG6543C4 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| M320 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| M325 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| M329 | 1*GE+3*FE+1*POTS+1*USB+WIFI 5dbi | |
| 2.4/5G WIFI | HG8245Q2 | 4*GE+1*POTS+2*USB+2.4G/5G WIFI, CE label |
| HS8145V5 | 4*GE+1*POTS+1*USB+2.4G/5G WIFI | |
| HS8546V5 | 4*GE+1*POTS+2*USB+2.4G/5G WIFI (5dbi) | |
| EG8145V5 | 4*GE+1*POTS+2*USB+2.4G/5G WIFI (5dbi) | |
| F673AV9a | 4GE+1POTS+2USB+2.4G/5G WIFI | |
| F670L-V9.0 | 4*GE+1*POTS+1*USB+2.4G/5G WiFi, 4*antennas | |
| F670L | 4*GE+1*POTS+1*USB+2.4G/5G WiFi, 5dBi | |
| HG6143D | 4*GE+1*POTS+2USB+2.4G/5G WIFI (5dBi) | |
| HG6143D1-4 Antennas | 4GE+2USB+POTS+WI-FI 2.4/5G 5dBi 4 antennas | |
| G-240W-C | 4GE+2POTS+2.4G/5G WIFI | |
| G-140W-C | 4*GE+1*POTS+2USB+2.4G/5G WIFI (2dbi) | |
| G-140W-ME | 4GE+1POTS+2USB+2.4G/5G WIFI | |
| G-140W-MF | 4GE+1POTS+2USB+2.4G/5G WIFI (2dbi) | |
| G-1425-MA | 4GE+2USB+1POTS+2.4G/5G Dual band WI-FI 5 | |
| M520 | 4GE+POTS+2*USB+2.4/5G WIFI+4 antennas 5 dBi | |
| M528 | 4GE+2USB+POTS+WI-FI 2.4/5G 5dBi 4 antennas | |
| WIFI6 | EG8146X6 | 4GE+1POTS+2USB+2.4G 5G 11ax WiFi6 (5dBi) |
| HS8145X6 | 4GE+1POTS+2USB+2.4G 5G 11ax WiFi6 (5dBi) | |
| K662c | 3GE+2.4GHz 5GHz Wi-Fi 6128MB Flash,256MB RAM | |
| G-1426-MA | 4GE+2USB+1POTS+2.4G/5G Dual band WI-FI 6 AX1800 | |
| CATV | HG8321V | 1GE+1FE+1POTS+CATV |
| EG8247H5 | 1*GE+3*FE+1*POTS+1*USB+1*CATV, 2.4G WIFI 5dBi | |
| F601C | 1GE+CATV | |
| F630 | 1GE+3FE+2USB+CATV+2.4/5G WIFI 5dBi | |
| M454 | 4GE+1POTS+1USB+CATV+2.4G/5G WIFI, 4 antenna | |
| EG8143A5 | 1*GE+3*FE+1*POTS+1*USB+CATV+WiFi , 5dbi | |
| XG-PON | HN8346V5 | XG-PON ONT, 4GE+1POTS+2USB+2.4G/5G Wi-Fi (5dBi) |
| HN8546X6 | XG-PON ONT, 4GE+2USB+1POTS, 2.4G 5G Wi-Fi 6 | |
| F2866 | 4*GE+2*POTS+2*USB+2.4G/5G WiFi | |
| F7010C | 4GE+1POTS+Bridge | |
| F7600T | 4GE+1POTS+WIFI6 |
