Efficient and Fast Connection. Simply Insert the Fiber Optic Cable to Connect the Device and Start Using It Immediately.
Point-to-point high-speed forwarding
| Fixed Port | 1*10/100/1000Base-TX RJ45 port (Data) |
| 1*1000M Optical Fiber Port | |
| Network Protocol | IEEE802.3 |
| IEEE802.3i 10BASE-T | |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3ab 1000BASE-TX/FX | |
| Port Specification | 10/100/1000BaseT(X) Auto |
| Transmission Mode | Store and Forward (full wirespeed) |
| Bandwidth | 1024Mbps |
| Packet Forwarding | 7.2Mpps |
| MAC Address | 4K |
| Buffer | 2.5M |
| MTBF | >100,000 hours |
| Transmission Distance | 10BASE-T: Cat3,4,5 UTP (≤250 meter) |
| 100BASE-TX: Cat5 or later UTP (100 meter) | |
| 1000BASE-TX: Cat5 or later UTP (100 meter) | |
| Multi mode double fiber (MAX 850M/2KM) | |
| Single mode double fiber (default 20KM) | |
| Single mode single fiber (default 20KM) | |
| Optional 3-120KM Optical Fiber Module | |
| Watt | ≤5W |

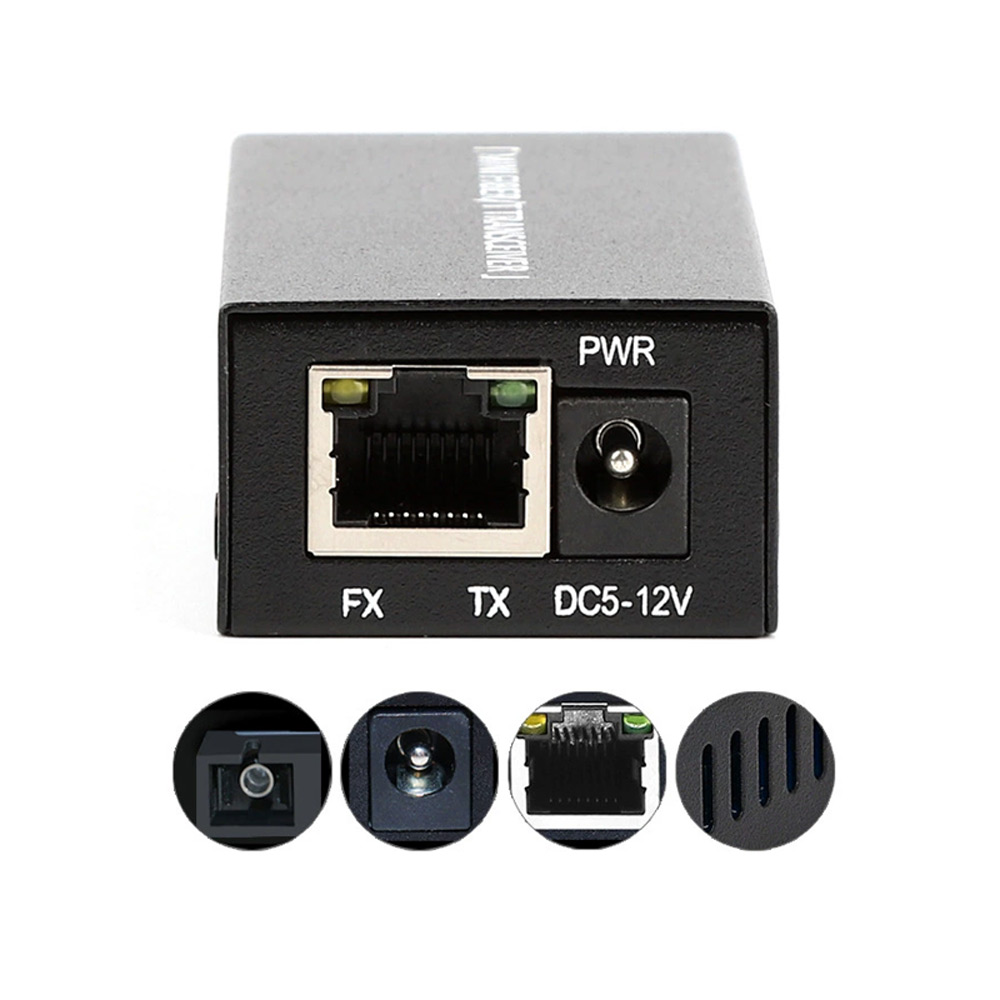

| LED Indicator | PWR: Power LED |
| PDX: Working status LED | |
| TX: Network Port LED | |
| FX: (Optical fiber LED) | |
| Link/Act: (Optical Fiber Port State LED) | |
| Power | External power: DC5V ; Input: AC100~240V; 50/60Hz |
| Operating Temperature/Humidity | 0~+70°C; 5%~90% RH Non coagulation |
| Storage Temperature/Humidity | -20~+75°C; 5%~95% RH Non coagulation |
| Product size/Packing size (L*W*H) | 67mm*42mm*22mm |
| 230mm*125mm*55mm | |
| N.W/G.W (kg) | 0.18kg/0.36kg |
| Installation | Desktop (optional wall hanger+machine hanger parts) |
| Lightning Protection level | 3KV 8/20us |
| IP30 | |
| Certificate | CE mark, commercial; CE/LVD EN60950 |
| FCC Part 15 Class B; RoHS; CNAS; MA | |
| Warranty | Whole device for 1 year |
| Order Info | ||
|---|---|---|
| Model | Introduction | Function |
| RD-GS5601-M20A RD-GS5601-M20B |
Mini Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS5601-20A RD-GS5601-20B |
Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS5601-S20 | Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| RD-GS5601-SFP | 10/100/1000MB to SFP Media Converter | 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply. |
| RD-GS5601-SFP MINI | MINI 10/100/1000MB to SFP Media Converter | 10/100/1000M media converter, 1*RJ45+1*SFP port, media converter only |
| RD-GS5601-SFP PCBA | MINI 10/100/1000MB to SFP Media Converter PCBA | 10/100/1000M media converter, 1*RJ45+1*SFP port, Board only. |
