Mini XPON ONU HG1001 1GE Fiber Optic ONT Modem SC UPC for Broadband Access Network

Product Description

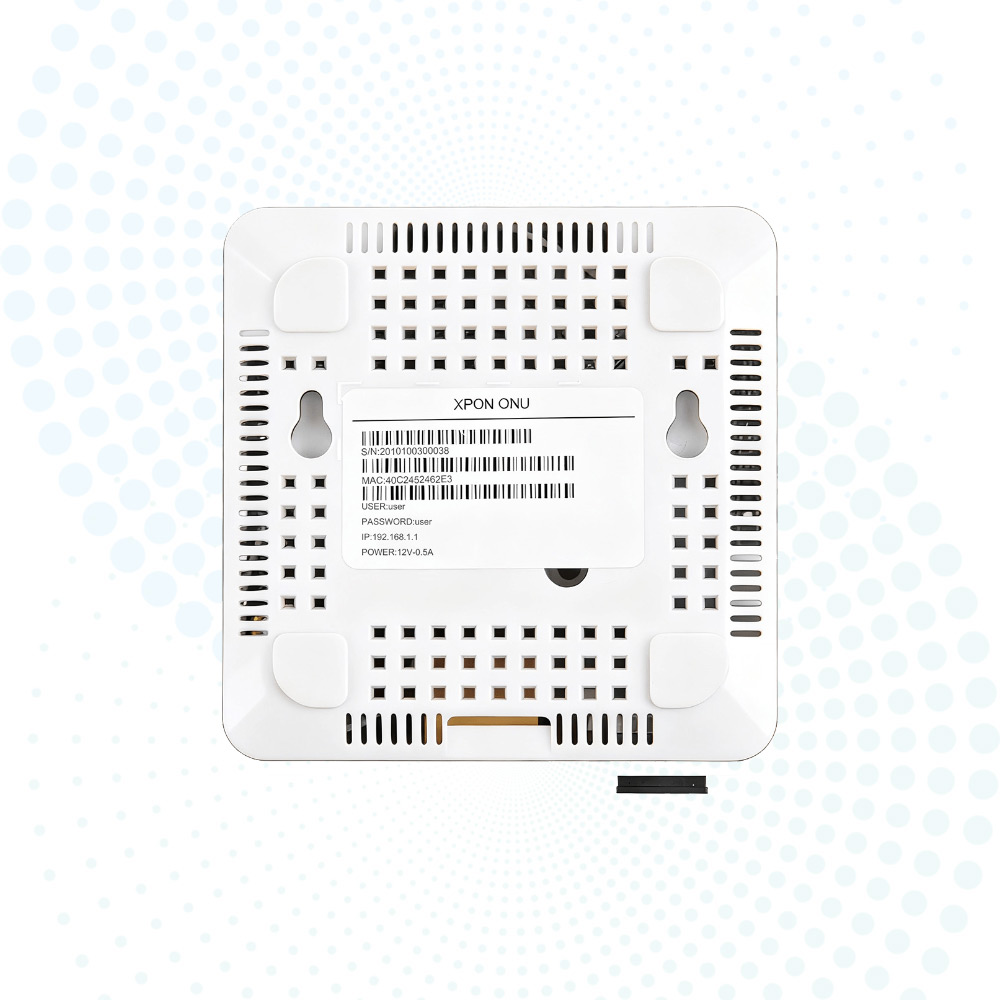

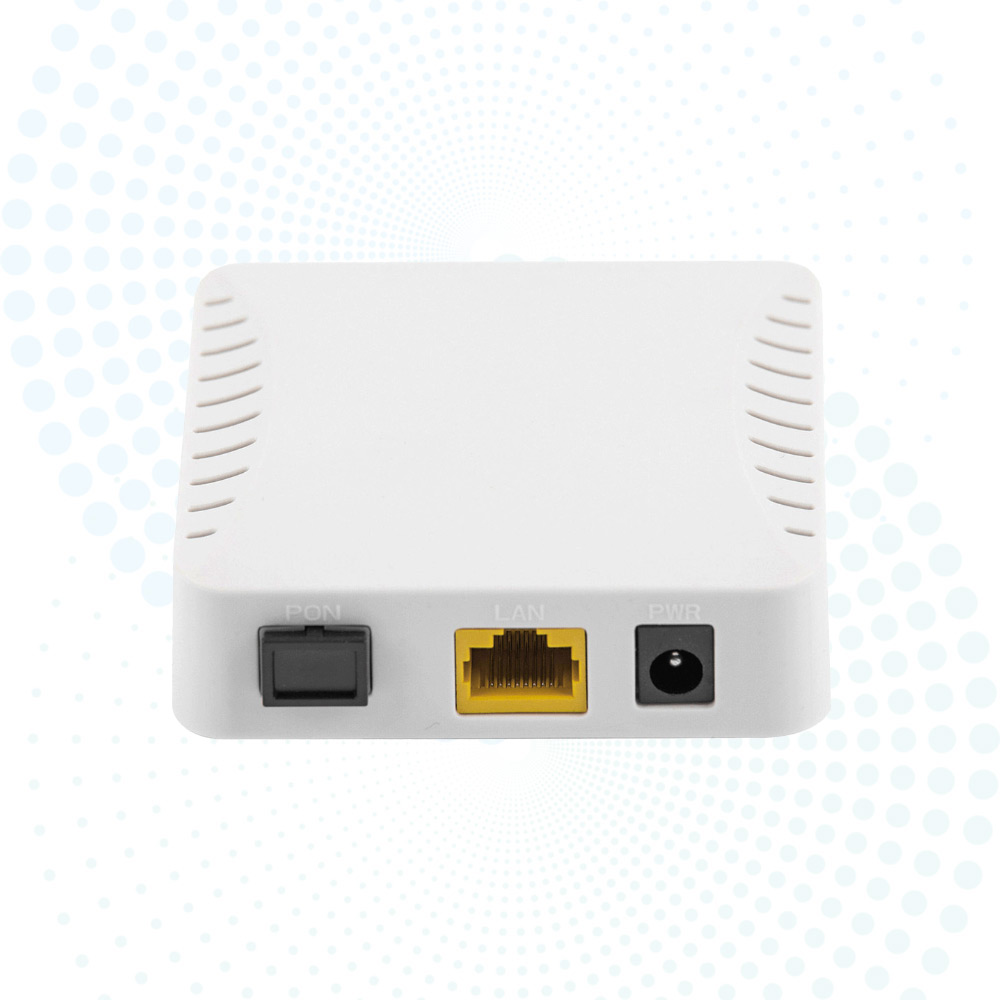

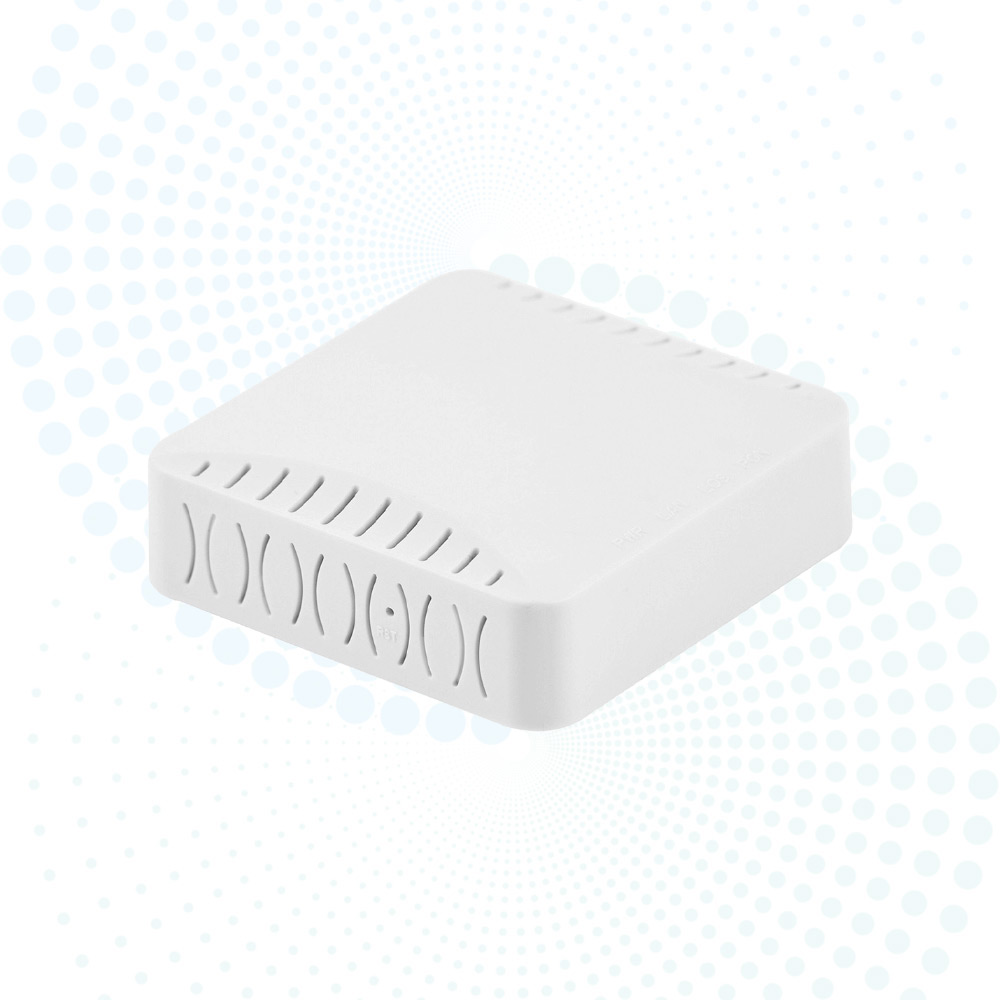

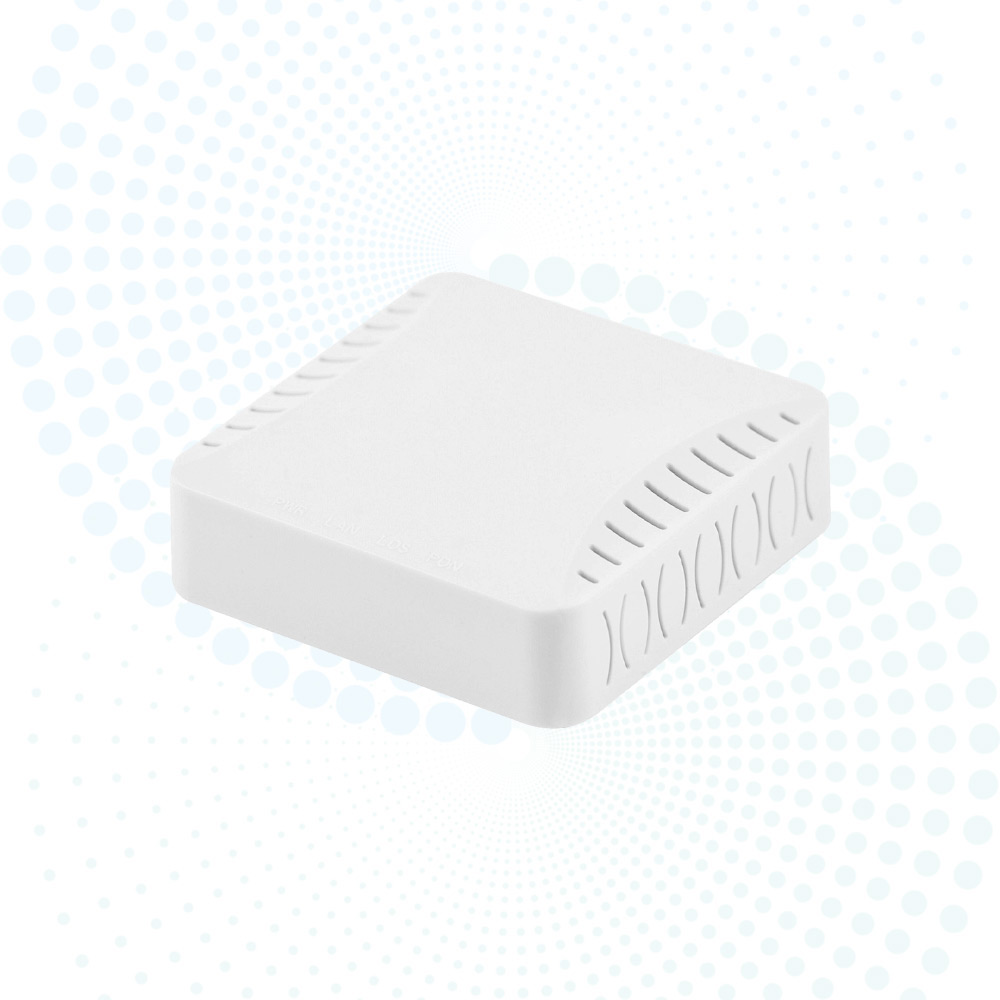

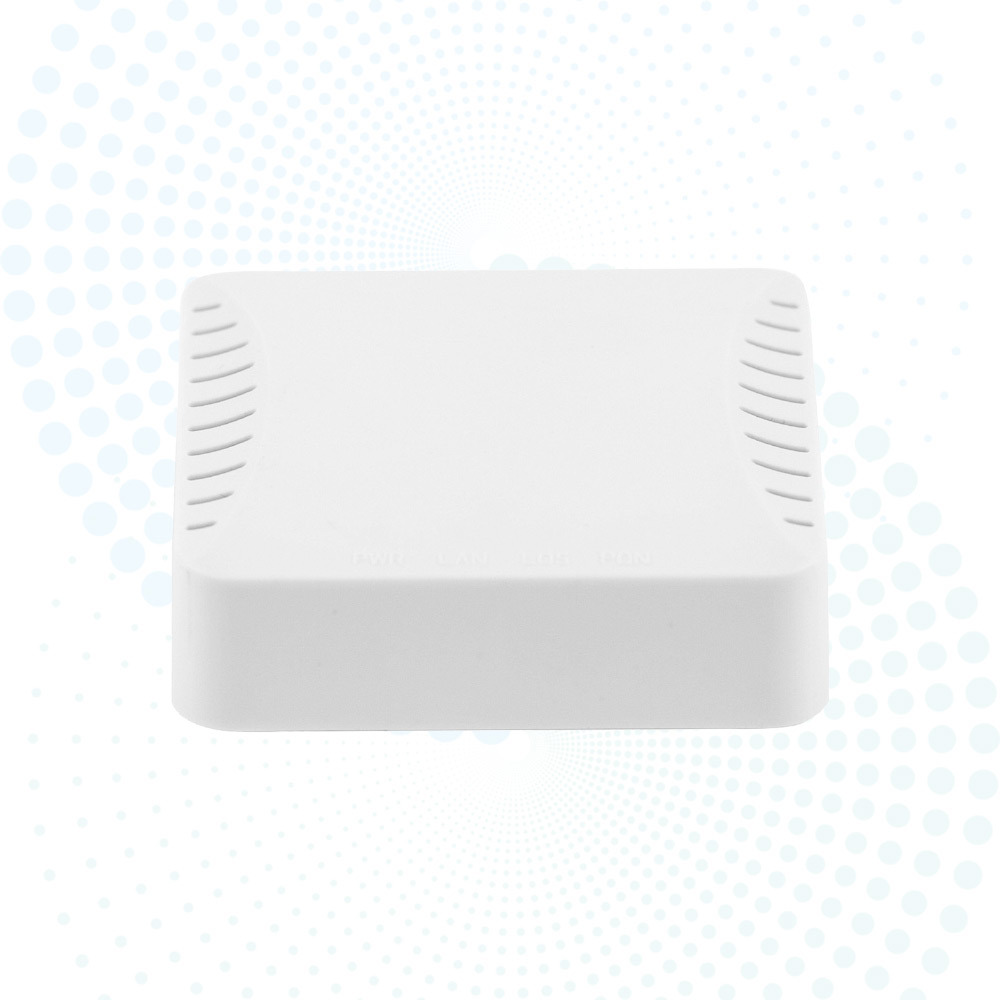

Product View 1
Product View 2
Hardware Specification
Hardware Parameters
Ethernet Interface
  • Interface type: 1* RJ45
  • Interface parameters: 10/100/1000BASE-T
Buttons Reset Button
LED POWER / PON / LOS / LAN1
PON Interface
  • Interface Type: SC/UPC, CLASS B+
  • Transmission distance: 0 ~ 20km
  • Working wavelength: Up 1310nm; Down 1490nm
  • RX Optical power sensitivity: -27dBm
  • Transmission rate:
    • GPON: Up 1.244Gbps; Down 2.488Gbps
    • EPON: Up 1.244Gbps; Down 1.244Gbps
Power Supply DC 12V/0.5A
Power Consumption <18W
Working Temperature -20°C ~ +50°C
Environment Humidity 5% ~ 95% (non-condensing)
Dimension 78mm x 78mm x 21mm
Net Weight 0.06Kg (without package)
Software Specification
Software Capabilities
Networking
  • Flexible packet classification
  • Up to eight queues
  • SP/WRR/SP+WRR
  • Ingress rate limit
  • Egress shaping
Security
  • Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p
  • DoS attack defending
  • Multiple VPN (IPSec, PPTP) passthrough
  • MAC address filtering
  • Broadcast/ Unicast/ Multicast attack protection
  • Broadcast packet rate limit
  • Dual image for firmware auto rollback
Management
  • OMCI management
  • WEB GUI management
  • Local built-in diagnostic function
  • Logs and statistics
  • Remote upgrade by HTTP
Internal Layout
Application Scenario
Manufacturing Strength
Production Facility
Frequently Asked Questions
1. Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a 11-50 person team dedicated to serving global clients.
2. How Do We Guarantee Quality?
We guarantee quality through:
  • Pre-production samples before mass production
  • 100% final inspection before shipment
3. What Can You Buy From Us?
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
4. Why Choose Us?
We are a top-tier optical communication supplier with over 50 employees. Our core focus is PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added services for partners worldwide.
5. What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more.
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages: English, Chinese, Spanish, French, Russian, and more.
6. Do You Provide Technical Support for These Devices?
Yes, we offer comprehensive technical support for our fiber optic equipment, including assistance with configuration, system integration, and troubleshooting to ensure optimal performance.
