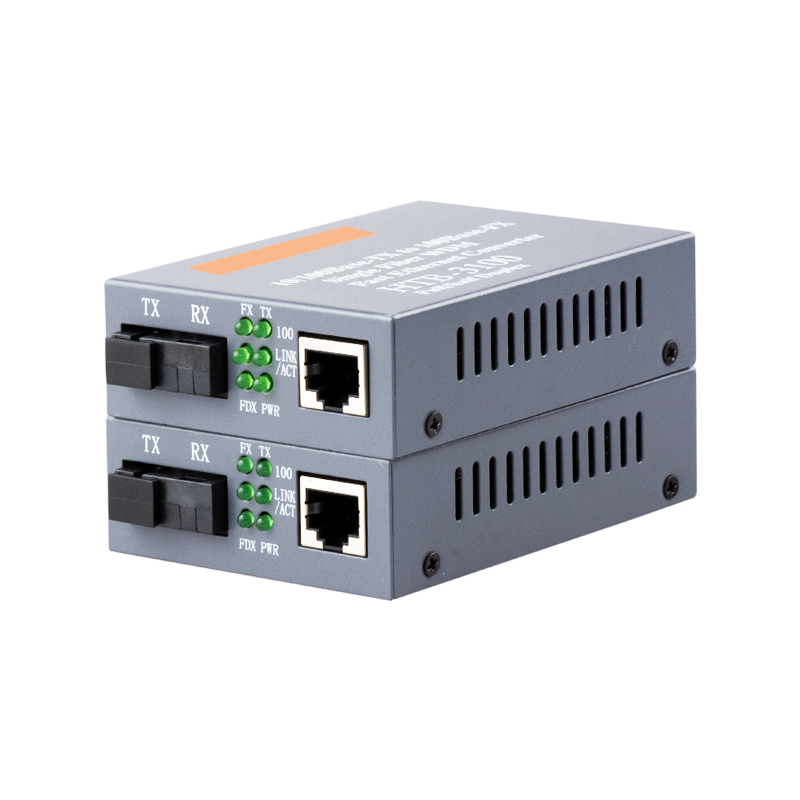

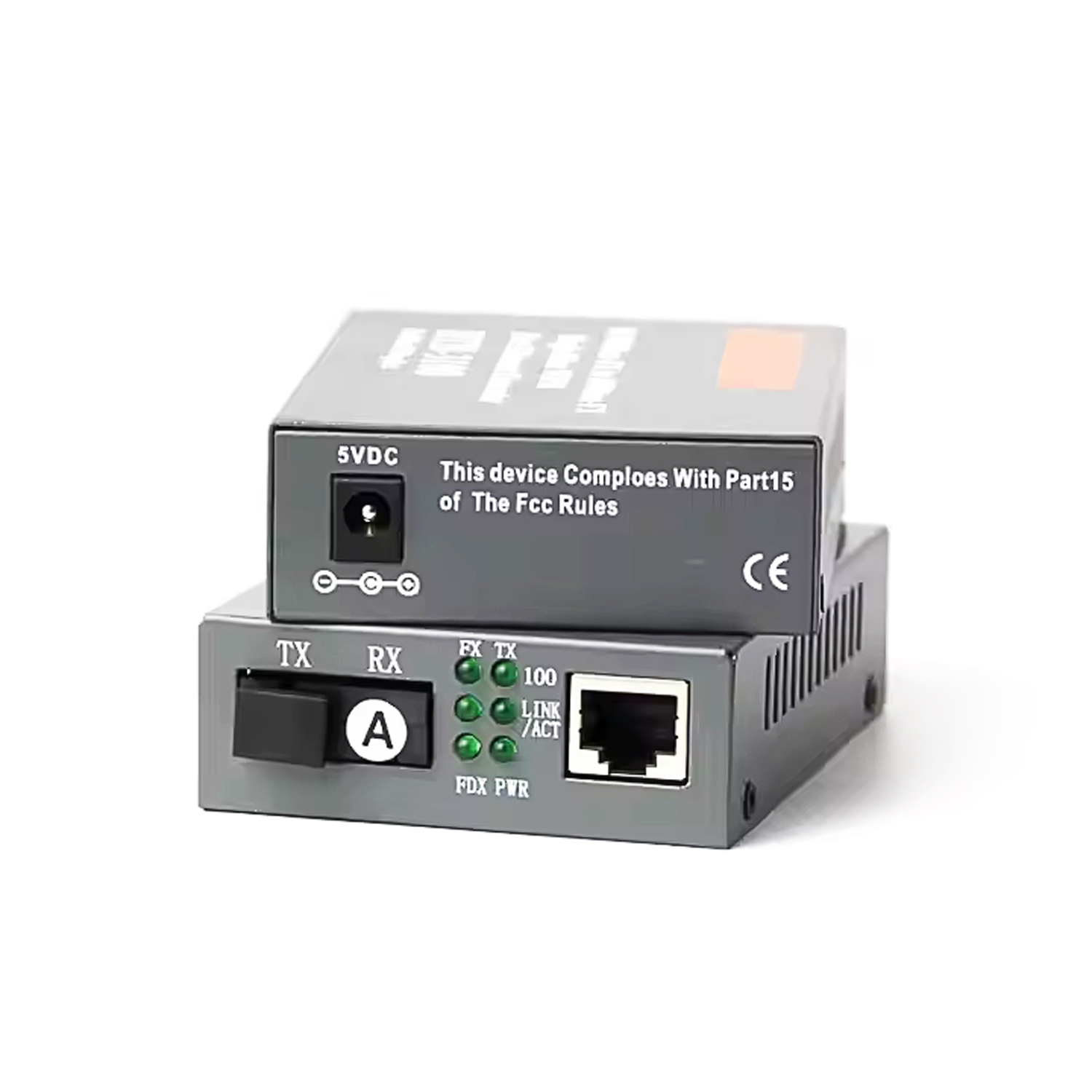

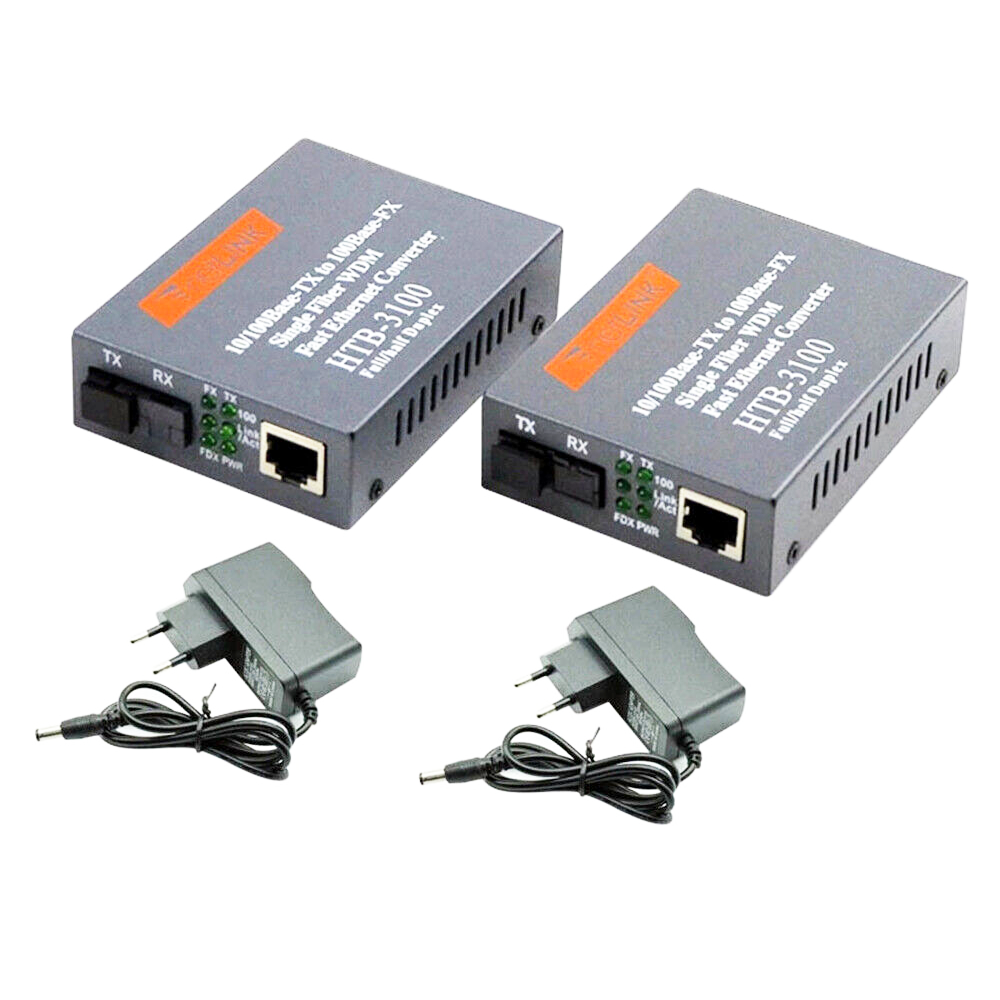

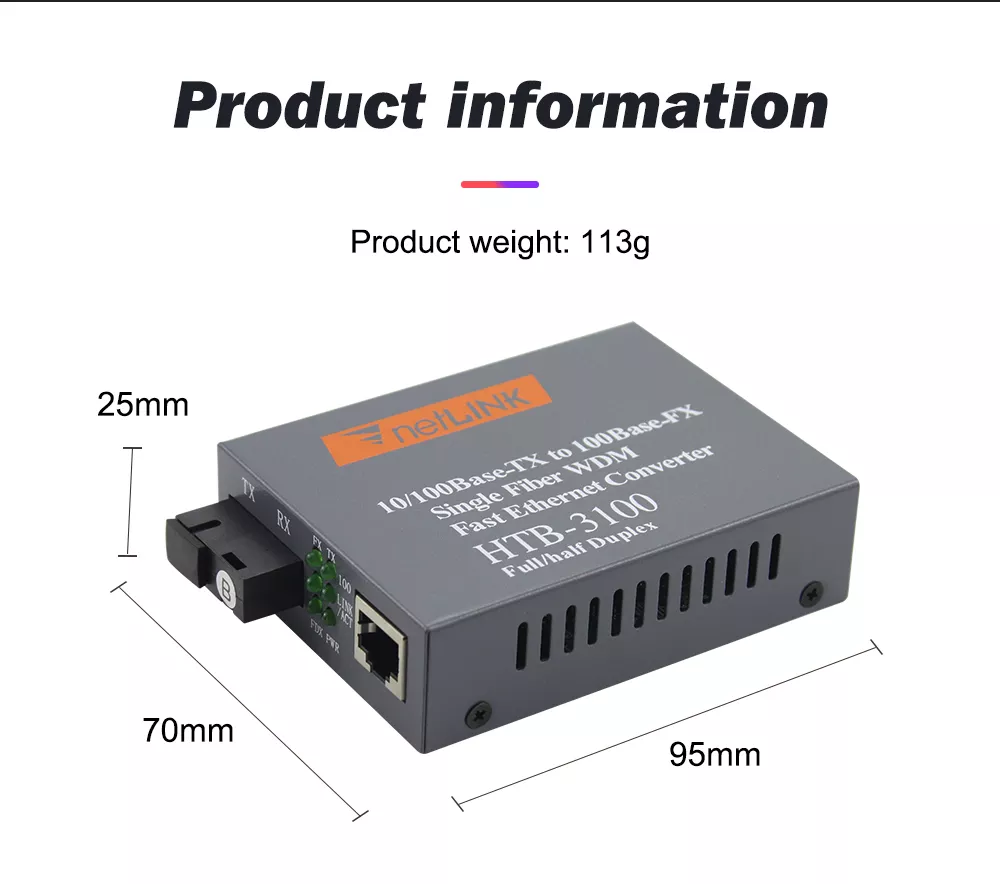

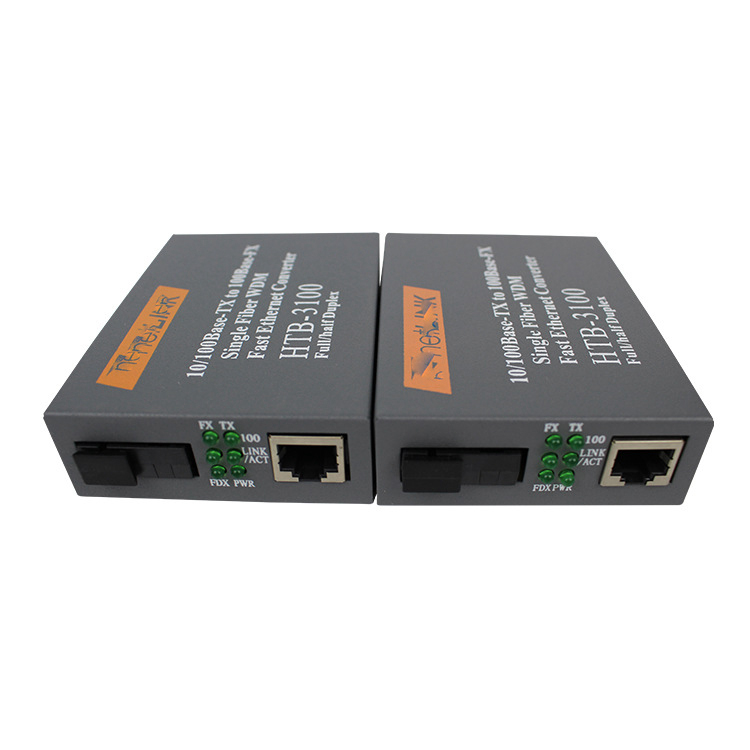

NetLINK HTB 3100AB 10 100M Single Mode Single Fiber Fast Ethernet Optical Media Converter

Send Inquiry

Product Description

Specifications

Part Number	HTB-3100AB
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX

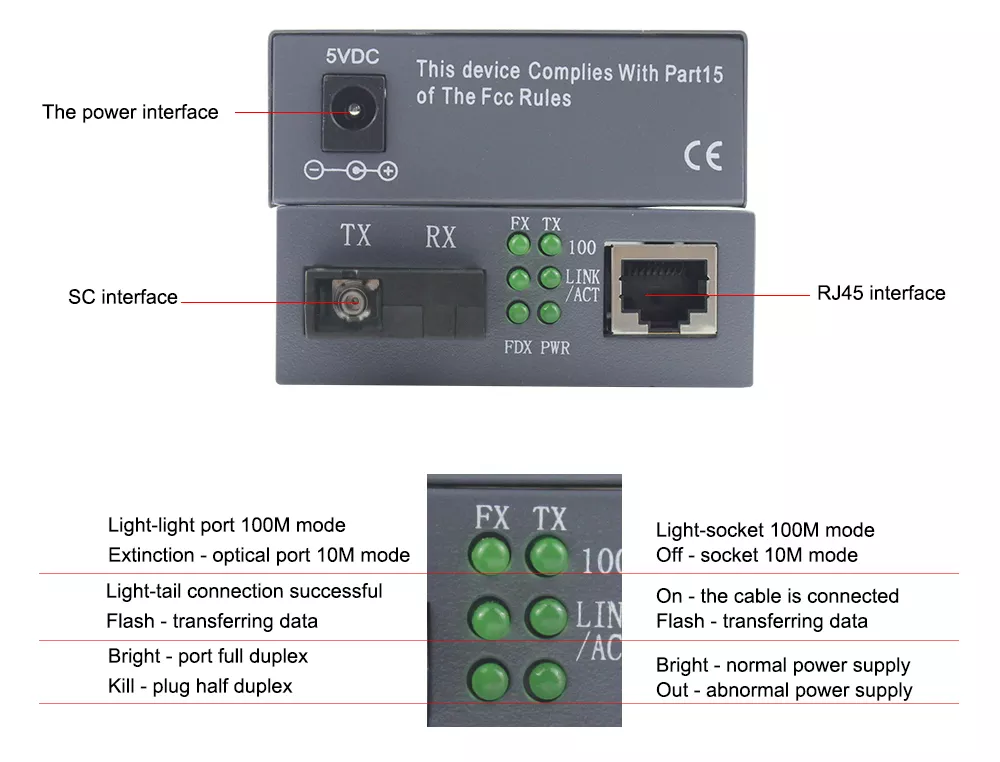

Ethernet Port	Connector: RJ45 Data Rate: 10/100Mbps Distance: 100m UTP Type: UTP-5E or higher level
Fiber Port	Connector: SC port Data Rate: 10/100Mbps Distance: 25km

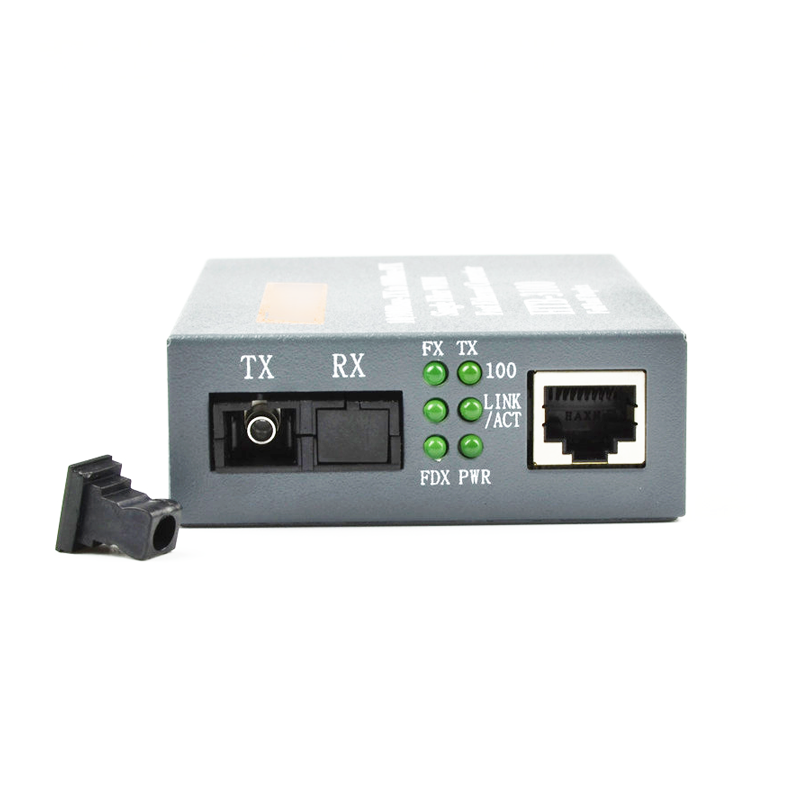

Port	1RJ45 port, 1 fiber port (SC/LC/ST/FC Optional)
Forward / Filter Rate	10M: 14,880/14,880pps 100M: 148,800/148,800pps
Power Supply	External : 5V DC 1A Built-in: 100 V to 240 V AC 50Hz to 60Hz Power Consumption : ≤5W
Operating Temperature	0 °C to +70 °C
Storage Temperature	-20 °C to +80 °C
Relative Humidity	5% to 90% (non-condensing)
Warranty	1 Years

Order info

Part Number	Optic Fiber	Wavelength	Distance
HTB-3100 A	Single mode	1310nm-TX/1550nm-RX	25km

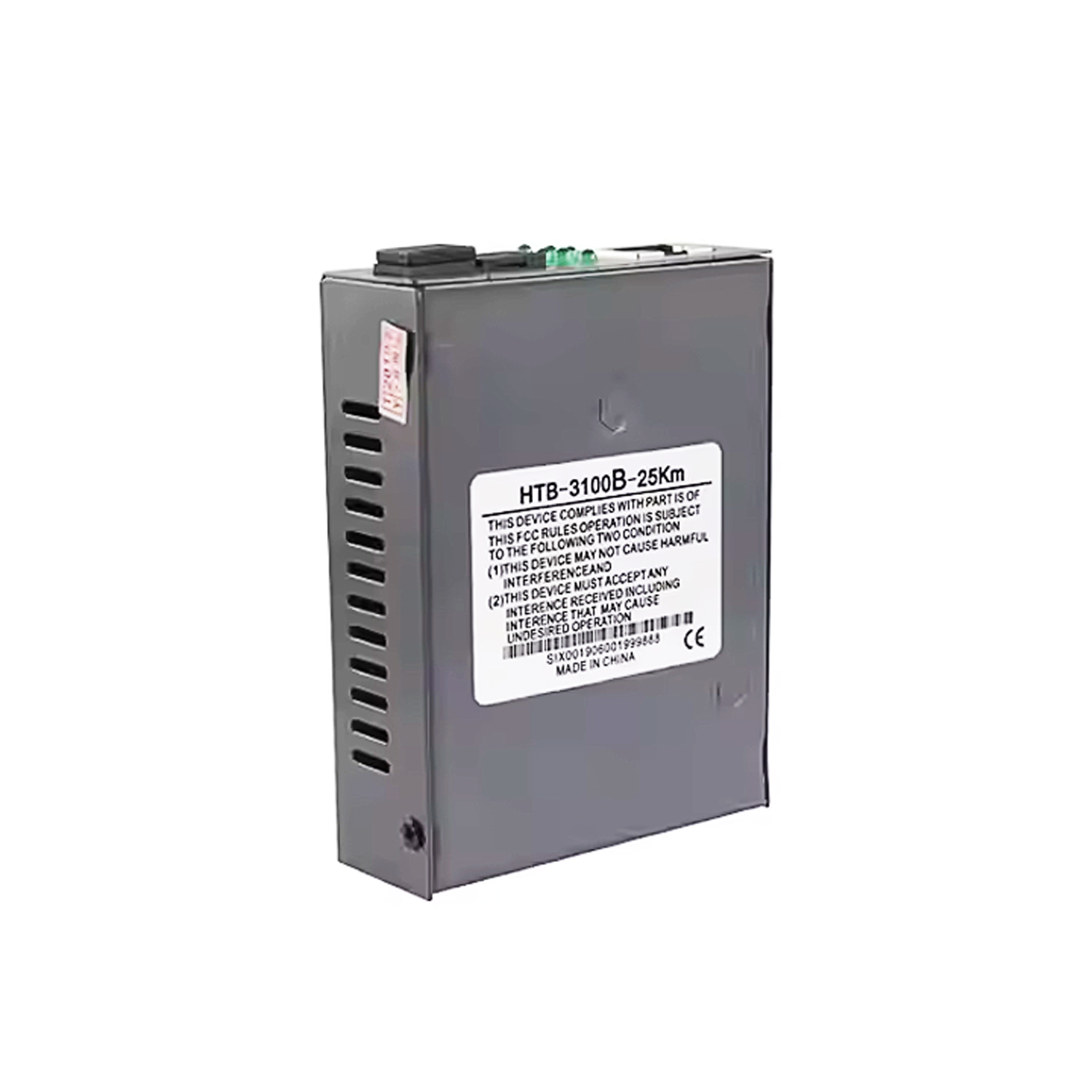

HTB-3100 B	Single mode	1550nm-TX/1310nm-RX	25km

FAQ

Q1: What is your MOQ request?

A1: Depends on products, different products have different MOQ, pls contact our sales for more details.

Q2: Do you Support ODM/OEM service?

A2: Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

A3: Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

A4: We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

A5: Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
