| Model Number | HG8024X |
| Interface | 1* G/EPON + 4*GE + 2.4G/5.8G WLAN |

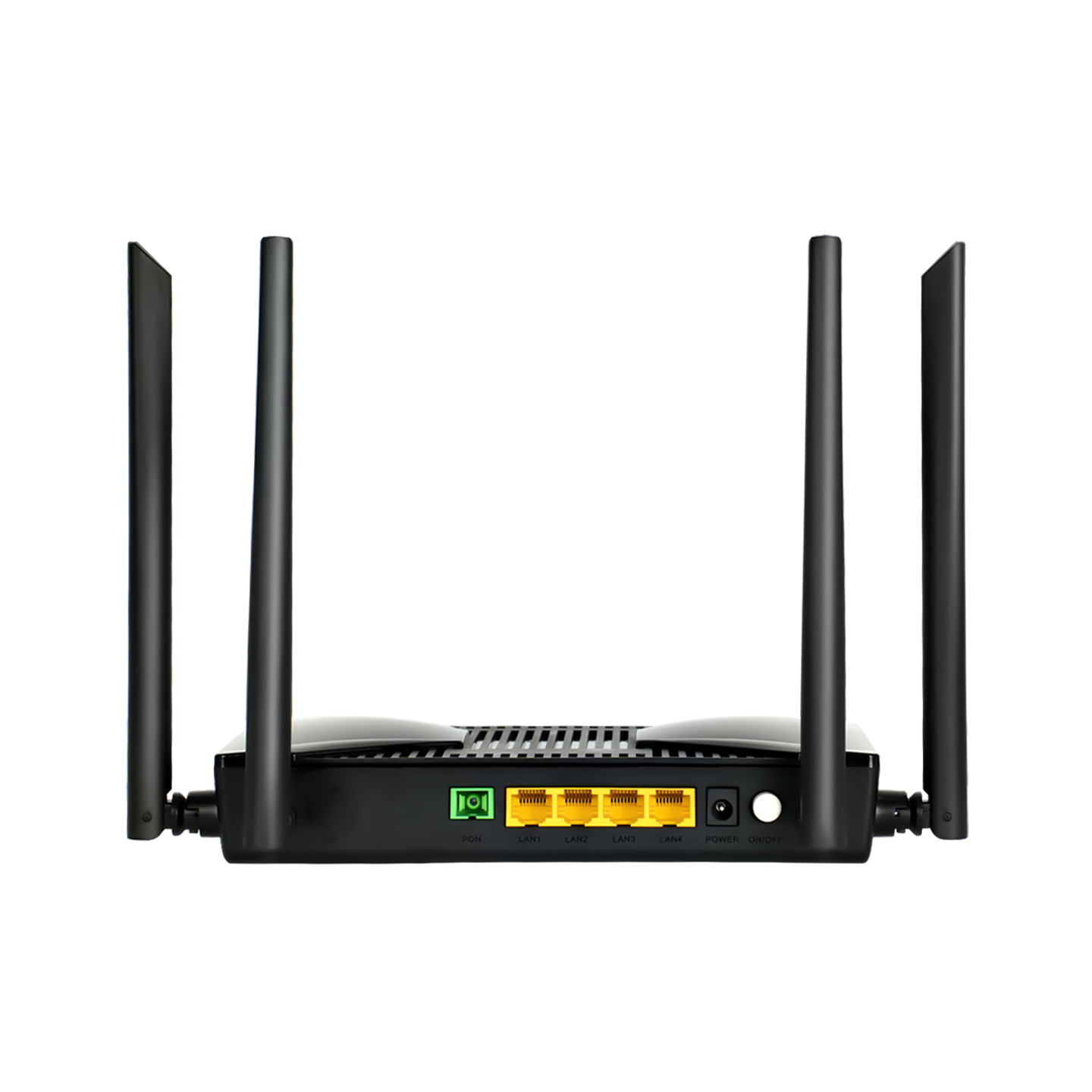

| Ethernet Interface | 4* RJ45 10/100/1000BASE-T |
| PON Interface |
Interface Type: SC/UPC, CLASS B+ Transmission distance: 0 ~ 20km Working wavelength: Up 1310nm / Down 1490nm RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps / Down 2.488Gbps EPON: Up 1.244Gbps / Down 1.244Gbps |
| Wireless |
Interface type: External 4*2T2R External antenna Antenna gain: 5dBi Interface maximum rate: 2.4G WLAN: 300Mbps 5.8G WLAN: 866Mbps Interface working mode: 2.4G WLAN: 802.11 b/g/n 5.8G WLAN: 802.11 a/n/ac |
| Indicator light | POWER/PON/LOS/LAN1/ LAN2/LAN3/LAN4/FXS1/FXS2/2.4G/5G |
| Power Supply | DC 12V/0.5A |
| Power Adapter Input | 100V-240V AC, 50Hz-60Hz |
| Power Consumption | 18W |
| Working Temperature | -20°C ~ +50°C |
| Environment Humidity | 5% ~ 95% (non-condensing) |
| Dimensions(L×W×H) | 196mm x 125mm x 32mm |
XPON, 4*1000M Base-T, 1*WIFI-5(2.4G&5G 1200M), 12V/1A.
A: Yes, we can do OEM products. It's no problem.
A: Every single optic module is individually tested in the test center, and also tested for compatibility on a variety of different network equipments.
A: Yes, we can provide samples for you to check the quality.
A: We accept T/T, western union, Alibaba order...
A: For usual order, we keep stock, could ship about 3 days after receiving the payment. For big quantity & special products, please check lead time with sales.
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
