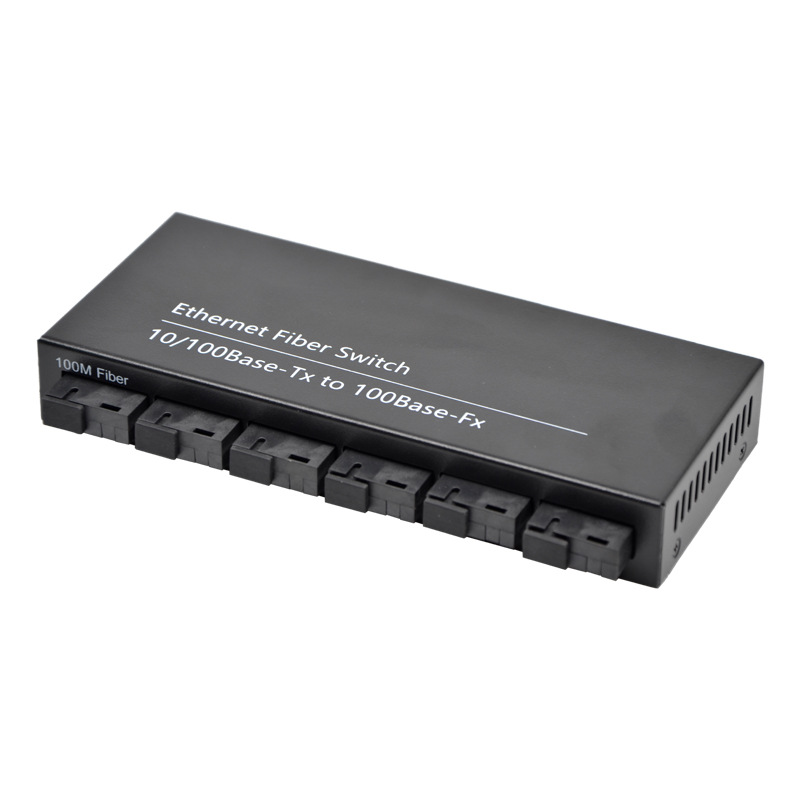

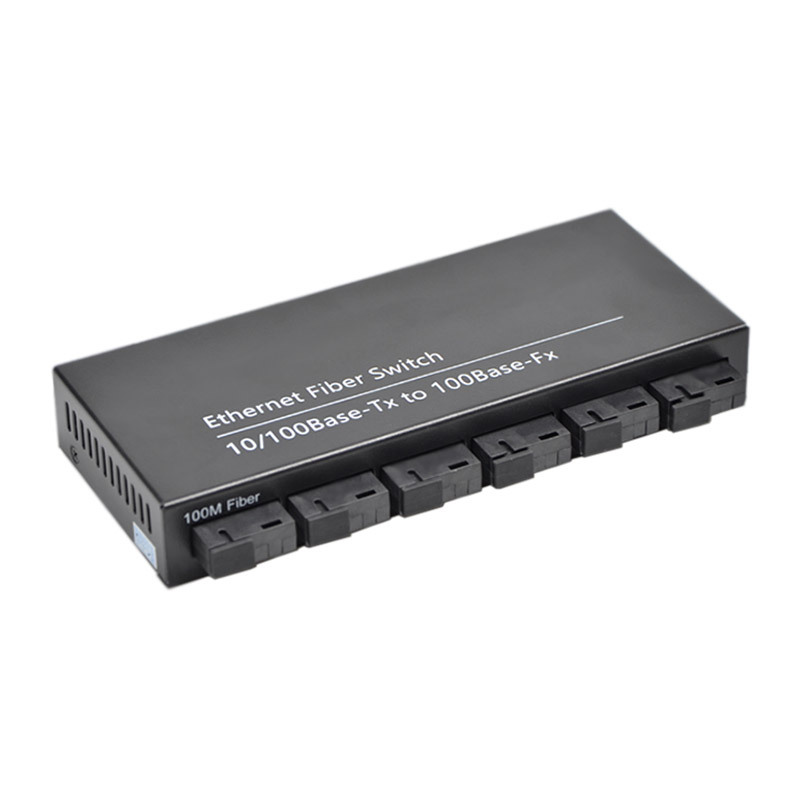

Optical Fiber Transceiver 10/100mbps Base 6 Fiber 2RJ45 Lan Port with Ethernet Fiber Media Converter

Send Inquiry

Product Description

6 Fiber Port with 2*10/100Mbps RJ45 Port

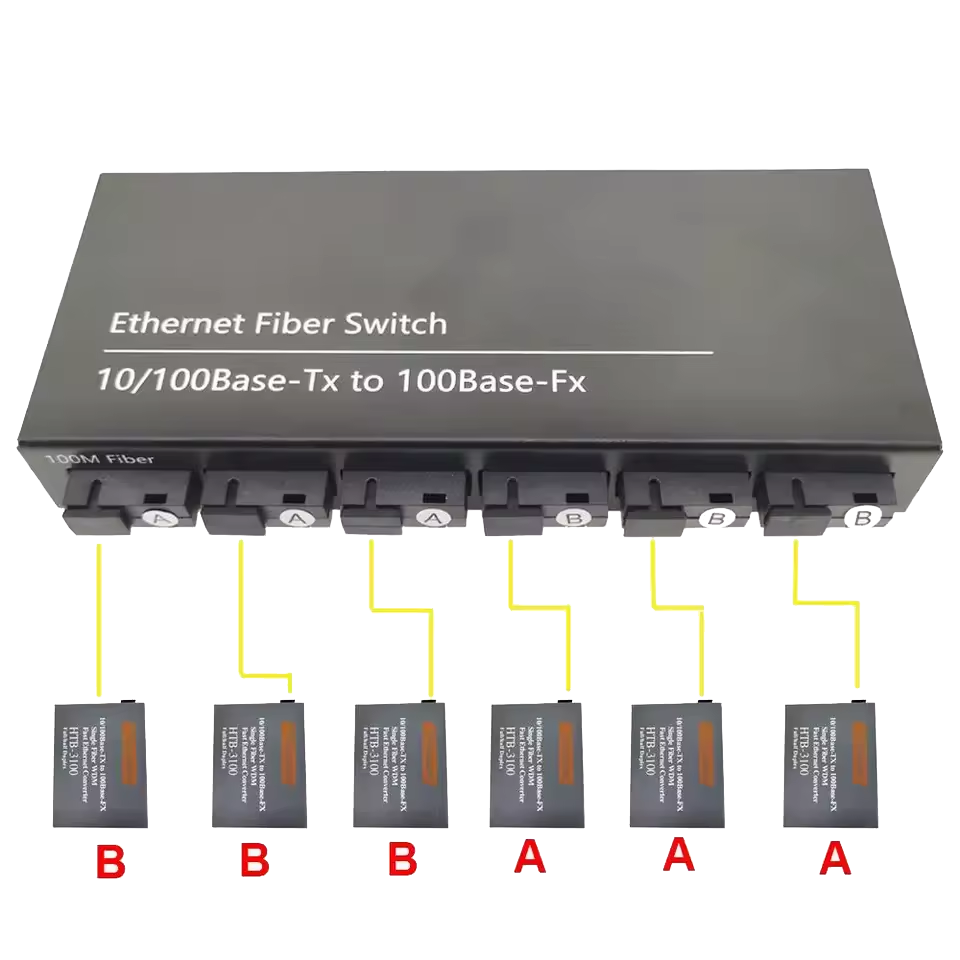

Point-to-multipoint high-speed forwarding

Plug-and-play, No Need for Any Configuration

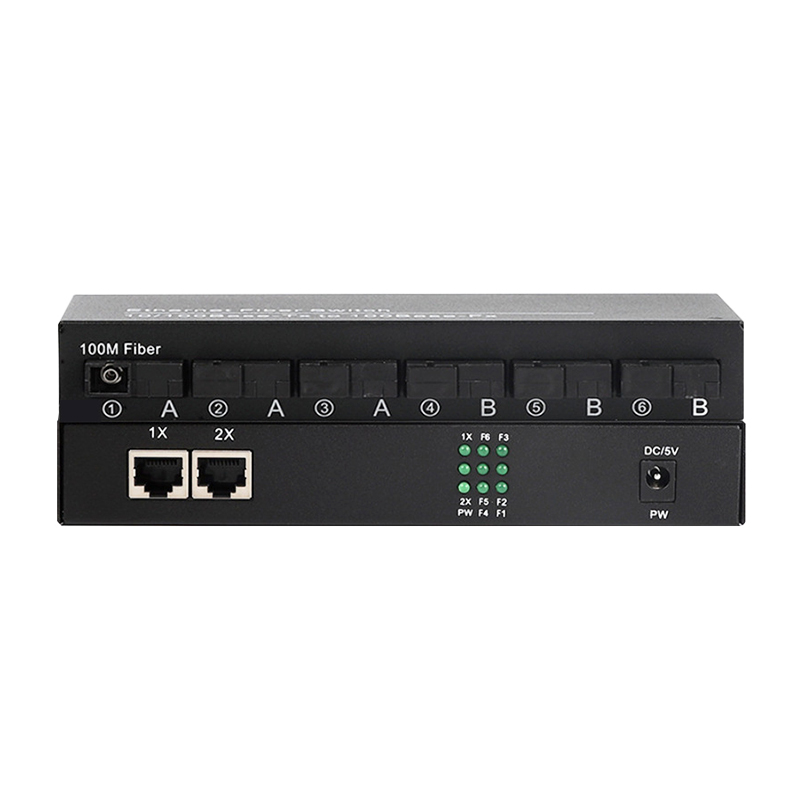

Product Dimensions and Interface Definitions

Hardware Specifications

Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface	6 * 155Mbps SC optical fiber interface 2 * RJ45 10/100Mbps ports
Distance	100m @ CTE5 20km @ SMF
Wavelength	A: Tx1310nm / Rx1550nm B: Tx1550nm / Rx1310nm
Transmission Media	Cable: CTE5 or higher UTP and STP Optical Fiber: 9/125um single-mode optical fiber
Optical Parameter	Average emission power: -9 to -3 dBm Receiving sensitivity: -22 dBm
Power	DC 12V / 2A
Size	180mm * 75mm * 26mm
Environment	Operating temperature: -5°C to 60°C Operating humidity: 10% to 90% RH (non-condensing) Storage temperature: -40°C to 70°C Storage humidity: 5% to 90% RH (non-condensing)

Order Info

Model	RD-FE602
Description	Fiber Switch 10/100MB 6SC+2RJ45 AAABBB

Frequently Asked Questions

Q What is your MOQ request?

It depends on the product specifications. Different products have different MOQ requirements. Please reach out to our team for detailed information.

Q Do you support ODM/OEM services?

Yes, we support comprehensive customization and OEM/ODM services tailored to your requirements.

Q Do your products support integration with other brands?

Yes, all of our products are unlocked and offer full compatibility support with other major brands.

Q Are you a manufacturer or a trading company?

We are a manufacturer and welcome clients to take a factory viewing tour.

Q Do you offer free samples?

Yes, we are able to provide free testing samples for selected product models.

Q Are you able to provide local certifications?

Yes, according to the contract agreement, we can apply for local compliance certificates for you, such as Postel, CE, RoHS, Anatel, etc.
