Fiber Media Converters convert electrical signals into optical signals and transmit them over long distances through fiber networks. Ideal for security monitoring, wireless networks, and fiber access setups.
Utilizing WDM technology (wavelength division multiplexing), multiple wavelength channels are carried over a single optical fiber without interference. Only one optical fiber is required for simultaneous data transmission and reception.
Ensures stable and smooth data transmission.
Engineered for seamless network integrations.
Optimized spatial foot-print for rack and desktop installations.
| Parameter Name | Technical Specifications | ||
|---|---|---|---|
| Interface Characteristics | |||
| Interface | 1* 10/100Base-TX RJ45 port (Data) 1*155M uplink SC fiber port (Data) |
||
| Ethernet Port | 10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption | ||
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) |
||
| Optical Fiber Port | 155Mbps, single-mode single fiber SC interface | ||
| Optical Cable / Distance | Single mode: 1310nm / 0 ~ 40km, 1550nm 0 ~ 120km | ||
| Chip Parameters | |||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX IEEE802.3x |
||
| Forwarding Mode | Store and Forward (Full Wire Speed) | ||
| Switching Capacity | 1.0Gbps | ||
| Forwarding Rate @64byte | 0.3Mpps | ||
| MAC Address Table | 1K | ||
| Buffer Memory | 768K | ||
| Jumbo Frame | 1536byte | ||

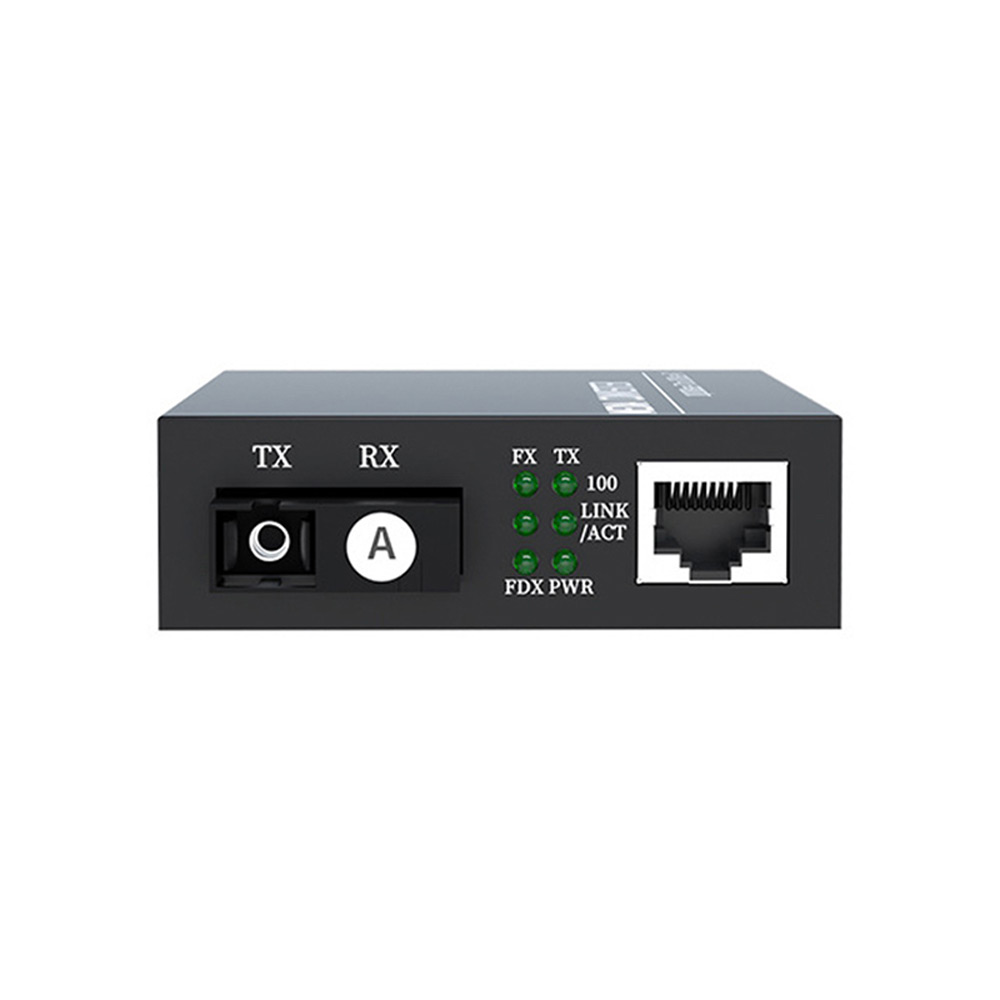

| LED Indicator | Power: PWR (green), Data: L/A (green), Single/Duplex: FDX (green), Fiber: FX (green), Rate: 10/100 (green) | ||
| Power Requirements | |||

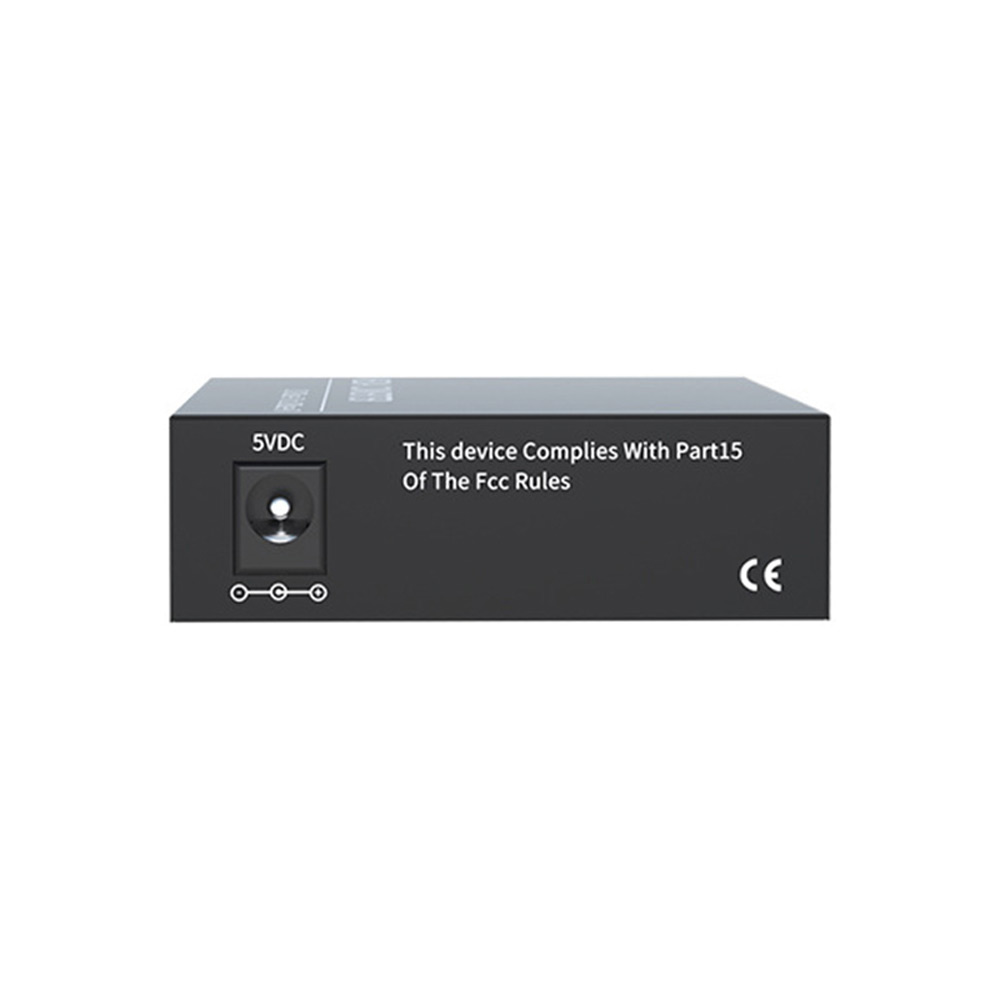

| Input Voltage | 3W / (5VDC) | ||
| Power Consumption | Standby < 1W, Full Load < 3W | ||
| Physical Parameters | |||
| Operating Temp / Humidity | -20~+55°C; 5%~90% RH Non-condensing | ||
| Storage Temp / Humidity | -40~+85°C; 5%~95% RH Non-condensing | ||
| Dimension (L*W*H) | 94*71*26mm | ||
| Net / Gross Weight | < 0.2kg / < 0.4kg | ||
| Installation Options | Desktop, 2U-14 slot rack | ||
| Certifications & Warranty | |||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | ||
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS | ||
| Warranty | 1 year, lifelong maintenance | ||
| Model | Introduction | Function Description |
|---|---|---|
| RD-FE101-20A RD-FE101-20B |

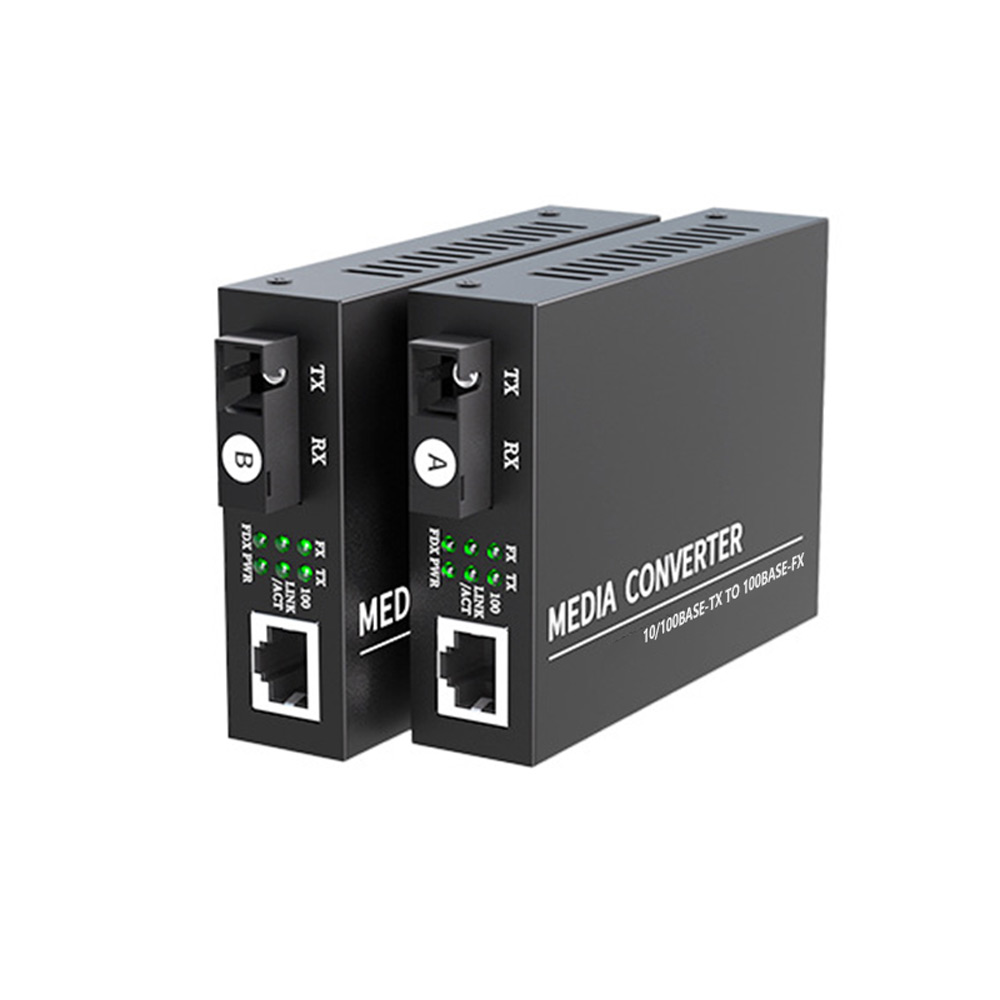

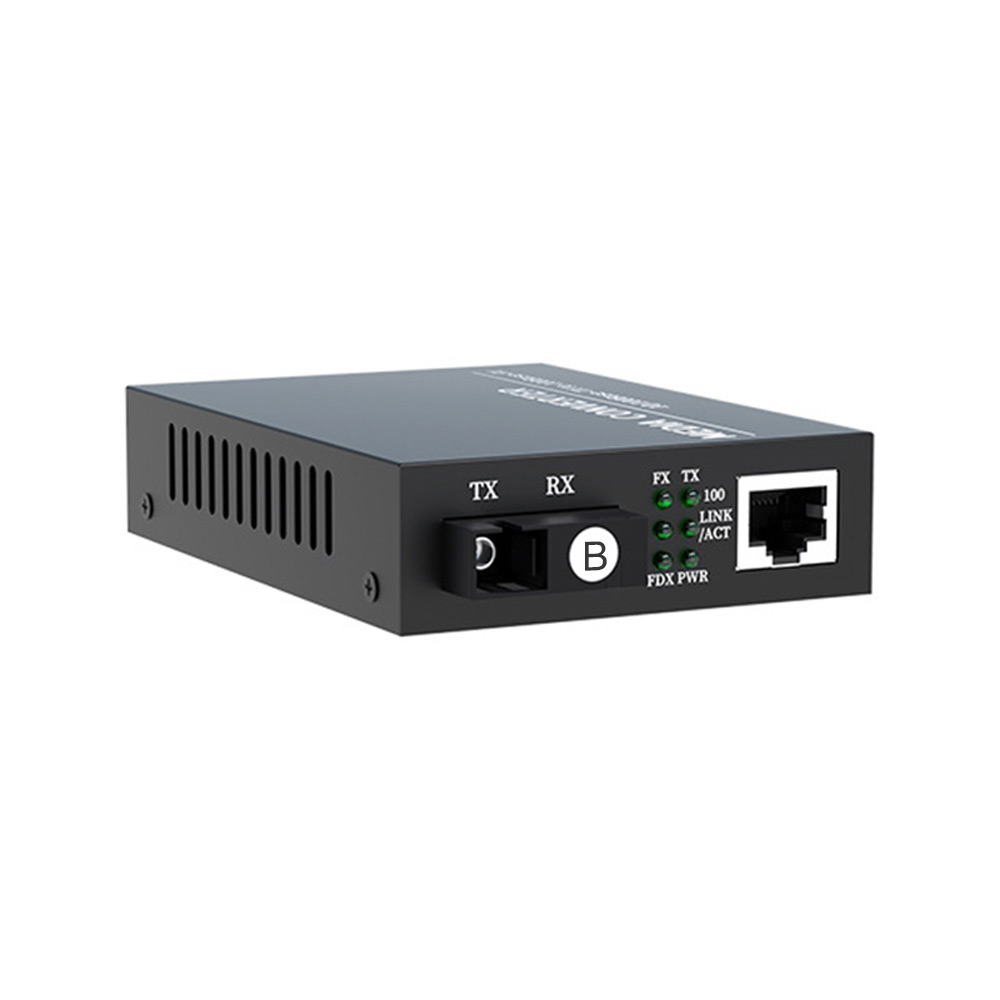

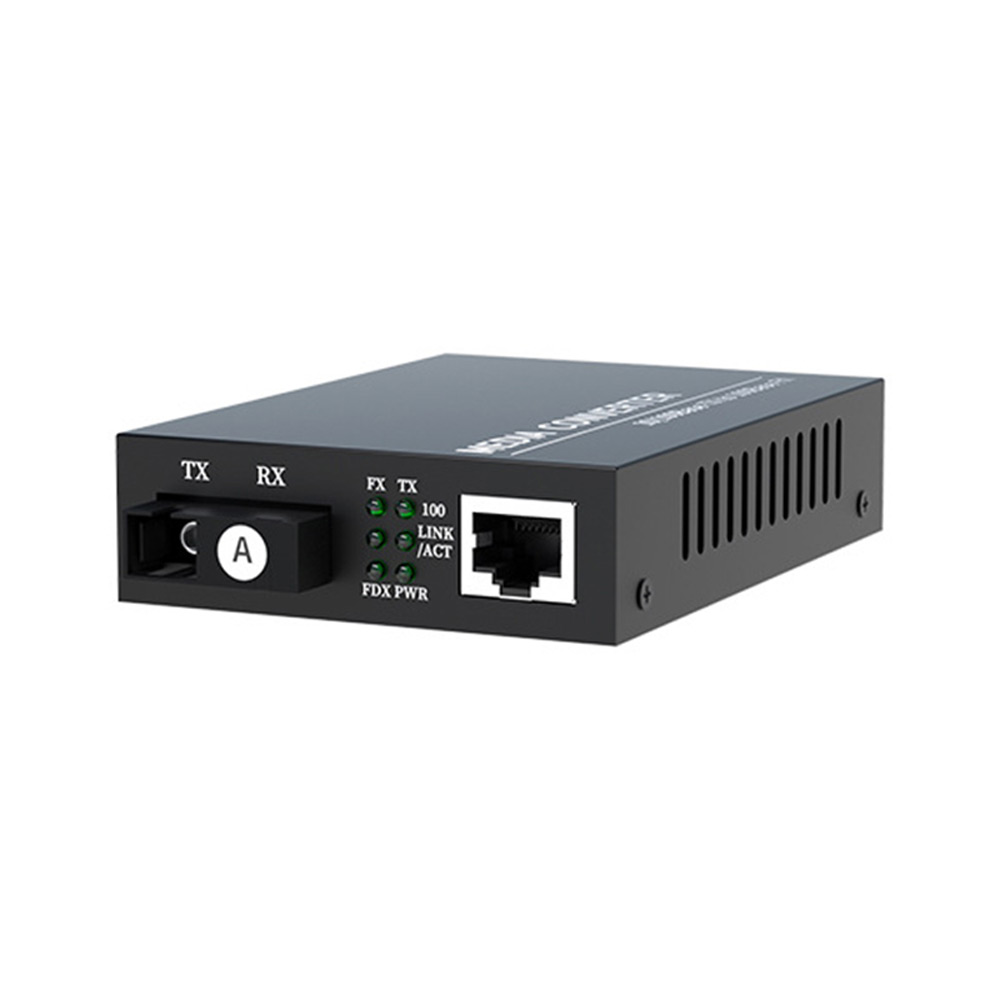

Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply. A: Tx1310nm/Rx1550nm B: Tx1550nm/Rx1310nm |
| RD-GS2401-SX | Fiber Media Converter 10/100Mbps 550m | Fiber Media Converter, 10/100Mbps 1*Duplex SC - 1*LAN MM 550m SC DC5V power supply, TRx: 1310nm or 850nm |
| RD-GS2401-LX | Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Duplex SC - 1*LAN SM 20km SC DC5V power supply, TRx: 1310nm |
