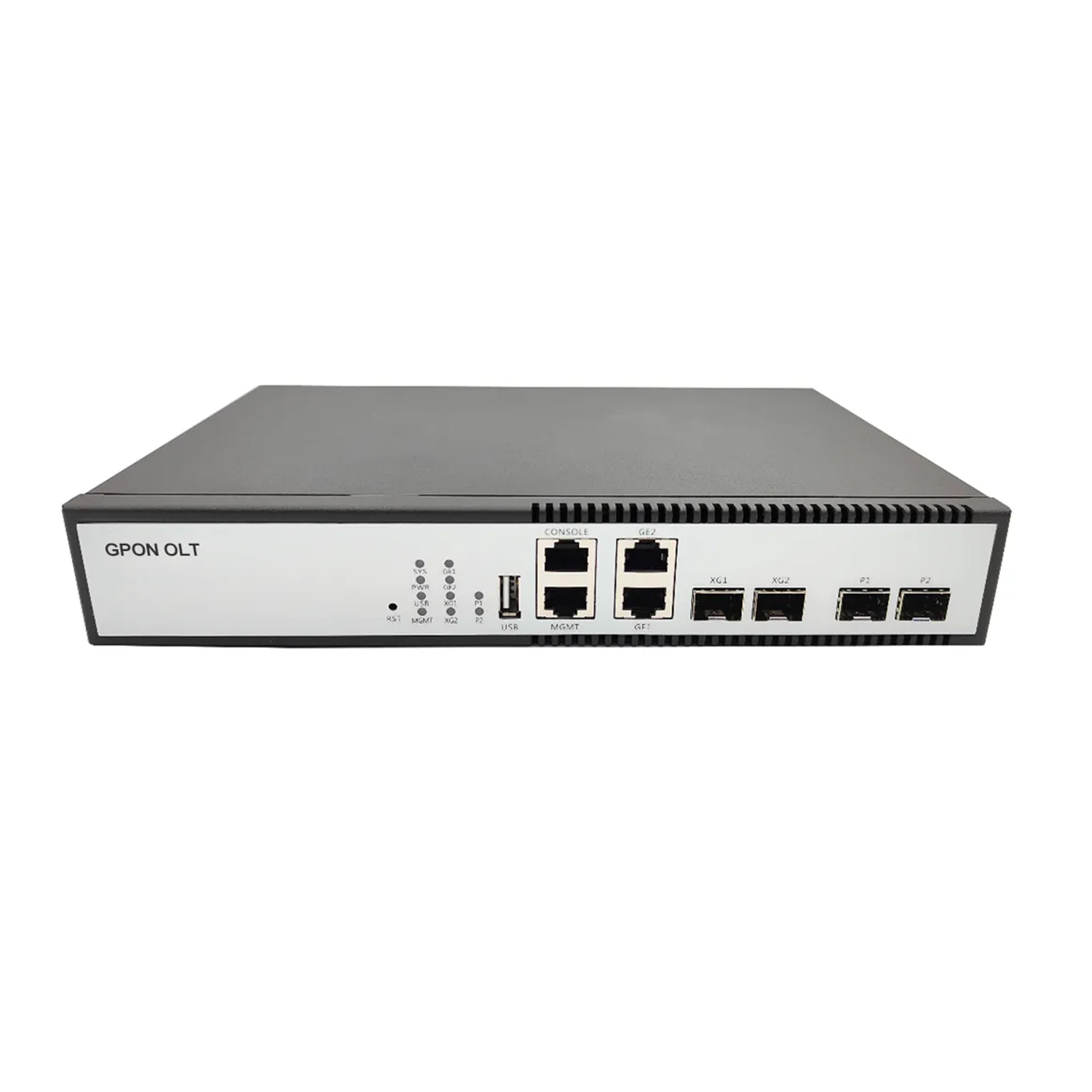

G5600V2 is highly integrated, medium-capacity box-type GPON OLT, it can be widely used in operator FTTH access, private network access, government and enterprise park access, campus network access and other access network construction.
| Attributes | Description |
|---|---|
| Interface | 2*GPON Port, 2*10/100/1000M Base-T; 2*1000M Base-X SFP/2*10GE SFP+ |
| Exchange Capacity | 51.5Gbps |
| Forwarding Rate | 59.7Mpps |
| Memory & Flash | Memory: 32MB; Storage: 512MB |
| Management Port | Console, MGMT |
| PON | Complies with ITU-T G.984/G.988 standards 20 km physical differential distance, 60 km logical distance 1:128 maximum splitting ratio Standard OMCI management features Flexibly compatible with any brand of ONTs Supports batch software upgrades for ONUs |
| Fan | Fixed fans (two fans) |
| Power | AC: 100~240V 47/63Hz; DC: 12V |
| Power Consumption | ≤30W |
| Weight | 2kg |
| Dimensions (W * H * D) | 270mm*44mm*180mm |
| Environment Temperature | Working Temperature: -10°C~55°C Storage Temperature: -40°C~70°C |
| Environment Humidity | Relative Humidity: 5%~95% (non-condensing) |
| Model Number | Description |
|---|---|
| G5600V2 | 2*GPON port+2GE RJ45+2*GE/10GE SFP+ uplink port |
| GPON PON Transceiver (GPON SFP-Transmit 1490nm/Receive 1310nm, 7dBm, SC interface-Class C++) | |
| AC/DC optional dual power supply | |
| EU & US power plug optional |
Yes, price is not a problem, everything could be negotiated based on the quantity.
Yes, we fully support OEM and ODM services.
There is no MOQ limit for any sample tests.
Yes, sample orders are supported and welcomed.
Our trade arrangements include:
Most products come with a 24-month warranty. Human-induced causes and other brand conflicts are not included.
