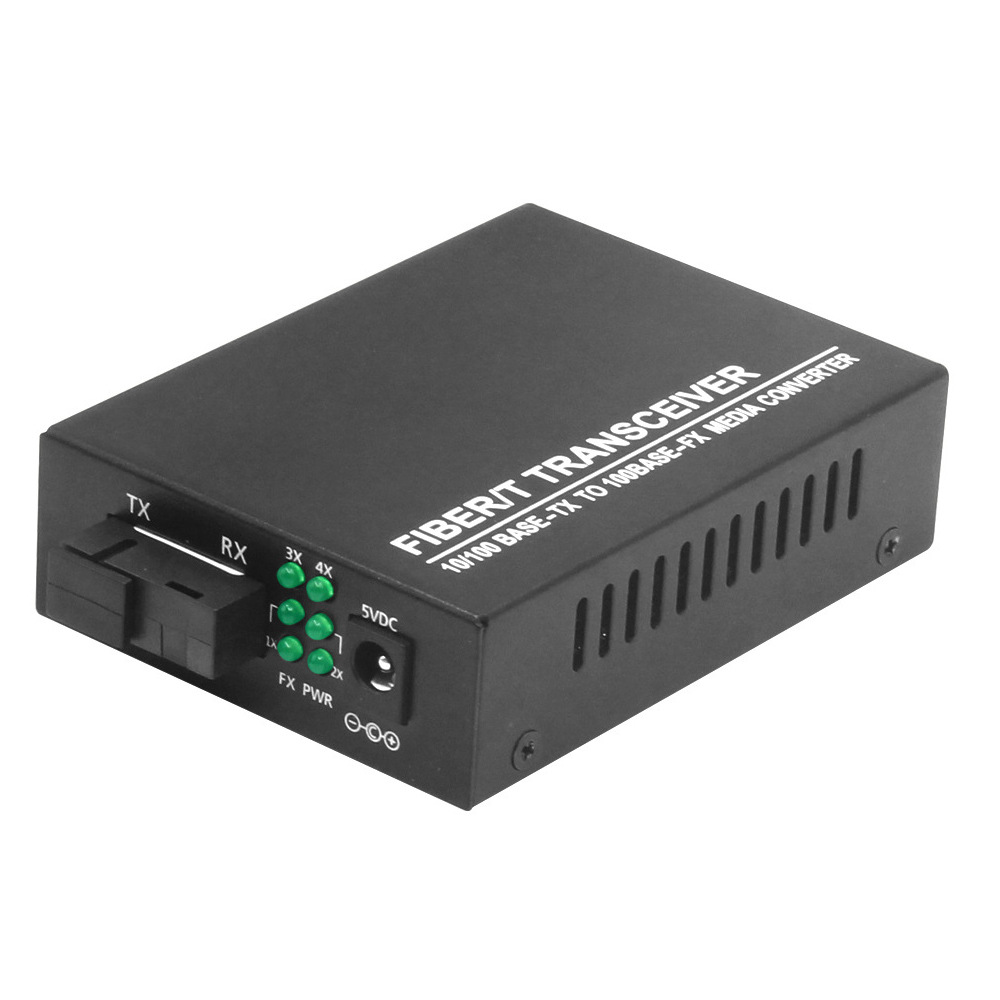

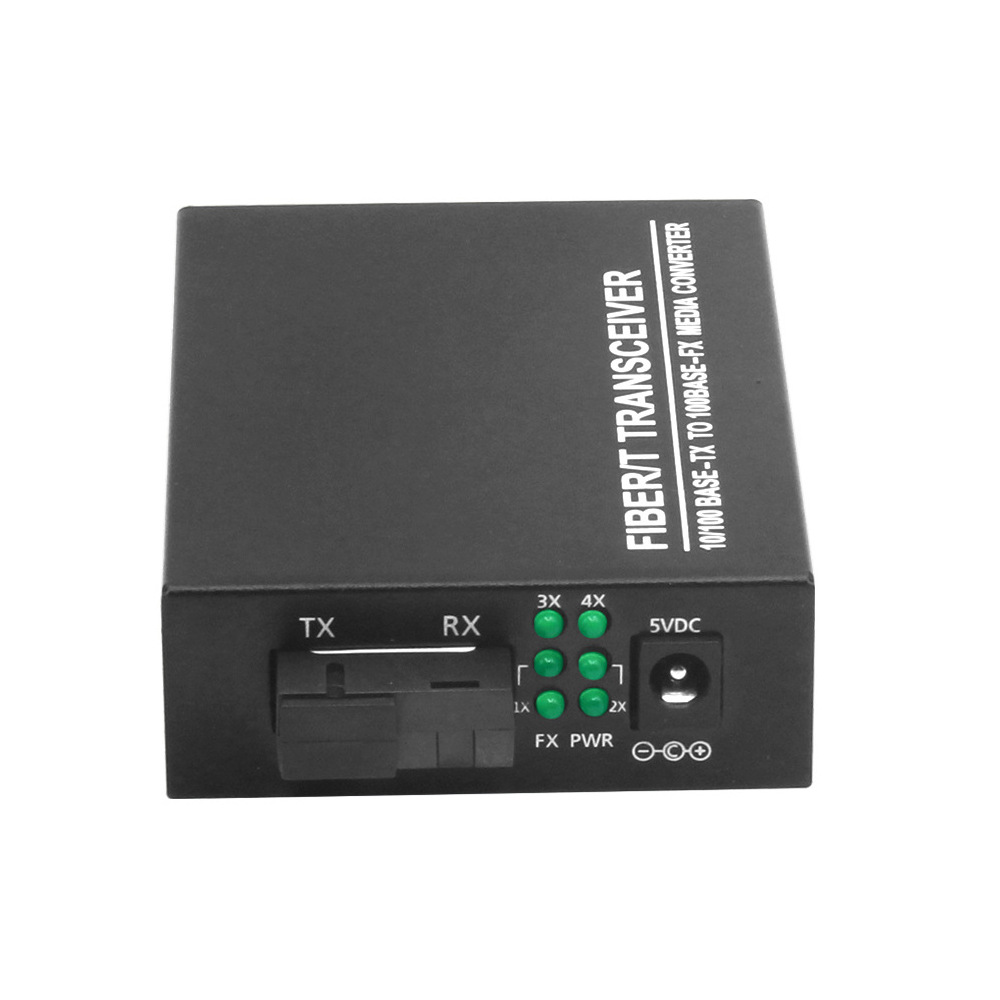

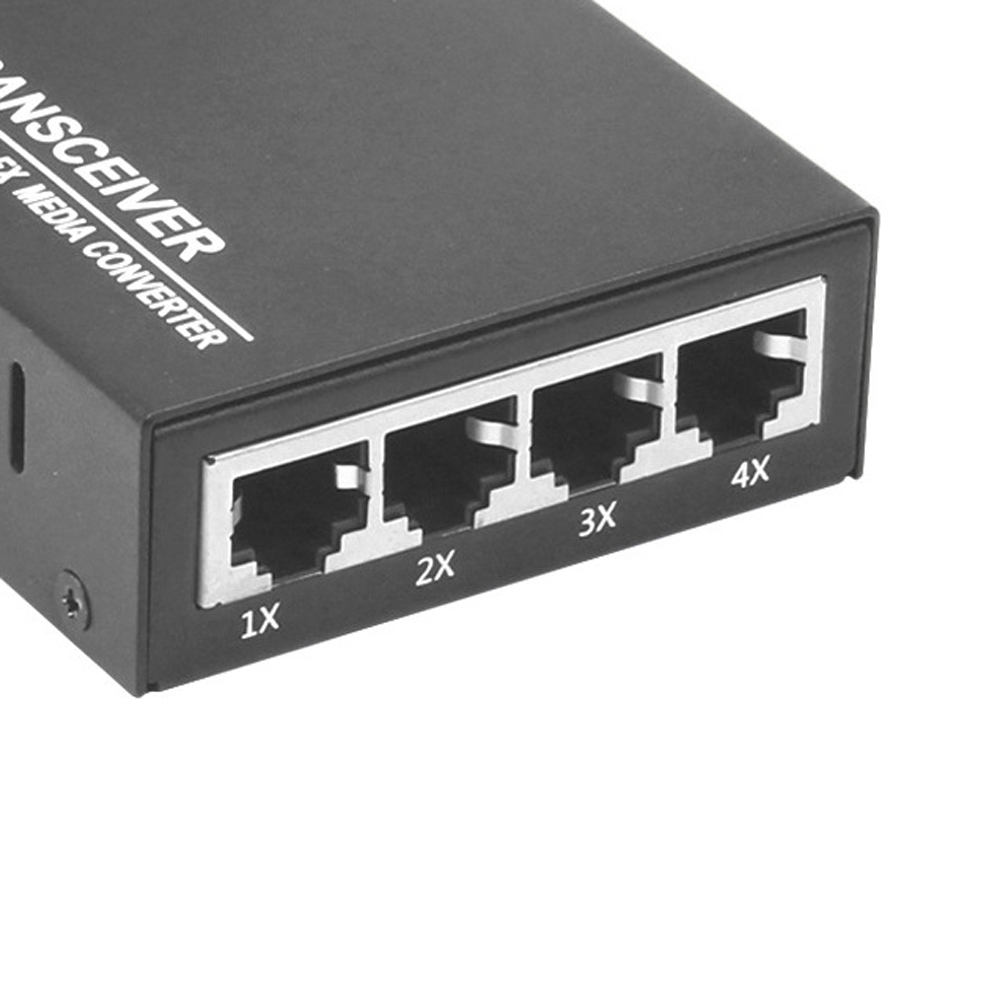

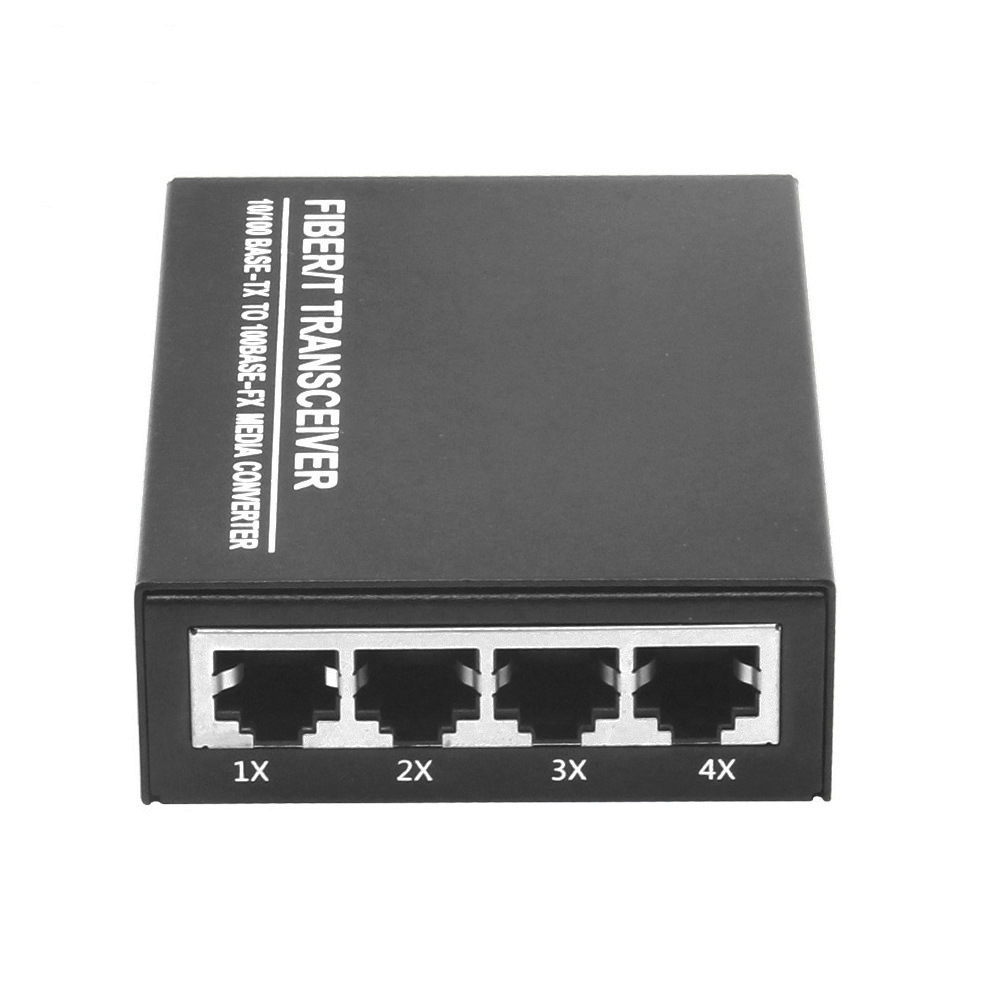

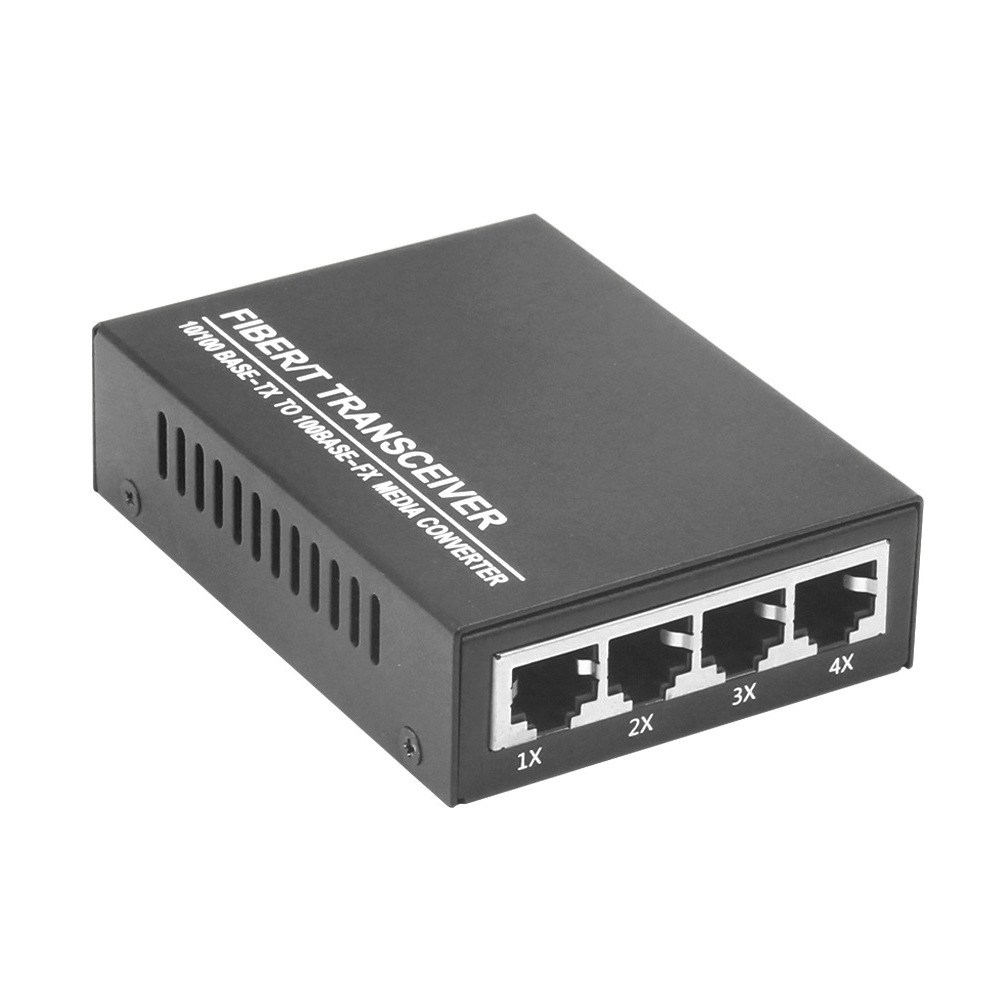

1 fiber port with 4*10/100Mbps RJ45 port
Point-to-multipoint high-speed forwarding
Plug-and-play, no need for any configuration
Product dimensions and interface definitions
| Hardware Specifications |
| Standard |
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
|
| Interface |
- 1*155Mbps SC optical fiber interface
- 4*RJ45 10/100Mbps
|
| Distance |
|
| Wavelength |
- A: Tx1310nm/Rx1550nm
- B: Tx1550nm/Rx1310nm
|
| Transmission media |
- Cable: CTE5 or higher UTP and STP
- Optical Fiber: 9/125um single-mode optical fiber
|
| Optical parameter |
- Average emission power: -9 to -3 dBm
- Receiving sensitivity: -22 dBm
|
| Power |
|
| Size |
|
| Environment |
- Operating temperature: -5°C to 60°C
- Operating humidity: 10% to 90% RH (non-condensing)
- Storage temperature: -40°C to 70°C
- Storage humidity: 5% to 90% RH (non-condensing)
|
| Order Info |
| RD-FE104-T |
Fiber Media Converter 10/100MB 1*SC+4*RJ45 1310-TX |
| RD-FE104-R |
Fiber Media Converter 10/100MB 1*SC+4*RJ45 1550-TX |
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.
FAQ
Q
What is your MOQ request?
Depends on products, different products have different MOQ requirements.
Q
Do you support ODM/OEM service?
Yes, we can offer custom manufacturing and design services tailored to your needs.
Q
Do your products support compatibility with other brands?
Yes, all of our products are unlocked and fully compatible with devices from other brands.
Q
Are you a manufacturer or a trading company?
We are a manufacturer and support virtual or video-guided factory tours.
Q
Do you offer free samples?
Yes, for certain models, we are able to provide free testing samples.
Q
Are you able to provide local certifications?
Yes, based on the specific contract agreements, we can assist in obtaining certificates such as Postel, CE, RoHS, Anatel, etc.
