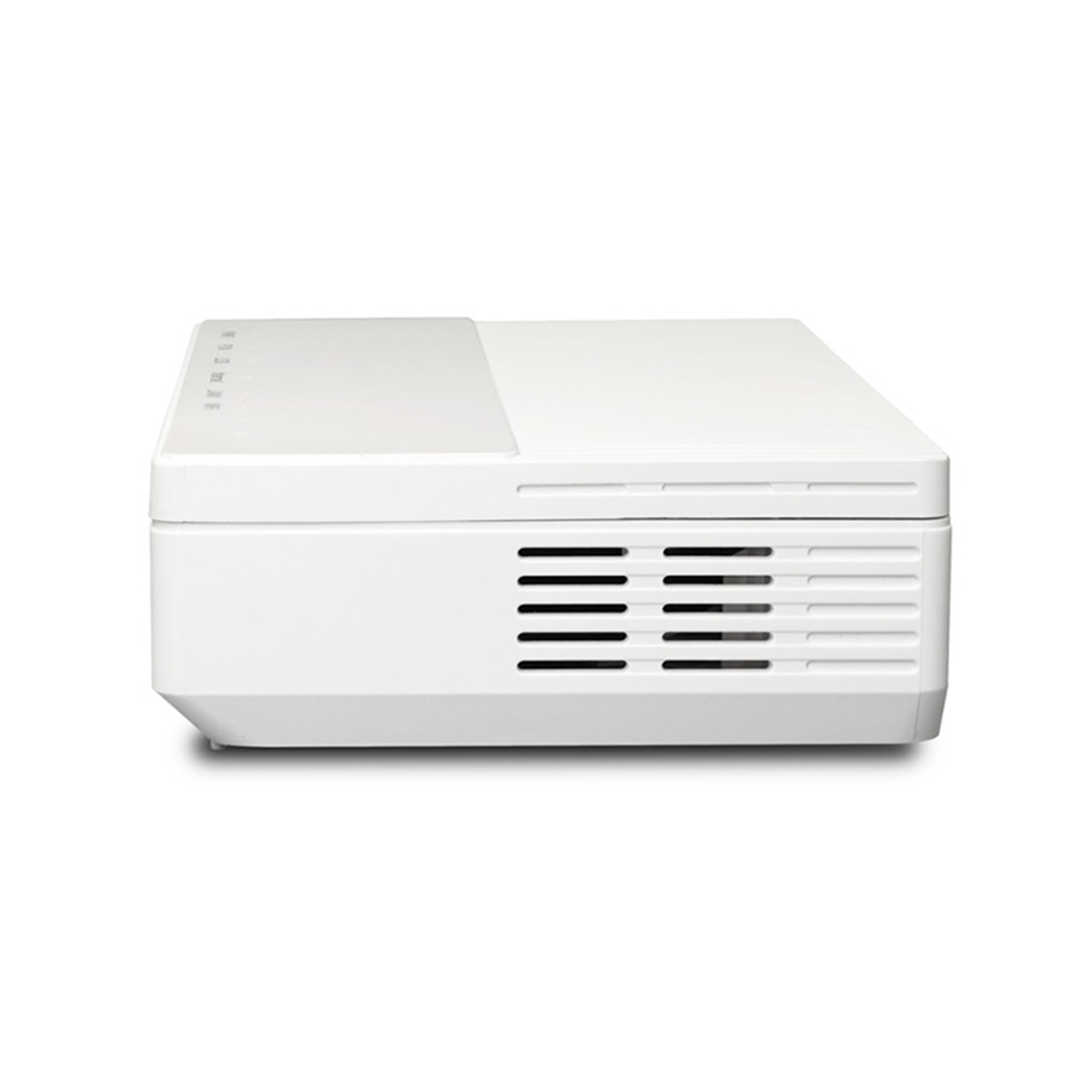

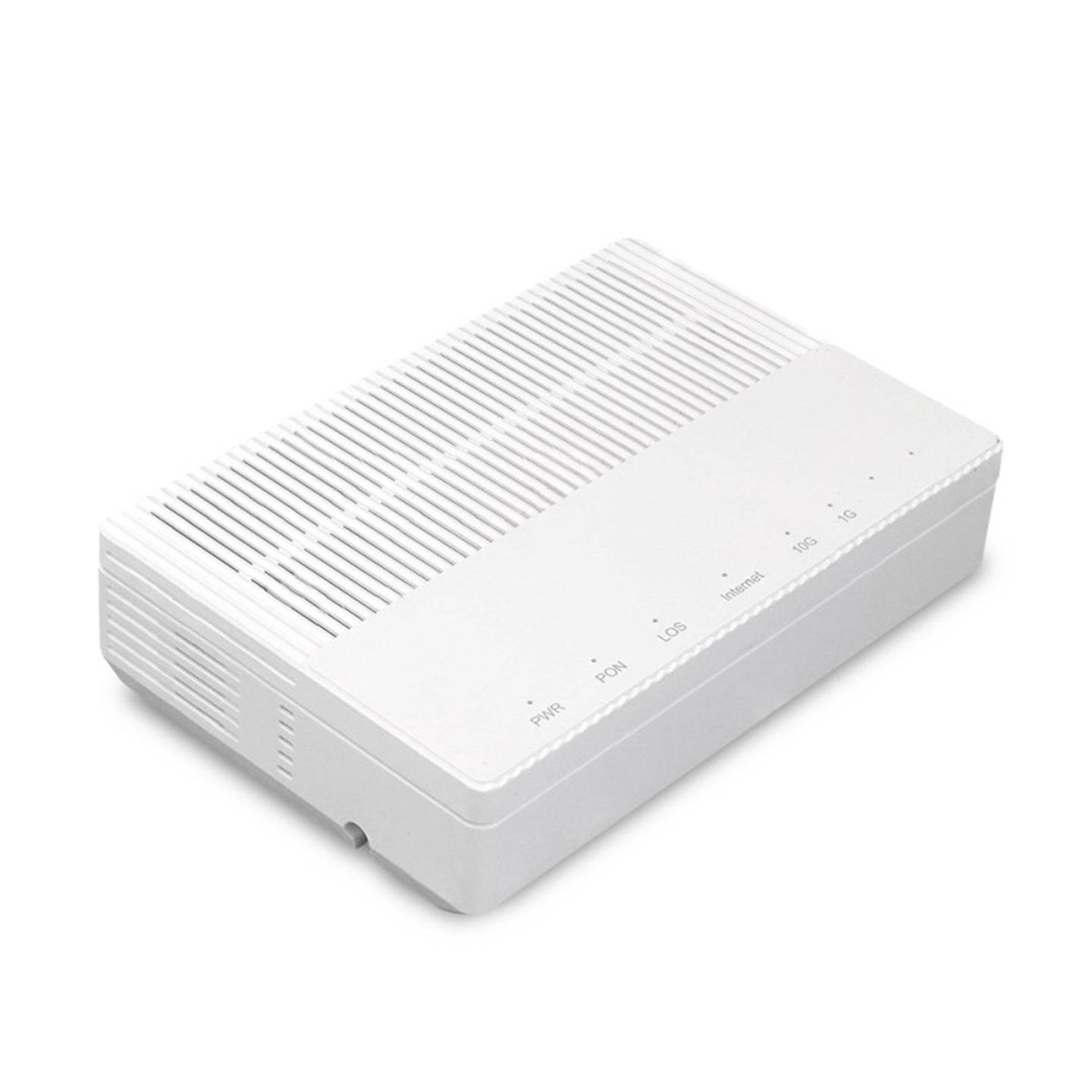

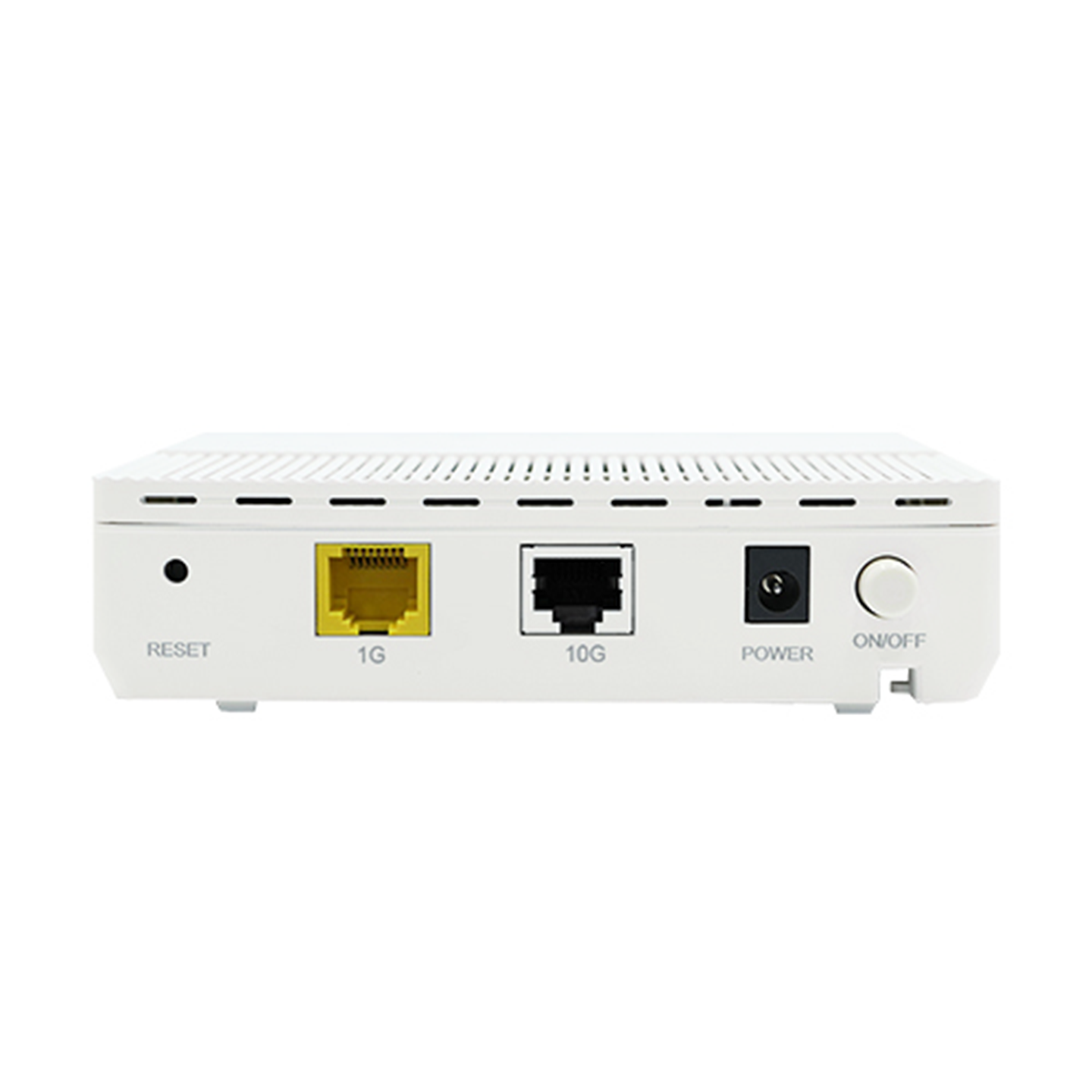

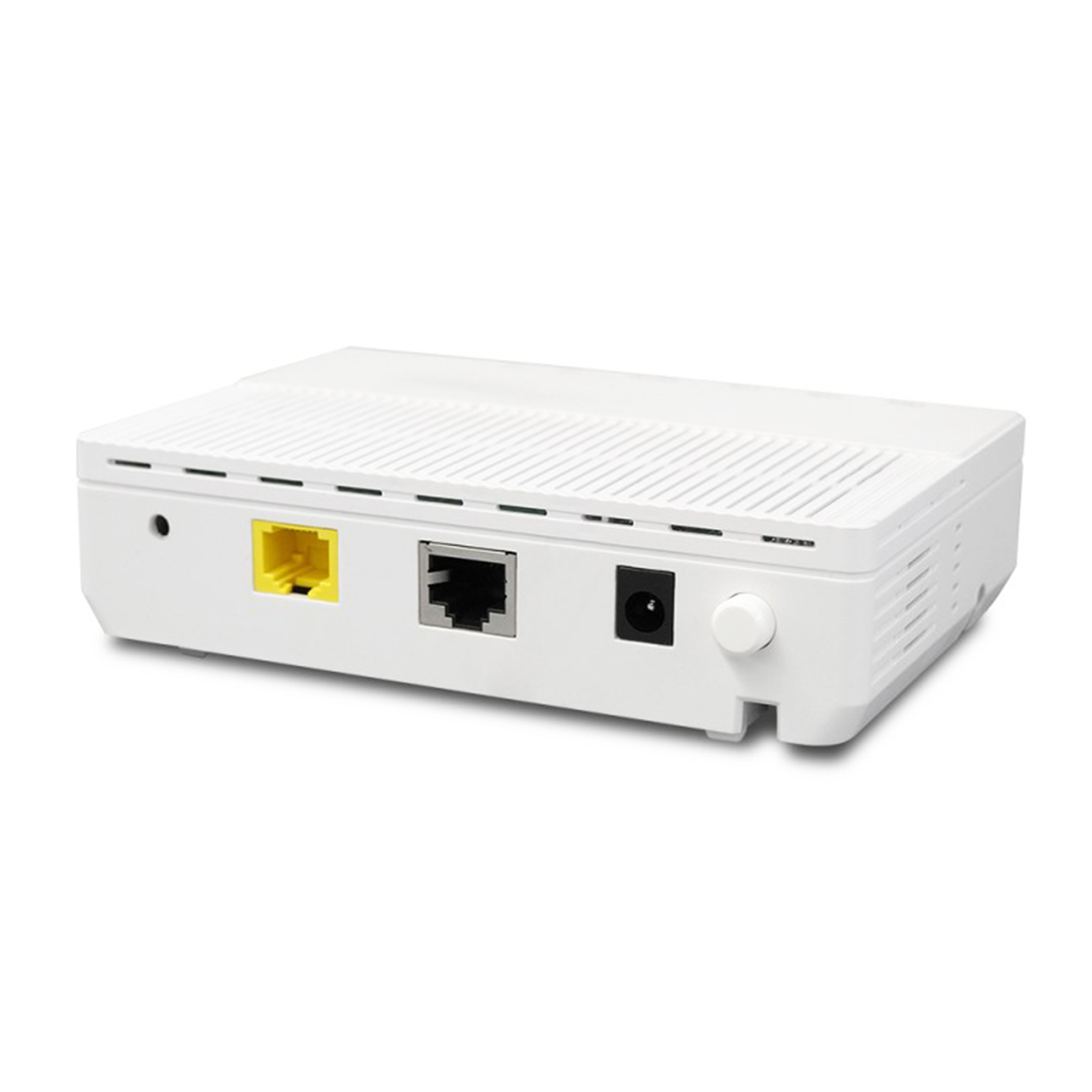

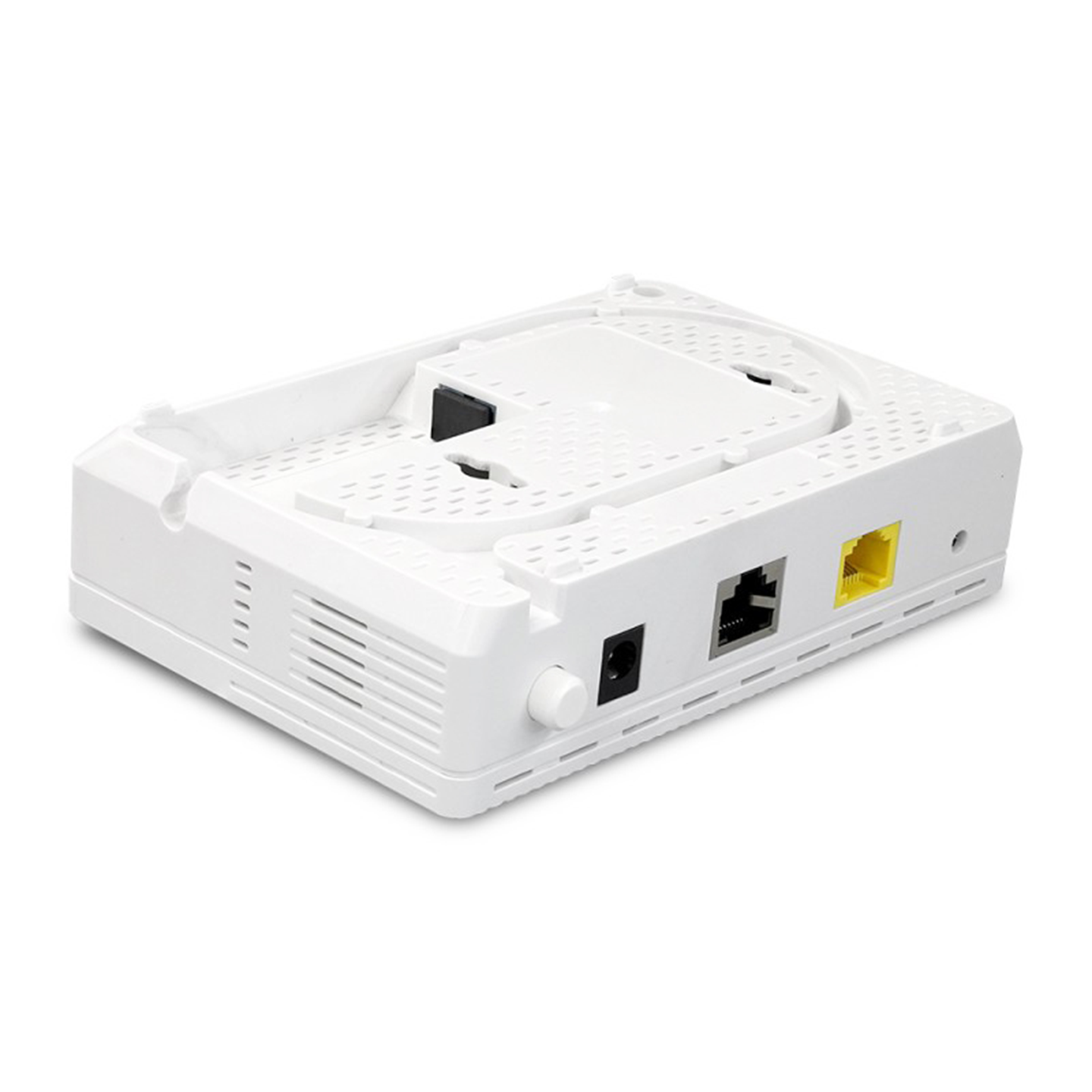

Ultra-Easy Maintenance 10G ONU Fiber Modem Router 1G/10G 2 LAN Ports 1 PON Port XGS-PON/XGSPON

Send Inquiry

Product Description

Elevating Network Capacity with High Bandwidth

Efficient Solution for Home/Enterprise Network Construction

The exquisite and compact design is in line with your corporate image.

Hardware Specifications

Hardware parameter
ONT Type	SFU/HGU
Interface	1RJ45 (GE) + 1RJ45 (10GE) + XGSPON
LED	POWER + PON/LOS + INTERNET + 1G + 10G
CPU Frequency	1 GHz Dual-Core
Flash & Memory	Flash: 128MB NAND; Memory: 512MB DDR3
Power Supply	12V / 1A
Power Consumption	≤ 12W
Environment Standard	Operating Temperature: -5°C ~ 50°C Storage Temperature: -20°C ~ 70°C Relative Humidity: 5% ~ 95% (non-condensing)
Weight	0.15KG
Size	135mm * 90mm * 36mm (L * W * H)
Module Type	Class B+, SC/UPC
Wavelength	UP 1270nm, Down 1577nm
TX Optical Power	5 ~ 9dBm
RX Optical Sensitivity	-28dBm
Transmission Distance	0 ~ 20km
Transmission Rate	XGSPON: Upstream 10Gbps, Downstream: 10Gbps
LAN Interface Type	1G: RJ45 (10/100/1000Mbps) 10G: RJ45 (1/2.5/5/10 Gbps)

Software Functions

Software Features
Standard Features	ITU-T G.987 ITU-T G.988 / TR255 / TR156 15 TCONTs / 256 GEM ports At least 8 Egress queues per TCONT VLAN / priority / VEIP gem mapping mode SN / LOID / SN + Password authentication Performance monitoring: eth/Gem port Dying gasp
Ethernet Port	Ethernet port-based VLAN tags and tag removal MAC address learning 10/100/1000/10000Mbps Auto negotiation
L2 Features	MAC learning (SVL) / aging Support max frame length to 1518 bytes VLAN tagging for untagged packets Support VLAN 1 - 4094
L3 Features	PPPoE / Static IP / DHCP NAT / NAPT Port forwarding ALG, UPnP, DDNS IPv4/IPv6 dual stack, DS-Lite Static, and Default Routes Multiple services on one WAN port
QoS	Support 8 Queues with Strict Priority Ethernet port rate limitation 802.1 priority SP / WRR Service flow classification
Multicast	IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) IGMP snooping and IGMP Proxy MLD v1
Management	OMCI / WEB UI / TR069 Telnet / SSH Management with CLI commands Dual-system software backup and rollback

Order Information

Description	Accessories Pack
1GE + 110GE + XGSPON	Power Adapter, RJ45 cable

Frequently Asked Questions

Q What is the Minimum Order Quantity (MOQ) requirement?

The MOQ depends on the specific products. Different items have different requirements based on standard production runs.

Q Do you support ODM/OEM services?

Yes, customization services can be provided to meet your specific hardware and software branding requirements.

Q Are your products compatible with other device brands?

Yes, all products are unlocked and standard-compliant, ensuring compatibility with other major networking brands.

Q Can factory inspections and tours be arranged?

Yes, factory tours, virtual video inspections, and audits can be scheduled upon request.

Q Are product testing samples available?

Yes, evaluation samples for selected models can be arranged for system testing and validation purposes.

Q Are local compliance and standard certificates supported?

Yes, assistance with obtaining necessary regional certifications (such as CE, RoHS, and others) is supported in accordance with mutual agreement.
