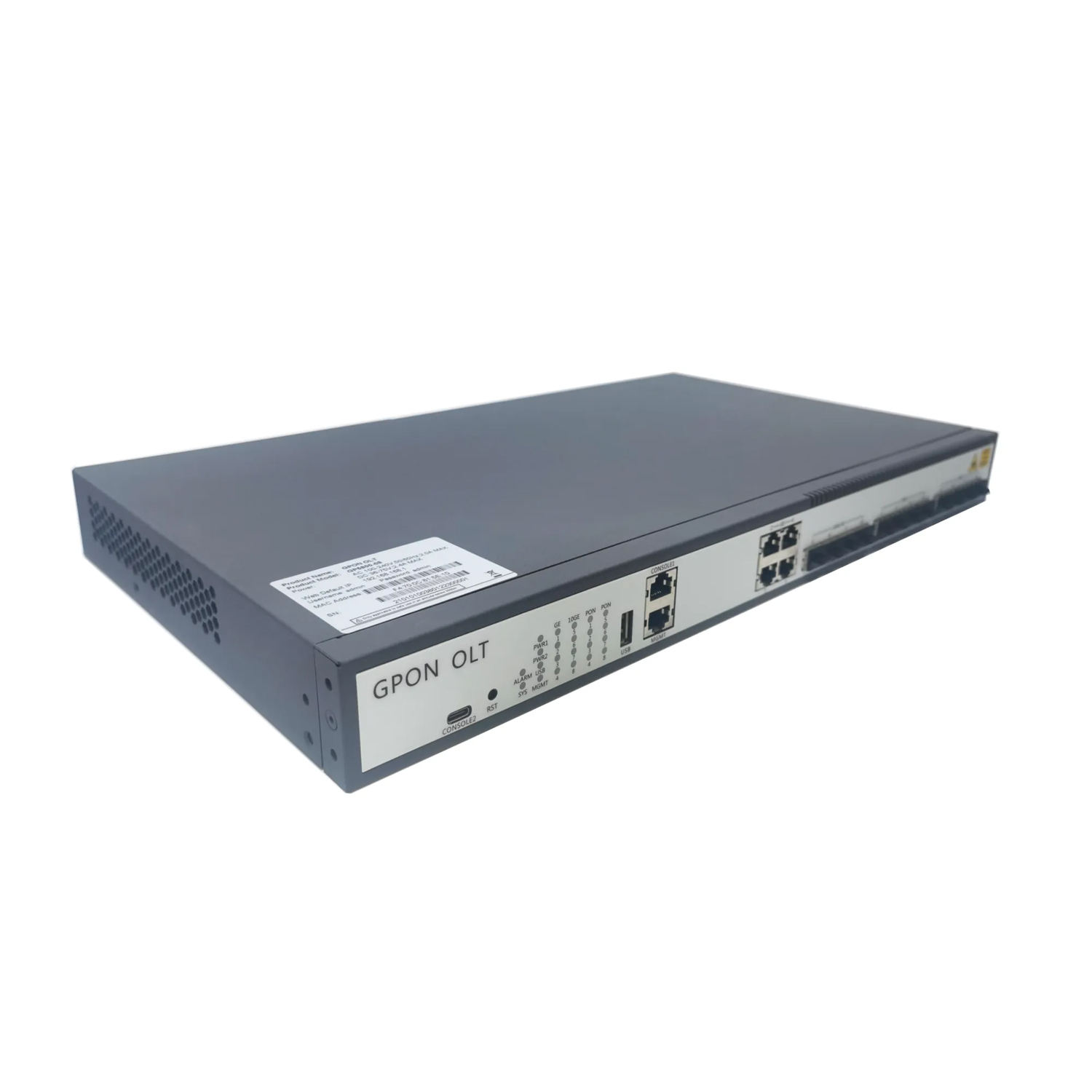

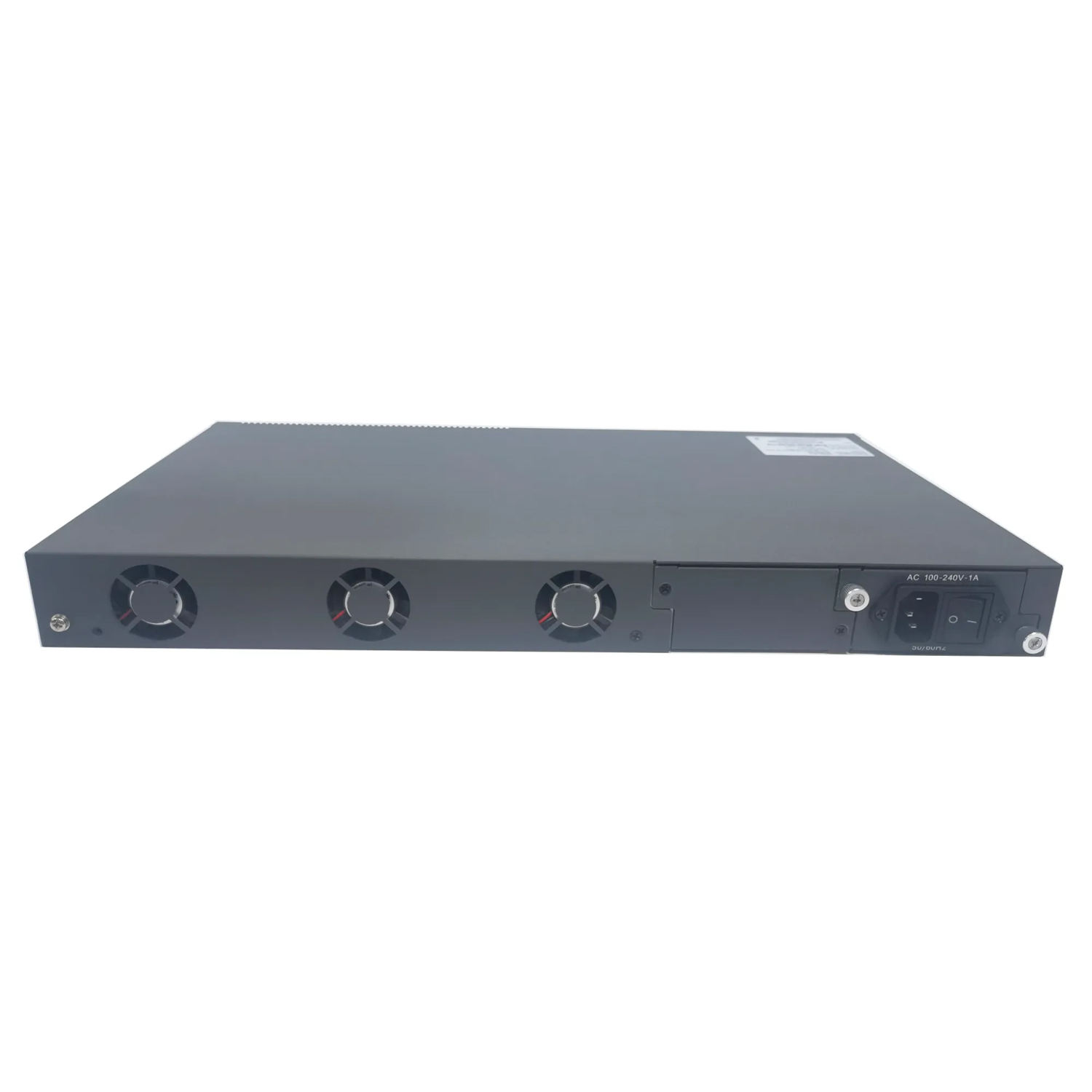

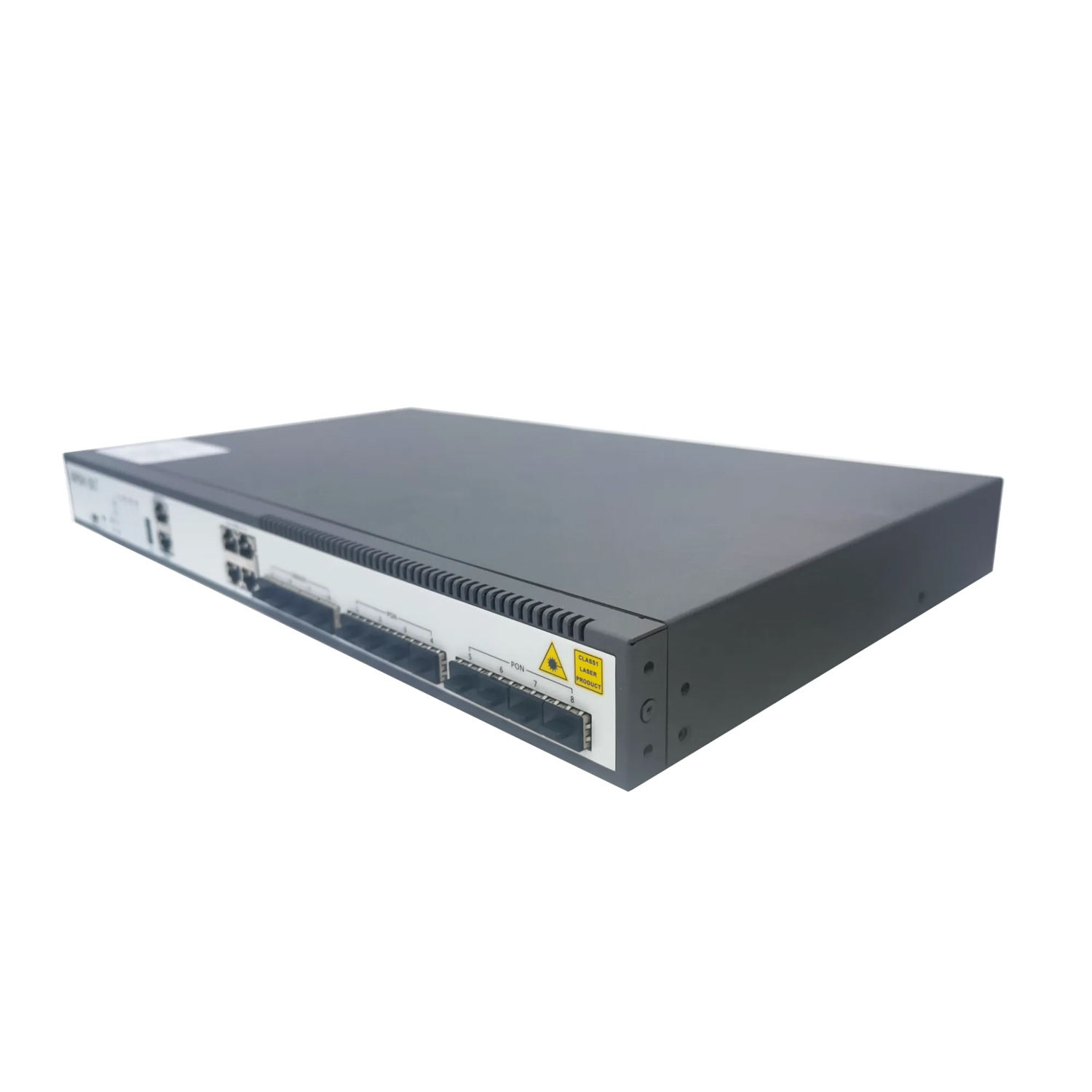

Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT
Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT
Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT
Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT
1 / 4
Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT
Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT
Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT
Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT

Ultra-stable Type 8 Ports Gpon 10G Best Price with VSOL OLT Support Alarm Management 8 Ports GPON OLT

Send Inquiry

Product Description

GPON OLT 8 Port
G5600V8
G5600V8 is highly integrated, medium-capacity box-type GPON OLT, it can be widely used in operator FTTH access, private network access, government and enterprise park access, campus network access and other access network construction.

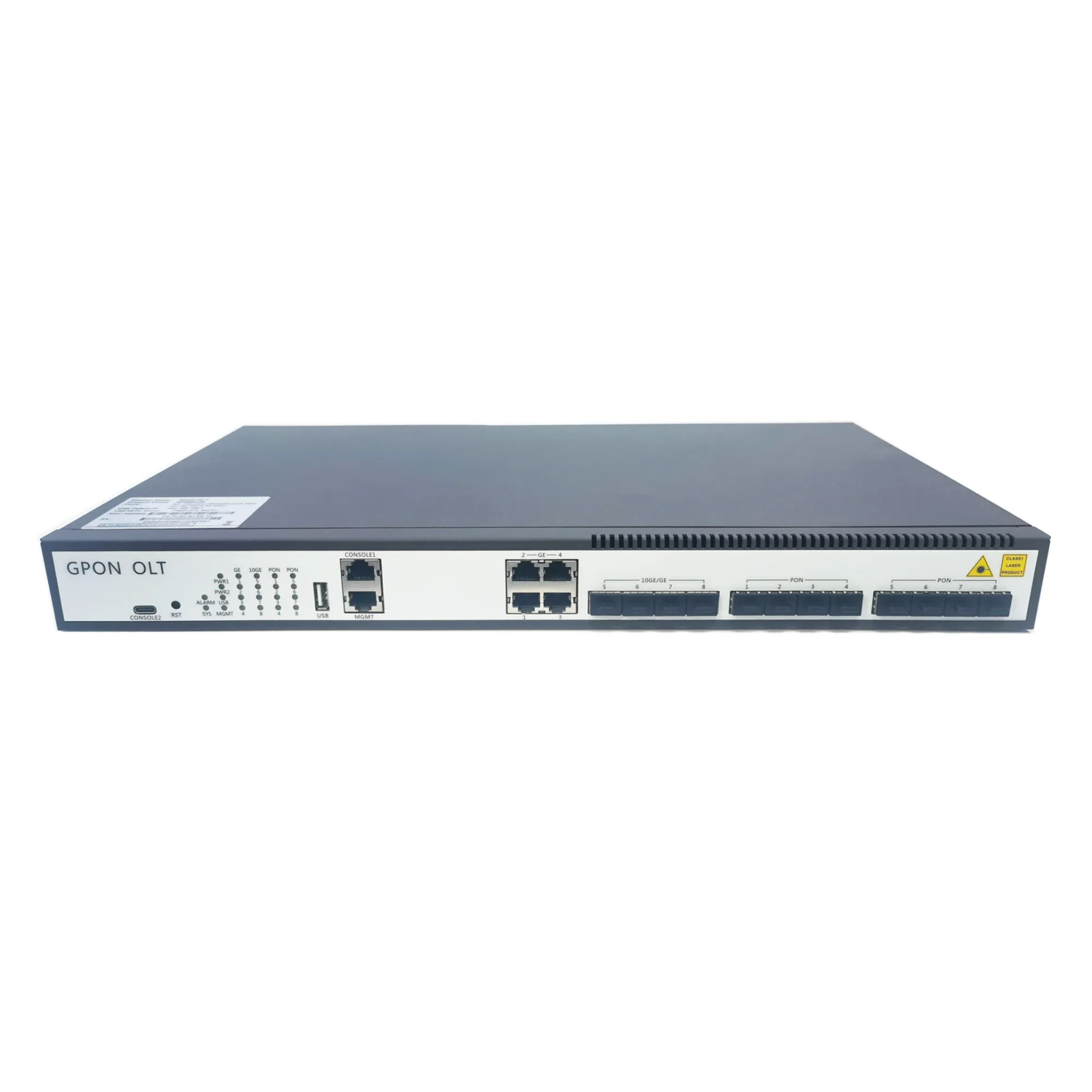

GPON OLT 8 Port G5600V8
GPON OLT 8 Port G5600V8 Interface
Specification
Attributes Description
Interface 8*GPON Port, 4*10/100/1000M Base-T;
4*1000M Base-X SFP/4*10GE SFP+
Exchange Capacity 118Gbps
Forwarding Rate 87.792Mpps
Memory & Flash DRAM: 2GB; Flash: 8GB
Management Port Console, MGMT, Type C
PON Comply with ITU-TG.984/G.988 Standard 60KM transmission distance;
1:128 Max splitting ratio; Standard OMCI management function
Open to any brand of ONTs; ONU batch software upgrade
Fan Fixed fans (three fans)
Power AC: 100~240V 47/63Hz;
DC: -36V~-75V
Power Consumption ≤55W
Weight ≤5kg
Dimensions (W *H *D) 440mm*44mm*260mm (not including mounting ears)
Environment Temperature Working Temperature: -10°C~55°C
Storage Temperature: -40°C~70°C
Environment Humidity Relative Humidity: 5%~95% (non-condensing)
Key Features
  • ✓ Maximum split ratio of 1:128, connecting up to 1024 ONTs
  • ✓ Rich Layer 2/3 switching features, flexible management methods
  • ✓ Comply with ITU-TG.984/G.988 standard
  • ✓ Support FlexLink, STP, RSTP, MSTP, ERPS, LACP, ACL, QoS
  • ✓ Support 64K MAC address
  • ✓ Support RIP, OSPF, BGP, ISIS and IPV6
  • ✓ Support ONU authentication, FEC, AES, DBA, Rogue ONU detection
  • ✓ Support CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0, OMCI protocol
  • ✓ Support Power redundancy backup
  • ✓ Support batch software upgrades on ONUs
  • ✓ Flexibly compatible with any brand of ONTs
Purchase Info
Model Number Description
G5600V8 8*GPON port+4GE RJ45+4*10GE/GE SFP uplink port
- GPON PON Transceiver (GPON SFP-Transmit 1490nm/Receive 1310nm, 7dBm, SC interface-Class C++)
- AC/DC optional dual power supply
- EU & US power plug optional
