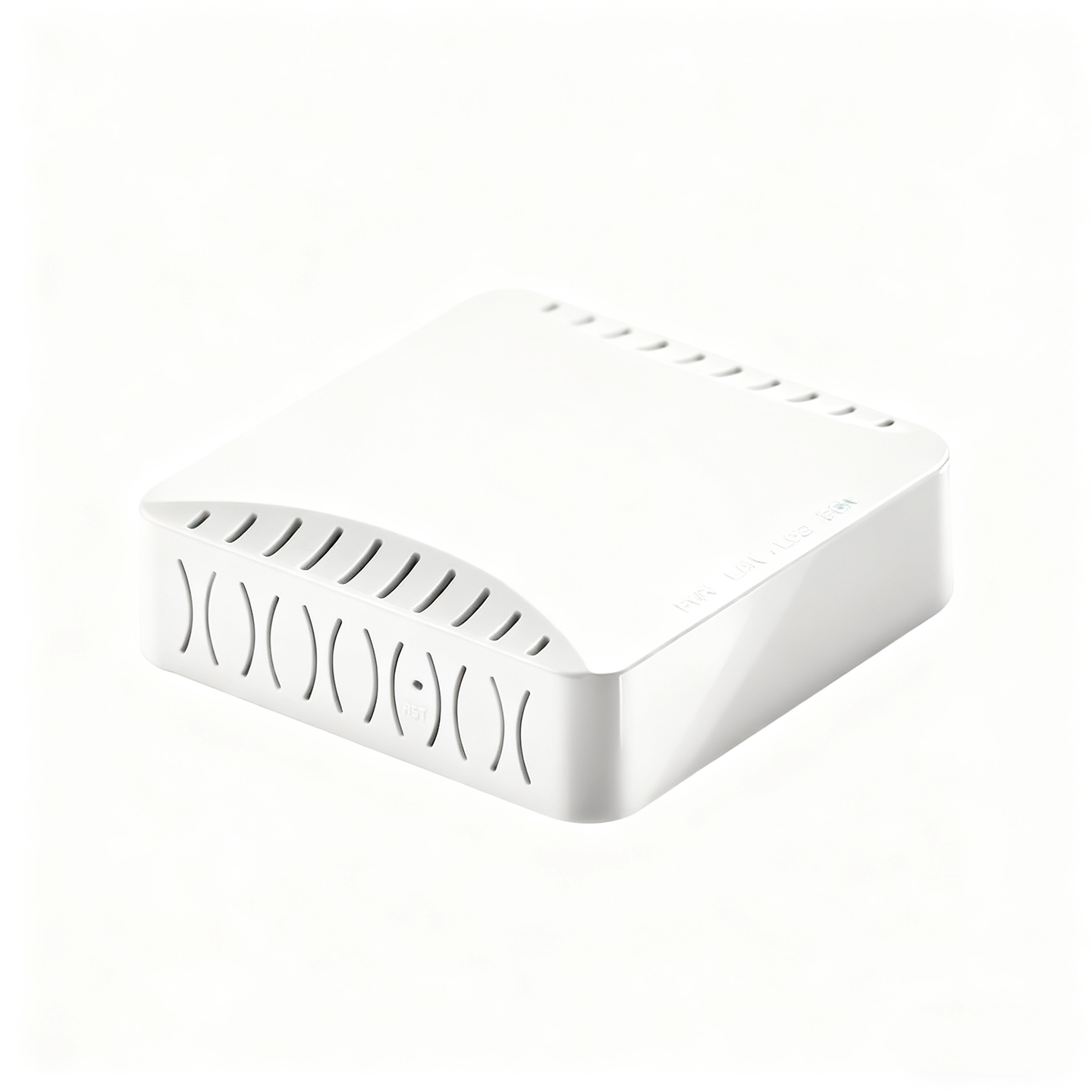

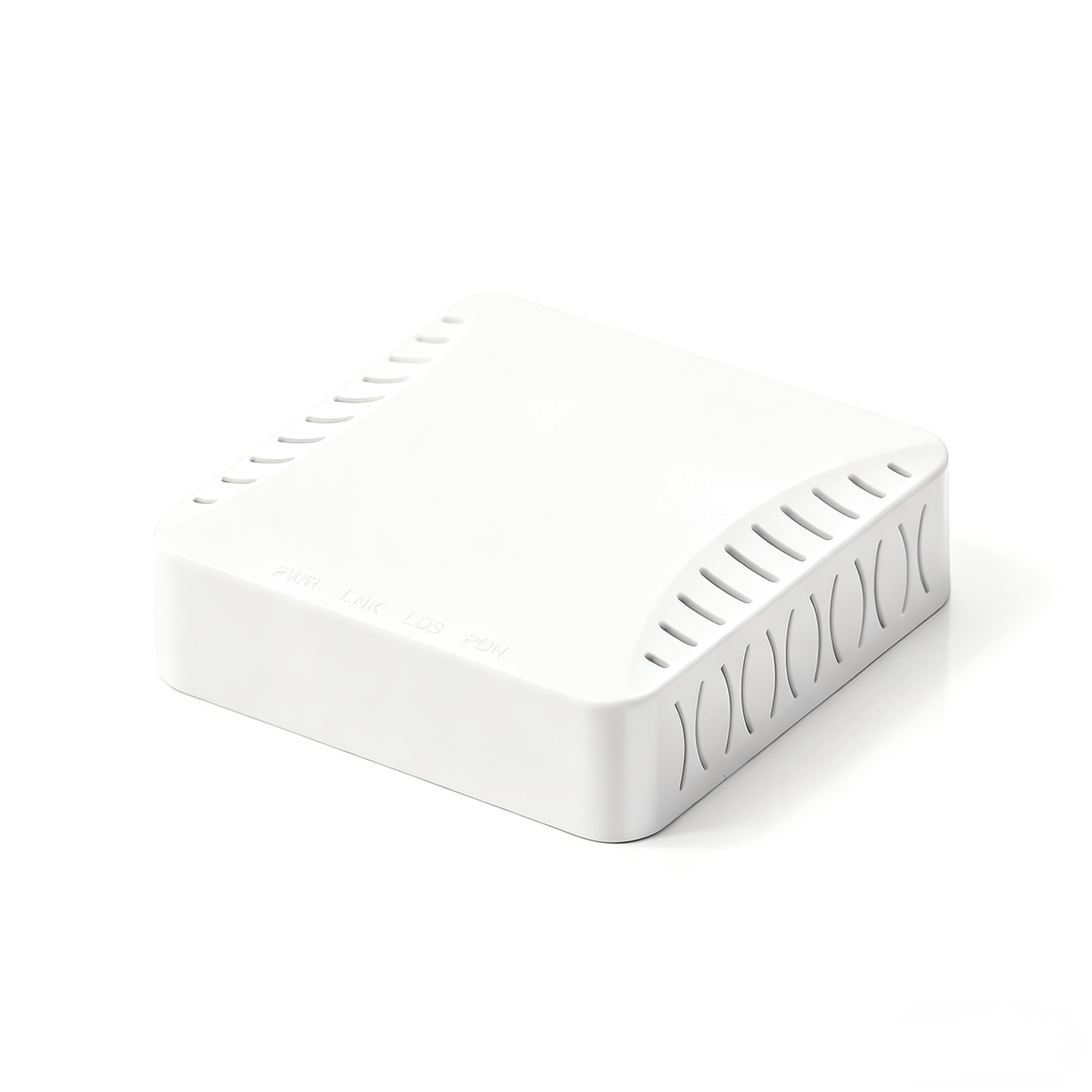

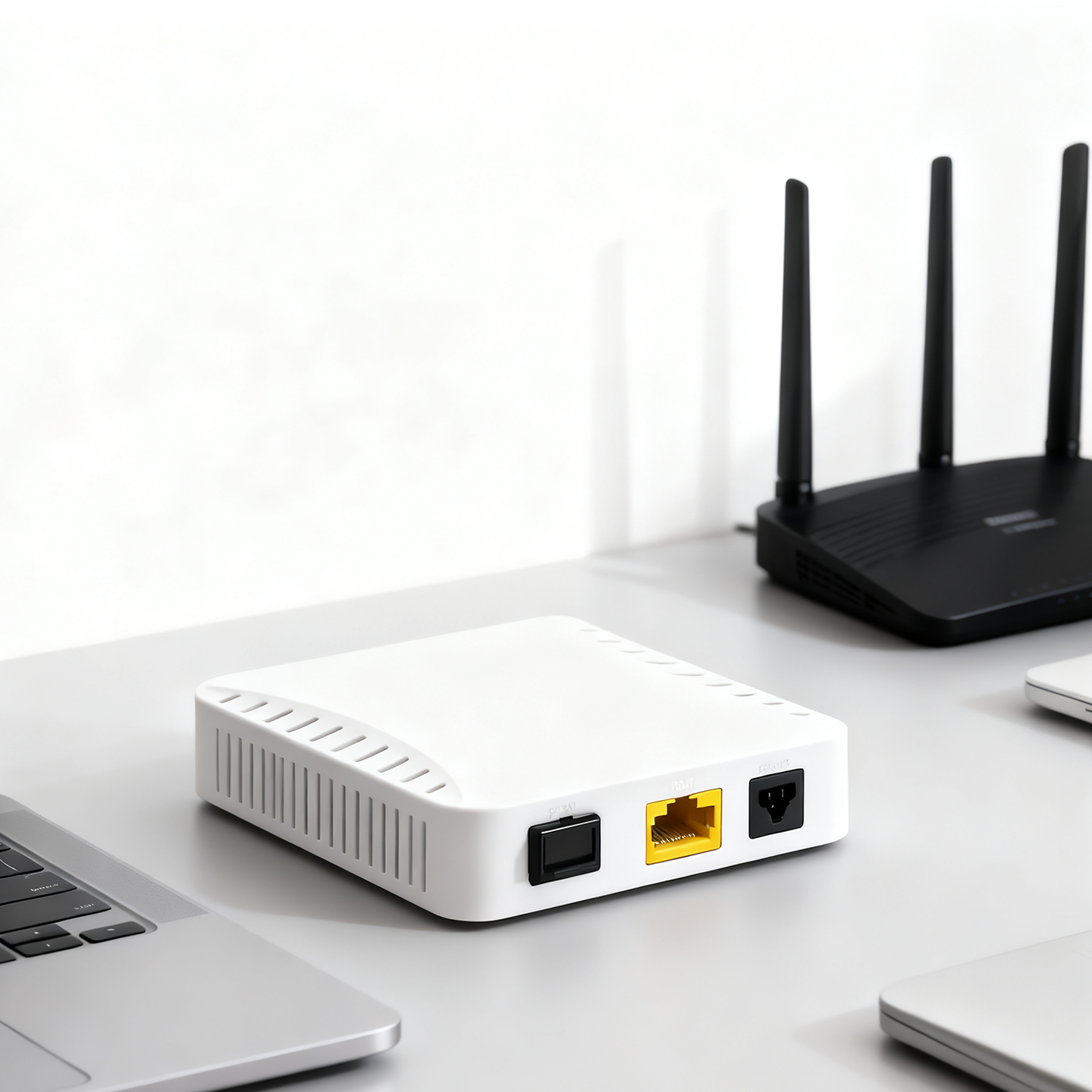

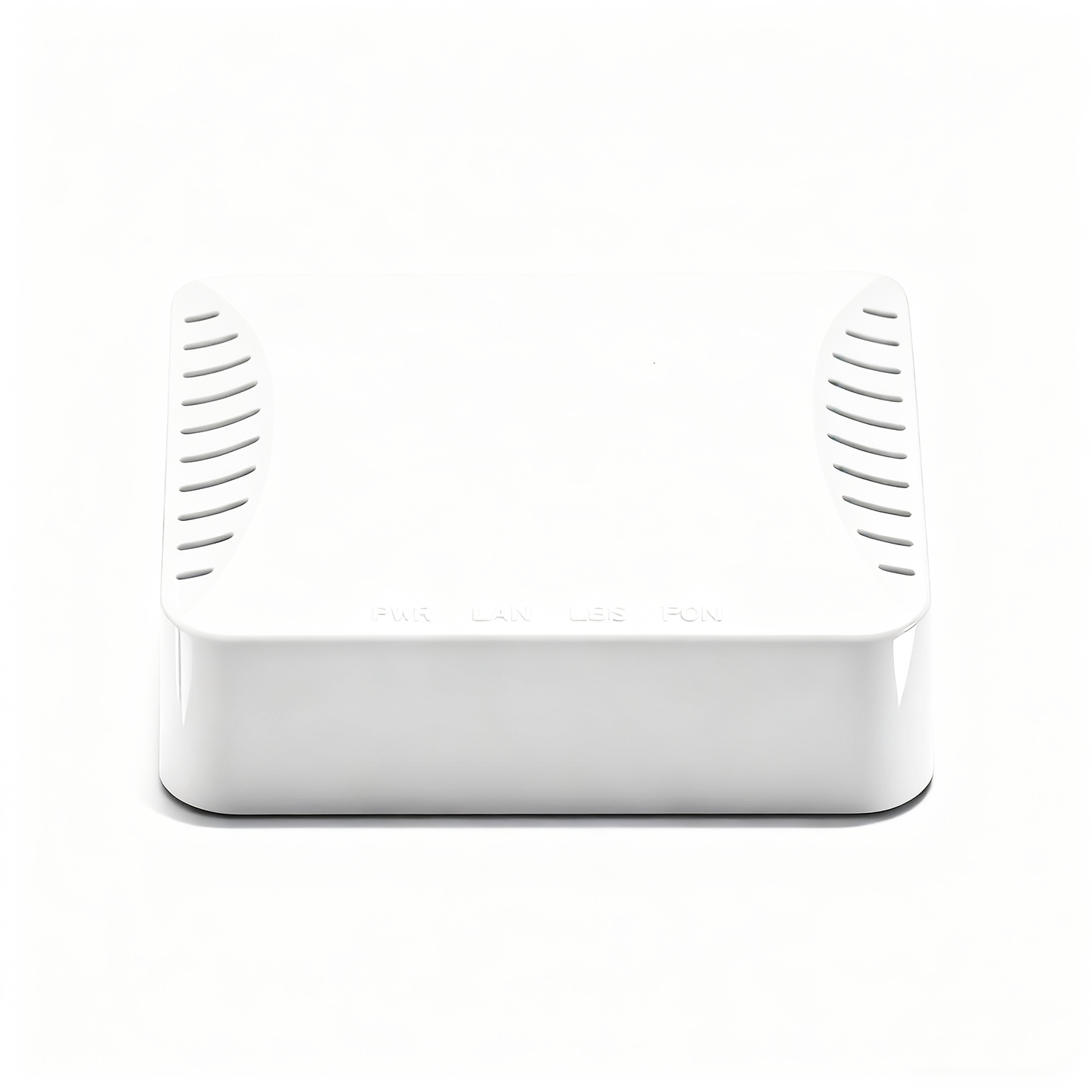

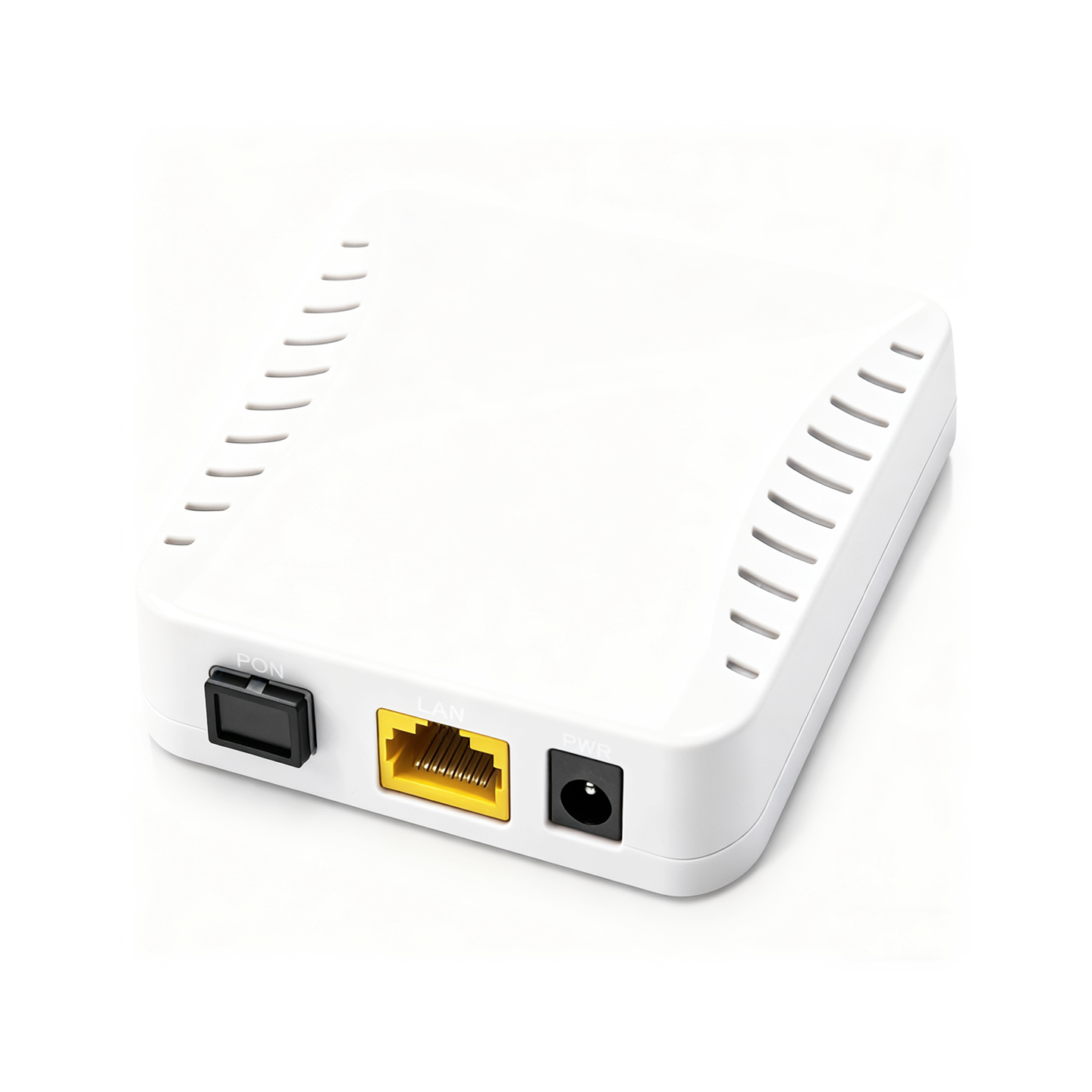

Ultra-Stable INFICOMO HG1001 XPON ONT 1* for RJ45 12V/0.5A Applicable to Third-party OLT for FTTH Mini ONU RoHS CE Certified

EPON/GPON Dual-mode Access Reduce the Investment of Operators

Wide-Working-Temperature Designed

Compatible with Various OLT, Flexible Networking

ONU plug-and-play, Quick Connect

Boasting an exquisitely crafted design, it effortlessly becomes the center of attention in any setting.

Specification

Hardware
Dimension	78mm x 78mm x 21mm (L×W×H)
Net weight	0.06Kg (without package)
Operating condition	Operating Temp: -10 ~ +55°C Operating Humidity: 5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Power supply	≤4W
Interface	1GE
Indicators	POWER / PON / LOS / LAN1

Interface
PON interface	• Interface Type: SC/UPC, CLASS B+ • Transmission distance: 0ï½ž20km • Working wavelength: Up 1310nm; Down 1490nm • RX Optical power sensitivity: -27dBm • Transmission rate: GPON: Up 1.244Gbps; Down 2.488Gbps EPON: Up 1.244Gbps; Down 1.244Gbps
LAN interface	1*GE, Auto-negotiation RJ45 connectors

Software
Networking	• Flexible packet classification • Up to eight queues • SP/WRR/SP+WRR • Ingress rate limit • Egress shaping
Security	• Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p • DoS attack defending • Multiple VPN (IPSec, PPTP) passthrough • MAC address filtering • Broadcast/ Unicast/ Multicast attack protection • Broadcast packet rate limit • Dual image for firmware auto rollback
Management	• OMCI management • WEB GUI management • Local built-in diagnostic function • Logs and statistics • Remote upgrade by HTTP

PON Solution

Order info

Part Number	Description	Accessories Pack
HG1001	1XPON+1GE	AC-DC Power Adapter DC12V/0.5A

FAQ

Q1: What is your MOQ request?

Depends on products, different products have different MOQ, pls contact our sales for more details.

Q2: Do you Support ODM/OEM service?

Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.

Product Detail
