Better Signal, Wi-Fi 6 Next-Gen Speed
Higher Bandwidth
Extremely Powerful Penetration
| Parameter | Specification Details |
|---|---|

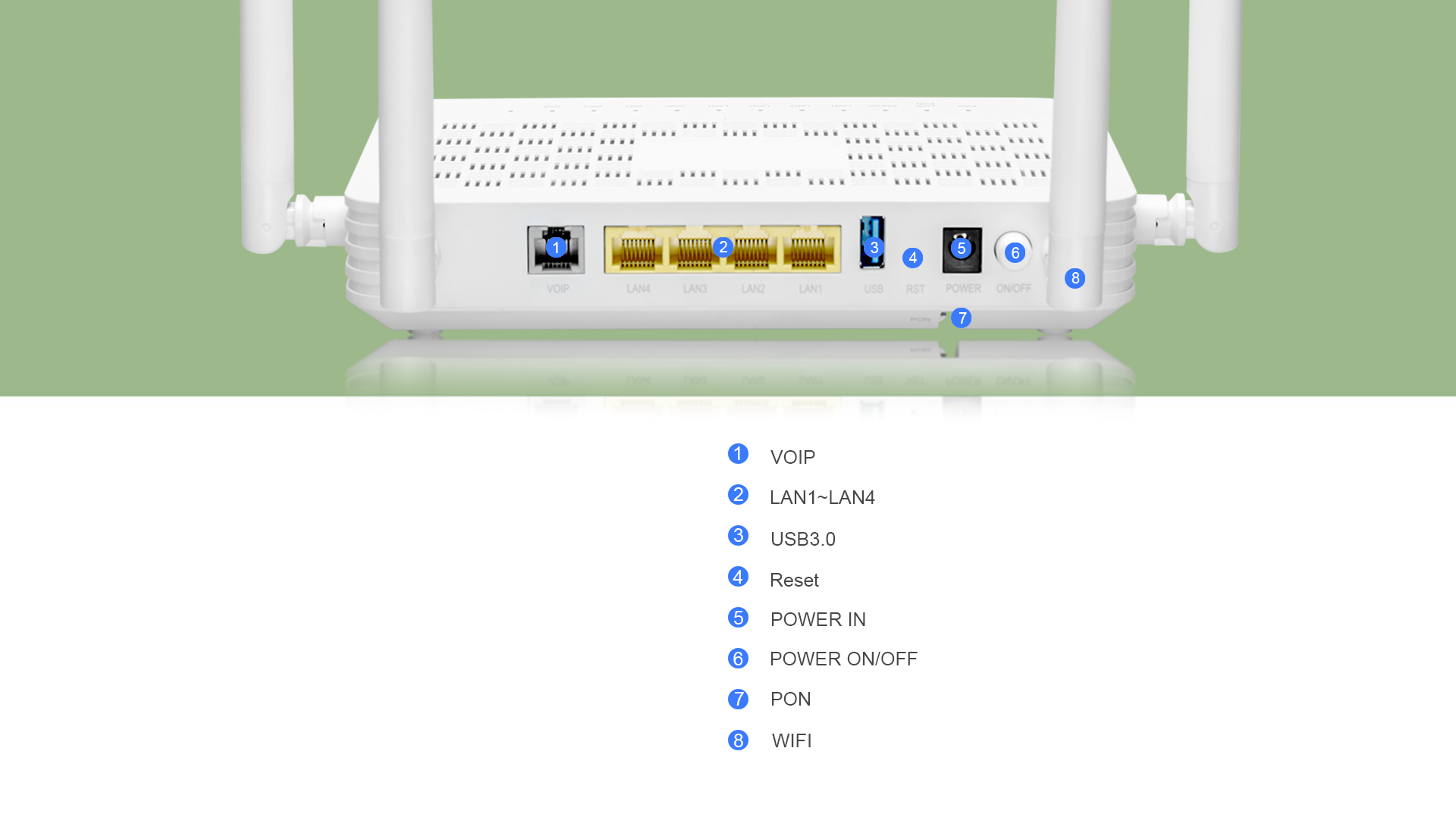

| Interface | 4GE+1VOIP+1USB+WIFI6+G/EPON |
| LED | POWER+PON/LOS +INTERNET +LAN+VOIP + WiFi + WPS+USB |
| Button | POWER + RST +WIFI+WPS+LED |
| Flash & Memory | Flash: 256MB NAND; Memory: 512 DDR4 |
| Power Supply | 12V/1.5A |
| Power Consumption | ≤15W |
| Environment Standard | Operating Temperature: -5°C~45°C Storage Temperature: -20°C~70°C Relative Humidity: 5%~95% (non-condensing) |
| Weight | 0.35KG |
| Size | 190mm*135mm*33mm (L*W*H) |
| Module Type | Class B+, SC/UPC |
| Wavelength | UP1310nm, Down1490nm |
| TX Optical Power | 0.5~5dbm |
| RX Optical Sensitivity | -28dBm |
| Transmission Distance | 0~20km |
| Transmission Rate | EPON: Upstream 1.25Gbps / Downstream 1.25Gbps GPON: Upstream 1.25Gbps / Downstream 2.5Gbps |
| LAN Interface Type | RJ45 (10/100/1000Mbps) |
| USB | USB3.0 |
| WIFI | Dual-band WIFI6 AX3000 2×2MIMO (2.4G & 5G) |
| VOIP | RJ11 |
| Model Configurations & Description |
|---|
| XPON, 4*1000M Base-T, 1*WIFI-6 (2.4G&5.8G 3000M), 1*USB3.0, 12V/1.5A |
| XPON, 4*1000M Base-T, 1*POTS, 1*WIFI-6(2.4G&5.8G 3000M), 1*USB3.0, 12V/1.5A |
| XPON, 4*1000M Base-T, 1*POTS, 1*WIFI-6(2.4G&5.8G 3000M), 1*USB3.0, 1*CATV, 12V/1.5A |
Yes, we can do OEM products. It's no problem.
Every single optic module is individually tested in the test center, and also tested for compatibility on a variety of different network equipments.
Yes, we can provide samples for you to check the quality.
We accept T/T, western union, Alibaba order...
For usual orders, we keep stock and could ship about 3 days after receiving the payment. For big quantities & special products, please check the lead time with the sales team.
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
