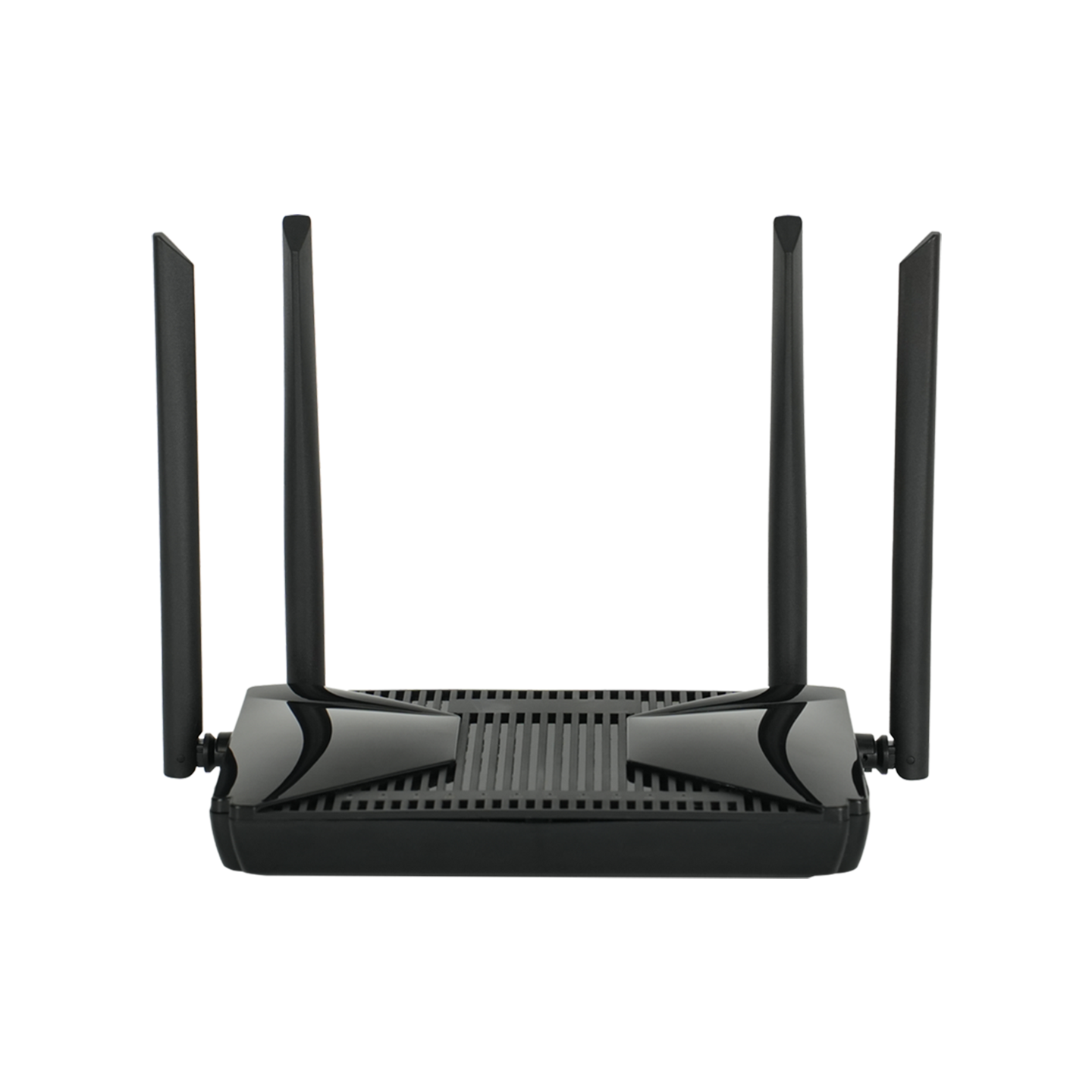

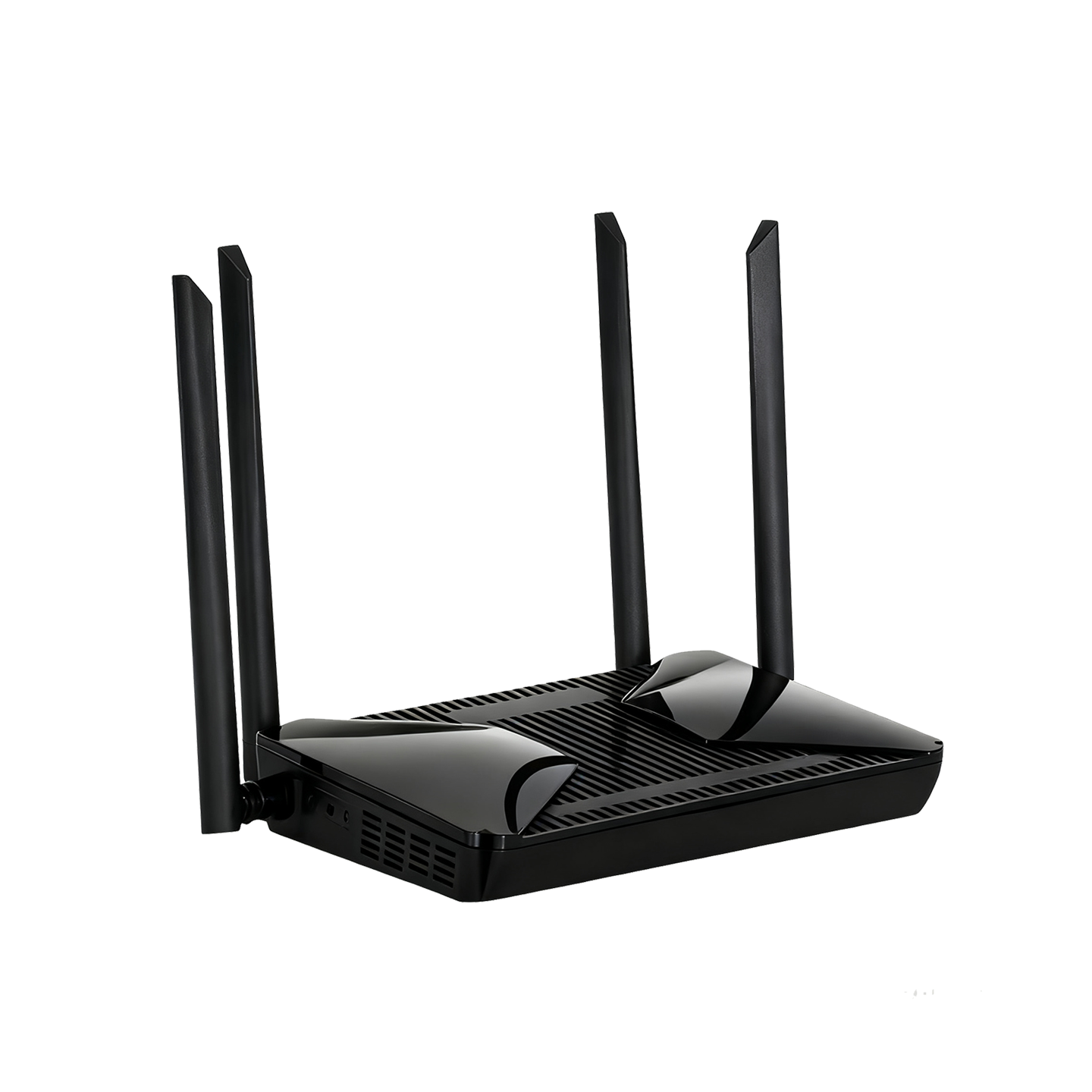

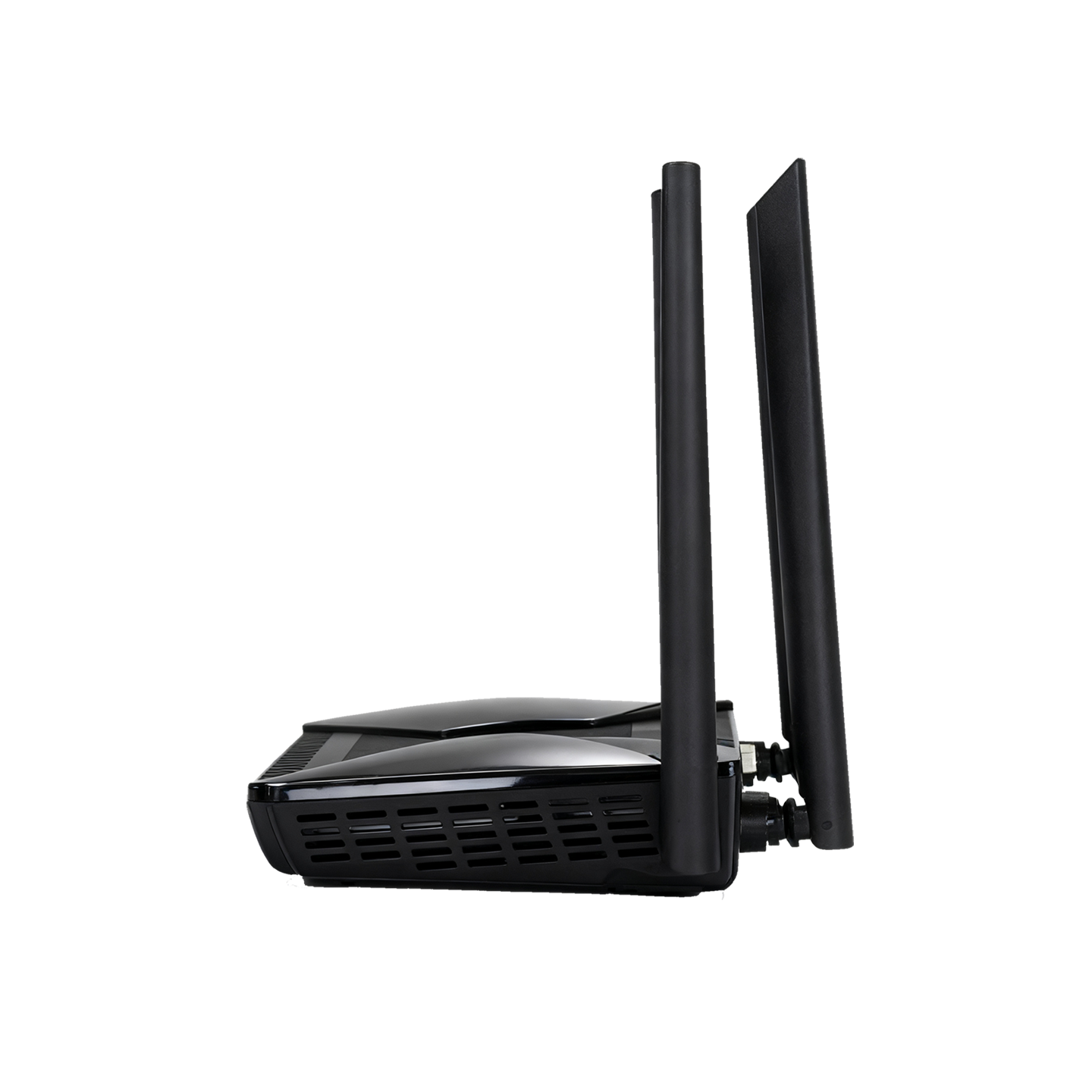

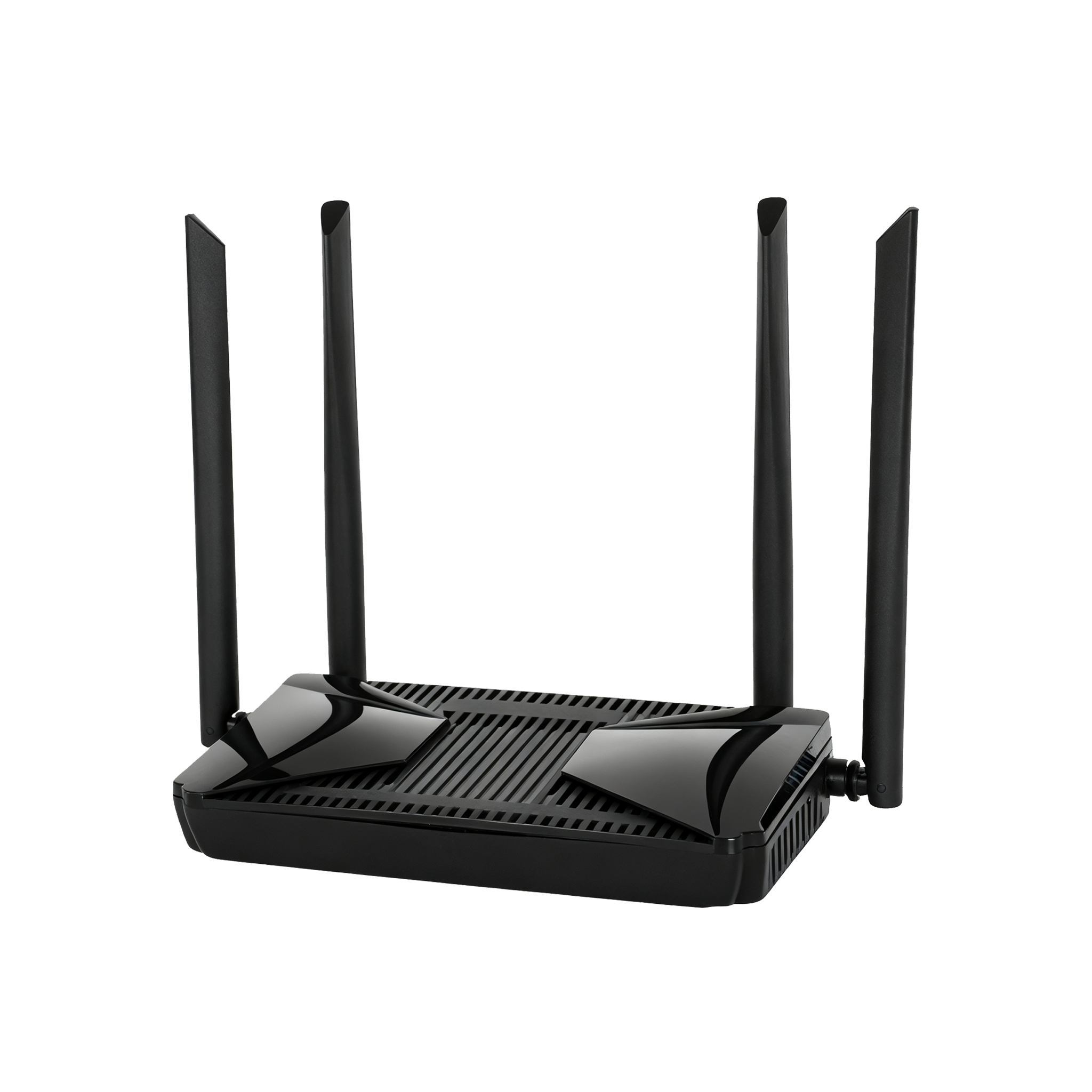

| Model Number | HG7024XZ |

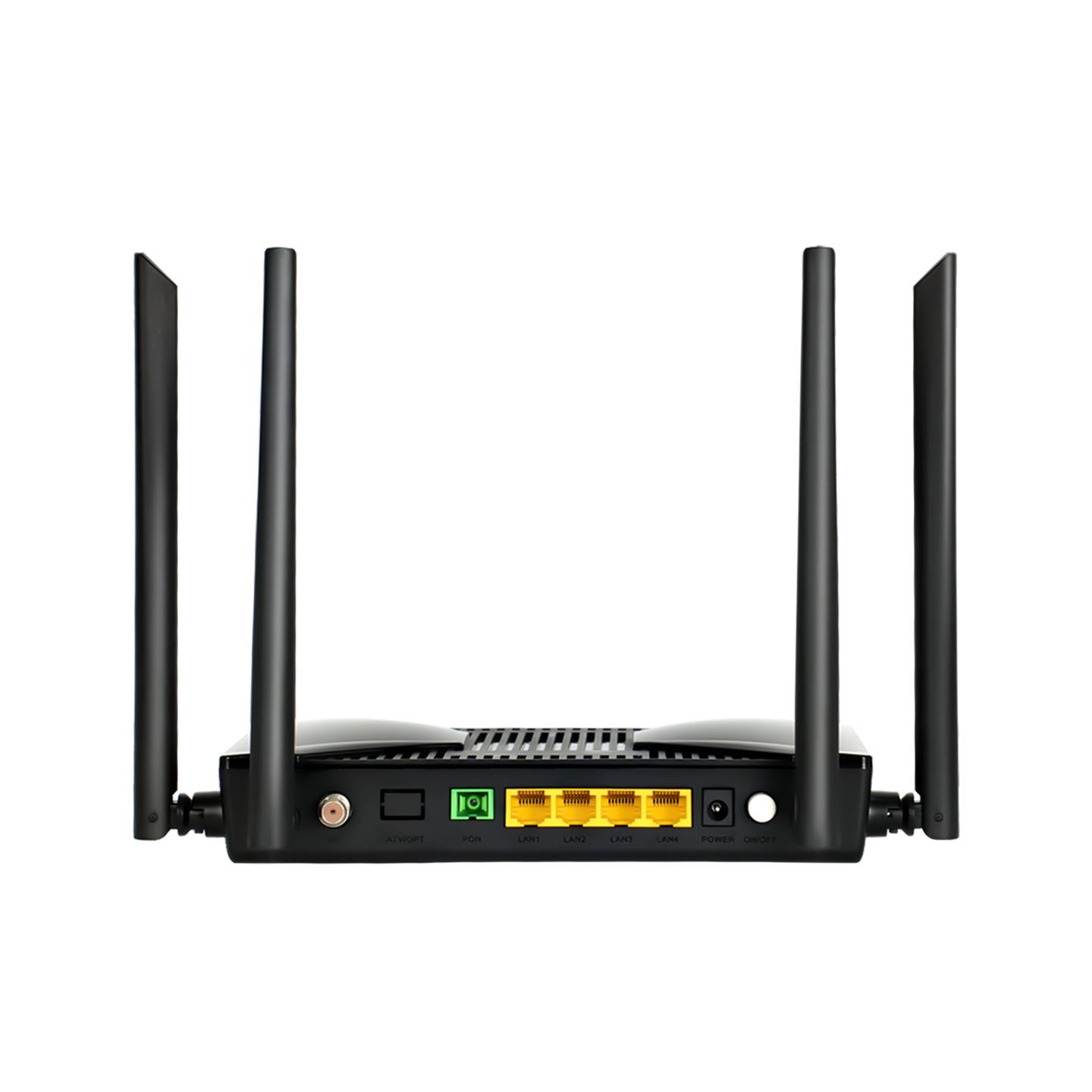

| Interface | 1* G/EPON + 4*GE + 2.4G/5.8G WLAN + 1*RF |
| Ethernet Interface | 4* RJ45 10/100/1000BASE-T |
| CATV Interface |
Interface type: 1*RF Optical receiving wavelength: 1550nm RF output level : 80 ± 1.5dBuV Input optical power: +2 ~ -15dBm AGC range: 0 ~ -12dBm Optical reflection loss: > 14 MER: > 31 @ -15dBm |
| PON Interface |
Interface Type: SC/UPC, CLASS B+ Transmission distance: 0 ~ 20km Working wavelength: Up 1310nm; Down 1490nm RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps; Down 2.488Gbps EPON: Up 1.244Gbps; Down 1.244Gbps |
| Wireless |
Interface type: External 4*2T2R antenna Antenna gain: 5dBi Interface maximum rate: 2.4G WLAN: 300Mbps 5.8G WLAN: 866Mbps Interface working mode: 2.4G WLAN: 802.11 b/g/n 5.8G WLAN: 802.11 a/n/ac |
| Indicator light | RF / OPT / 5G / 2.4G / LAN4 / LAN3 / LAN2 / LAN1 / LOS / PON / POWER |
| Power Supply | DC 12V / 1.5A |
| Power Adapter Input | 100V-240V AC, 50Hz-60Hz |
| Power Consumption | 12W |
| Working Temperature | -20°C ~ +50°C |
| Environment Humidity | 5% ~ 95% (non-condensing) |
| Dimensions (L × W × H) | 196mm x 125mm x 32mm |
| Description | XPON, 4*1000M Base-T, 1*WIFI-5 (2.4G & 5G 1200M), 1*CATV, 12V/1.5A. |
