WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
1 / 5
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal
WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal

WiFi 6 ZXHN F6610M GPON ONT with 4GE POTS USB Dual-Band 2.4G/5G SC/UPC Optical Terminal

Send Inquiry

Product Description

F6610M AX3000 WiFi6 XPON ONT Banner
The F6610M AX3000 WiFi6 XPON ONT is an advanced network device that combines the power of XPON technology with the cutting-edge features of WiFi6. With ultra-fast speeds and enhanced network efficiency, it provides a seamless and reliable Internet experience. Equipped with 4 GE LAN ports, 1 TEL port, and 2 USB ports, it provides high-speed connectivity for a wide range of devices. The F6610M offers advanced security features, easy installation, and powerful network management options. Experience lightning-fast Internet speeds and superior performance with this feature-rich device.

Product Design

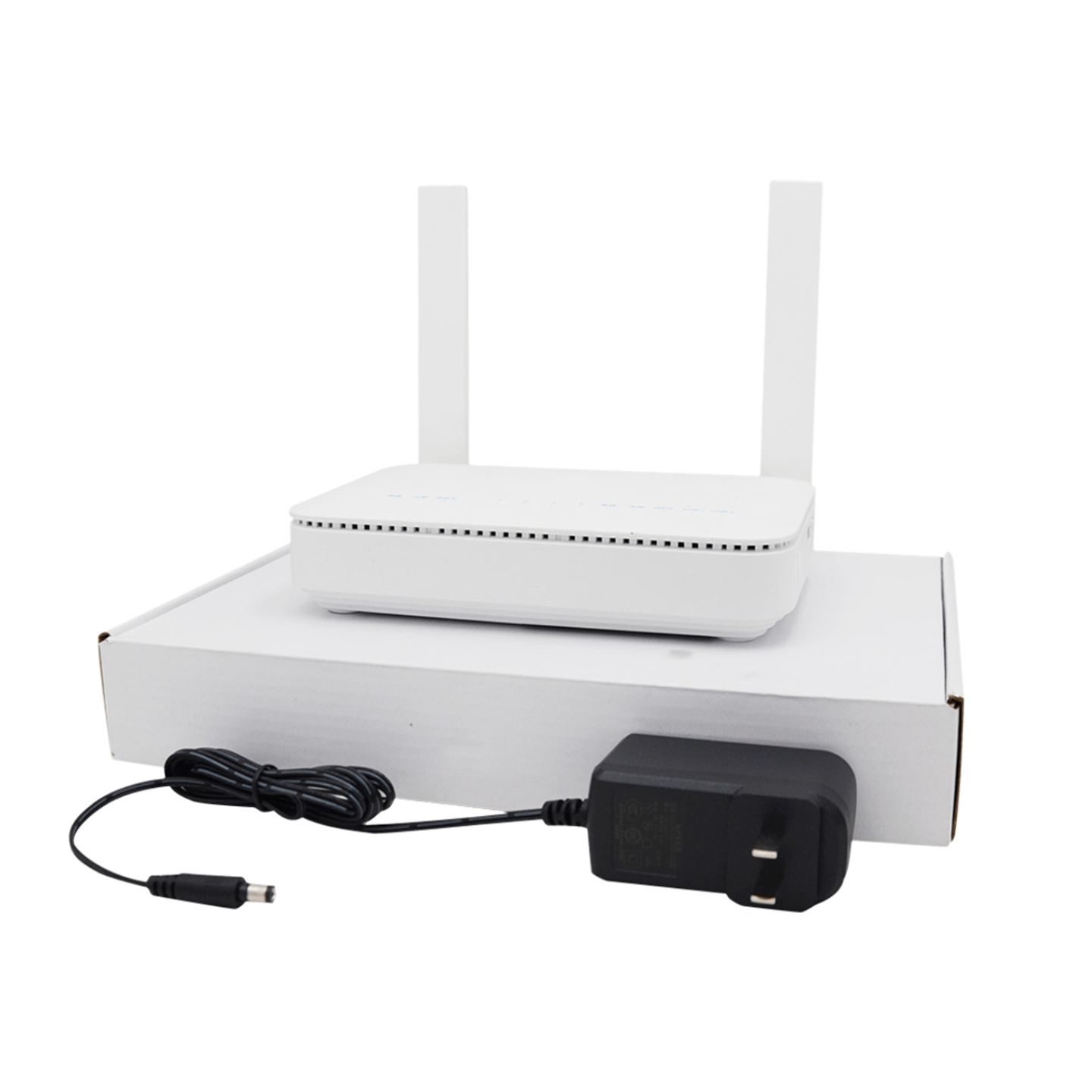

Product Design View 1

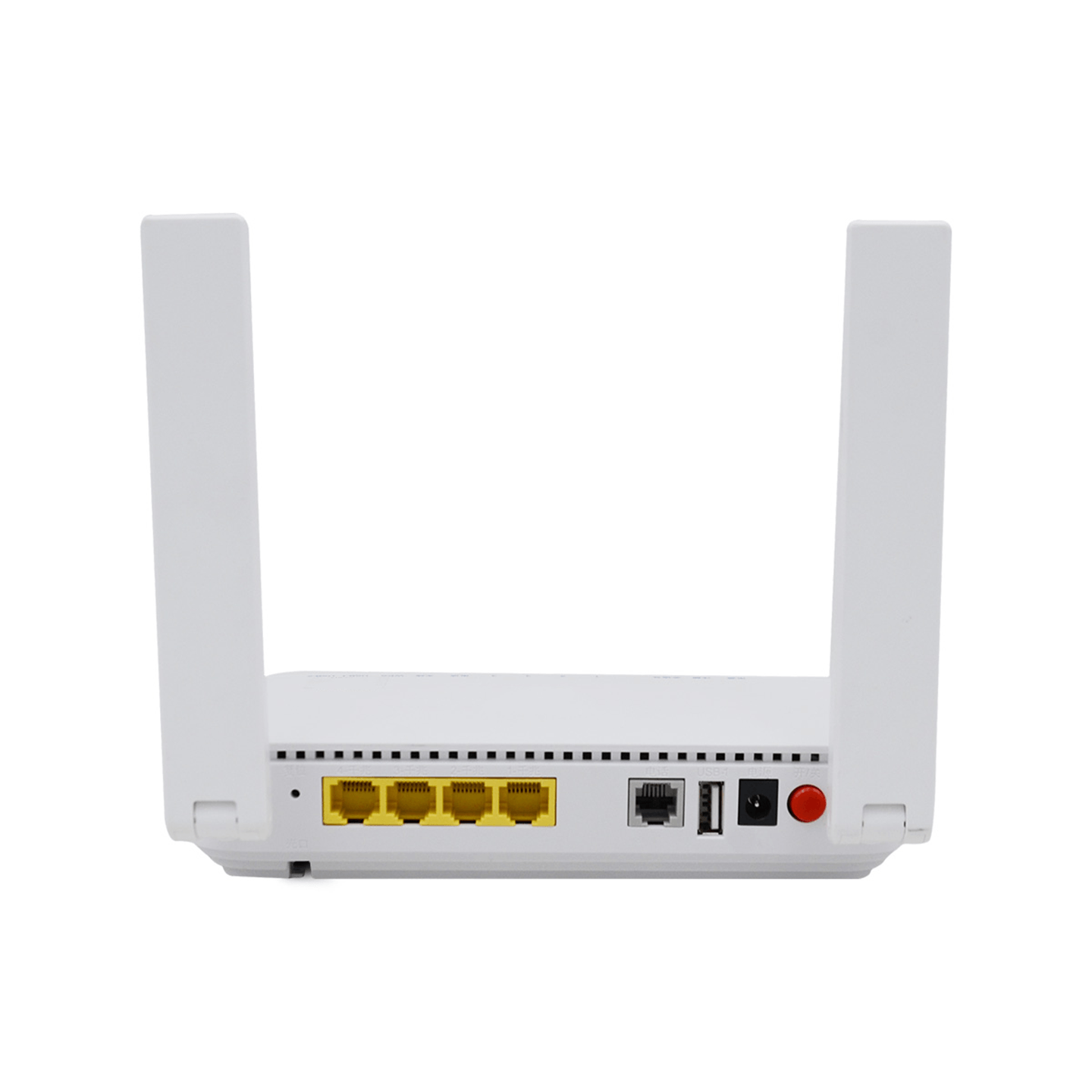

Product Design View 2

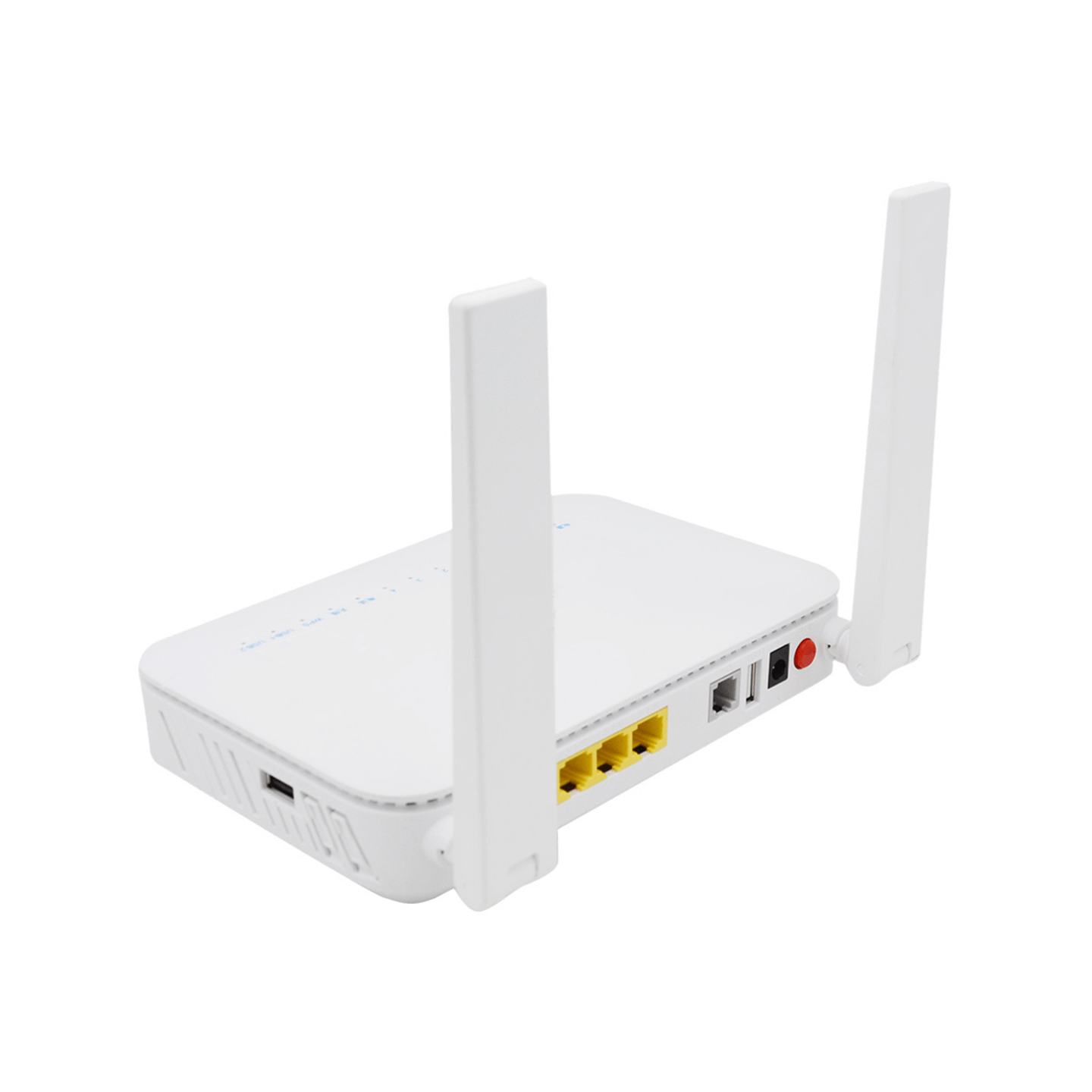

Product Design View 3

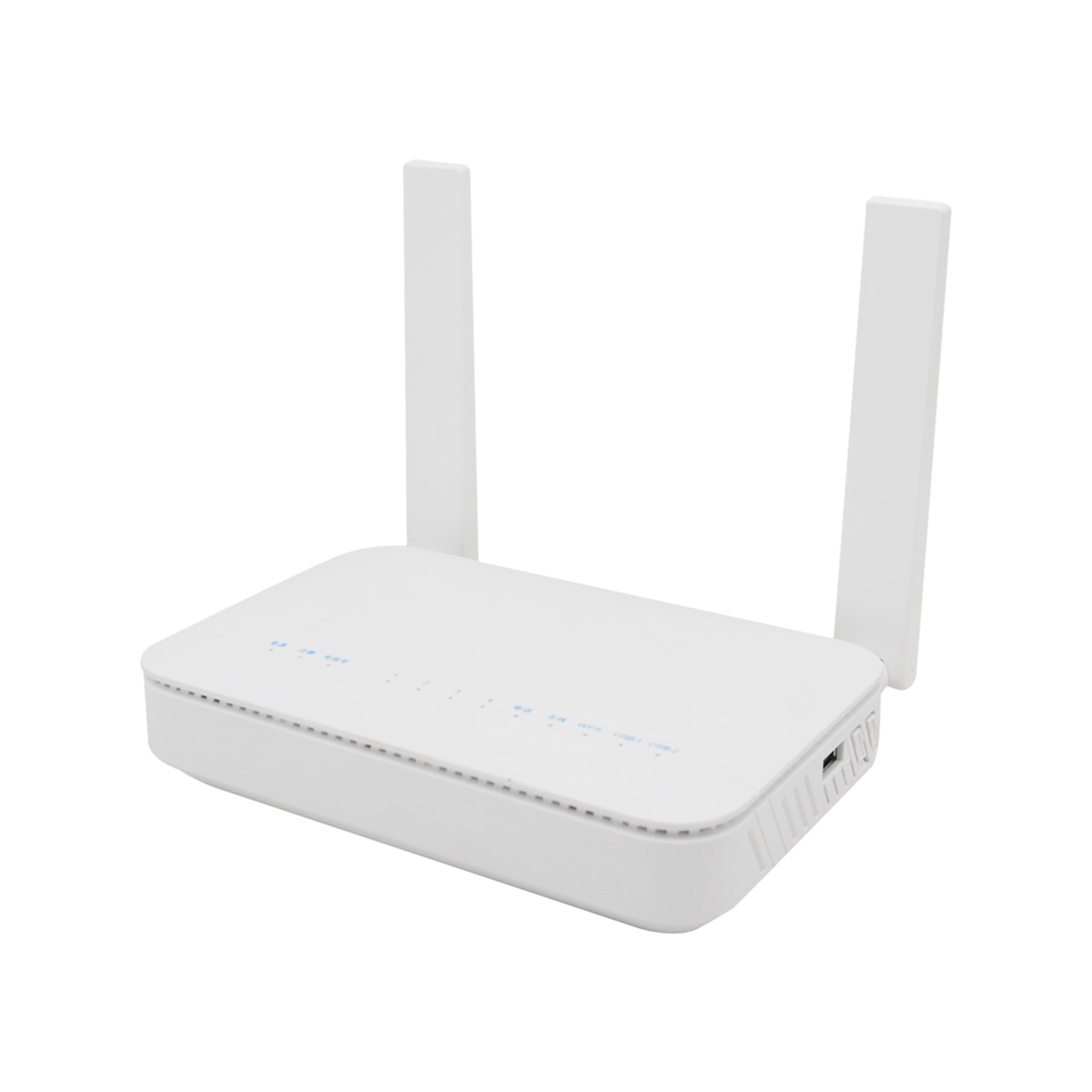

Product Design View 4

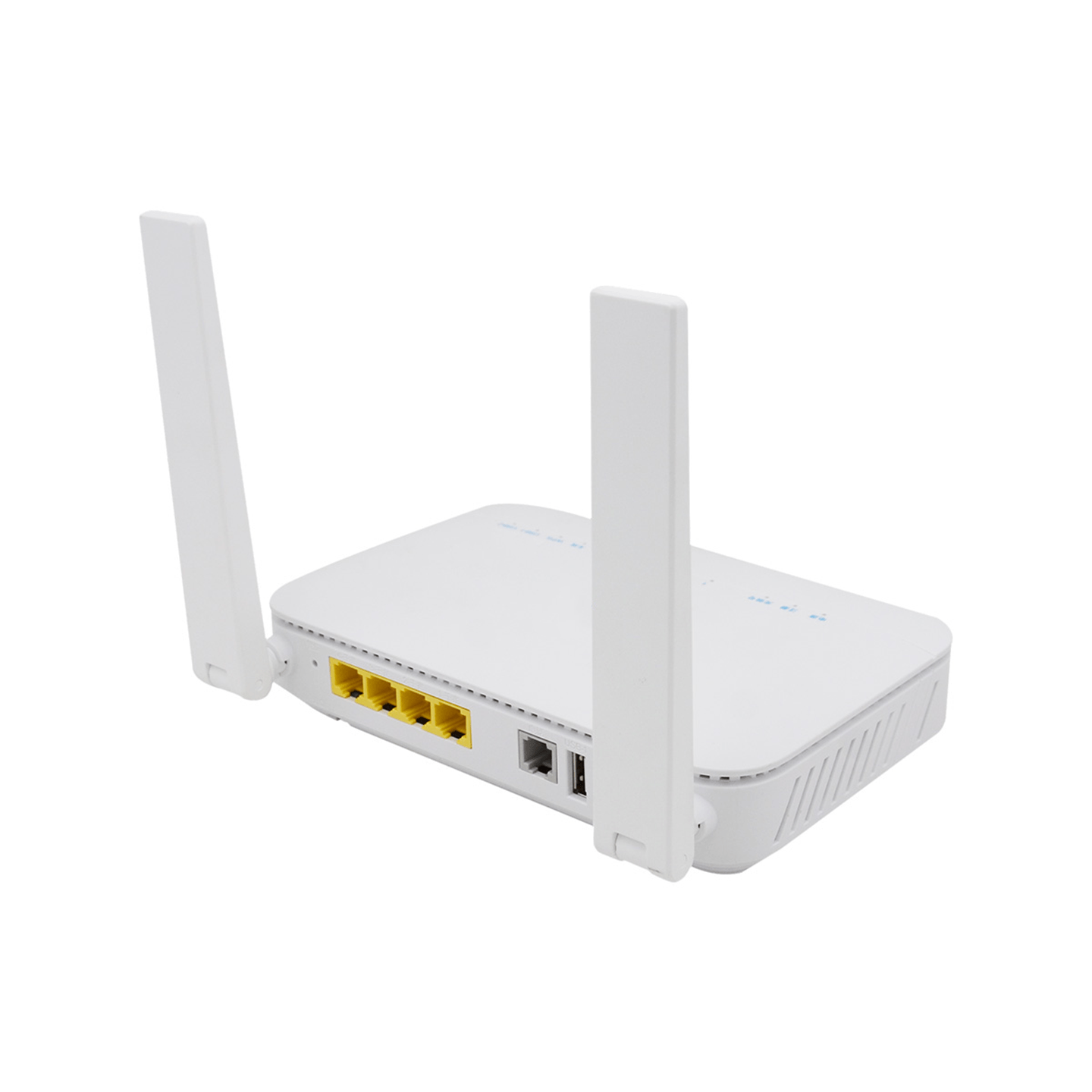

Product Design View 5
Product Design View 6

Specification

Basic Parameters
Ports 1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 1 x USB
SC/UPC XPON
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Static power consumption 5.3 W
Max. power consumption 18 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 V DC, 1.5 A
WLAN 2.4GHZ: 802.11n
5GHZ: 802.11ax
Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
GPON Port
  • Class B+
  • Receiver sensitivity: –27 dBm to –29 dB
  • Overload optical power: –8 dBm
  • Wavelengths: US 1310 nm, DS 1490 nm
  • Wavelength Blocking Filter (WBF) of G.984.5
  • Flexible mapping between the GEM port and TCONT
  • GPON: consistent with the SN or password authentication defined in G.984.3
  • Bi-directional FEC
  • SR-DBA and NSR-DBA
  • Type B (single-homing and dual-homing)
WLAN Specs
  • IEEE 802.11 b/g/n/ax (2.4G)
  • IEEE 802.11 a/n/ac/ax (5G)
  • 2 x 2 MIMO (2.4G)
  • 2 x 2 MIMO (5G)
  • Antenna gain: 5 dBi
  • WMM/Multiple SSIDs/WPS
  • 2.4G and 5G concurrency
  • Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G)
  • Beamforming
  • Band steering
  • DL OFDMA
  • DL MU-MIMO
  • 1024 QAM
  • 160 MHz frequency bandwidth
  • WPA3
Dimensions 195 mm x 125 mm x 35 mm (length x width x height)
Weight About 400g

Order Info

Description Accessories Pack
GPON ONU, 1*GPON + 4*GE RJ45 + 1*RJ11 POTS + 1*USB+ 2.4GHz&5GHz Wi-Fi6 (2*External 5dBi antennas) Power Adapter

FAQ

Q1: What is your MOQ request?
A1: Depends on products, different products have different MOQ, please contact our sales for more details.
Q2: Do you Support ODM/OEM service?
A2: Yes, we can offer the customization service to you.
Q3: Do your products support other brands?
A3: Yes, all of our products are without lock, supporting other brands too.
Q4: Are you the manufacturer or trading company?
A4: We are the manufacturer, we support factory view tour.
Q5: Do you offer free samples?
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
Q6: Are you able to provide the local certificates?
A6: Yes, according to the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
