| Interface Characteristics | |

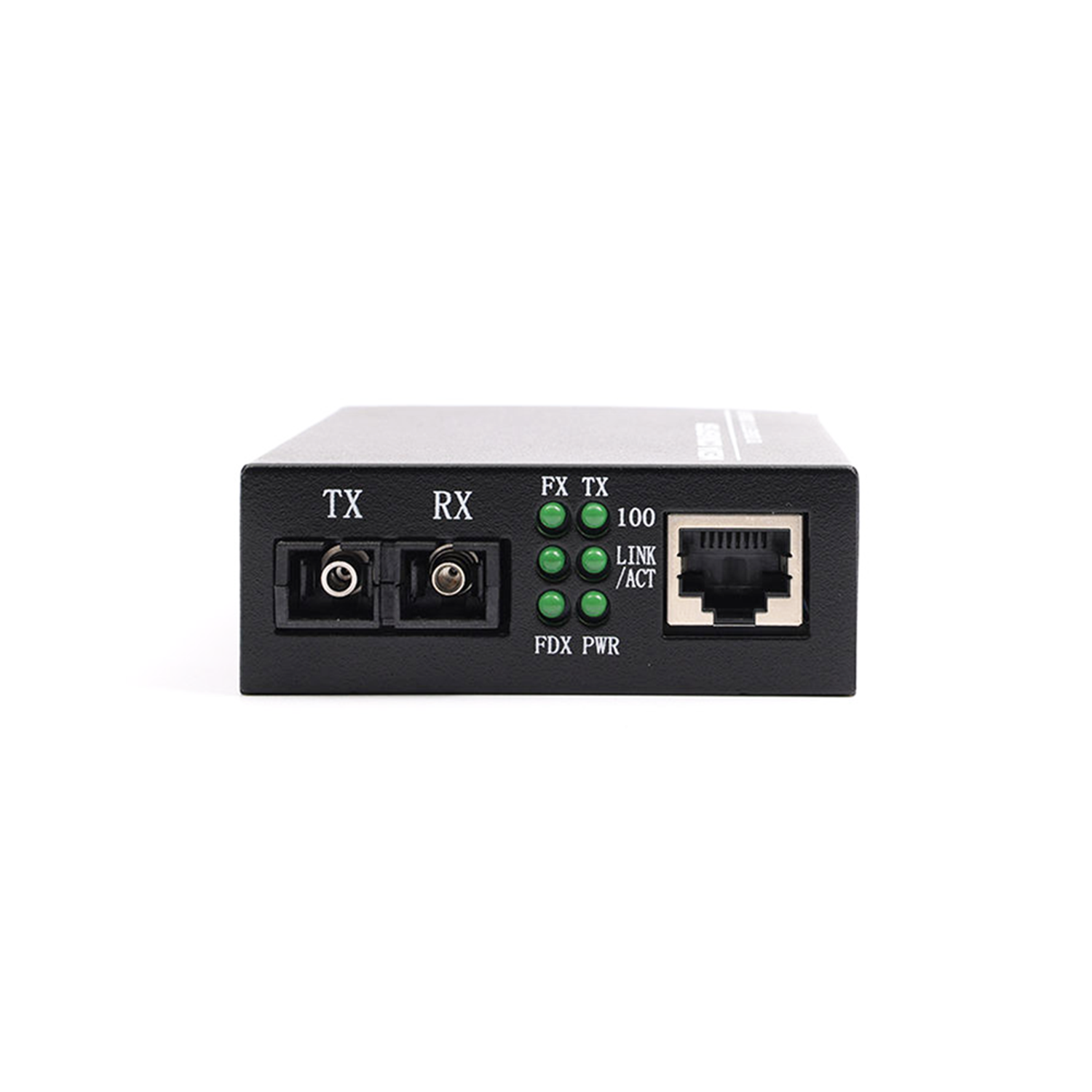

| Interface | 1* 10/100Base-TX RJ45 port (Data) 1*155M uplink SC fiber port (Data) |
| Ethernet Port | 10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Optical Fiber Port | 155Mbps, multimode dual fiber SC interface |
| Optical Cable / Distance | Multimode: 850nm / 0 ~ 500m, 1310nm / 0 ~ 2km |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 1.0Gbps |
| Forwarding Rate@64byte | 0.3Mpps |
| MAC | 1K |
| Buffer Memory | 768K |
| Jumbo Frame | 1536byte |
| LED Indicator | Power: PWR (green), Data: L/A (green), Single / duplex: FDX (green), Fiber: FX (green), Rate: 10/100 (green) |
| Power | |

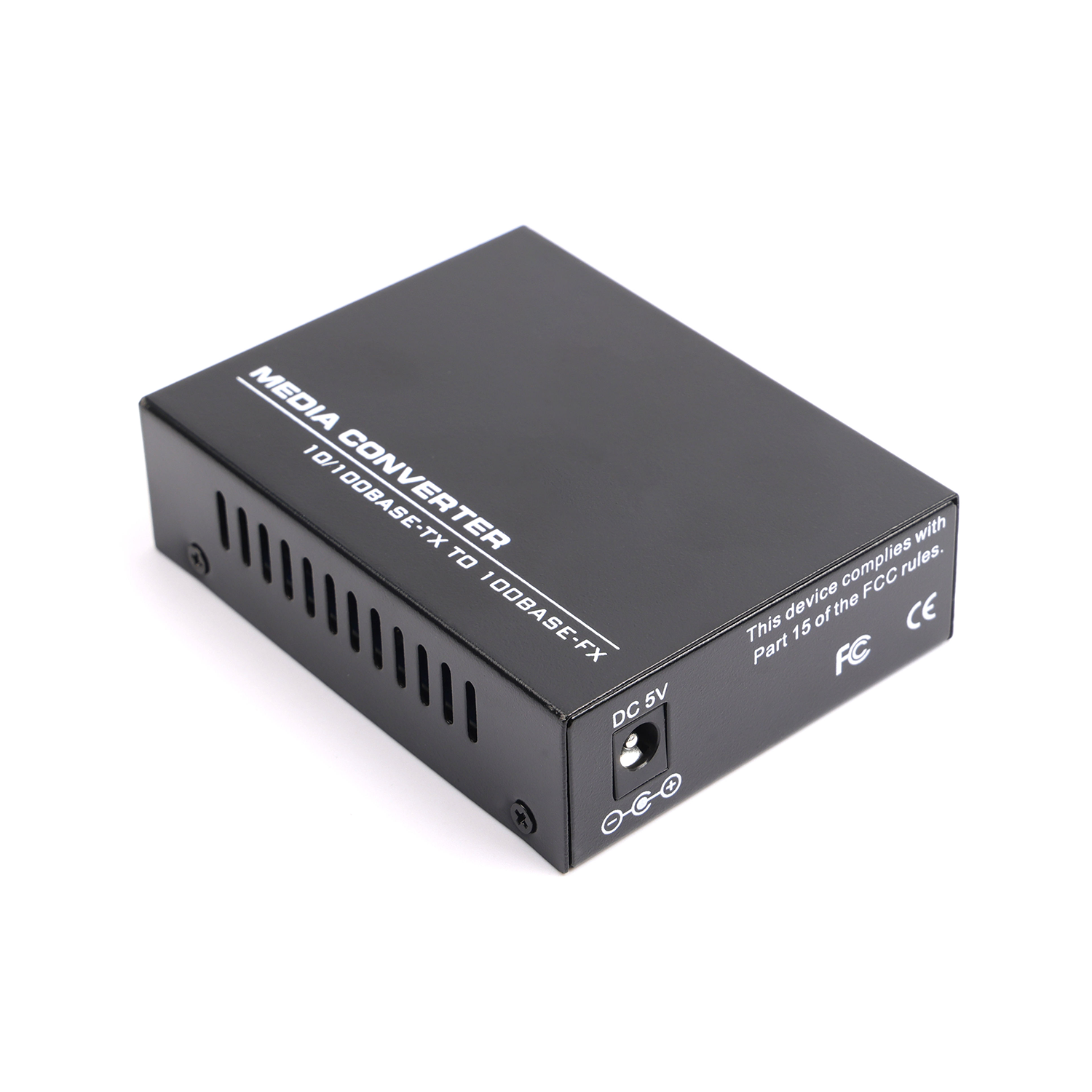

| Total PWR / Input Voltage | 3W / (5VDC) |
| Power Consumption | Standby < 1W, Full Load < 3W |
| Physical Parameter | |
| Operation TEMP / Humidity | -20 ~ +55°C; 5% ~ 90% RH Non-condensing |
| Storage TEMP / Humidity | -40 ~ +85°C; 5% ~ 95% RH Non-condensing |
| Dimension (L*W*H) | 94*71*26mm |
| Net / Gross Weight | < 0.2kg / < 0.4kg |
| Installation | Desktop, 2U-14 slot rack |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Warranty | 1 year, lifelong maintenance. |
| Model | Introduction | Function |
|---|---|---|
| RD-FE101-20A RD-FE101-20B |
Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS2401-SX | Fiber Media Converter 10/100Mbps 550m | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm |
| RD-GS2401-LX | Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
