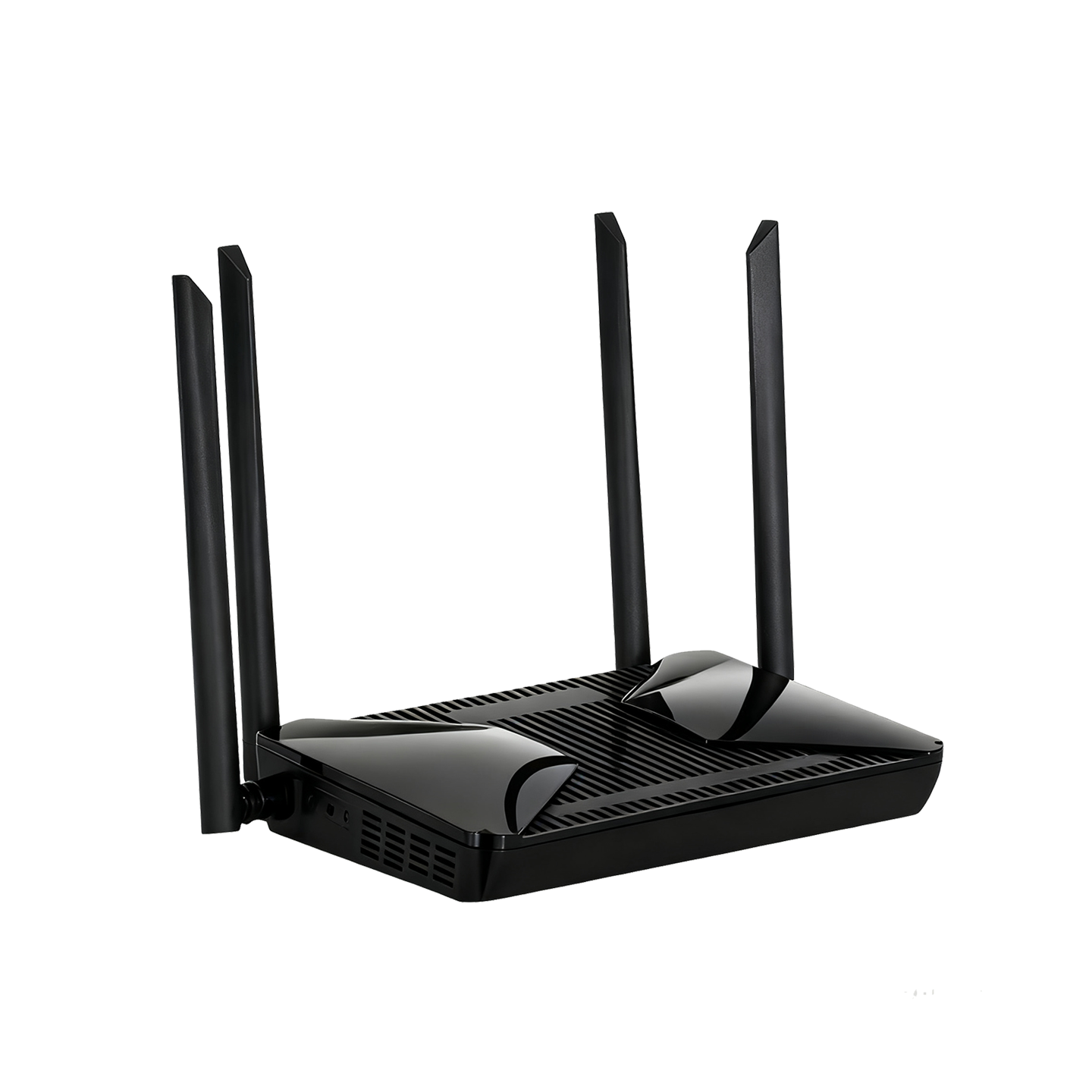

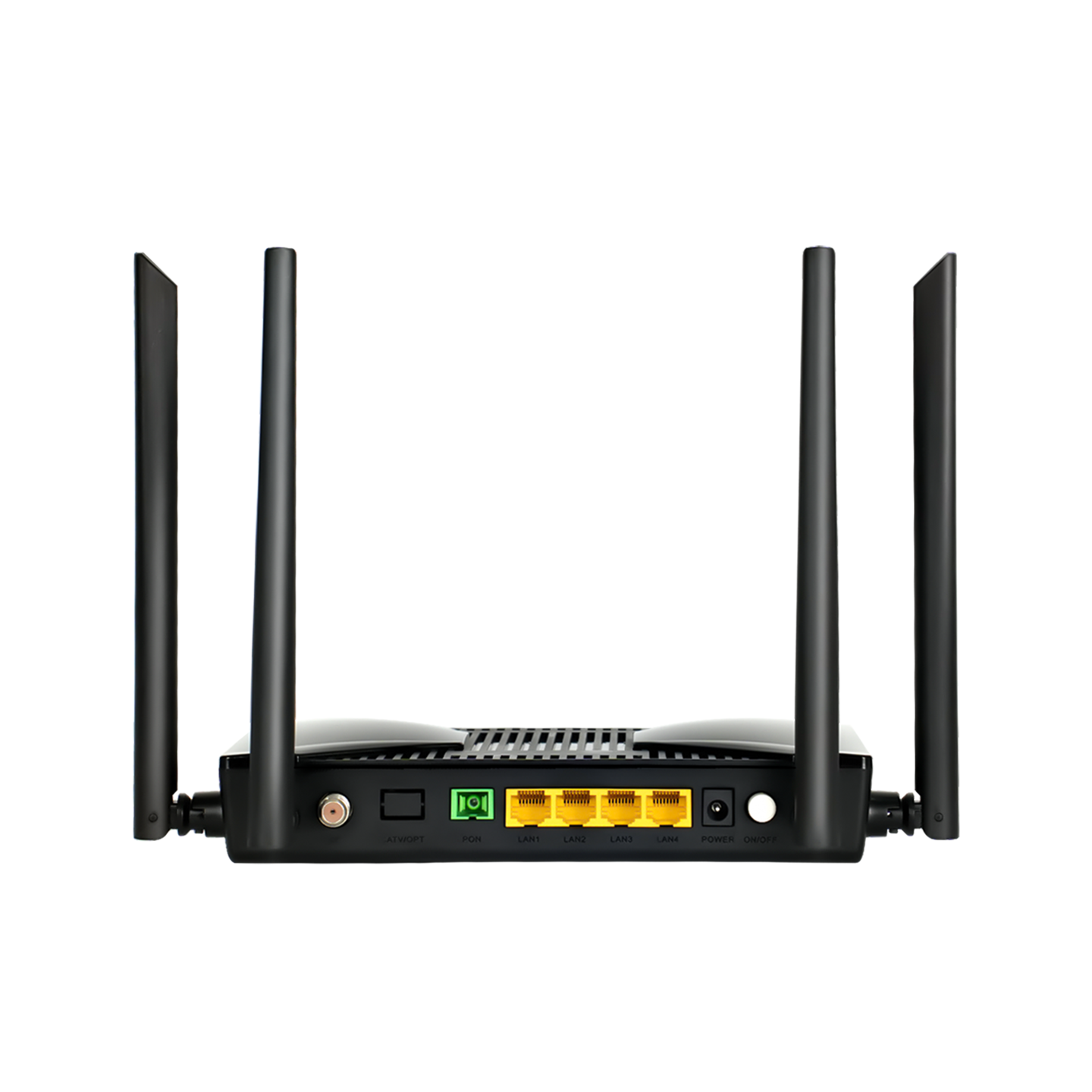

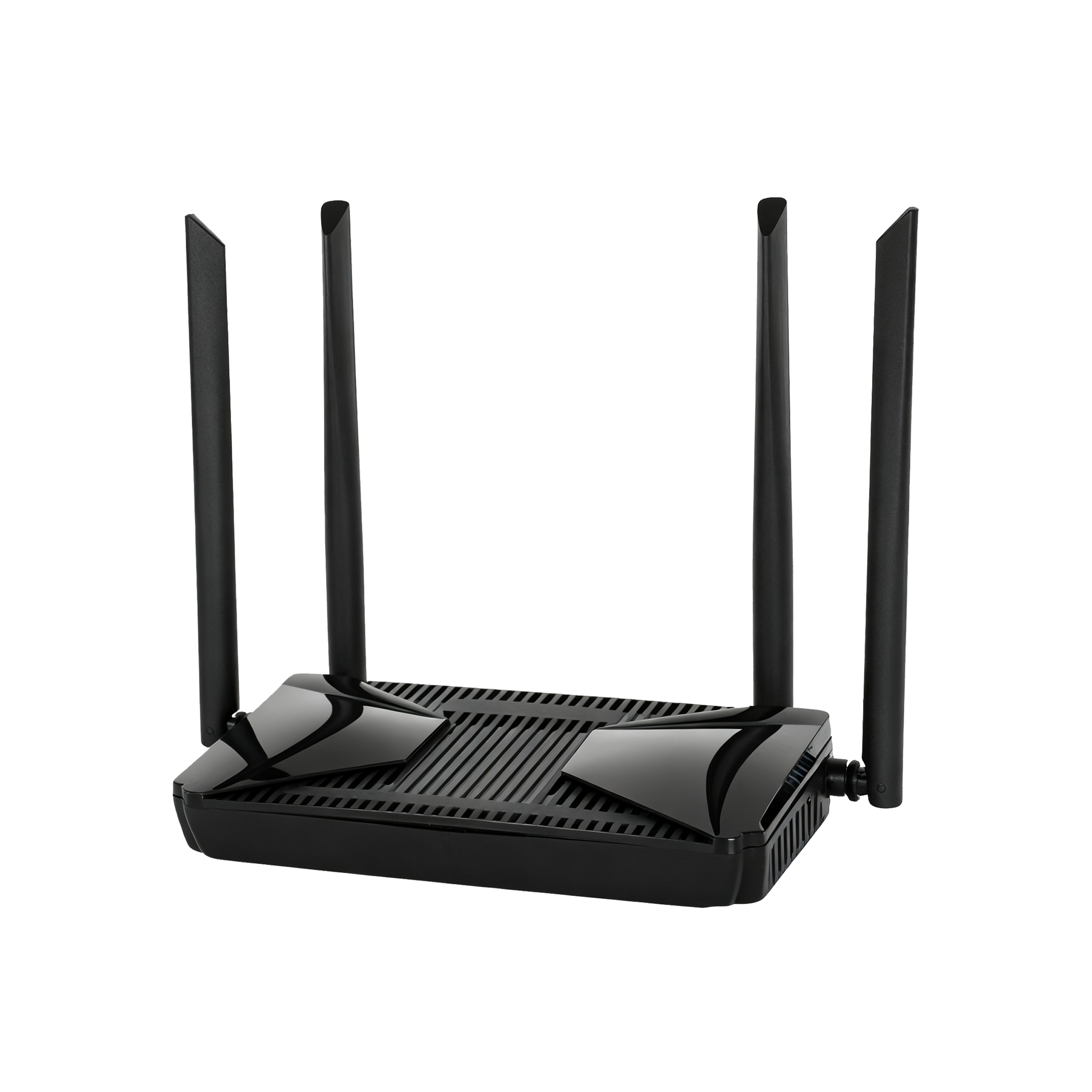

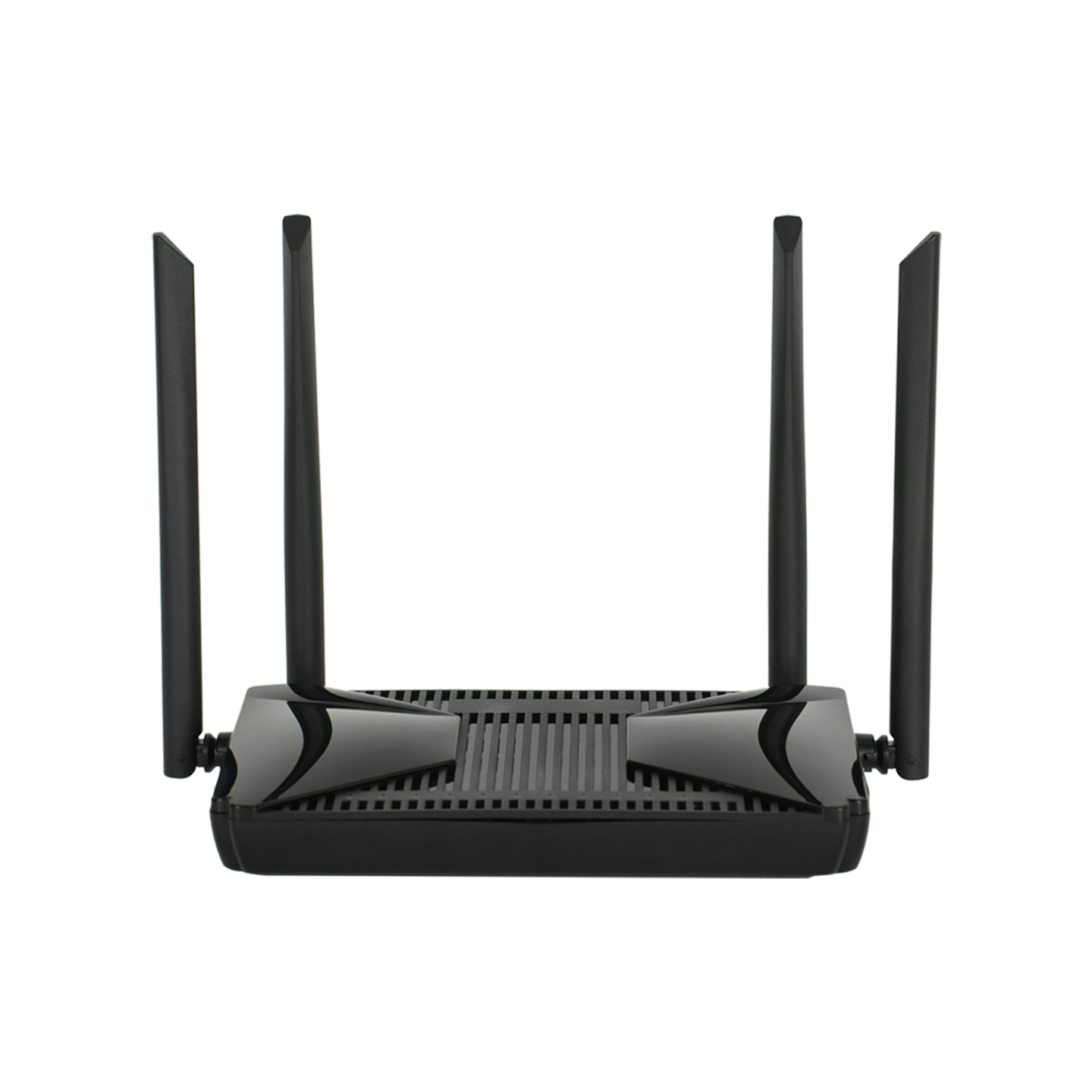

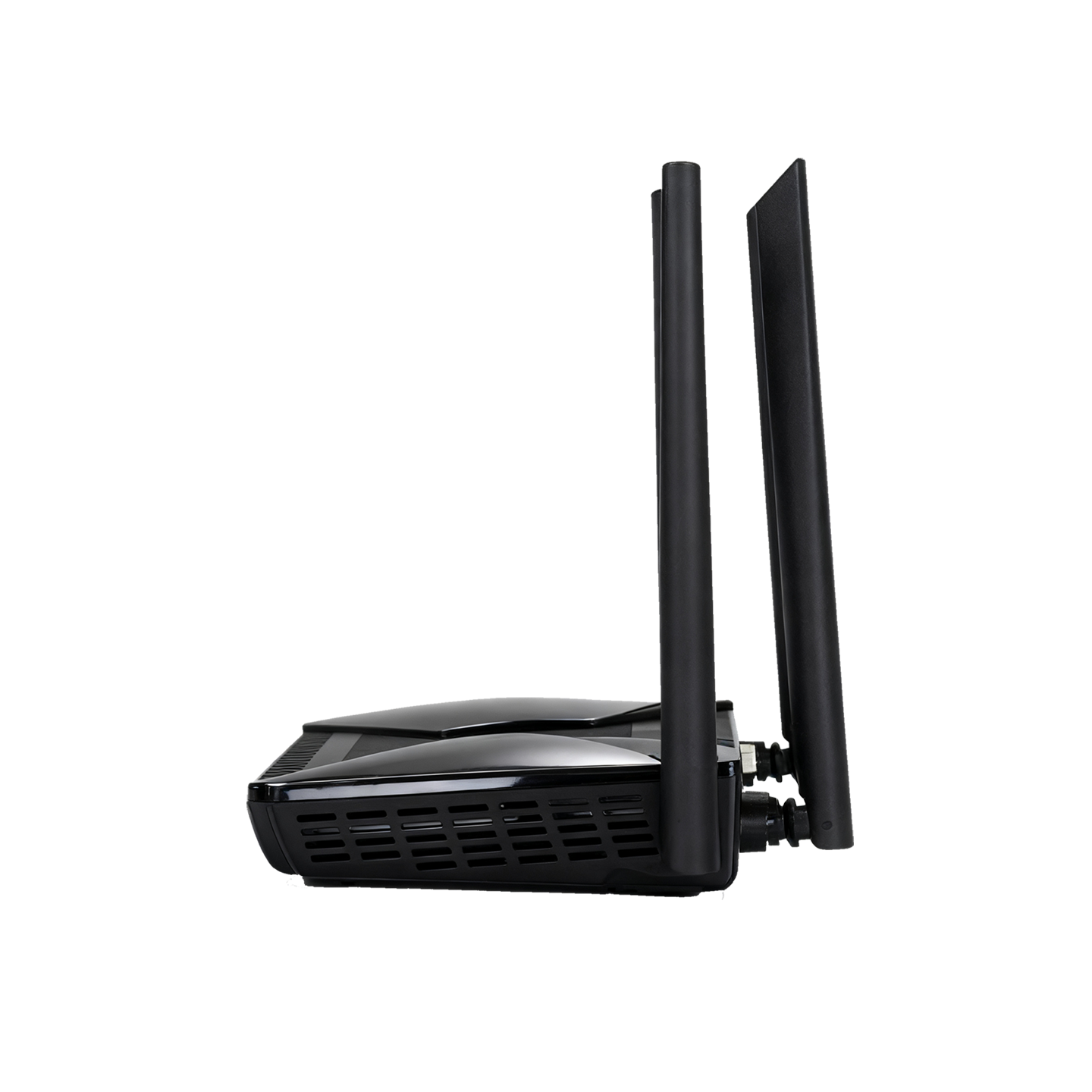

XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
1 / 5
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV
XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV

XPON ONU English Firmware AX3000 WiFi6 5G 4 Antenas AC Dualband Router GPON FTTH RJ45 CATV

Send Inquiry

Product Description

Better Signal, Wi-Fi 6 Next-Gen Speed
Better Signal, Wi-Fi 6 Next-Gen Speed
Higher bandwidth
Higher bandwidth
EPON/GPON Dual-mode Access
EPON/GPON Dual-mode Access Reduce the Investment of Operators
Compatible with Various OLT
Compatible with Various OLT, Flexible Networking
2.4G+5G Dual-band WiFi
2.4G+5G Dual-band WiFi, High-Speed Connection
Lag-free gaming and connection
It ensures lag-free gaming, seamless online collaboration, and effective remote video meetings.
Compact & Elegant Design
Compact & Elegant Design
Multiple Application Scenarios
Multiple Application Scenarios
Application Scenarios Detail
Broad Coverage & Reliability
Specification
Interface 4GE+CATV+WIFI6+G/EPON
LED RF/OPT/5G/2.4G/LAN4/LAN3/LAN2/LAN1/LOS/PON/POWER
Power Supply 12V/1.5A
Power Consumption ≤15W
Environment Standard Operating Temperature: -5℃~45℃
Storage Temperature: -20℃~70℃
Relative Humidity: 5%~95% (non-condensing)
Weight 0.45KG
Size W*D*H 196mm*125mm*32mm
Module Type Class B+, SC/APC
Wavelength UP 1310nm, Down 1490nm
TX Optical Power 0.5~5dbm
RX Optical Sensitivity -28dBm
Transmission Distance 0~20km
Transmission Rate EPON: Upstream 1.25Gbps/Downstream 1.25Gbps
GPON: Upstream 1.25Gbps/Downstream 2.5Gbps
LAN Interface Type RJ45 (10/100/1000Mbps)
CATV British F-head
WIFI Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G)
Order Info
Description
XPON, 4*1000M Base-T, 1*WIFI-6(2.4G&5.8G 3000M), 1*CATV, 12V/1.5A
FAQ
Can you do OEM?
Yes, we can do OEM products. It's no problem.
How is quality control managed?
Every single optic module is individually tested in the test center, and also tested for compatibility on a variety of different network equipments.
Can I get a sample first?
Yes, we can provide samples for you to check the quality.
How about the payment terms?
We accept T/T, western union, Alibaba order...
What is the lead time?
For usual order, we keep stock, could ship about 3 days after receiving the payment. For big quantity & special products, please check lead time with sales.
How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
