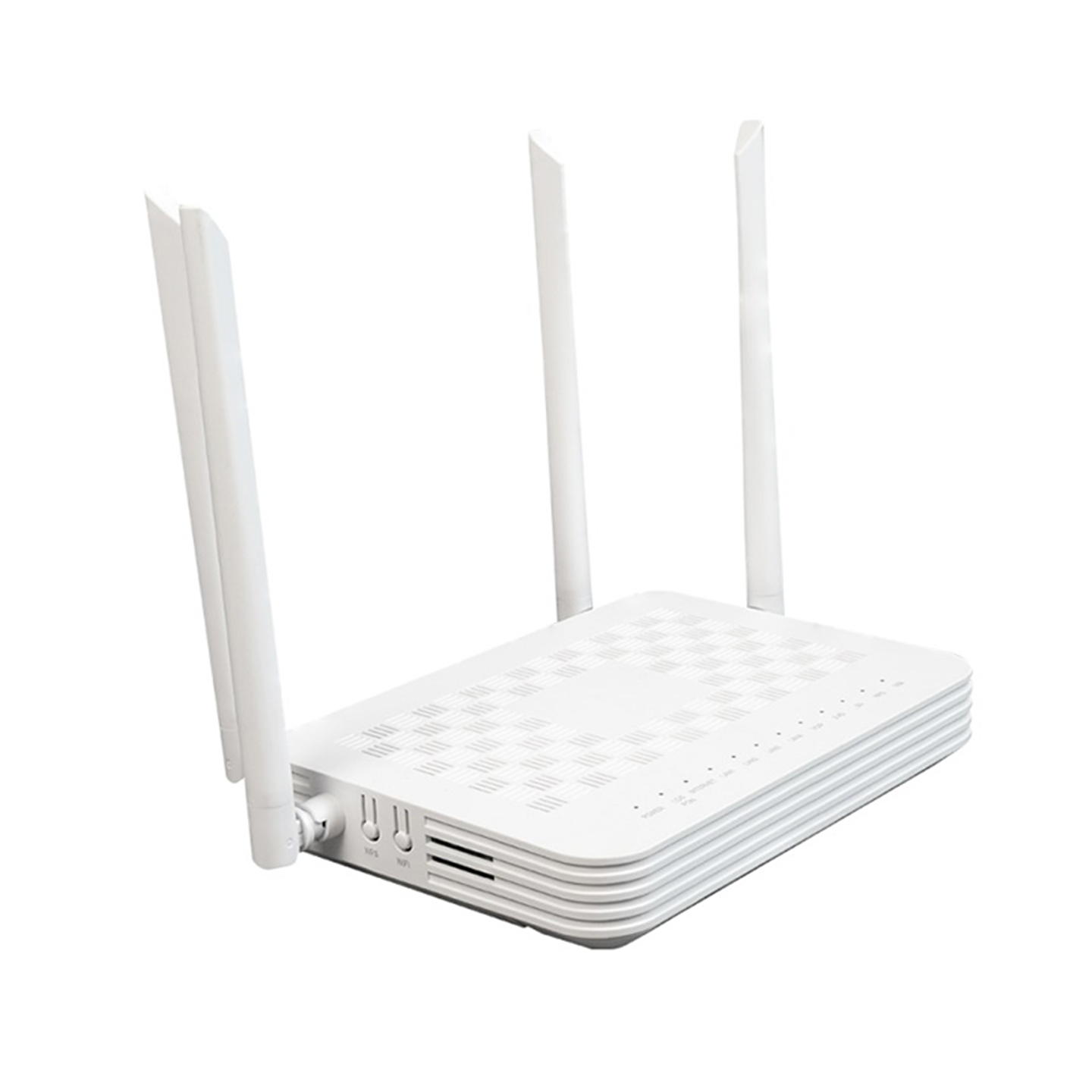

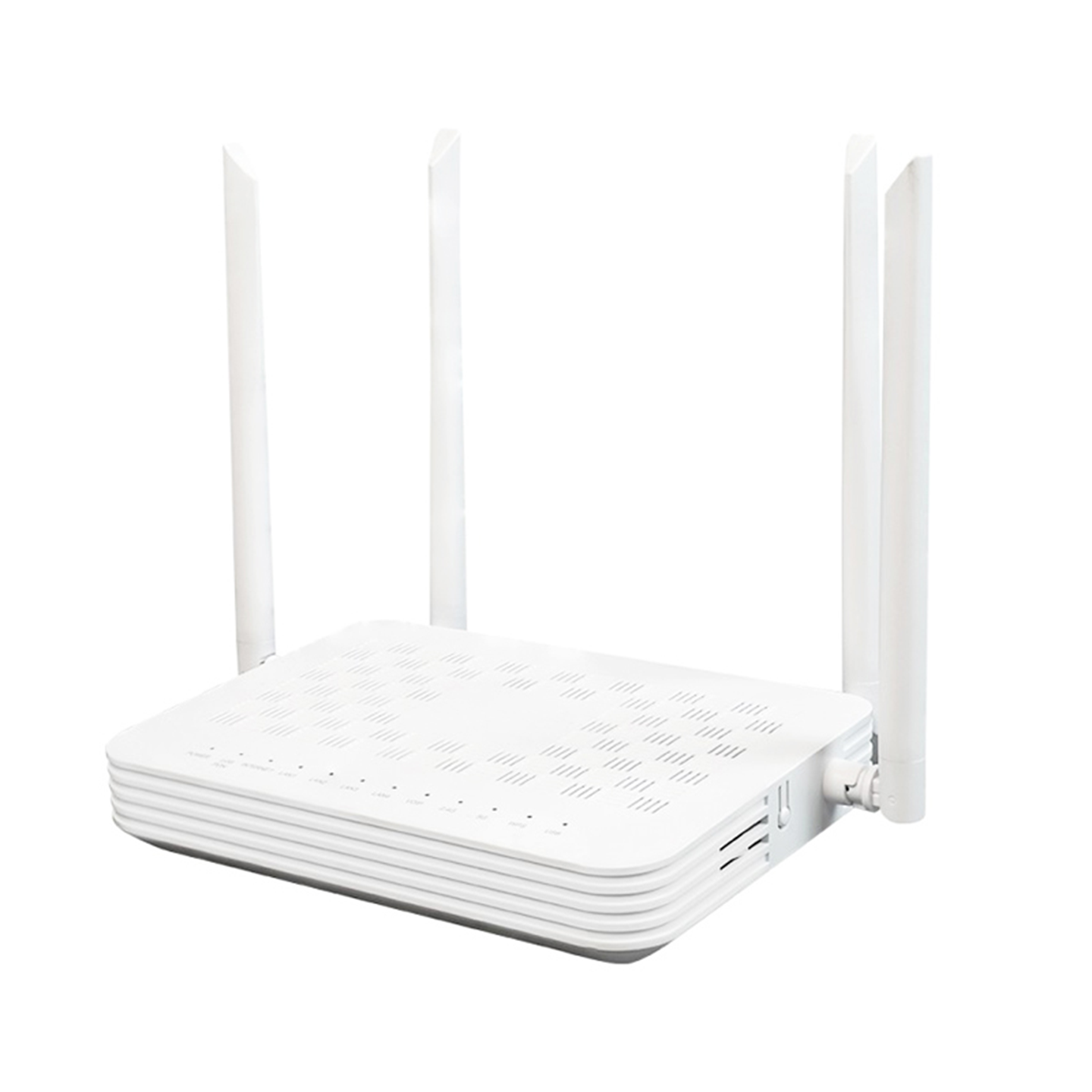

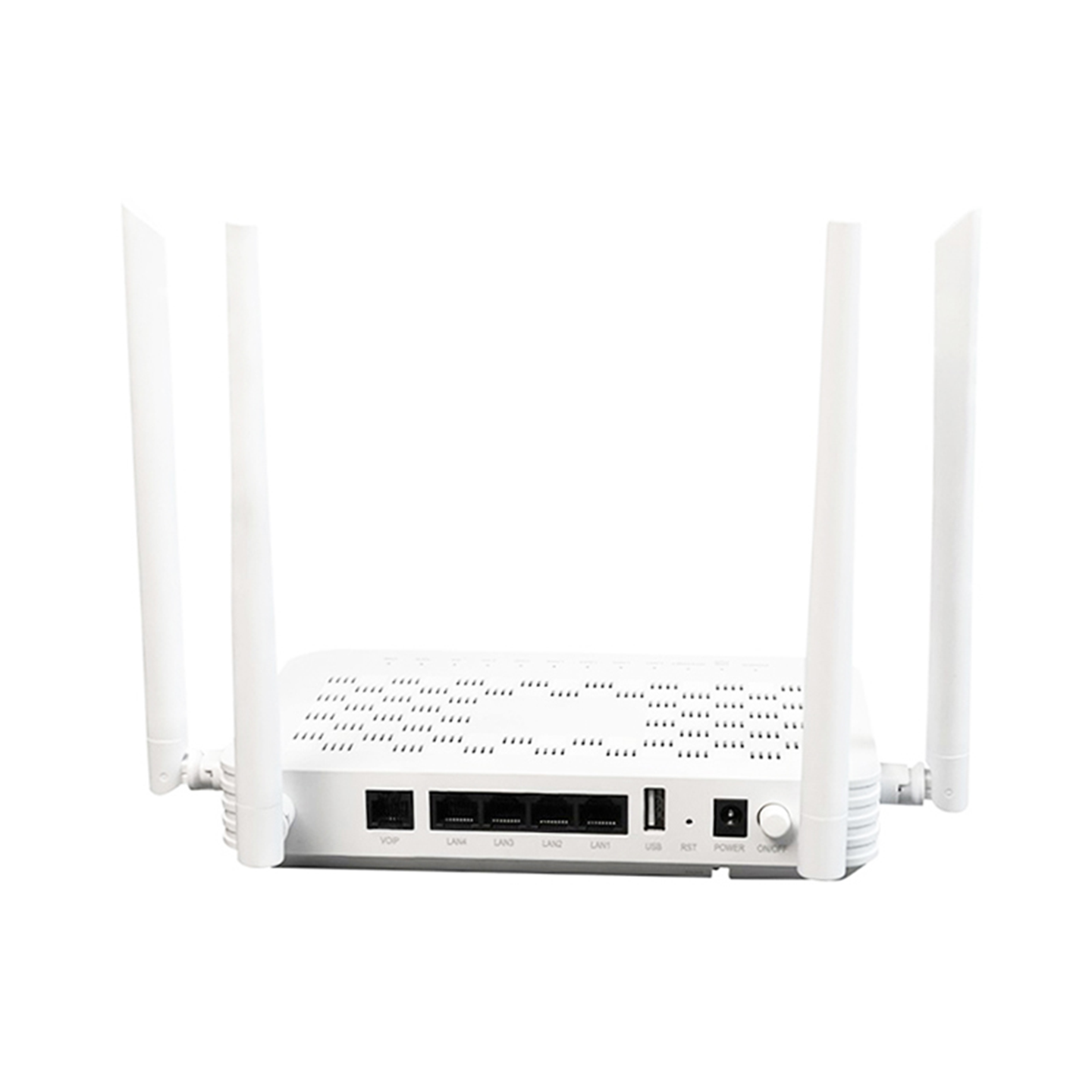

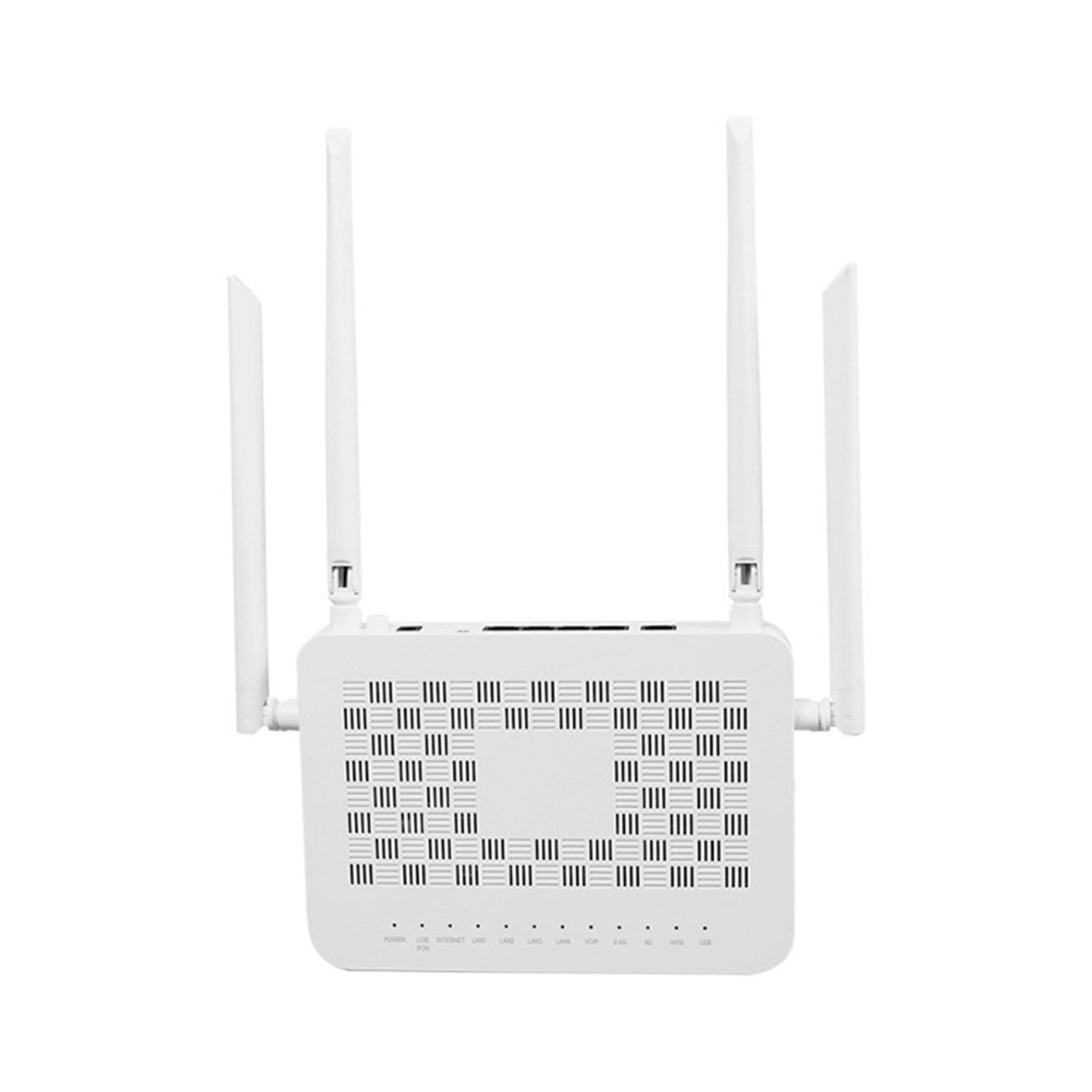

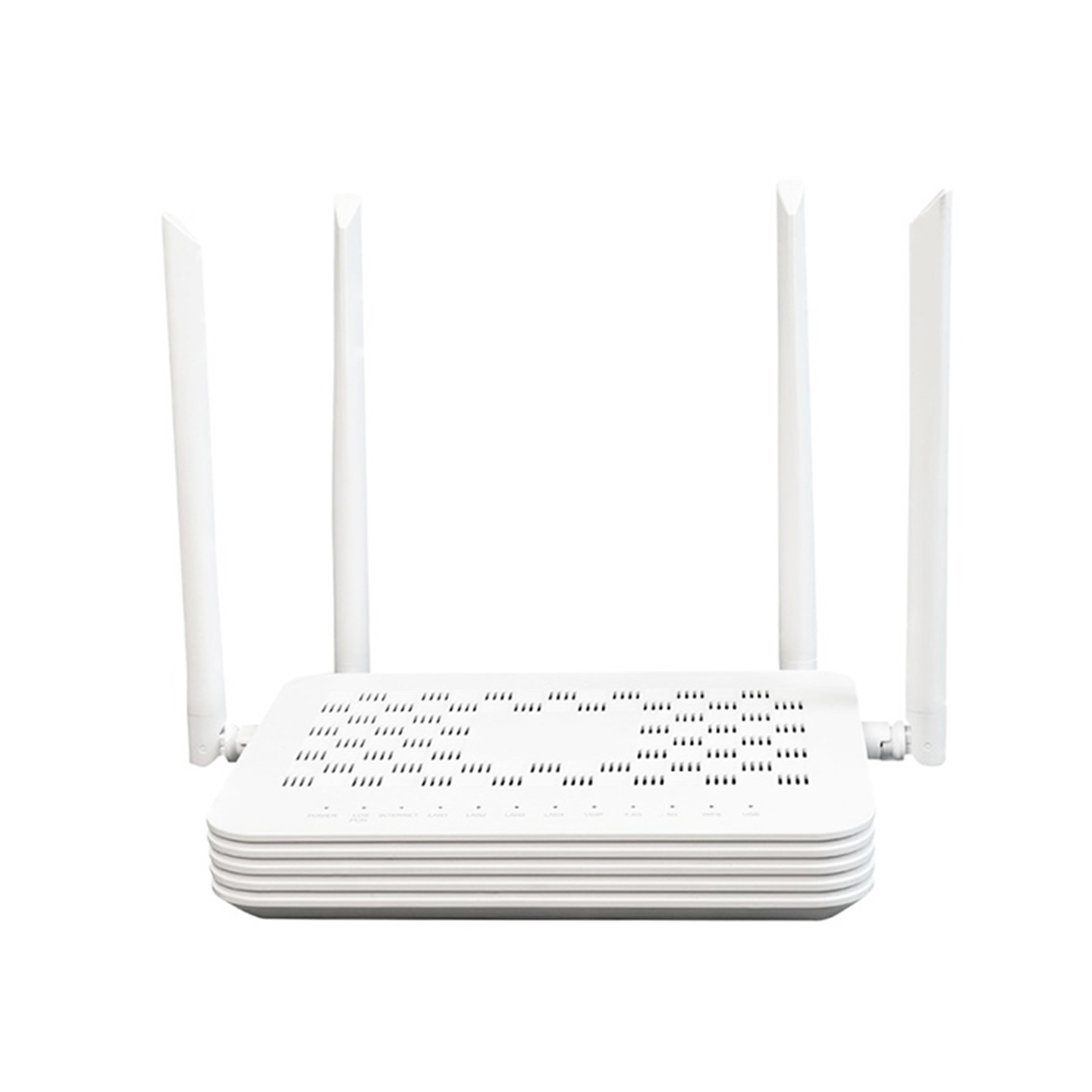

Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
1 / 5
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT
Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT

Zero Lag GPON EPON ONU 4GE Dual Band Wifi 5 XPON HGU ONT

Send Inquiry

Product Description

EPON/GPON Dual-mode Access Reduce the Investment of Operators

EPON/GPON Dual-mode Access

Compatible with Various OLT, Flexible Networking

Compatible with Various OLT

2.4G+5G Dual-band WiFi, High-Speed Connection

Dual-band WiFi

Not afraid of harsh environments, with wide temperature range, high efficiency and stability

Harsh Environment Stability

Multiple Application Scenarios

Application Scenario 1
Application Scenario 2

Specification

Interface 4GE+1VOIP+1USB+WIFI5+G/EPON
LED POWER+PON/LOS +INTERNET +LAN+VOIP + WiFi_2.4G +WiFi_5G+ WPS+USB
Button POWER + RST +WIFI+WPS
Flash & Memory Flash: 256MB; Memory: 512MB
Power Supply 12V/1A
Power Consumption ≤12W
Environment Standard Operating Temperature: -5℃~45℃
Storage Temperature: -20℃~70℃
Relative Humidity: 5%~95% (non-condensing)
Weight 0.35KG
Size 190mm*135mm*33mm (L*W*H)
Module Type Class B+, SC/UPC
Wavelength UP1310nm,Down1490nm
TX Optical Power 0.5~4dbm
RX Optical Sensitivity -28dBm
Transmission Distance 0~20km
Transmission Rate EPON:Upstream1.25Gbps/Downstream1.25Gbps GPON:Upstream1.25Gbps/Downstream2.5Gbps
LAN Interface Type RJ45 (10/100/1000Mbps)
VOIP RJ11
USB USB2.0
WIFI Dual-band WIFI5 AC1200 (2 ×2 MIMO (2.4G&5G))

Order Info

Description XPON, 4*1000M Base-T, 1*POTS, 1*WIFI-5 (2.4G&5G 1200M), 1*USB, 12V/1A.

FAQ

Q Can you do OEM?
Yes, OEM products can be customized based on requirements.
Q How is quality control managed?
Every single optic module is individually tested in the test center, and also tested for compatibility on a variety of different network equipment.
Q Can a sample be provided first?
Yes, samples can be provided to check the quality.
Q What are the payment terms?
Payment methods such as T/T, Western Union, and online orders are accepted.
Q What is the lead time?
For standard orders, stock is maintained and shipment can be made about 3 days after receiving payment. For large quantities & special products, please verify the lead time with the sales team.
Q How are the goods shipped and how long does it take to arrive?
Shipment is usually made via DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive.
