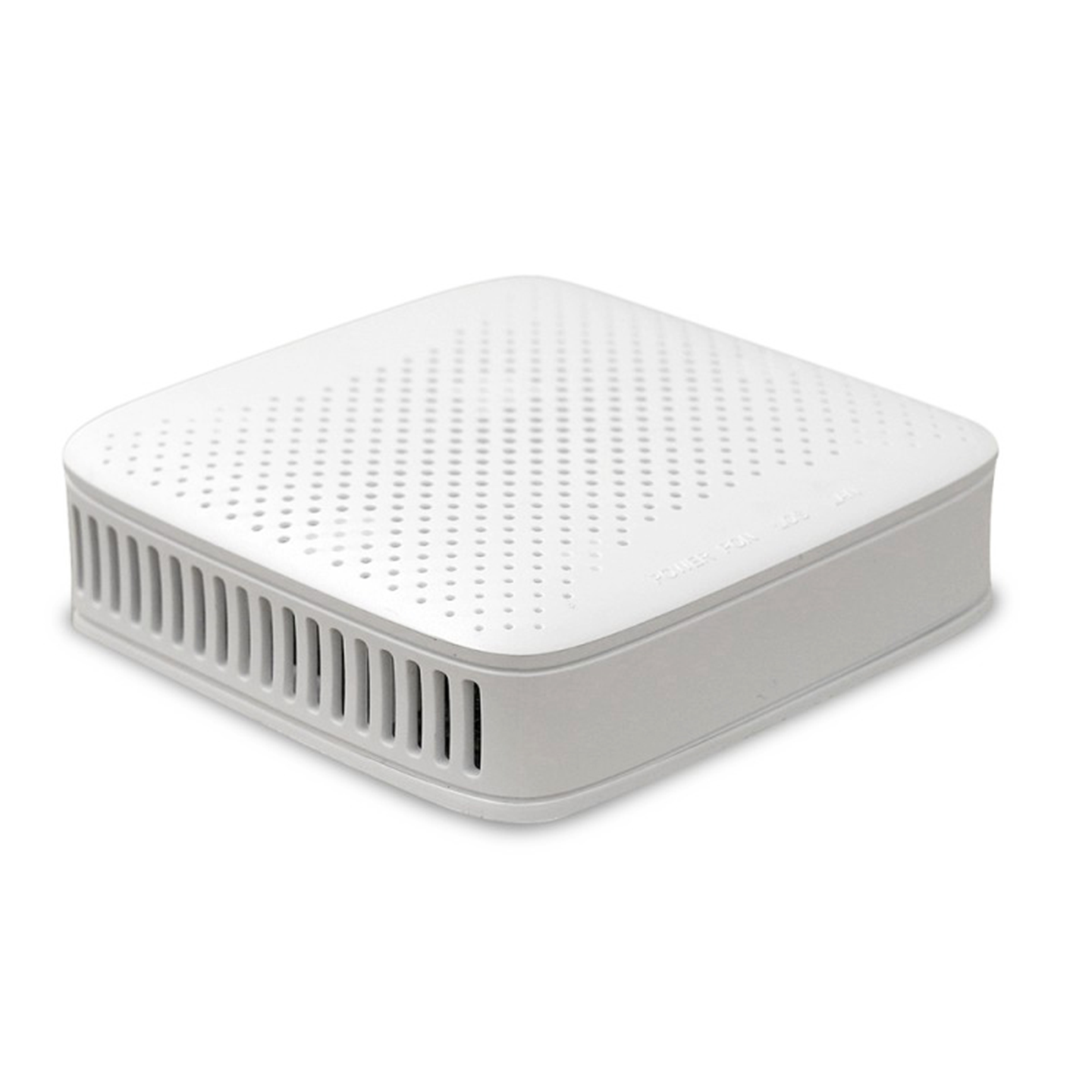

Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
1 / 5
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT
Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT

Zero Lag Single Port 1GE EPON GPON XPON ONU GEPON ONT FTTH Compatible with All OLT

Send Inquiry

Product Description

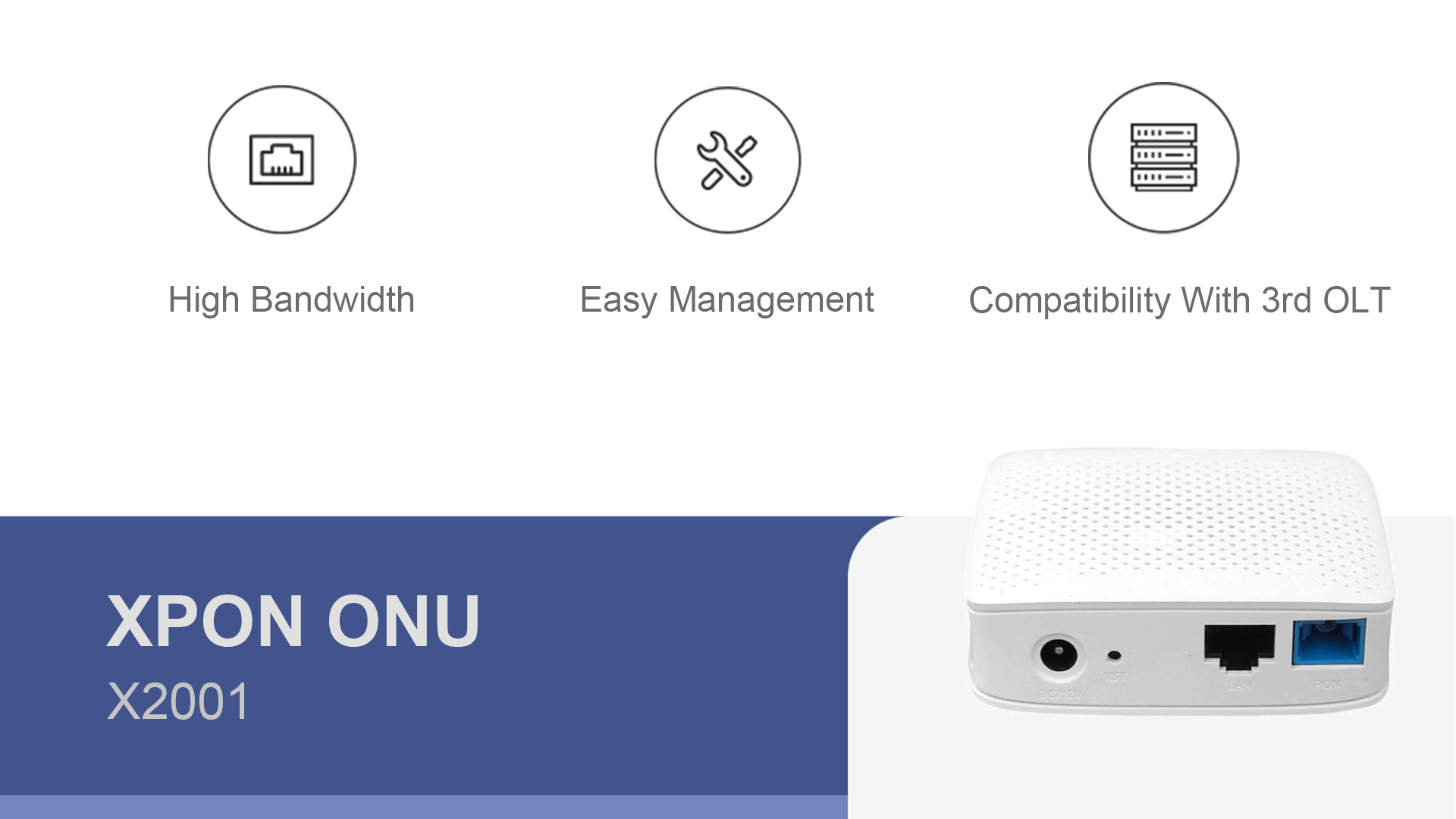

EPON/GPON Dual-mode Access
EPON/GPON Dual-mode Access Reduce the Investment of Operators

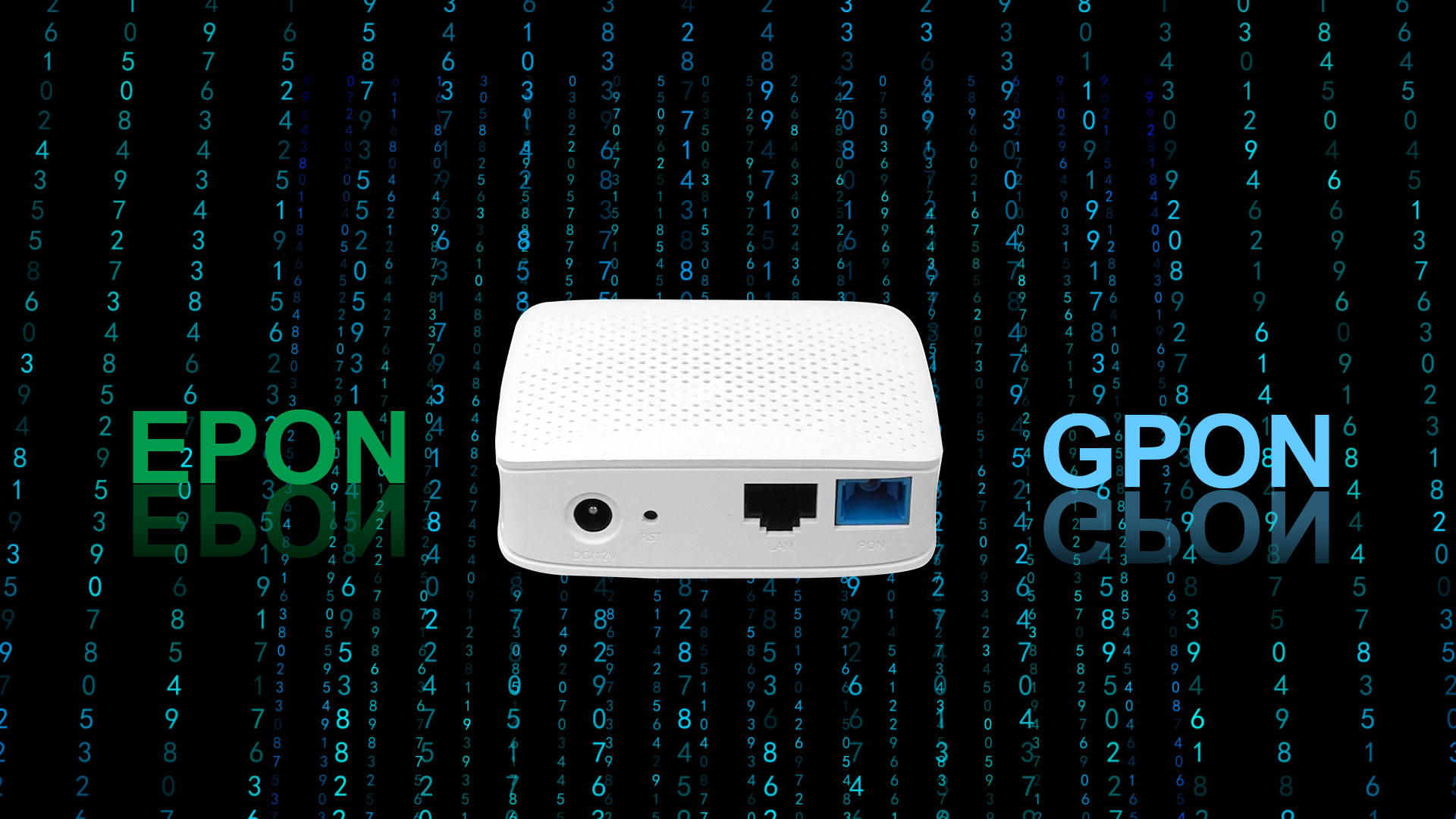

Wide-Working-Temperature Designed
Wide-Working-Temperature Designed

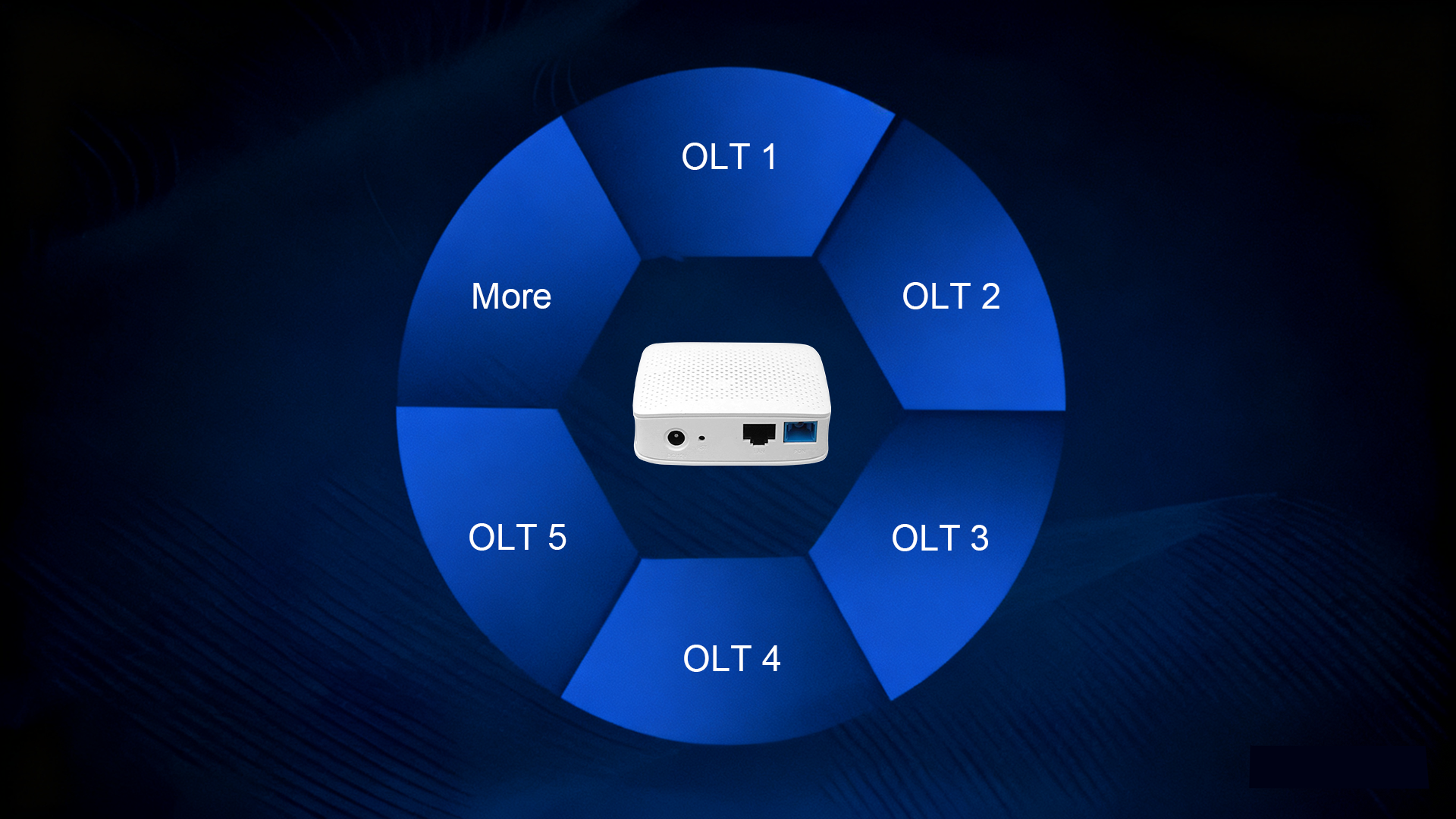

Compatible with Various OLT
Compatible with Various OLT, Flexible Networking
Exquisitely Crafted Design
Boasting an exquisitely crafted design, it effortlessly becomes the center of attention in any setting.

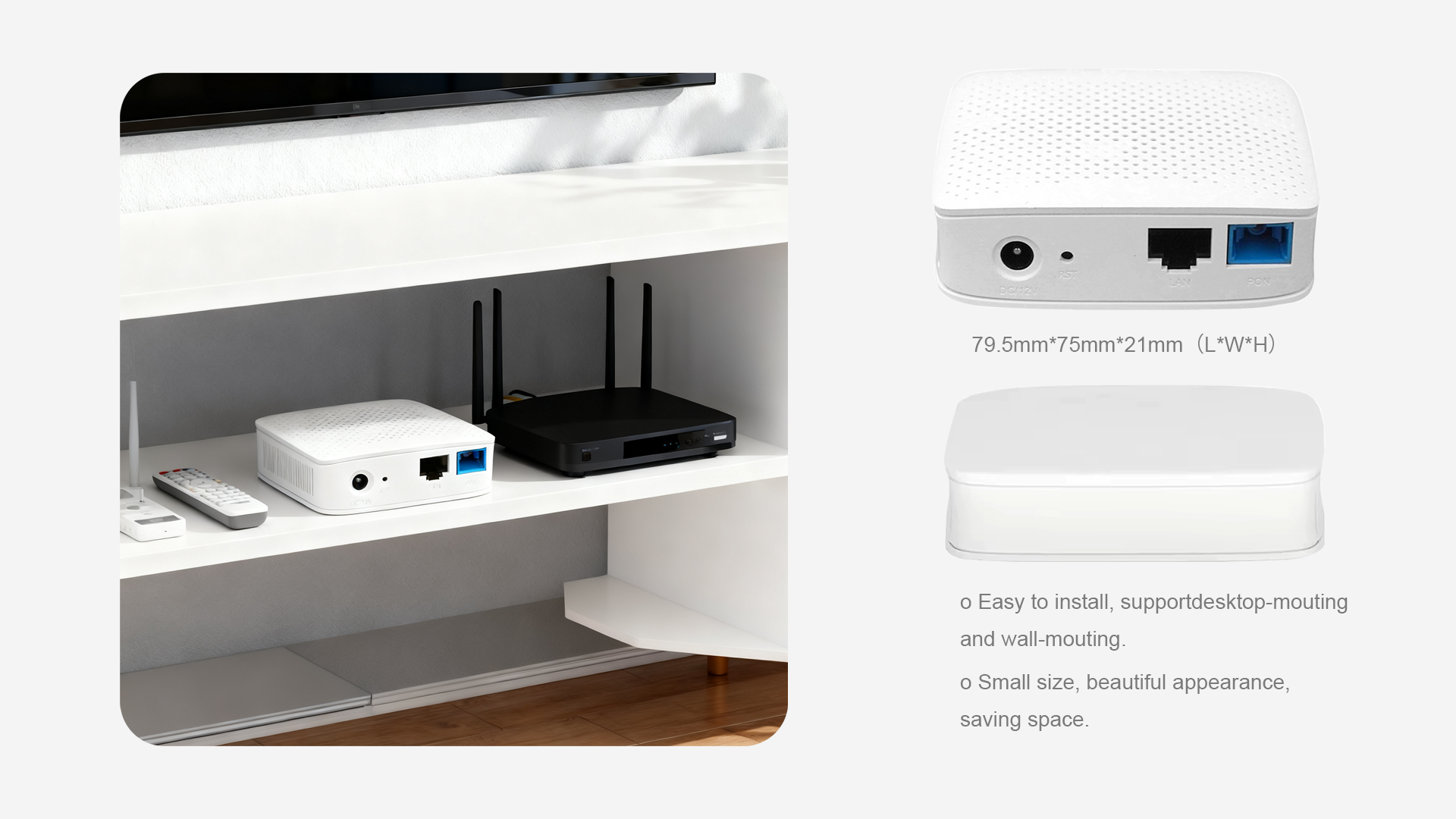

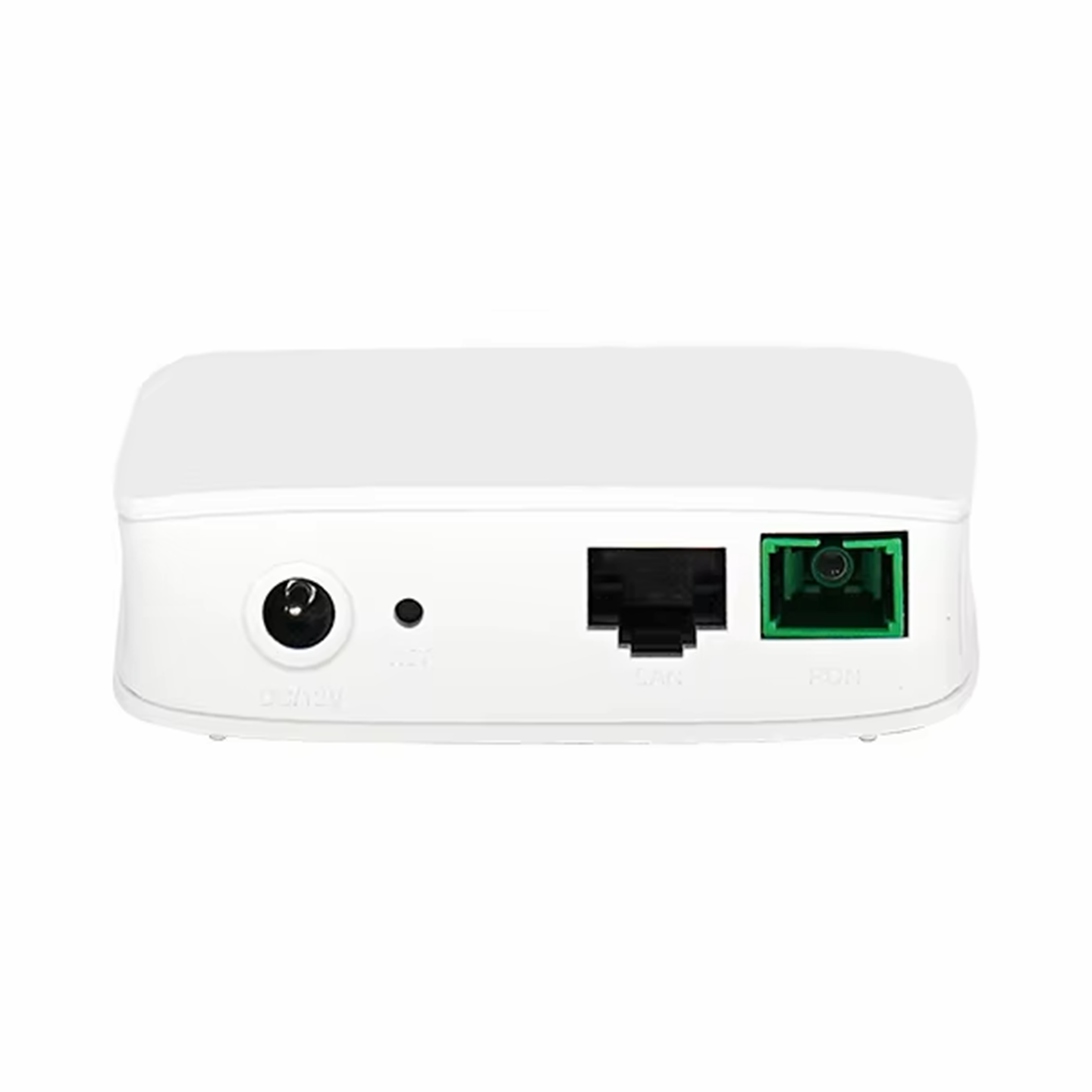

Product View
Product Overview
Specification
Interface 1*RJ45 (GE)+1*SC/UPC (or SC/APC)
LED Power + PON/LOS + LAN
Flash & Memory SRAM: Embedded SDRAM; Flash: 8MB
Power Supply 12V/0.5A
Environment Standard Operating Temperature: -5°C ~ 45°C
Storage Temperature: -20°C ~ 70°C
Relative Humidity: 5% ~ 95% (non-condensing)
Weight 0.05KG
Size 79.5mm * 75mm * 21mm (L*W*H)
Module Type Class B+, SC/UPC
Wavelength UP 1310nm, Down 1490nm
TX Optical Power 0.5 ~ 4dbm
RX Optical Sensitivity -28dBm
Transmission Distance 0 ~ 20km
Transmission Rate EPON: Upstream 1.25Gbps / Downstream 1.25Gbps
GPON: Upstream 1.25Gbps / Downstream 2.5Gbps
LAN Interface Type RJ45 (10/100/1000Mbps)
Order Info
Description XPON, 1*1000M Base-T, 12V/0.5A
FAQ
Q Can you do OEM?
Yes, we can do OEM products. It's no problem.
Q How is quality control handled?
Every single optic module is individually tested in our test center, and also tested for compatibility on a variety of different network equipment.
Q Can I get a sample first?
Yes, we can provide samples for you to check the quality.
Q How about the payment terms?
We accept T/T, Western Union, secure transaction ordering methods, and other standard arrangements.
Q What is the lead time?
For standard orders, we keep stock and could ship about 3 days after receiving the payment. For large quantities & customized products, please confirm the lead time during checkout.
Q How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive.
