| Chip Solutions | 6*RTL8367S+3*JW5858 |
| Standards/Protocols | IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af/at |
| Topology | Star |
| Network Media |
10BASE-T: Unshielded Category 3, 4, 5 twisted pair (max. 100m) 100BASE-TX/100BASE-T: Unshielded Category 5, Ultra Category 5 or above twisted pair (max. 100m) 1000BASE-TX/1000BASE-T: Super Category 6 or above twisted pair (max. 100m) |
| Interfaces |

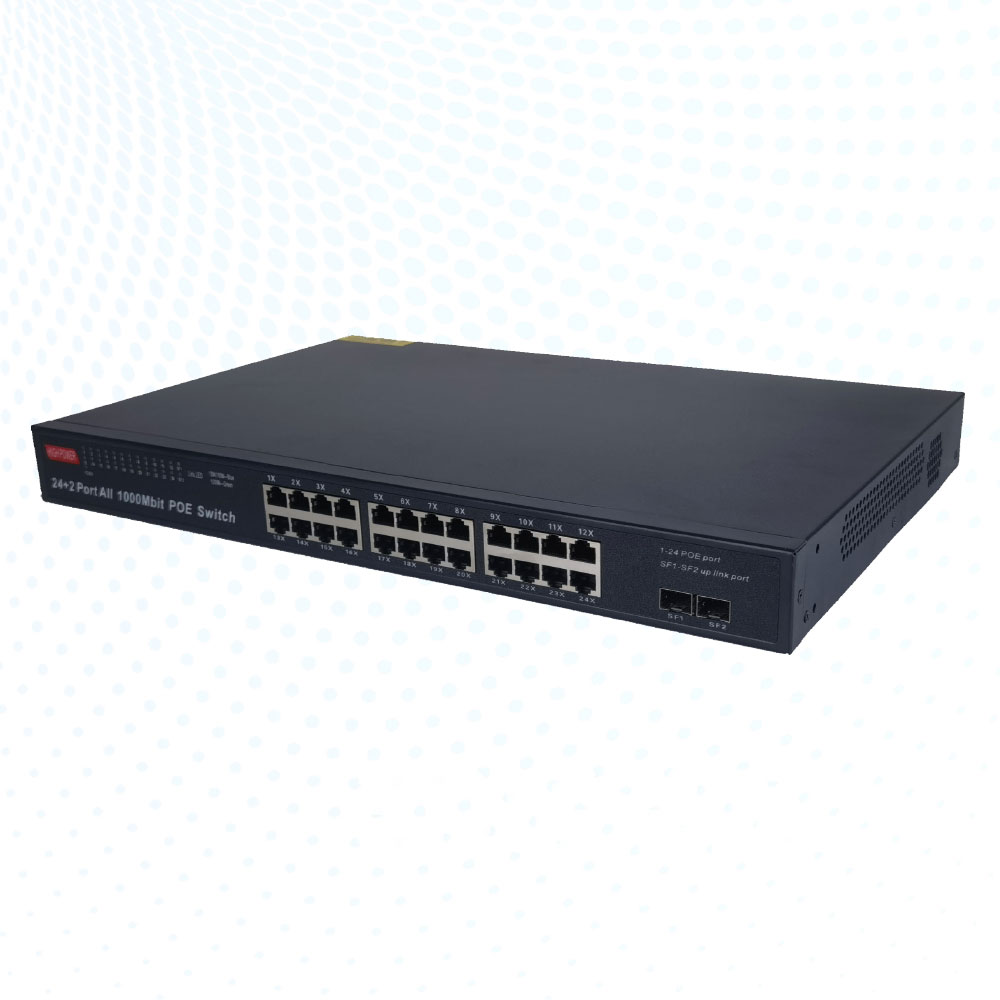

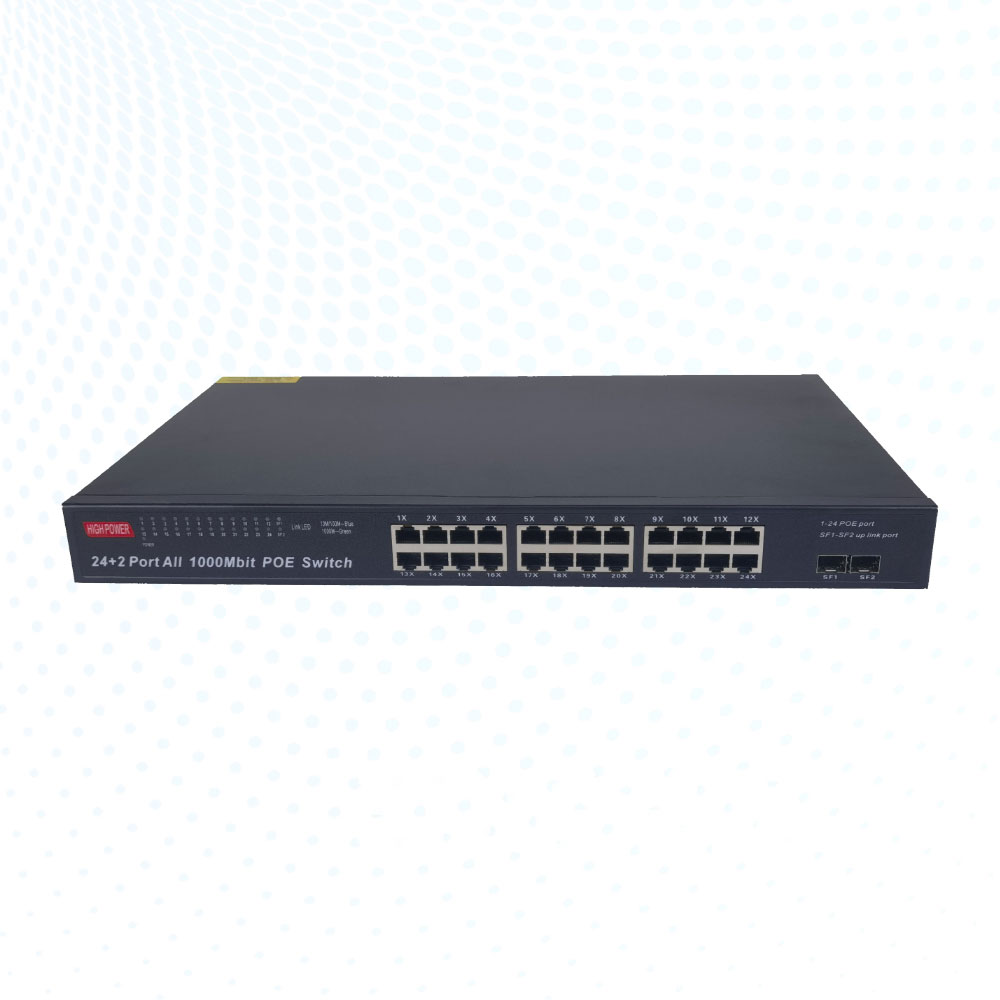

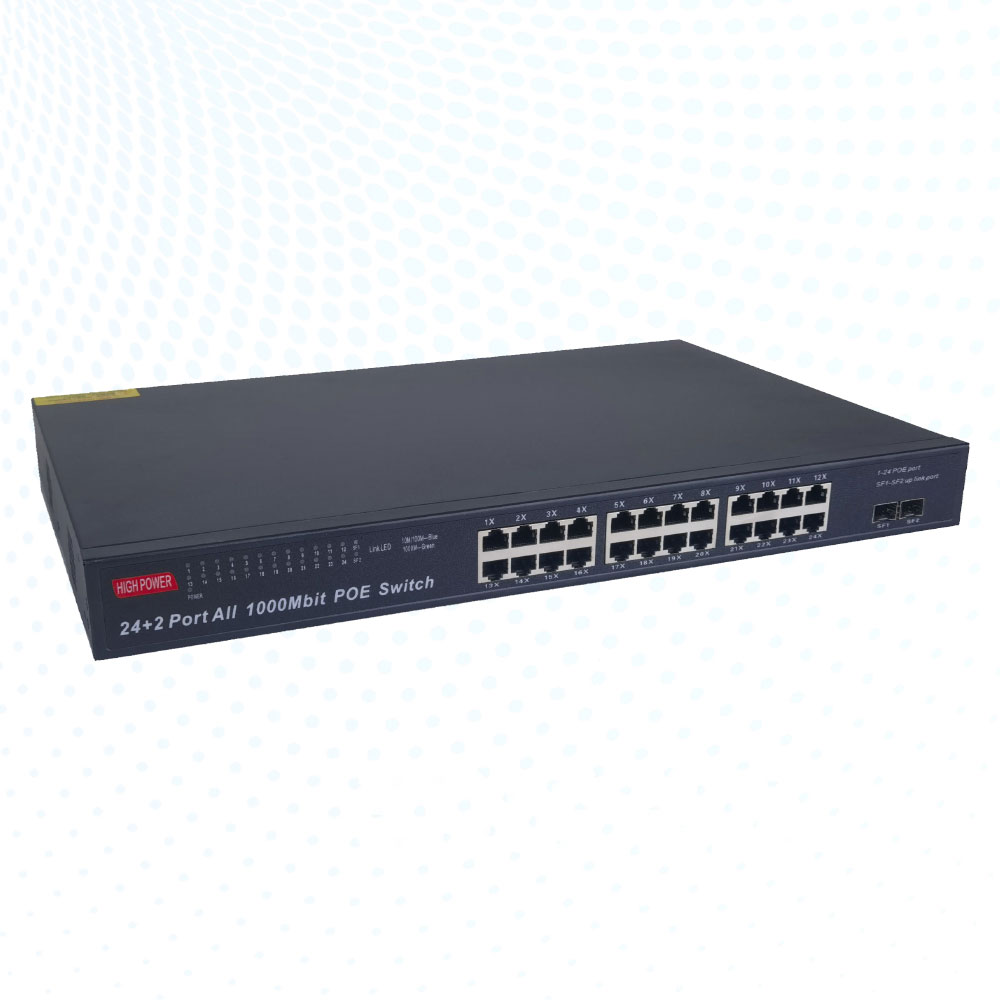

24 10/1000M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 2 SFP 10M/100M/1000Mbps UP LINK ports |
| Cascade | UP-LINK port only |
| Forwarding Mode | Store-and-forward (computing) |
| MAC Address Capacity | 8K |
| Switching Capacity | 52Gbps |
| Packet Forwarding Rate | 38.6Mpps |
| Packet Cache | 4.1Mbits |
| Jumbo frames | 9216-byte |
| Indicator Lights |
Machine: Power.System (Power: red) - always on when load is connected. Port: Link/Activity (Link/Act: Green) - Blinking when signal is connected. |

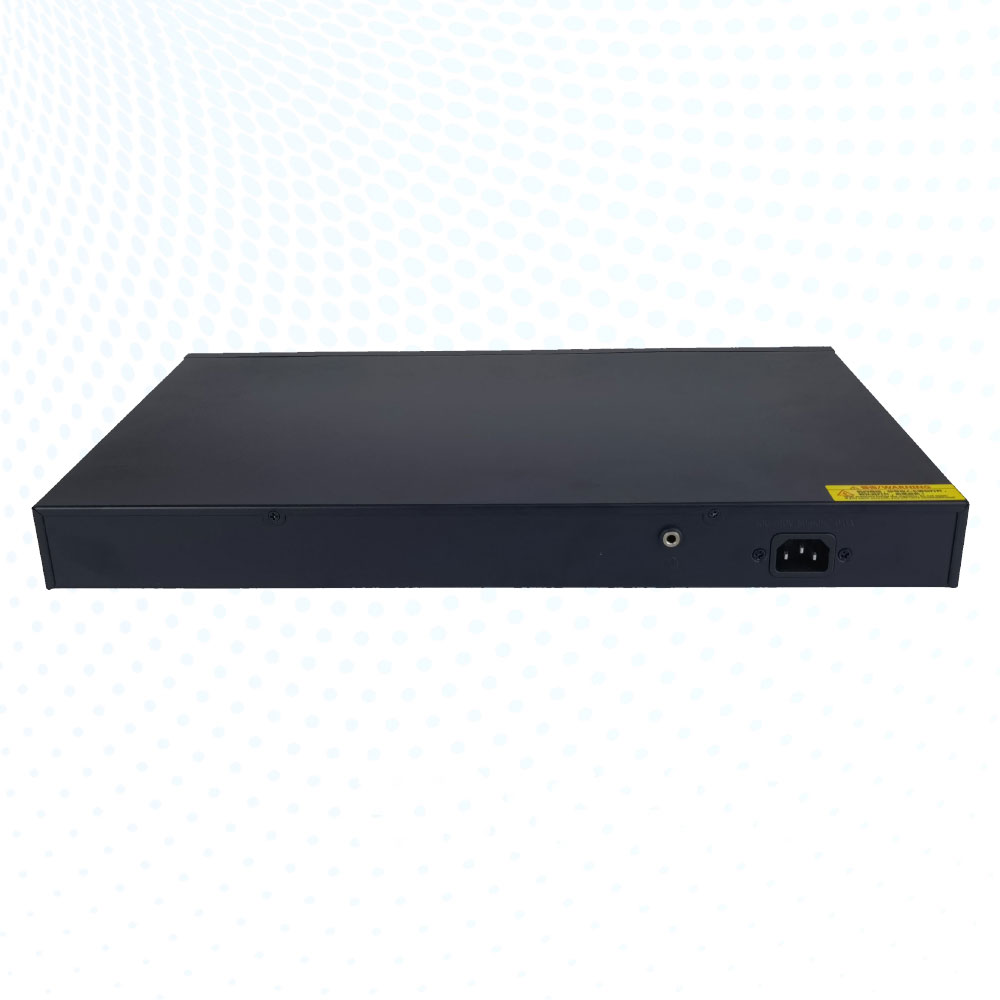

| Power Supply | AC: 100-240V 50/60Hz Built-in DC: 52V, 150W*3 sets |
| Power Supply Pins | 1/2 (+), 3/6 (-) (POE ports only) |
| POE Port Output Power | Single port output max. 30W |
| Speed Limit Function | 10M speed limit switchable via toggle switch, transmission distance up to 250 meters |
| Static power consumption | No |
| Environment |
Operating Temperature: -10°C ~ 70°C (32°F ~ 158°F) Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Housing System | Housing Material: Standard Hardware Enclosure |
| Package Dimensions (L×W×H) | 515 × 390 × 100 mm Customized Service Operating System |
