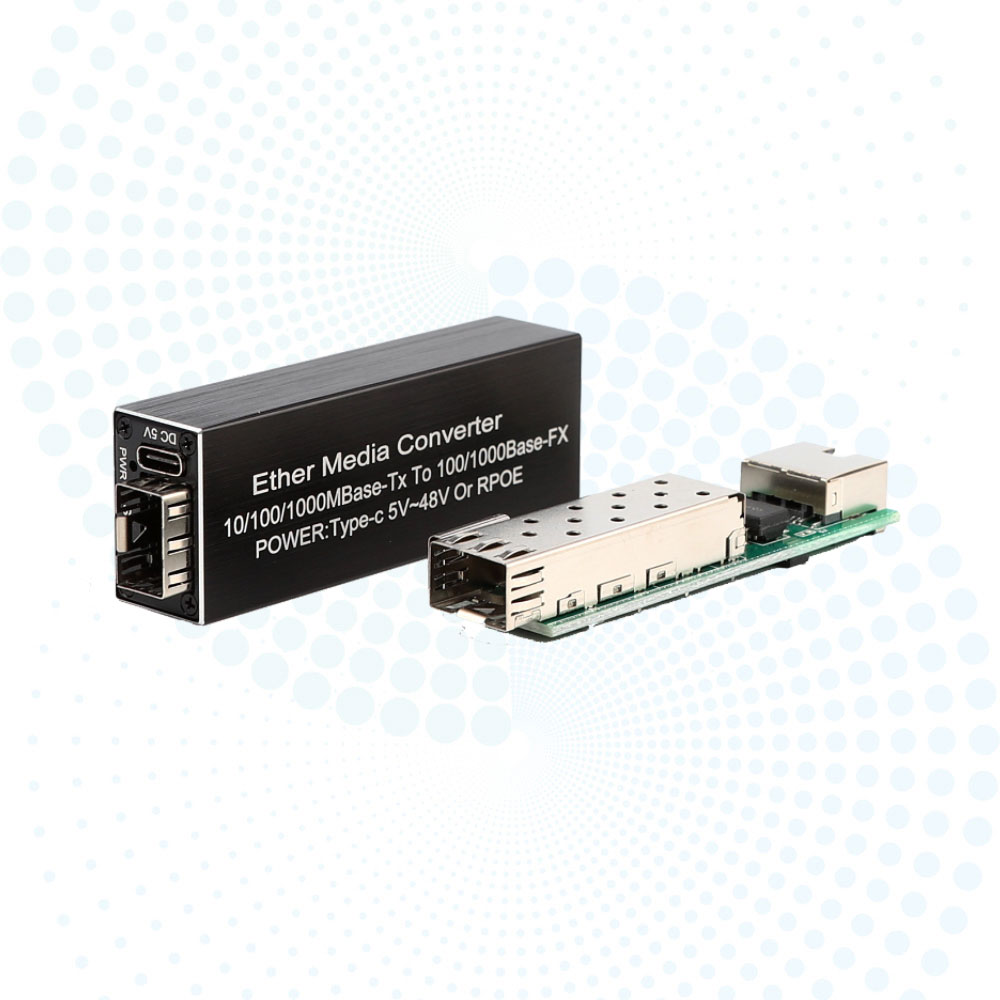

High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter
High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter
High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter
High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter
1 / 4
High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter
High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter
High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter
High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter

High Quality MINI Fiber Optical Transceiver SFP to Self-adaptive 10/100/1000Mbps Media Converter

Send Inquiry

Product Description

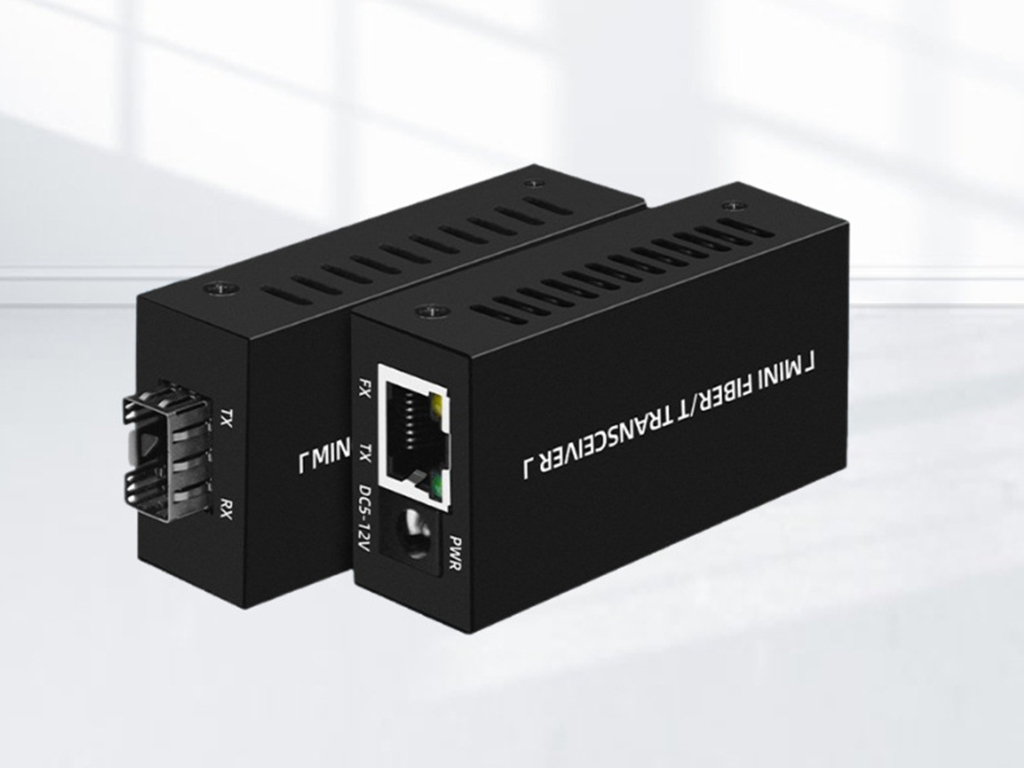

MINI 10/100/1000MB to SFP Media Converter
Sturdy and durable
High-quality workmanship
Safe and stable
MINI 10/100/1000MB to SFP Media Converter

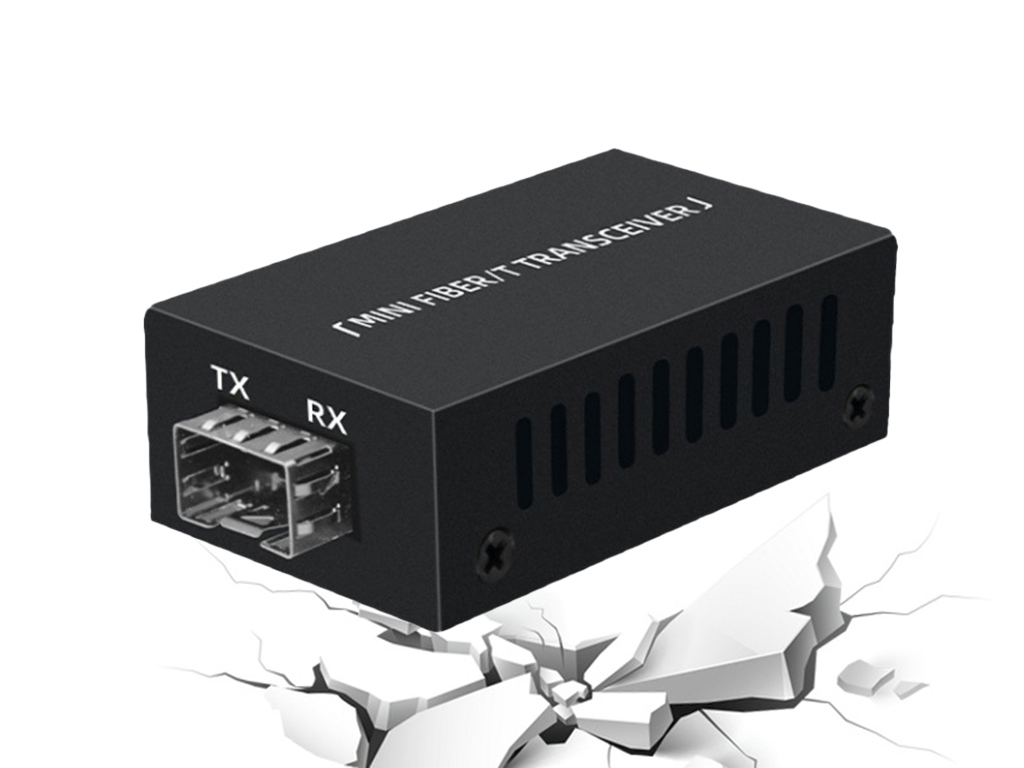

Thickened Metal Casing
Thickened metal casing, cast as one piece through a molding process, meticulously crafted. Extremely sturdy and durable.
Thickened metal casing

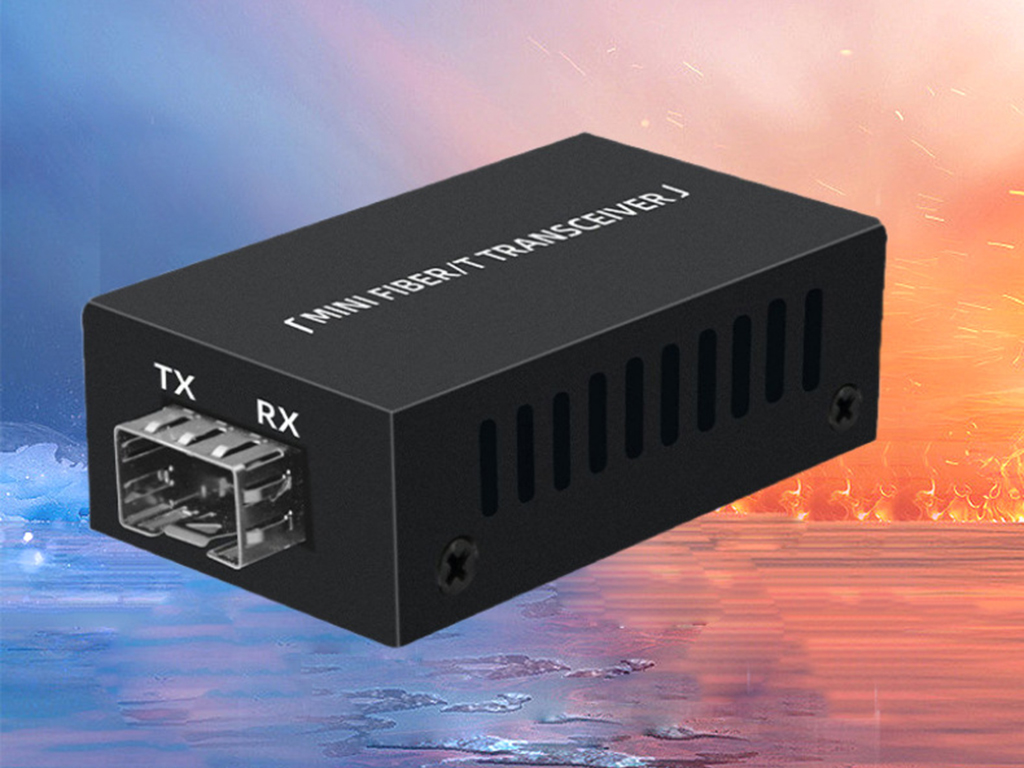

Thermal Insulation Protection, Wide Temperature Operation
Using distributed ventilation convection for heat dissipation, it is resistant to cold and heat, and can operate stably and for a long time in harsh environments ranging from -20°C to 70°C.
Thermal insulation protection
Powerful Core, Stable Transmission
Brand-new complete circuit board, equipped with high-quality chips, enabling longer transmission distance.
Powerful core

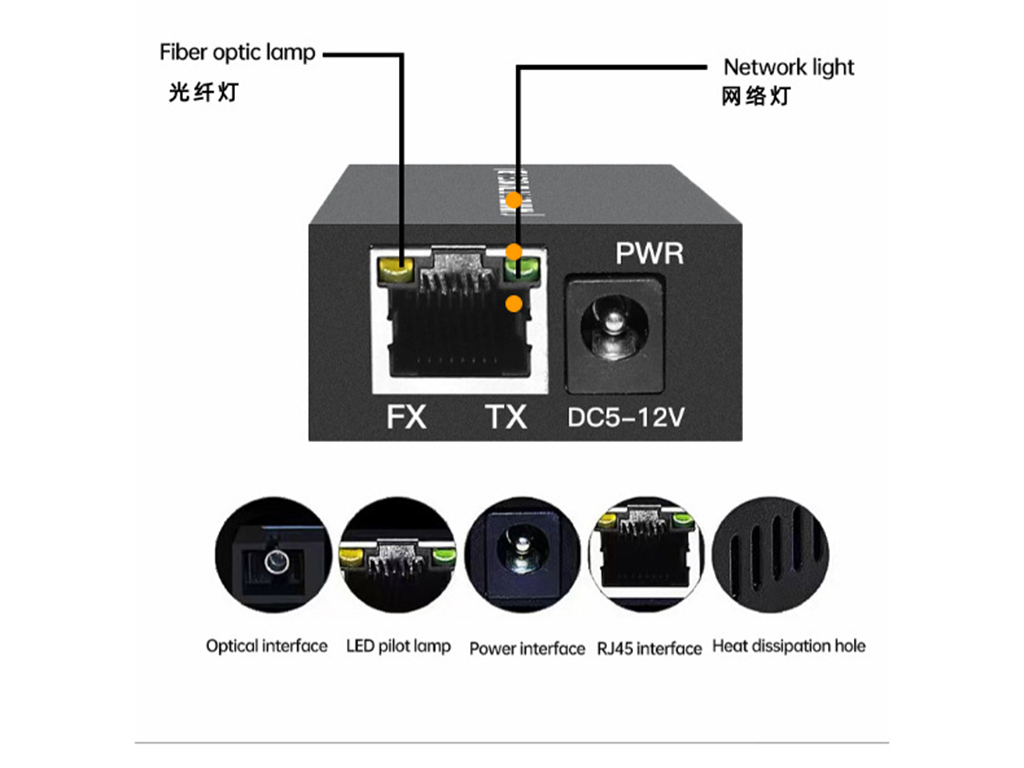

Fault Detection Indicator Lights
The built-in fault detection indicator light clearly shows the working status.
Indicator panel detail
Indicator usage display
Specification
Access mode 10/100/1000Mbps SFP Media Converter
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Port SFP Port
Transmission distance Multi-mode Dual-fiber: 0.55km(850nm), 2KM(1310nm)
Single mode Dual-fiber: 20/40/60/80/100/120 Km
Single mode Single fiber: 20/40/60/80/100/120 Km
Category-5 twisted pairs: 100m
Port One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
Optical port Multi-mode Dual-fiber: SC/LC/ST(SFP) (50, 62.5/125μm)
Single mode Dual-fiber: SC/FC/ST/LC(SFP) (9/125μm)
Single mode Single fiber: SC/FC/ST/LC(SFP) (9/125μm)
Conversion means Media conversion
BER <10-9
MTBF 100,000 hours
LED indicator POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT(TP cable packet forwarding action)
Power supply AC90V-260V( internal power )
DC-48V,DC24V,DC12V,DC5V（external power）
Power consumption 5W
Operating temperature -10~55ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing

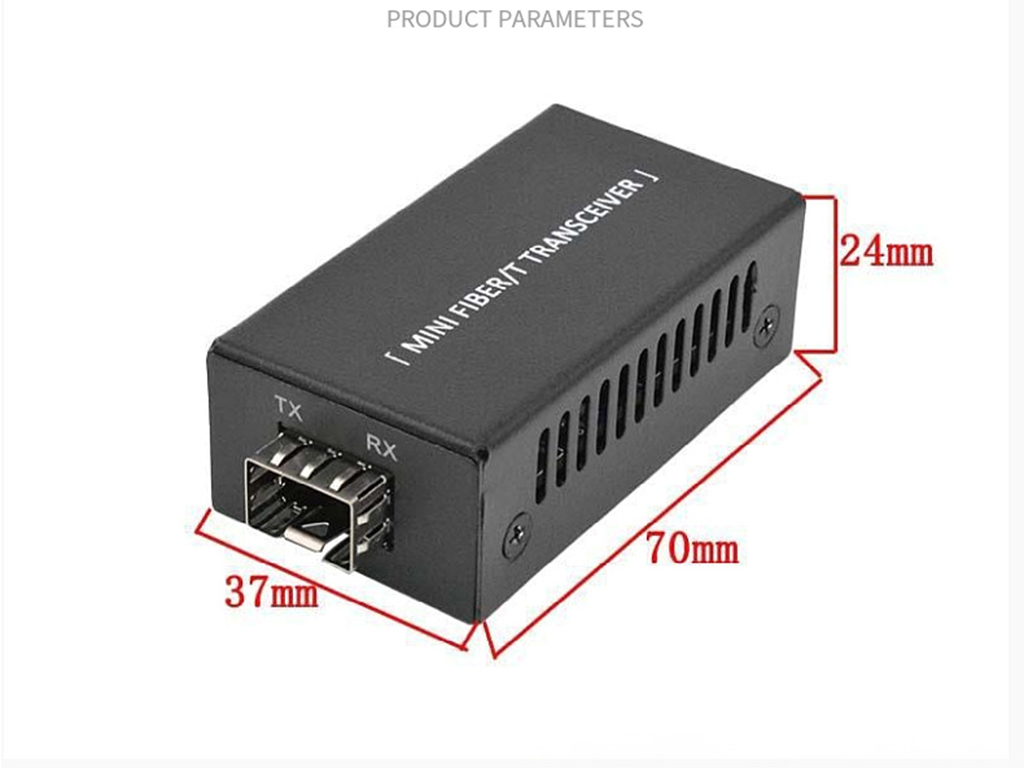

Dimensions 70*37*24MM
Order info
Model Introduction Function
RD-GS5601-M20A
RD-GS5601-M20B		 Mini Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
RD-GS5601-20A
RD-GS5601-20B		 Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
RD-GS5601-S20 Fiber Media Converter 10/100/1000Mbps 20km Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm
RD-GS5601-SFP 10/100/1000MB to SFP Media Converter 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply.
RD-GS5601-SFP MINI MINI 10/100/1000MB to SFP Media Converter 10/100/1000M media converter, 1*RJ45+1*SFP port,media converter only

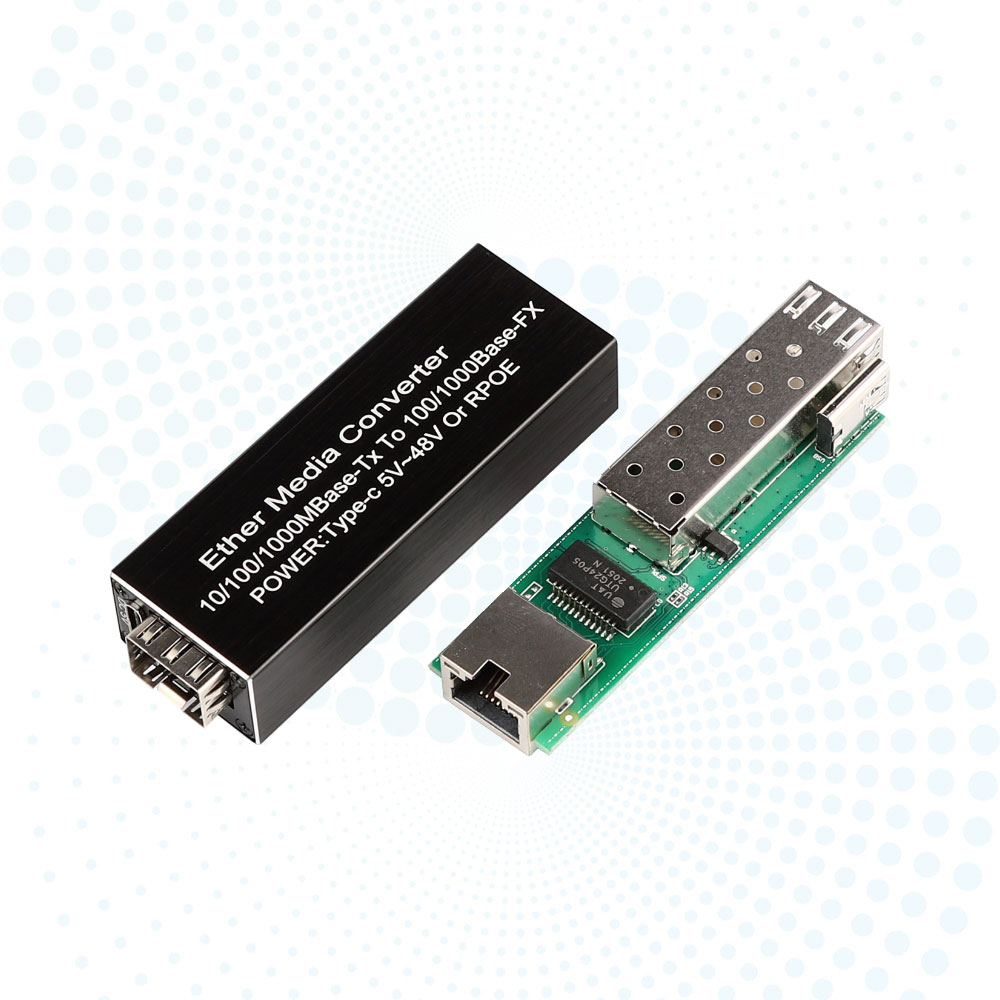

RD-GS5601-SFP PCBA MINI 10/100/1000MB to SFP Media Converter PCBA 10/100/1000M media converter, 1*RJ45+1*SFP port,Board only.
Note: For customized orders, such as transmission distance, please contact us for a quotation.
Frequently Asked Questions
Q1: What is your MOQ request?
A1: Depends on products, different products have different MOQ, pls contact our sales for more details.
Q2: Do you Support ODM/OEM service?
A2: Yes, we can offer the customization service to you.
Q3: Does your products support other brands?
A3: Yes, all of our products is without lock, support to another brands too.
Q4: Are you the manufacturer or trading company?
A4: We are the manufacturer, we support factory view tour.
Q5: Do you offer free samples?
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
Q6: Are you able to provide the local certificates?
A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
