PT939G Dual Band XPON ONU ONT 1GE 3FE 2.4G 5G WiFi 5 AC1200 VoIP Router English Firmware Fiber Optic Modem for FTTH Solution

Product Description

Product Design
Product Design Concept

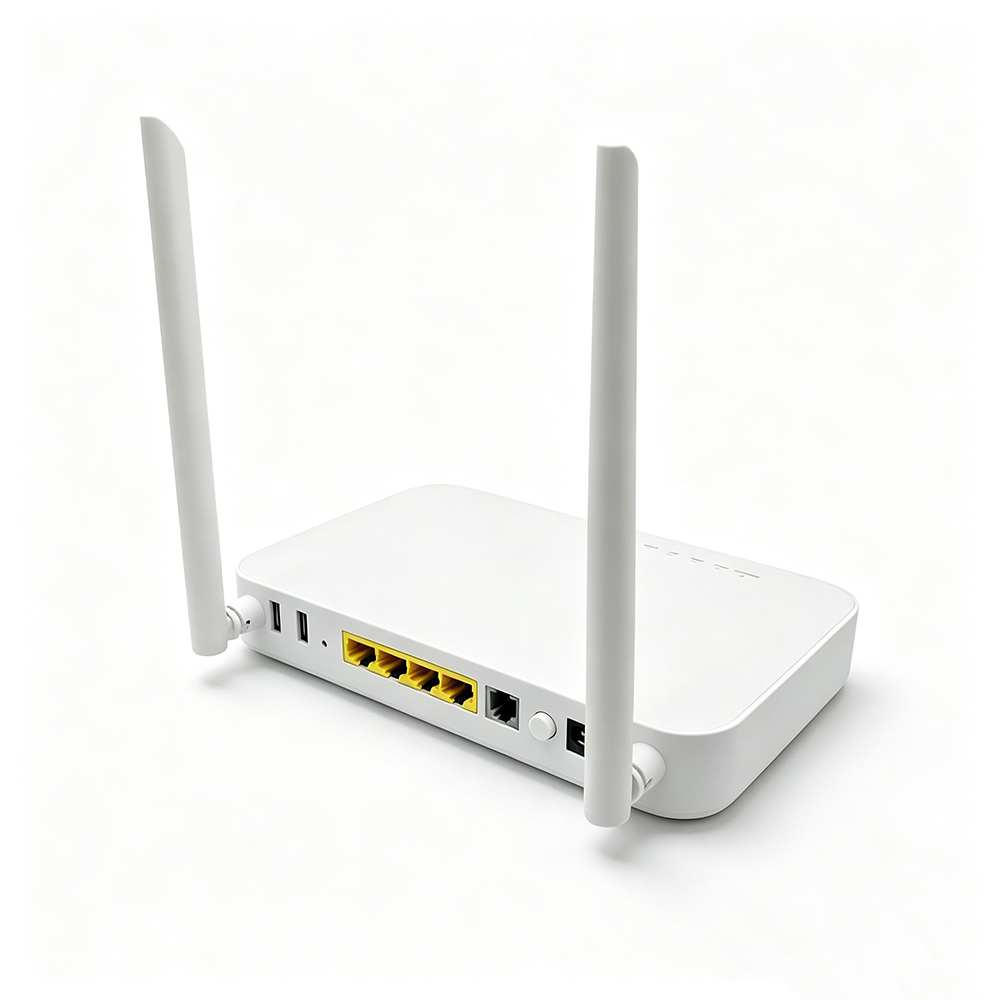

Product View 1
Product View 2

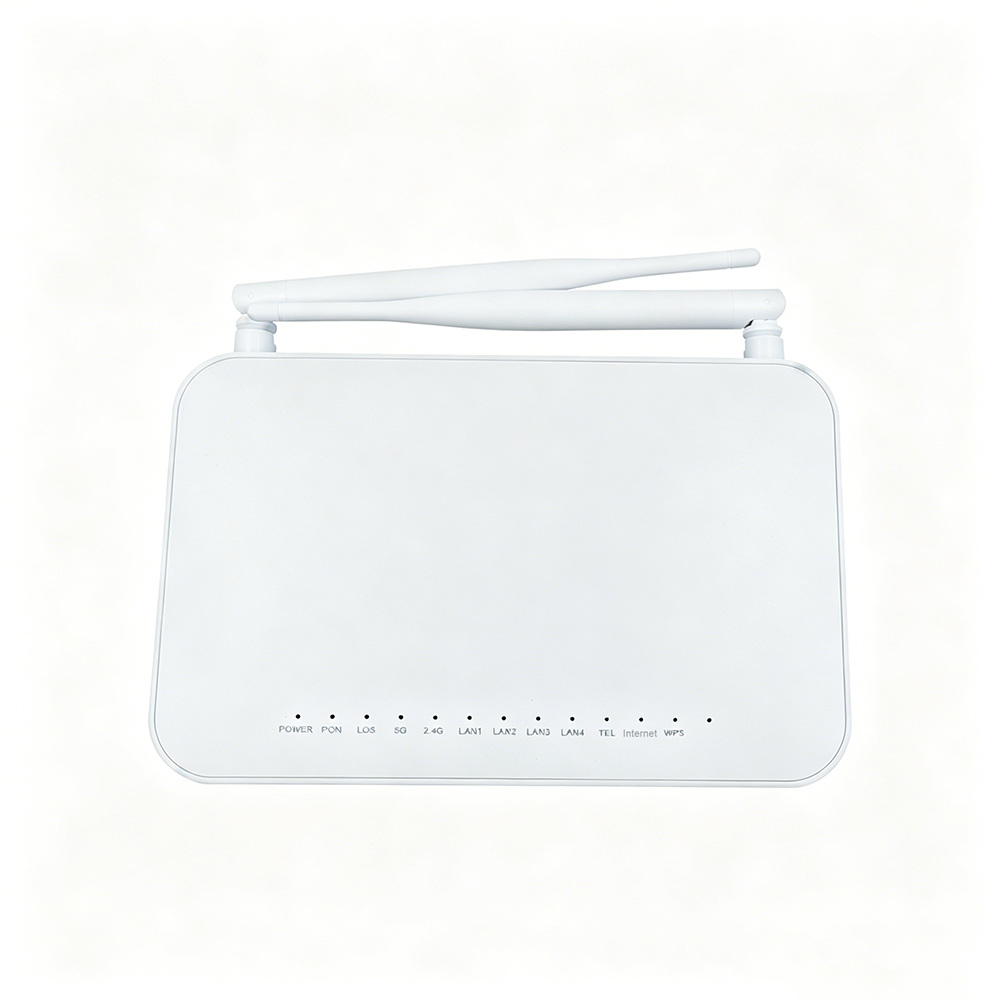

Product Details 1

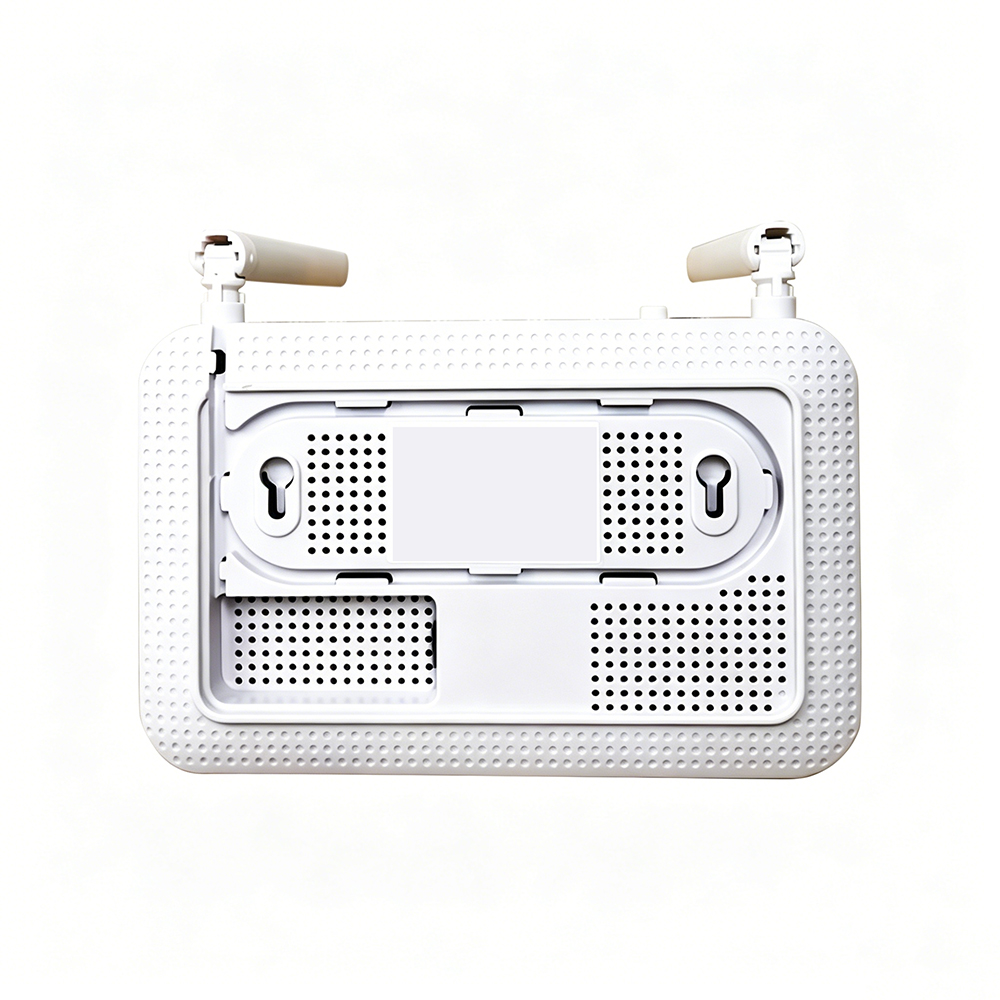

Product Details 2

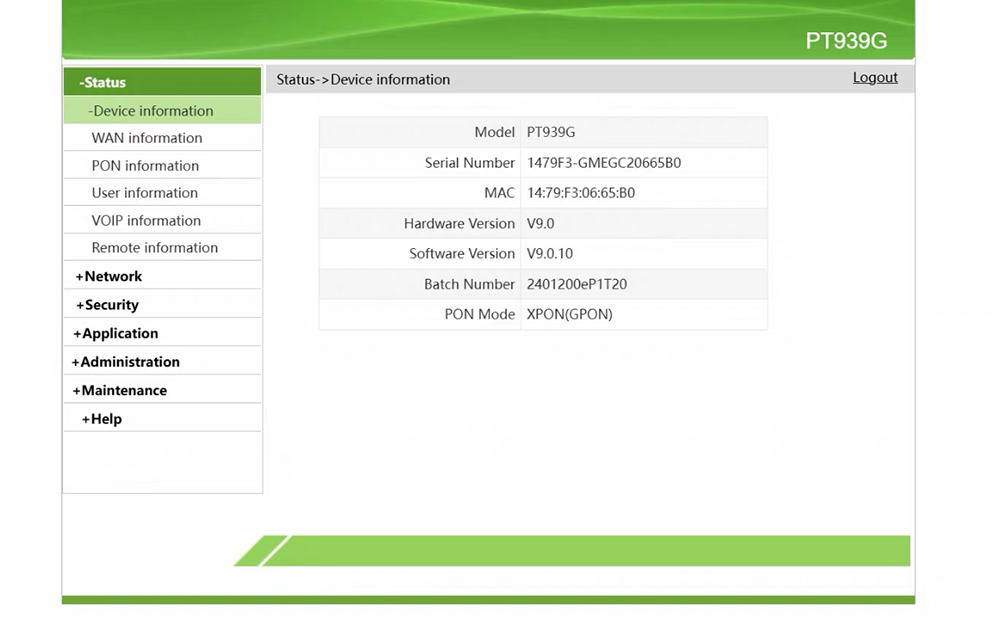

Interface Layout 1

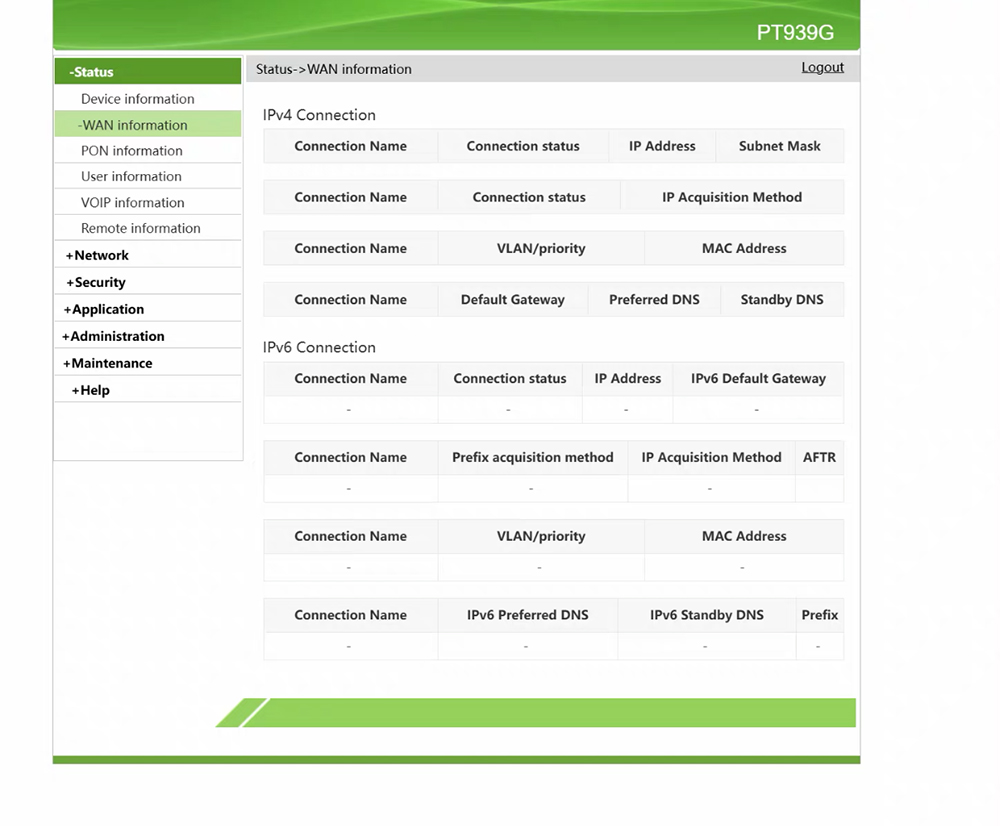

Interface Layout 2
Specification
Model PT939G
Out Port contains 4LAN+1TEL+2USB+WiFi
WIFI signal 2.4G & 5G WiFi
Antenna Gain 5dBi
Wireless gain 5db
USB USB2.0
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
TEL H248/Sip Voice protocol
PPPOE Support
Firmware English
Dimension/weight 220mm*160mm*40mm / 333g
Fiber port 1 GPON interface, single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/FC-UPC/APC Dual mode/Single mode
RX sensitivity <-28dBm (1490nm)
DC power 12V 1.5A, external AC-DC power adapter
Button Reset, power, WPS, Wireless
Operation Working temperature: -5°C to +55°C; working humidity: 10-90% (non-condensation)
Storage Storage temperature: -30°C to +60°C; storage humidity: 10-90% (non-condensation)
Order Info
PT939G XPON ONU, 1*xPON + 1*GE RJ45 3*FE RJ45 + 1*RJ11 POTS + 2*USB + 2.4GHz & 5GHz Dual-Band Wi-Fi 5 (2*External 5dBi antennas); External DC 12V/1.5A power adapter
Production Facility Showcase
FAQ
1 Who are we?
We are a Guangdong-based optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a 11-50 person team dedicated to serving global clients.
2 How do we guarantee quality?
We maintain strict quality control through pre-production samples before mass production and conduct a mandatory 100% final inspection before shipment.
3 What can you buy from us?
Our product line includes FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other professional fiber optic equipment.
4 Why choose us as your supplier?
We are a top-tier optical communication supplier with over 50 employees. Our core focus lies in delivering stable PON and switching solutions supported by a strong engineering team, providing reliable products and value-added service for partners worldwide.
5 What services can we provide?
We support diverse delivery terms (FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.), multiple payment currencies (USD, EUR, CNY, etc.), various payment methods (T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.), and multilingual support (English, Chinese, Spanish, French, Russian, etc.).
6 What are the main connection interfaces of the PT939G?
The PT939G comes equipped with 4LAN ports, 1TEL port, 2USB ports, and Dual-Band WiFi (2.4G & 5G) utilizing external 5dBi antennas for optimal signal coverage.
