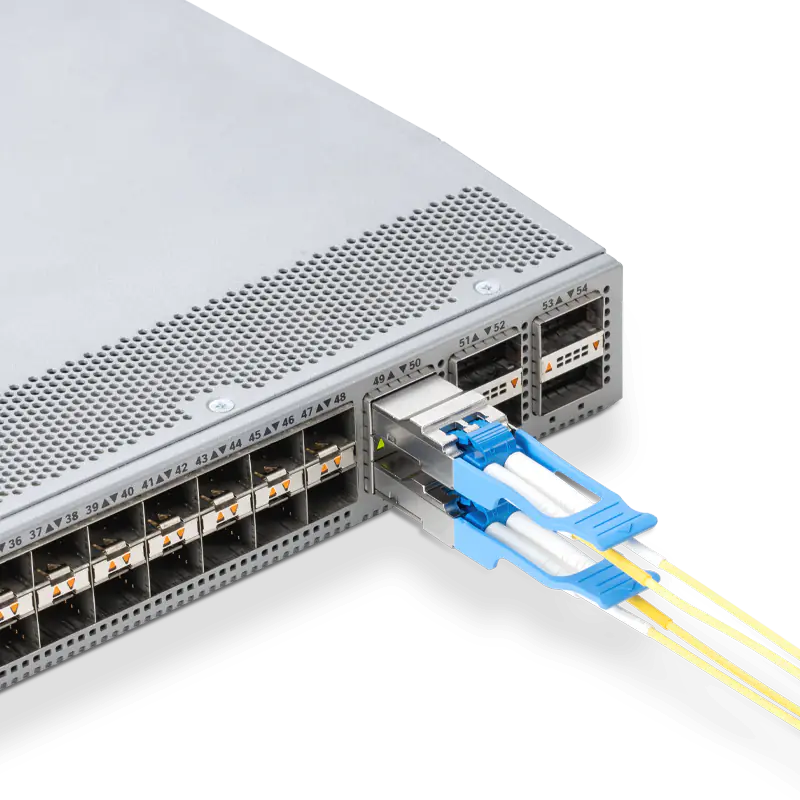

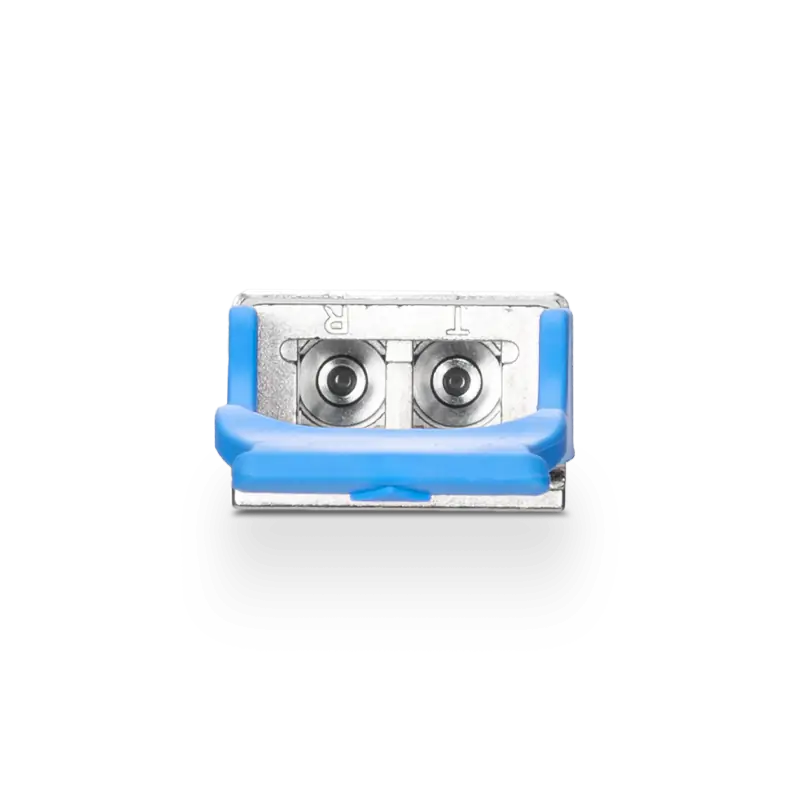

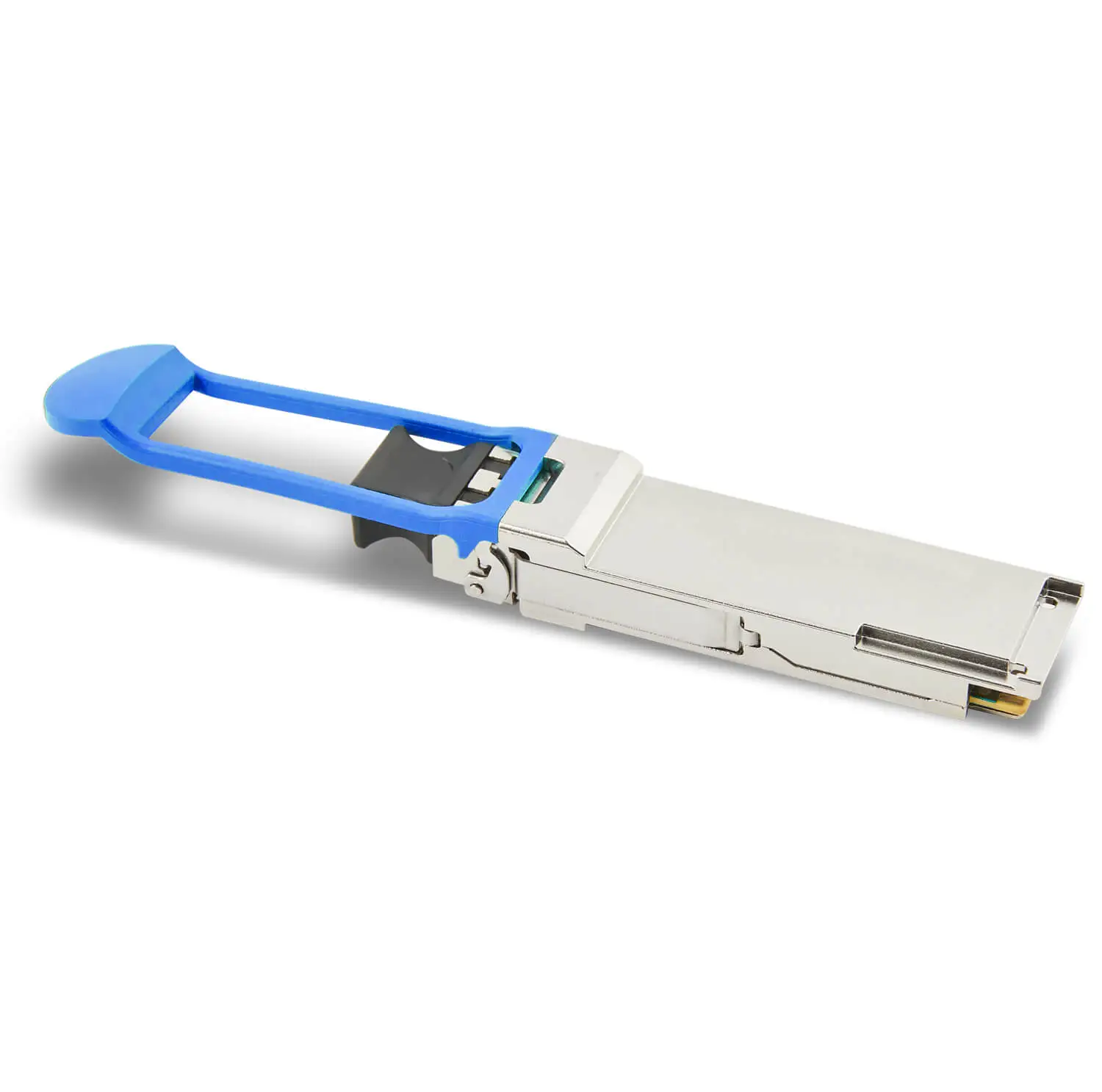

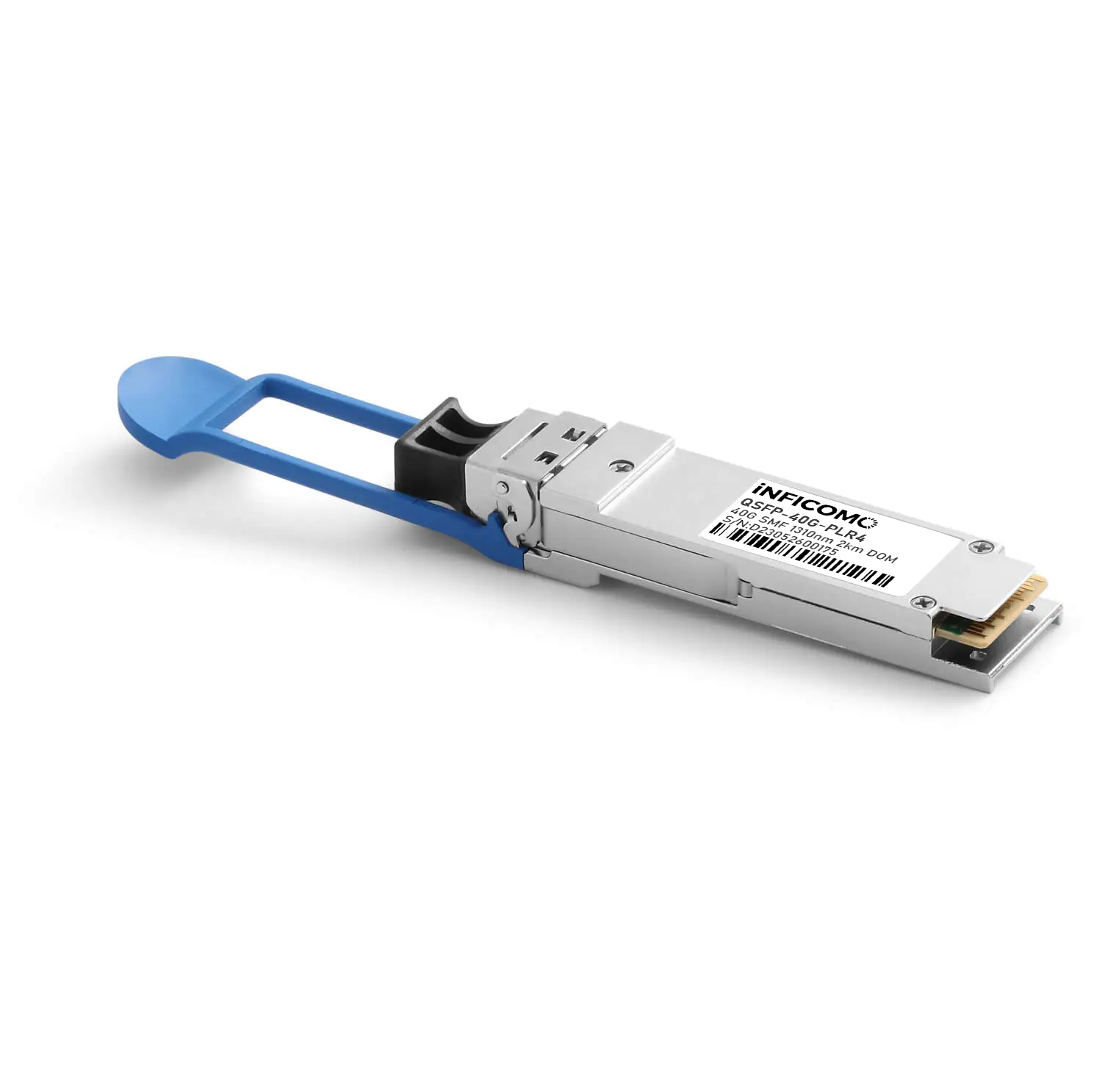

Host FEC QSFP-40G-PLRL4 QSFP+ 1310nm 2km DOM MPO-12/APC SMF Fiber Optic Transceiver Module

Product Description

Product Overview
📋 Specification
Part No. QSFP-40G-PLR4
Form Factor QSFP Max. Data Rate 44.6Gbps (4x 11.2Gbps)
Wavelength 1310nm Max. Cable Distance 2km
Connector MTP/MPO-12 Male Media SMF
Transmitter Type DFB CWDM Receiver Type PIN
TX Power -9.4~0.5dBm Receiver Sensitivity <-14.4dBm
Power Budget 5dB Receiver Overload 0.5dBm
Power Consumption ≤2.5W Extinction Ratio >3.5dB
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols 100G PSM4 MSA
Quality Guaranteed
Newly-Made, Quality Guaranteed
Proven Interoperability
Tested in Host Devices for Proven Interoperability
Reliability Testing
Comprehensive Testing Increases Reliability
🛒 Order Info
Model Introduction
QSFP-40G-SR4 QSFP+ 40G MMF 850nm 150m MPO DOM
QSFP-40G-eSR4 QSFP+ 40G MMF 850nm 300m MPO DOM
QSFP-40G-PLR4 QSFP+ 40G SMF 1310nm 2km LC DOM

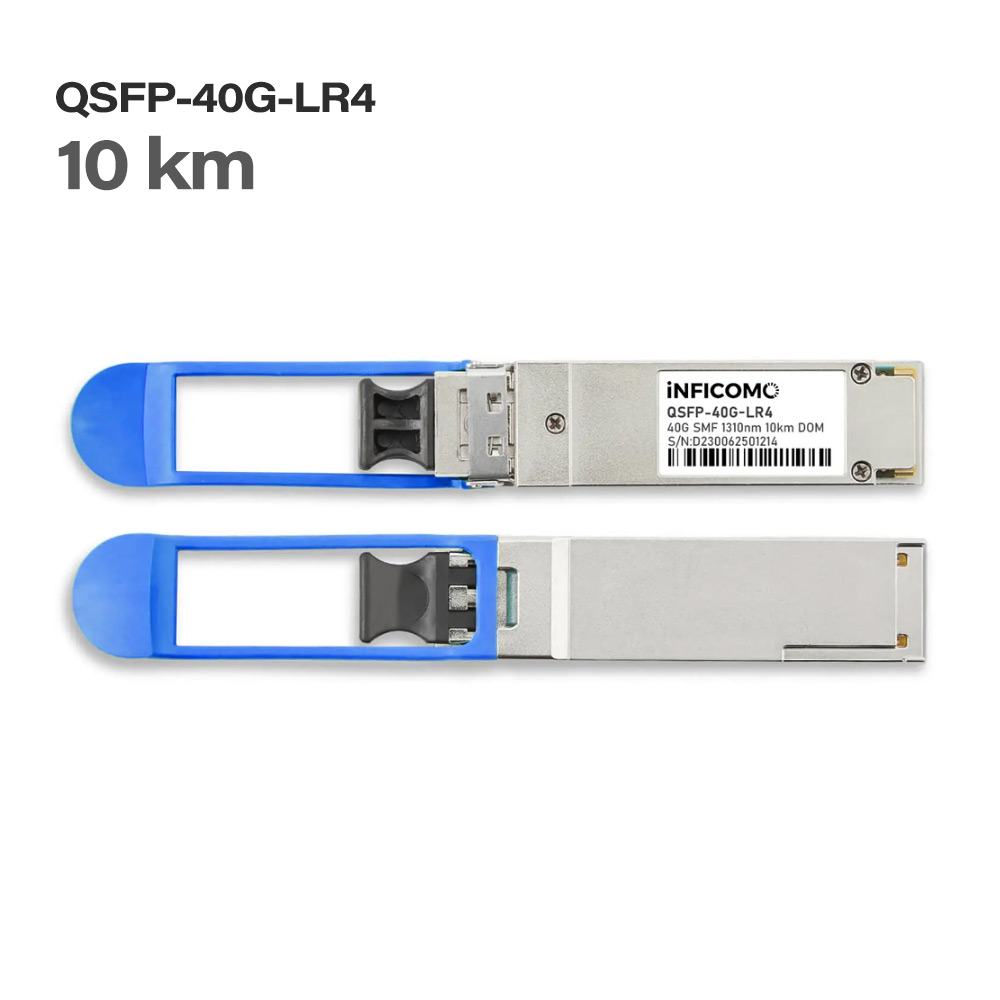

QSFP-40G-LR4 40G QSFP+ SMF 1310nm 10km LC DOM
QSFP-40G-ER4 40G QSFP+ SMF 1310nm 40km LC DOM
FAQ
💬 1. Who Are We?
We are an optical communication manufacturer. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America, dedicated to serving global clients.
💬 2. How Do We Guarantee Quality?
  • Pre-production samples before mass production
  • 100% final inspection before shipment
💬 3. What Can You Buy From Us?
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
💬 4. Why Choose Us?
We are a top-tier optical communication supplier. Our core focus is PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.
💬 5. What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages: English, Chinese, Spanish, French, Russian, and more
