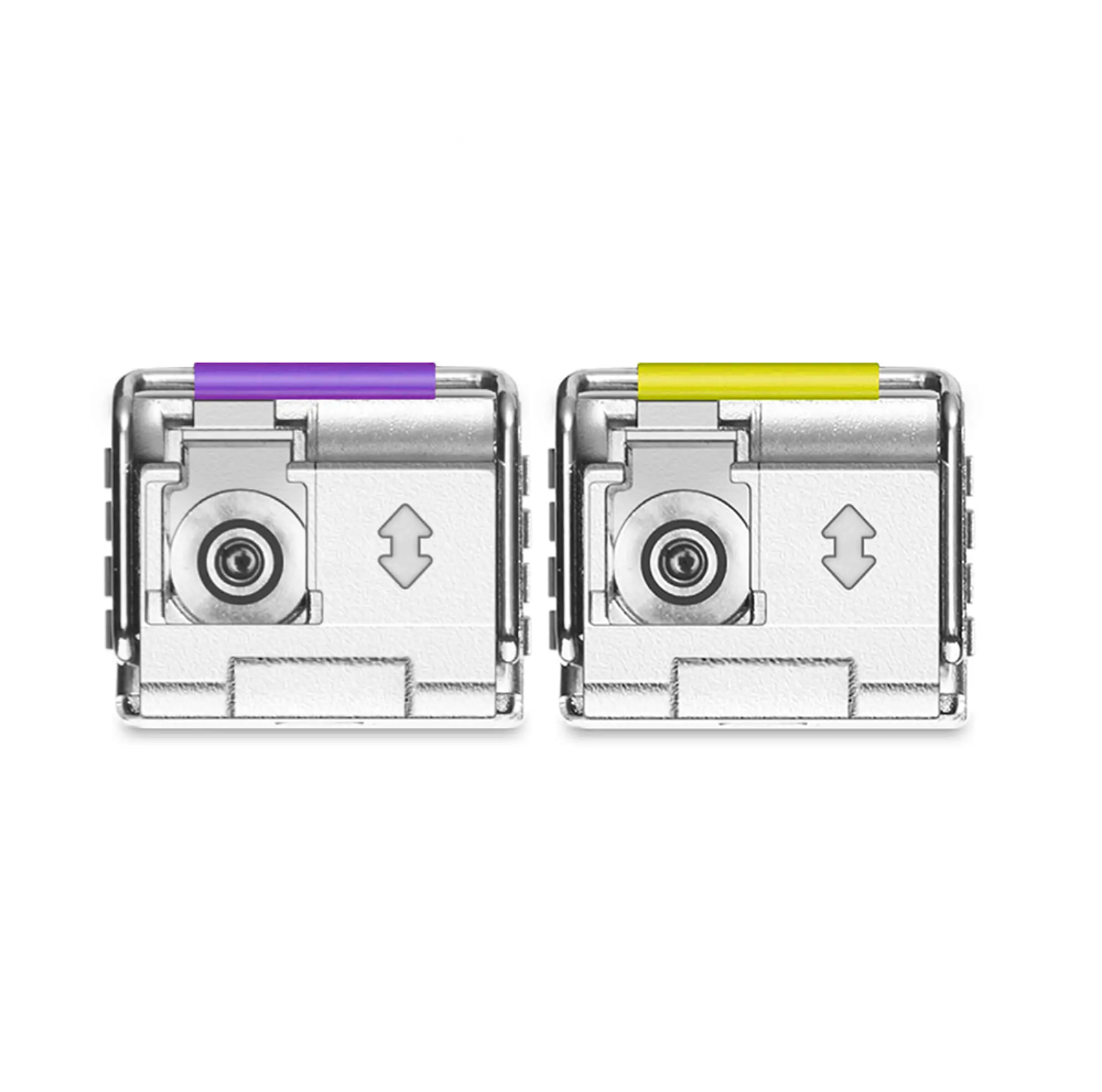

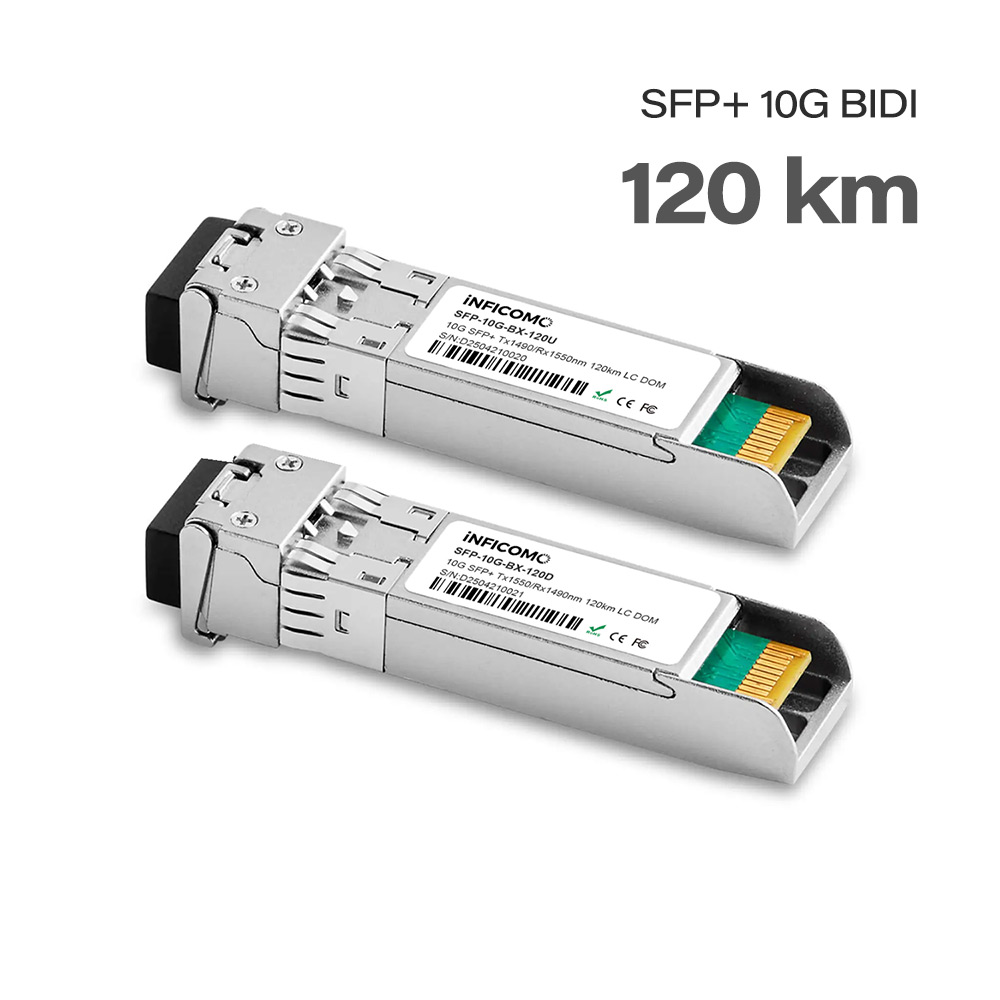

10G SFP+ BIDI 120km 1490/1550nm LC Connector Fiber Optic Transceiver Module with 5-Year Warranty

Product Description

Product Overview

Specification

SFP-10G-BX-120U Specifications
Part No. SFP-10G-BX-120U Max. Data Rate 10.3125Gbps
Form Factor SFP+ Max. Cable Distance 120km
Wavelength 1490nm-TX/1550nm-RX Optical Components EML BiDi
Connector Simplex LC DOM Support Yes
Media SMF Receiver Sensitivity <-23dBm
TX Power 1~5dBm Protocols SFP+ MSA Compliant, CPRI, eCPRI
Commercial Temp Range 0 to 70°C (32 to 158°F)
SFP-10G-BX-120D Specifications
Part No. SFP-10G-BX-120D Max. Data Rate 10.3125Gbps
Form Factor SFP+ Max. Cable Distance 120km
Wavelength 1550nm-TX/1490nm-RX Optical Components EML BiDi
Connector Simplex LC DOM Support Yes
Media SMF Receiver Sensitivity <-23dBm
TX Power 1~5dBm Protocols SFP+ MSA Compliant, CPRI, eCPRI
Commercial Temp Range 0 to 70°C (32 to 158°F)
🛡️
New-Made, Quality Guaranteed
Quality Guaranteed
💻
Tested in Host Devices for Proven Interoperability
Interoperability Testing
⚙️
Comprehensive Testing Increases Reliability
Reliability Testing

Order Info

Model Introduction

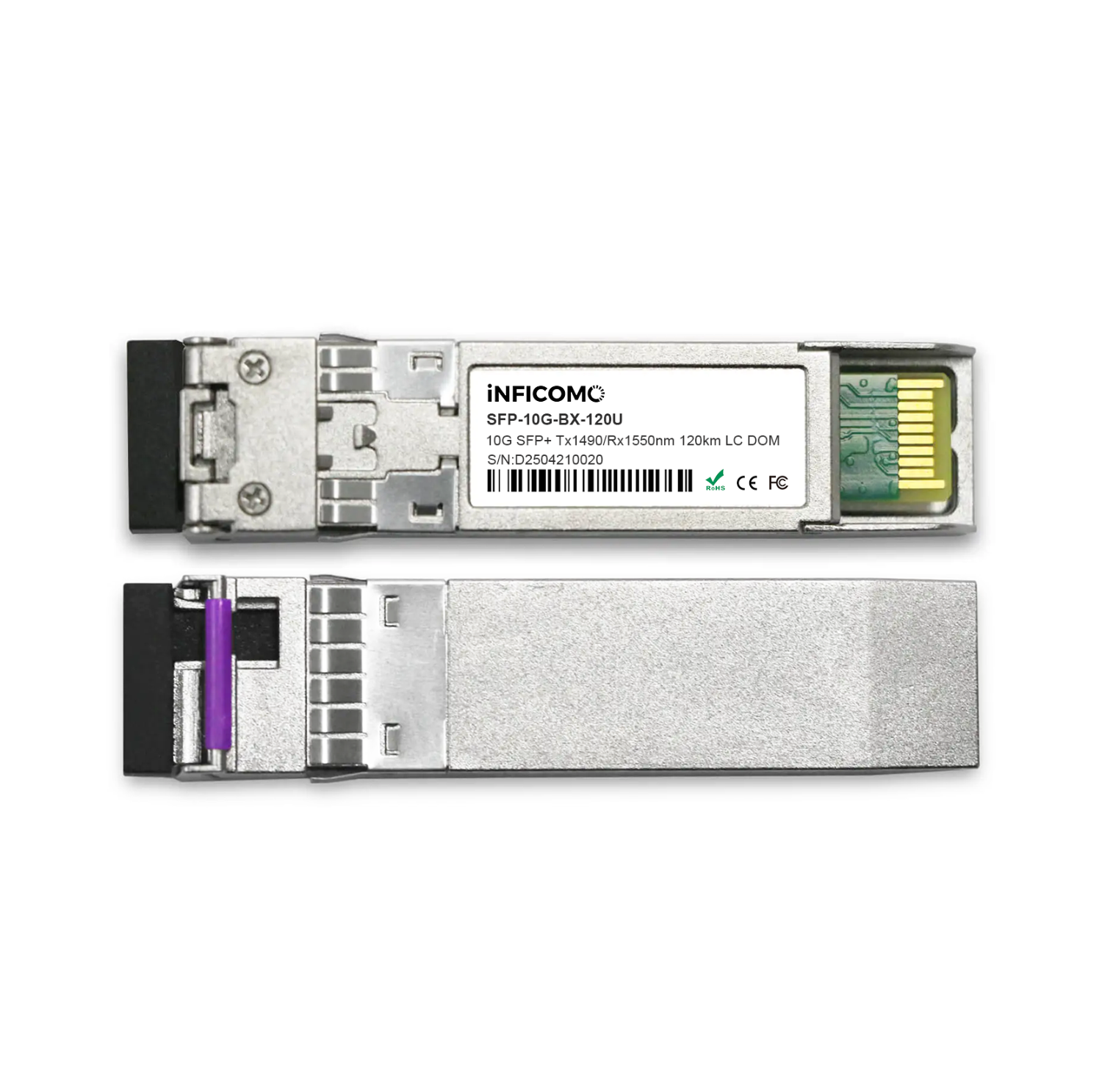

SFP-10G-BX-120U 10G SFP+ BiDi Tx1490/Rx1550nm 120km LC DOM

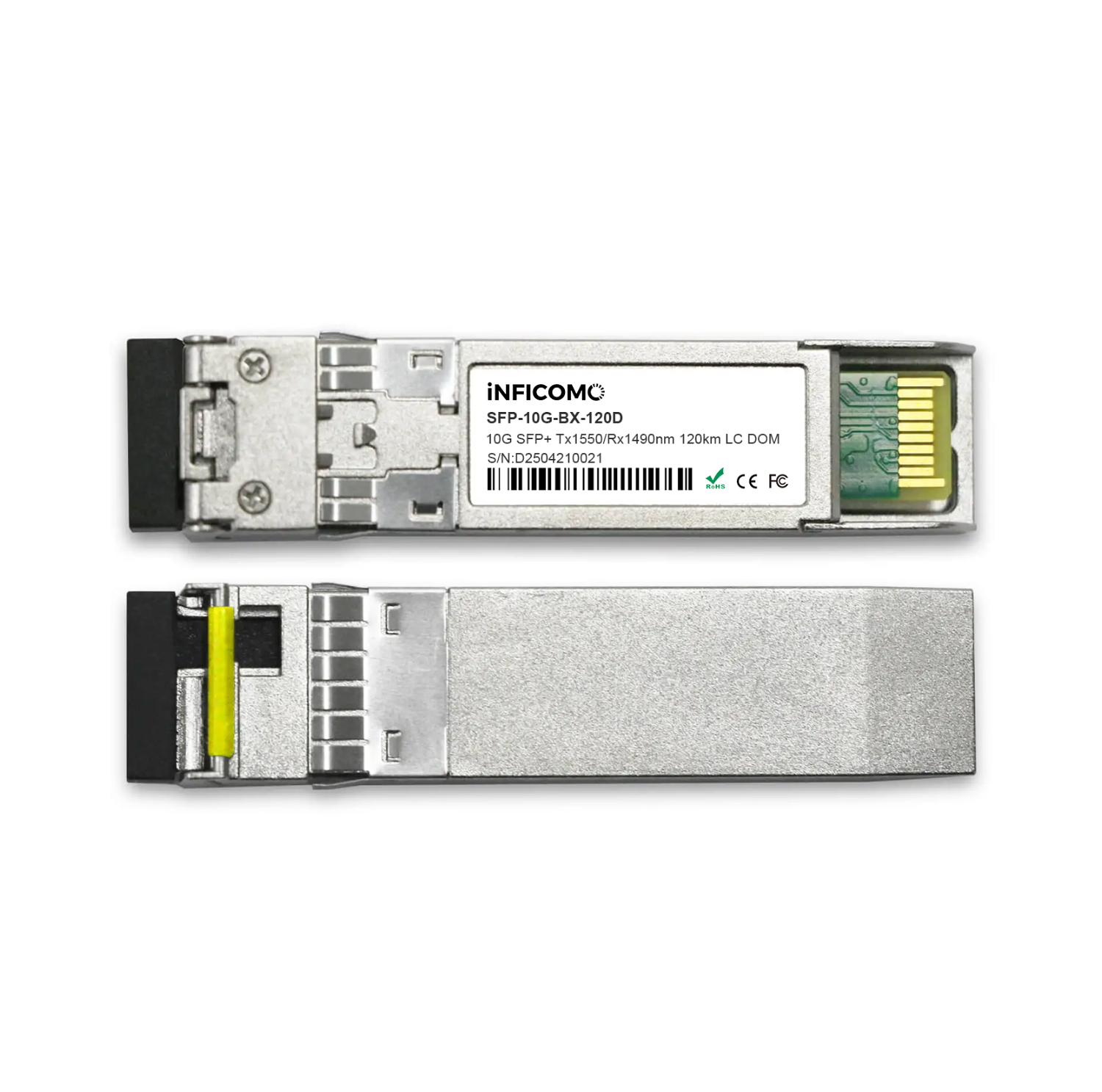

SFP-10G-BX-120D 10G SFP+ BiDi Tx1550/Rx1490nm 120km LC DOM

FAQ

Q1: Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients.
Q2: How Do We Guarantee Quality?
We maintain strict quality control through:
  • Pre-production samples before mass production
  • 100% final inspection before shipment
Q3: What Can You Buy From Us?
We offer a comprehensive range of fiber optic equipment, including FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other optical solutions.
Q4: Why Choose Us?
We are a top-tier optical communication supplier. Our core focus is delivering advanced PON and switching solutions, backed by a strong engineering team to support reliable product delivery and value-added service for partners worldwide.
Q5: What Services Can We Provide?
We support a variety of global transaction requirements:
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Supported Languages: English, Chinese, Spanish, French, Russian, and more
